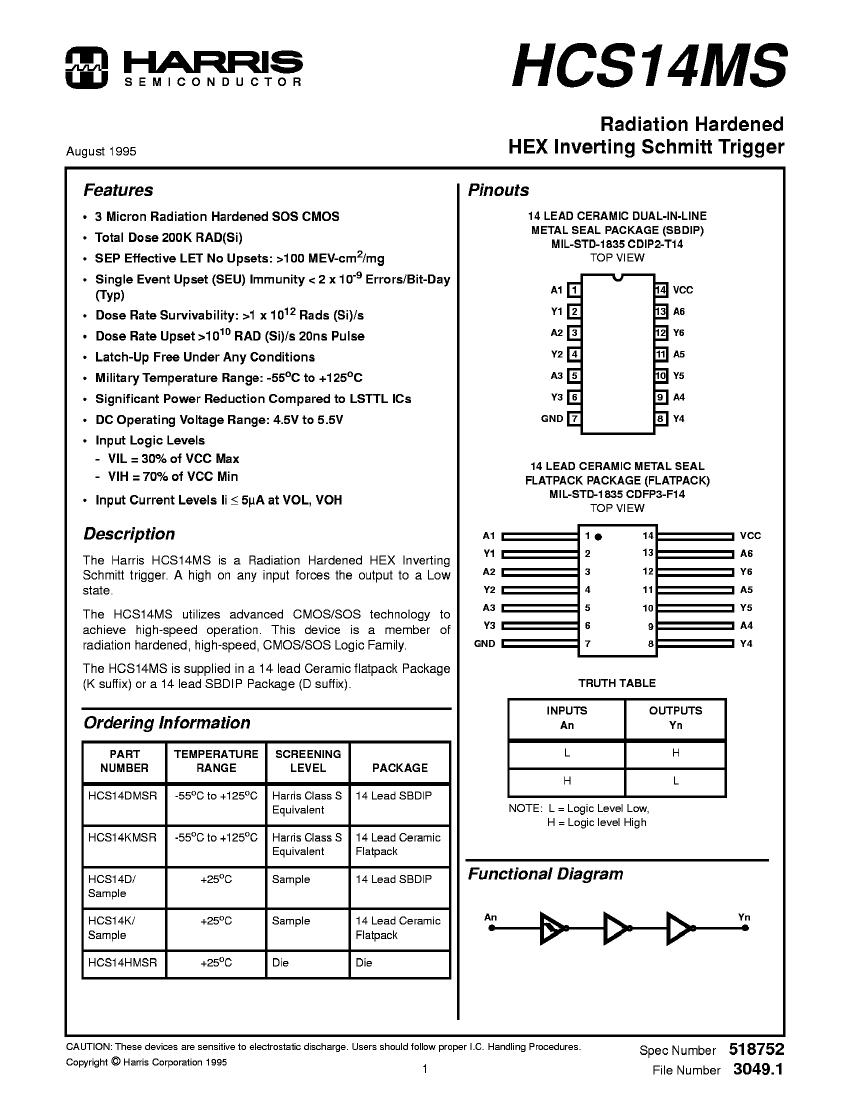

Inverter, HC/UH Series, 6-Func, 1-Input, CMOS

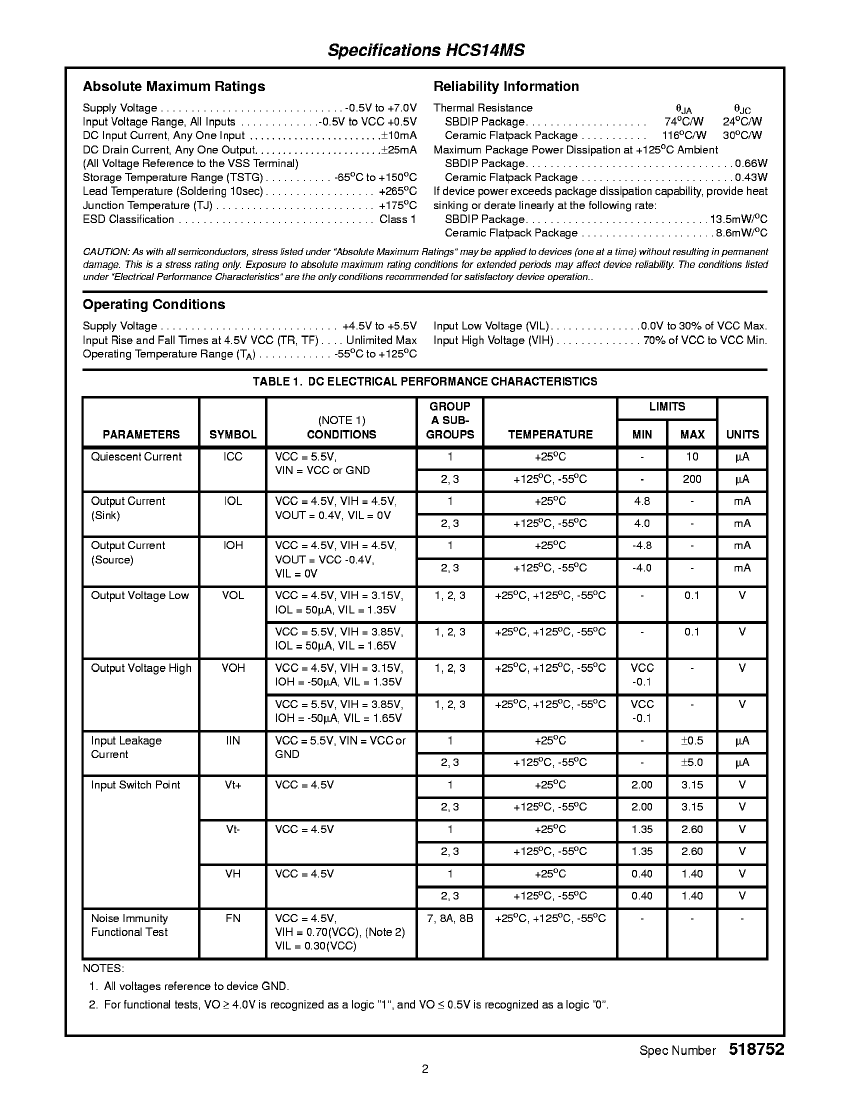

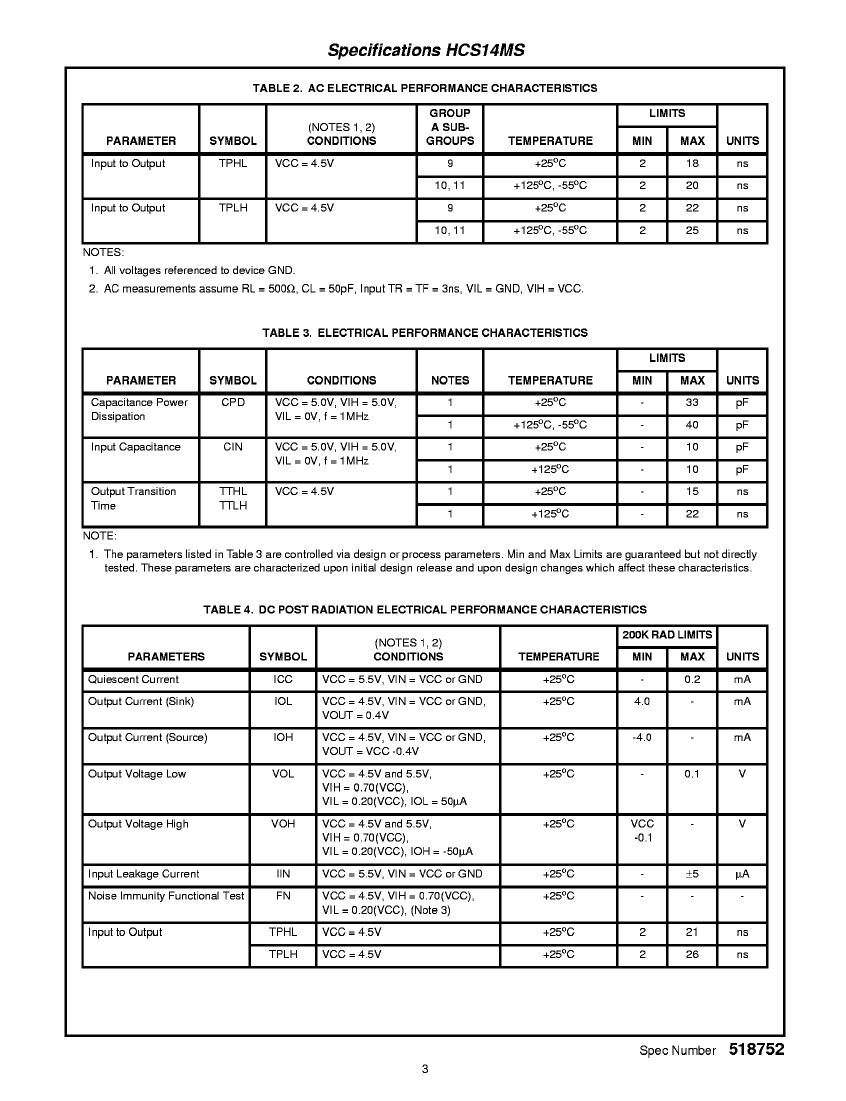

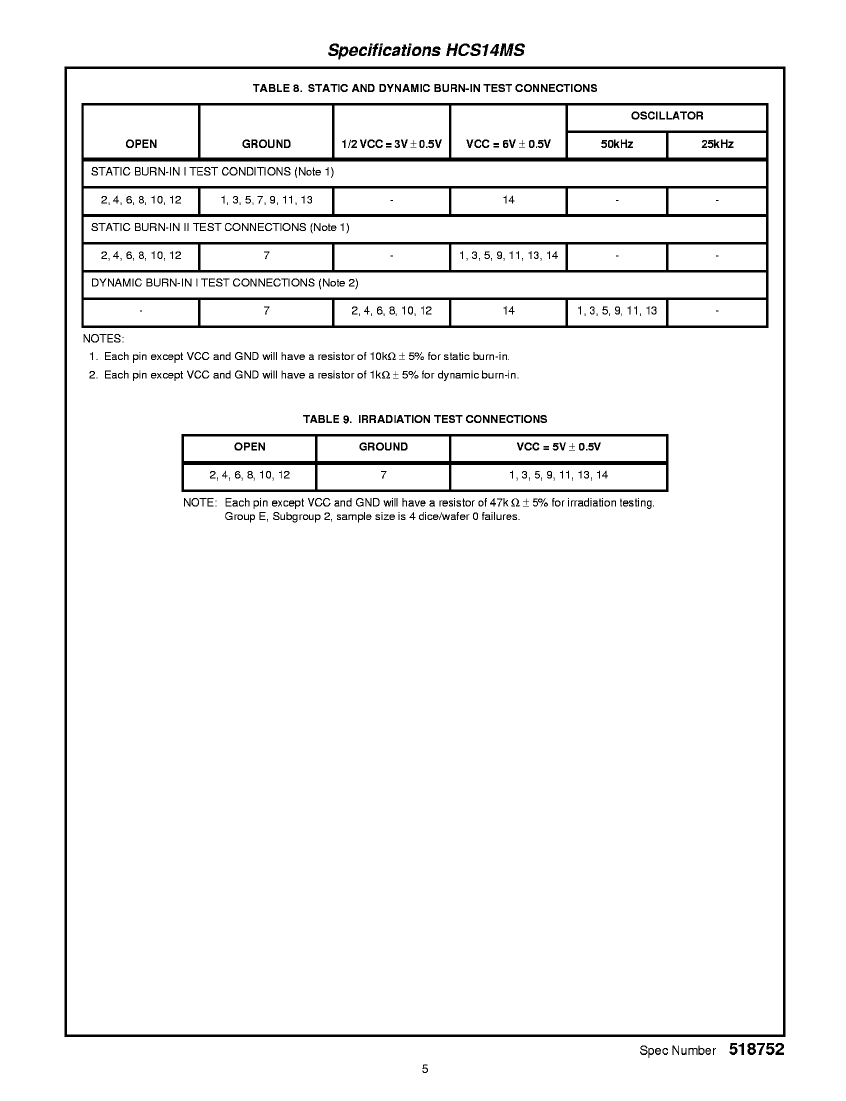

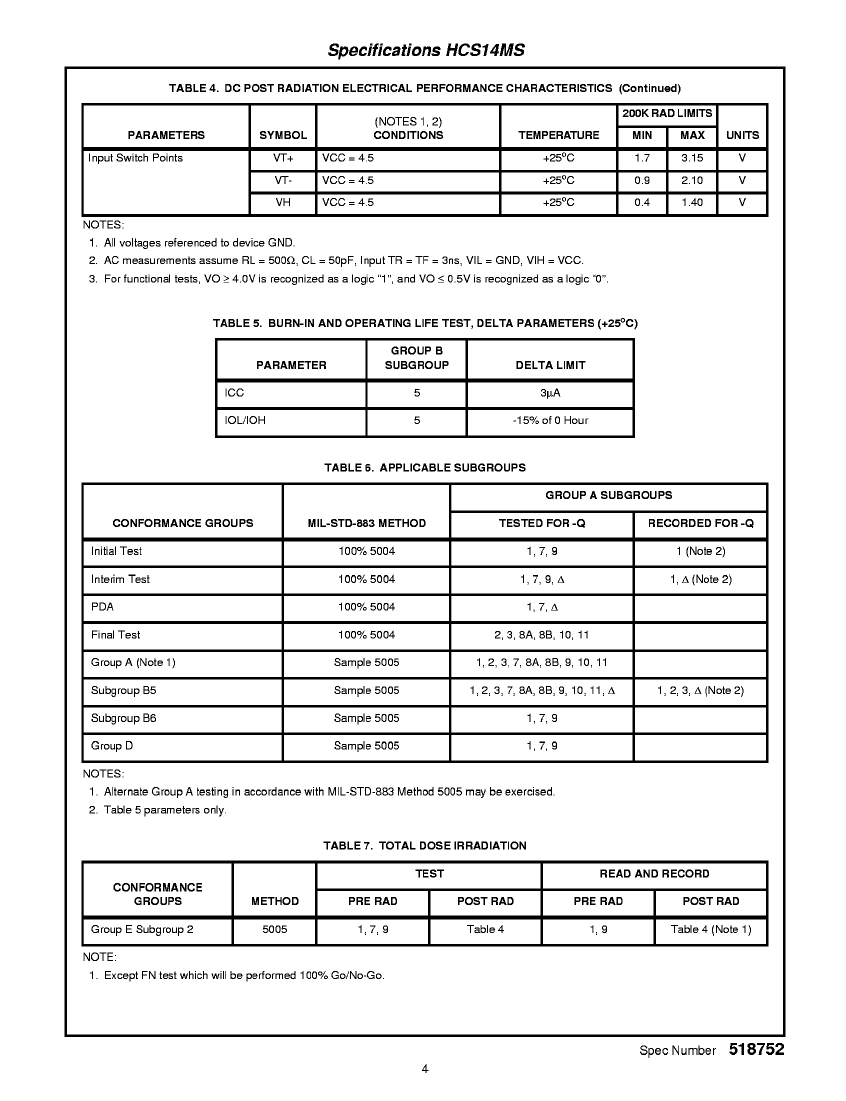

| Parameter Name | Attribute value |
| Maker | Harris |
| package instruction | DIE, |
| Reach Compliance Code | unknown |
| series | HC/UH |
| JESD-30 code | X-XUUC-N14 |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | INVERTER |
| Number of functions | 6 |
| Number of entries | 1 |
| Number of terminals | 14 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | UNSPECIFIED |
| encapsulated code | DIE |
| Package shape | UNSPECIFIED |
| Package form | UNCASED CHIP |
| propagation delay (tpd) | 18 ns |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal form | NO LEAD |
| Terminal location | UPPER |
| Base Number Matches | 1 |
| HCS14HMSR | HCS14DMSR | HCS14KMSR | HCS14D/SAMPLE | 5962R9568101VCC | 5962R9568101V9A | HCS14K/SAMPLE | 5962R9568101VXC | |
|---|---|---|---|---|---|---|---|---|
| Description | Inverter, HC/UH Series, 6-Func, 1-Input, CMOS | Inverter, HC/UH Series, 6-Func, 1-Input, CMOS, CDIP14 | Inverter, HC/UH Series, 6-Func, 1-Input, CMOS, CDFP14 | Inverter, HC/UH Series, 6-Func, 1-Input, CMOS, CDIP14 | Inverter, HC/UH Series, 6-Func, 1-Input, CMOS, CDIP14 | Inverter, HC/UH Series, 6-Func, 1-Input, CMOS | Inverter, HC/UH Series, 6-Func, 1-Input, CMOS, CDFP14 | Inverter, HC/UH Series, 6-Func, 1-Input, CMOS, CDFP14 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| series | HC/UH | HC/UH | HC/UH | HC/UH | HC/UH | HC/UH | HC/UH | HC/UH |
| JESD-30 code | X-XUUC-N14 | R-CDIP-T14 | R-CDFP-F14 | R-CDIP-T14 | R-CDIP-T14 | X-XUUC-N14 | R-CDFP-F14 | R-CDFP-F14 |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | INVERTER | INVERTER | INVERTER | INVERTER | INVERTER | INVERTER | INVERTER | INVERTER |
| Number of functions | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Number of entries | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| Package body material | UNSPECIFIED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | UNSPECIFIED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| Package shape | UNSPECIFIED | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | UNSPECIFIED | RECTANGULAR | RECTANGULAR |
| Package form | UNCASED CHIP | IN-LINE | FLATPACK | IN-LINE | IN-LINE | UNCASED CHIP | FLATPACK | FLATPACK |
| propagation delay (tpd) | 18 ns | 20 ns | 20 ns | 18 ns | 20 ns | 18 ns | 18 ns | 20 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | NO | YES | NO | NO | YES | YES | YES |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Terminal form | NO LEAD | THROUGH-HOLE | FLAT | THROUGH-HOLE | THROUGH-HOLE | NO LEAD | FLAT | FLAT |
| Terminal location | UPPER | DUAL | DUAL | DUAL | DUAL | UPPER | DUAL | DUAL |
| Maker | Harris | Harris | Harris | Harris | - | - | Harris | Harris |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | - | 125 °C | 125 °C | - | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | - | -55 °C | -55 °C | - | -55 °C |
| Temperature level | MILITARY | MILITARY | MILITARY | - | MILITARY | MILITARY | - | MILITARY |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - |
| JESD-609 code | - | e0 | e0 | - | e4 | e0 | - | e4 |
| Terminal surface | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | - | GOLD | TIN LEAD | - | GOLD |
| total dose | - | 200k Rad(Si) V | 200k Rad(Si) V | - | 100k Rad(Si) V | 100k Rad(Si) V | - | 100k Rad(Si) V |
