Sulfur Tolerant Chip Resistors

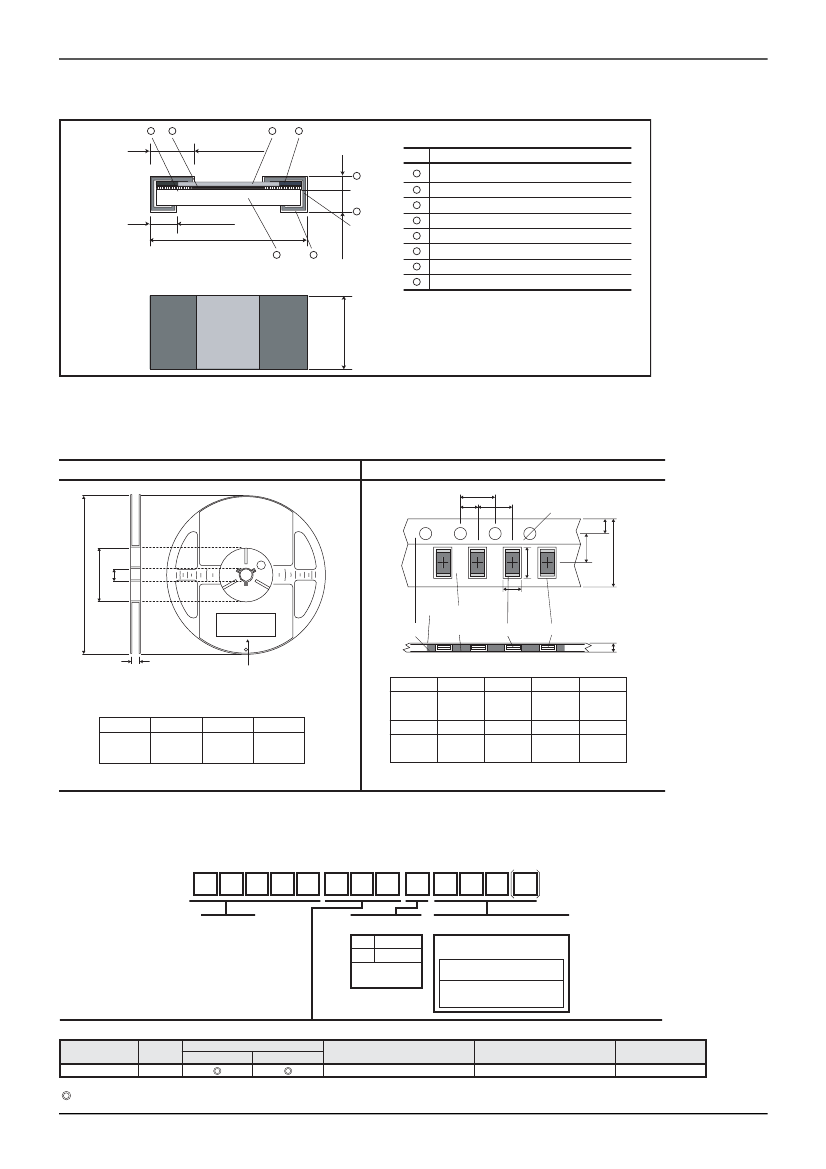

TRR10 (2012size (0805inch) )
Features
1) Unique protect materials prevent from silver sulfide occurrence under sulfur environment.
2) Highly recommended for automotive, industrial and Power supply applications under sulfur environment.
3) Realize the good cost performance not like the Au terminal components from other suppliers.
4) ROHM resistors have approved ISO9001 / ISO/TS 16949 certification.
Design and specifications are subject to change without notice. Carefully check the specification sheet supplied with the product
before using or ordering it.
Ratings
Item
Rated power
Conditions
Power must be derated according to the power derating curve in
Figure 1 when ambient temperature exceeds 70°C.
100
80
POWER LOAD (%)
Specifications
0.125W (1 / 8W)
at 70°C
60
40
20
0
−55
0
70
100
155
AMBIENT TEMPERATURE (°C)
Fig.1
Rated voltage
The voltage rating is calculated by the following equation.
If the value obtained exceeds the limiting element voltage,
the voltage rating is equal to the maximum operating voltage.
E=
Nominal resistance
Operating temperature
P×R
E: Rated voltage (V) P: Rated power (W)
R: Nominal resistance (Ω)
Limiting element voltage
150V
See Table 1.
−55°C
to
+155°C
Jumper type
Resistance
Rated current
Max. 50mΩ
2A
Table 1
Resistance tolerance
J (±5%)
F (±1%)
Resistance range
(Ω)
1.0 to 9.1
10 to 10M
10 to 2.2M
(E24)
(E24)
(E24)
Resistance temperature coefficient
(ppm/°C)
±400
±200
±100
Operating temperature
−55°C
to
+155°C
Before using components in circuits where they will be exposed to transients such as pulse loads (short–duration, high– level loads), be
certain to evaluate the component in the mounted state. In addition, the reliability and performance of this component cannot be guaranteed if it
is used with a steady state voltage that is greater than its rated voltage.
www.rohm.com
c
○
2009 ROHM Co., Ltd. All rights reserved.
1/3
2009.03 - Rev.A
TRR10
Characteristics
Item
Guaranteed value
Resistor type
Jumper type
J :
±5%
F :
±1%
Max. 50mΩ
Test conditions (JIS C 5201-1)
JIS C 5201-1 4.5
Data Sheet
Resistance
Variation of resistance
with temperature
Overload
See Table.1
±
(2.0%+0.1Ω)
JIS C 5201-1 4.8
Measurement :
+25
/
+125°C
JIS C 5201-1 4.13
Rated voltage (current)
×2.5,
2s.
Maximum overload voltage : 200V
JIS C 5201-1 4.17
Rosin·Ethanol (25%WT)
Soldering condition : 235±5°C
Duration of immersion : 2.0±0.5s.
JIS C 5201-1 4.18
Soldering condition : 260±5°C
Duration of immersion : 10±1s.
JIS C 5201-1 4.19
Test temp. :
−55°C
to
+125°C
5cyc
JIS C 5201-1 4.24
40°C, 93%RH
Test time : 1,000h to 1,048h
JIS C 5201-1 4.25.1
Rated voltage (current), 70°C
1.5h : ON
−
0.5h : OFF
Test time : 1,000h to 1,048h
JIS C 5201-1 4.25.3
155°C
Test time : 1,000h to 1,048h
JIS C 5201-1 4.29
23±5°C, Immersion cleaning, 5±0.5min.
Solvent : 2-propanol
JIS C 5201-1 4.33
Max. 50mΩ
Solderability
A new uniform coating of minimum of
95% of the surface being immersed
and no soldering damage.
±
(1.0%+0.05Ω)
Max. 50mΩ
No remarkable abnormality on the appearance.
±
(1.0%+0.05Ω)
±
(3.0%+0.1Ω)
Max. 50mΩ
Max. 100mΩ
Resistance to
soldering heat
Rapid change of
temperature
Damp heat, steady state
±
(3.0%+0.1Ω)
Endurance at 70°C
±
(3.0%+0.1Ω)
Endurance
Max. 100mΩ
Max. 100mΩ
±
(1.0%+0.05Ω)
Resistance to solvent
Max. 50mΩ
Bend strength of
the end face plating
Max. 50mΩ
±
(1.0%+0.05Ω)
Without mechanical damage such as breaks.
www.rohm.com
c
○
2009 ROHM Co., Ltd. All rights reserved.
2/3
2009.03 - Rev.A
