Integrated
Circuit
Systems, Inc.
ICS1660
Incoming Call Line Identification (ICLID) Receiver
with Ring Detection
Description
The
ICS1660
“ICLID” circuit is a monolithic CMOS VLSI
device that decodes and detects the Frequency Shift Keying
(FSK) signals used in caller identification telephone service.
The
ICS1660,
when used in conjunction with some external
components, amplifies, filters and demodulates the FSK
data transmitted from the central office to the telephone
subscriber.
The
ICS1660
detects the first power ring signal and demodu-
lates the 1200 baud FSK data transmitted during the silent
interval between the first and second power ring. The FSK data
is transmitted from the central office switch to the subscriber
line as part of the CLASS service of Calling Number Delivery
(CND). This data is then demodulated, amplified and filtered
by the
ICS1660
and digitally transmitted to the host control-
ler/processor.
The
ICS1660
is designed to be powered by any off-the-shelf
9.0 volt battery. The on-chip 5.0 voltage regulator powers the
host microprocessor and any external circuitry supported by
the
ICS1660.
This portion of the circuit can be overridden by
connecting the V
IN
pin (18) to the V
DD
pin (1) for a common
power supply. A low battery detection circuit is also provided
on-chip and signals the microprocessor on the FSK/BAT pin
(17) when the PWR pin (16) input is pulled low.
Features
•
•
•
•
•
•
Ring Detection
Low Battery Detection
Internal 5V Regulator - can externally source 25mA
FSK Demodulation
Power-down in Standby Mode
Direct Interface to Host Microprocessor or
Microcomputer
Applications
•
•
•
•
•
Telephones
Facsimile Machines
Modems
Telephone Interface Equipment
Stand-alone ICLID products
ICLID Block Diagram
TO LINE
Surge and
Lightning
Protection
TO PHONE
8
Data
2 x 16 LCD
Display
3
Control
Micro-
Controller
KEYPAD
ICS1660
Rng Detect
FSK Demodulation
Signal Conditioning
Low Battery Detect
Power-down
Standby
AC/DC
Adapter
DC
Jack
9VDC
Voltage
Regulation
+5VDC
External
Memory
(RAM/EPROM)
ICS1660RevA100694
ICS1660
Function Description
Power Supply
The
ICS1660
is designed to be powered by a standard 9.0 volt
battery. The chip contains a voltage regulator that powers
external circuitry and provides the supply voltage for all digital
I/O on the circuit. This allows easy interface between the
ICS1660
and other standard logic working at 5.0V. This regu-
lator has short circuit protection and requires an external fil-
ter/compensation capacitor with a minimum value of 10uf.
In the event that an external regulated 5.0V supply is available,
the V
IN
and V
DD
pins can be shorted to permit the entire system
to work from a common supply.
A low battery detection circuit is provided. This circuit is
designed for a typical trip point of 6.0V with hysteresis of about
200mV above the trip point. This signal is low active and is
multiplexed to the FSKBAT output pin when the PWR input is
low.
In an effort to keep power dissipation to a minimum and extend
battery life, most of the analog circuits are turned off when the
circuit is at rest waiting for a ring detect, (PWR pin low).
During this time only the regulator, low battery detect, refer-
ence generator, and ring detect circuits are active. When the
PWR pin is high, all circuits are active.
Differential Front End
As shown in the attached block diagram, the LINEA and
LINEB inputs go into a differential amplifier which in turn
drives a filter. All resistors are internal to the chip while
capacitors are connected as shown in the block diagram. After
filtering, the signal is AC coupled into a high gain amplifier
that converts the signal to digital. This digital signal in turn acts
as the reference frequency for the phase comparator section of
the phase locked loop.
FSK Demodulation
After the signal from the telephone line has been filtered,
amplified and converted to digital, it acts as an input to a phase
locked loop. This PLL does FSK demodulation. The summing
amplifier shown in the block diagram provides a signal to the
VCO that should be about 0.5V for MARK frequency
(1200 HZ), and 2.0V for SPACE frequency (2200 HZ).
As shown in the block diagram, the LFILTER (loop filter)
output has a post filter attached to it. This POSTF signal is sent
to a comparator. The other side of the comparator is set to
approximately 2.5V. This comparator has a small amount
(200mV) of hysteresis and its output is the demodulated FSK
data. The FSK output is high for MARK frequency and low for
SPACE frequency. FSK data is multiplexed out of the
FSKBAT pin when the PWR input is high.
The VCO frequency is set with one external resistor with a
value in the range of 300K for a center frequency of 1700 HZ.
The lock range will be 660 HZ to 2630 HZ typical. The center
frequency reproducibility will be
±15%.
The center frequency
can be adjusted in the system by connecting AMPIN to VSS,
PWR to VDD, and adjusting the external resistor for 1700 HZ.
This frequency can be observed at the LFILTER output or the
FSK/BAT output.
Ring Detect
As shown in the attached block diagram, the LINEA and
LINEB inputs should be connected to the telephone line
through external 82kΩ resistors and 0.1uf capacitors. This
provides DC isolation and sets up a voltage divider with inter-
nal resistors that will detect 35.0V RMS typically. This voltage
is applied across the LINEA and LINEB inputs. The design
value of the internal resistors is 8.1KΩ
±
20% with relative
accuracy of 2%. The RING output is high active.
3
ICS1660

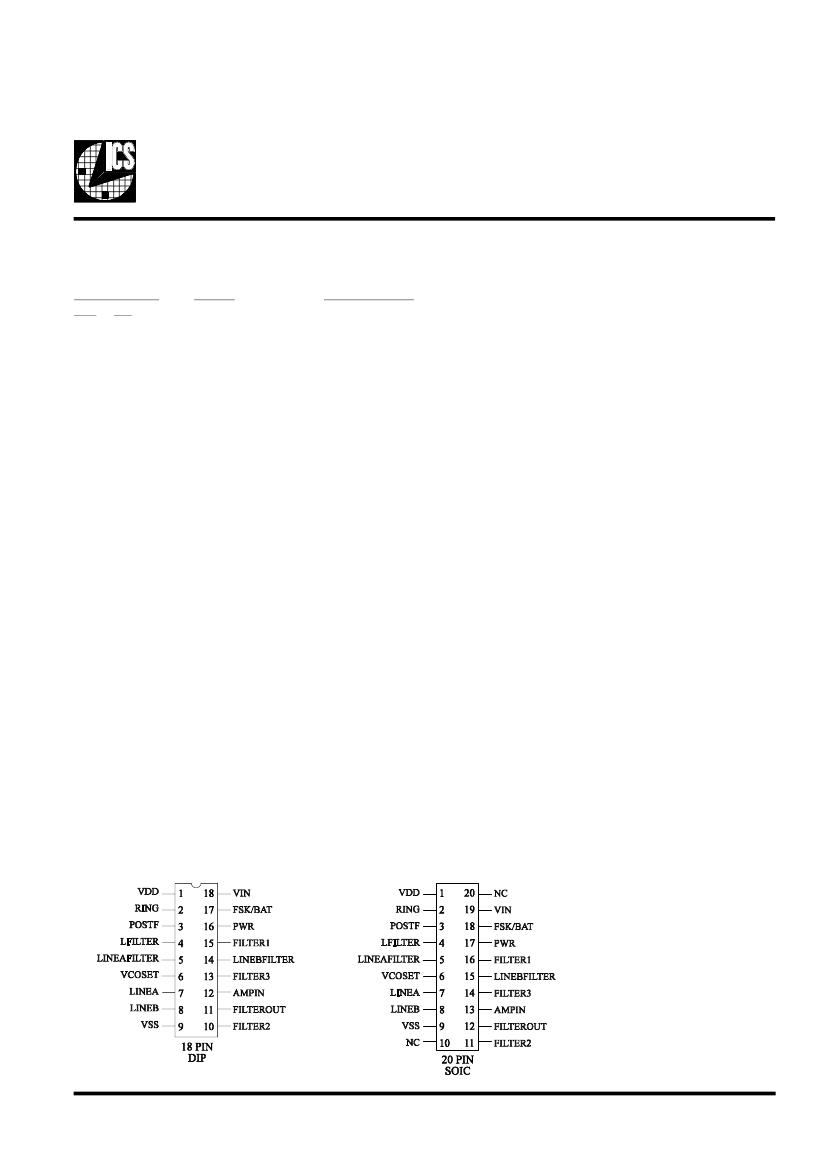

Pin Descriptions
PIN NUMBER
DIP SO
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
2
3
4
5
6
7
8
9
11
12
13
14
15
16
17
18
NAME
VDD
RING
POSTF
LFILTER
LINEAFILTER
VCOSET
LINEA
LINEB
VSS
FILTER2
FILTEROUT
AMPIN
FILTER3
LINEBFILTER
FILTER1
PWR
FSK/BAT
DESCRIPTION
Supply voltage pin to external circuits. Output of 5.0 volt regulator.
Ring detect output signal to the host microprocessor.
Post loop filter signal used by demodulator.
Loop filter for PLL.
Filter input from line “A.”
Center frequency adjustment pin.
“Tip” input from telephone line.
“Ring” input from telephone line.
Ground.
Active filter pin.
Active filter pin.
Input from active filter.
Active filter pin.
Filter input from line “B.”
Active filter pin.
Logic input signal to switch from low current standby mode.
Multiplexed output signal controlled by PWR pin. In standby mode, this is a
low battery (active low) signal. During FSK demodulation, this is the data line
to the
µP
(mark = high).
Input power supply pin.
18
10
19
20
VIN
NC on SOIC
5
Microcontroller MCU
