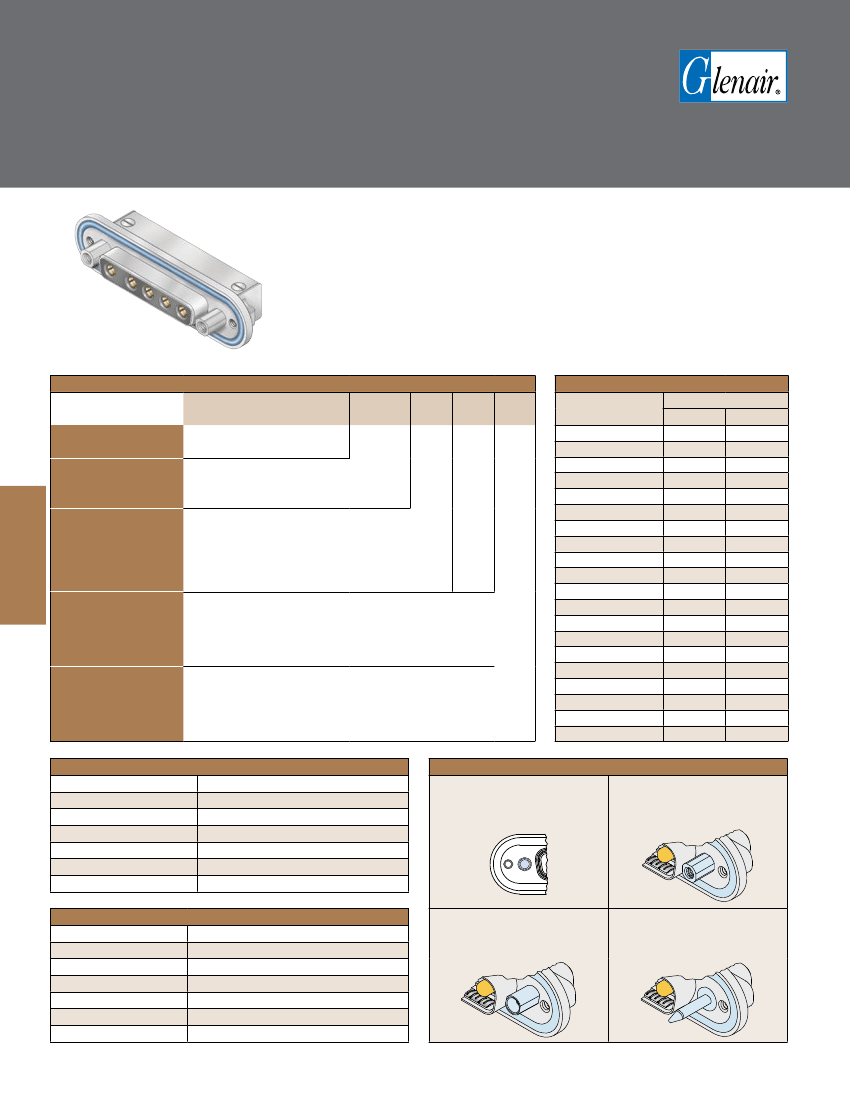

series 28
HiPer-D Combo Connectors
280-053S right angle PC tail combo socket connectors with O-ring
flange for rear panel mounting
The HiPer-D is a high performance version of the M24308-type D-Subminiature
connector. HiPer-D connectors feature improved EMI performance and environmental
sealing and “closed entry” contact cavity for improved contact protection. Factory-
installed PC tail contacts, integral board standoffs and threaded holes for attaching to
circuit board. Gold-plated copper alloy contacts, one-piece machined aluminum shell,
glass-reinforced thermoset epoxy insulator, epoxy potting compound, fluorosilicone
O-ring. 1000 VAC, 7.5 Amps (#20), up to 40 Amps with size #8 power contacts.
How To Order
Sample Part Number
Basic Part Number
Shell Size-
Contact Arrangement
280-053S
Contact Arrangements are shown in the
adjacent table
ME
= Electroless Nickel (RoHS)
MT
= Nickel-PTFE (RoHS)
JF
= Cadmium with Yellow Chromate
Z2
= Gold (RoHS)
Z1
= Passivated Stainless Steel (RoHS)
N
= No Hardware
P
= #4-40 Female Jackposts
G
= Male Guide Pins
B
= Female Guide Bushings
280-053S
3-13P3
ME
N
A
C
Shell Finish
Mating Hardware
PC Tail Length
A
= .125 (3.18) Tail Length
B
= .250 (6.35) Tail Length
Contact Arr.
1-2P2
1-5P1
2-3P3
2-7P2
2-11P1
3-5P5
3-9P4
3-13P3
3-17P2
3-21P1
4-8P8
4-13P6
4-17P5
4-21PA4
4-25P3
4-27P2
5-24P7
5-36P4
5-43P2
5-47P1
Contact Arrangements
Contact Size and Qty
Shell Size-
#20
4
5
10
5
10
15
20
7
12
17
22
25
17
32
41
46
#8
2
1
3
2
1
5
4
3
2
1
8
6
5
4
3
2
7
4
2
1
Specifications
Mating Hardware
Current Rating
Test Voltage
Insulation Resistance
Operating Temperature
Ingress Protection
Shock
Vibration, Random
#20 7.5 AMPS, #8 40 AMPS
1000 VAC RMS
5000 megohms minimum
-65° C. to +200° C.
IP 67
300 g.
43.92 g.
No Hardware
#8-32 tapped hole
N
Female Jackposts
#4-40, Non-removable
P
Materials and Finishes
Shell
Contacts
Insulator
O-ring
Potting Compound
Hardware
Shroud
C-20
Aluminum alloy
Copper alloy, 50 microinches gold
Thermoset epoxy
Fluorosilicone rubber
Epoxy
300 series stainless steel
Stainless steel
Female Guide Bushings
Non-removable
B
Male Guide Pins
Non-removable
G
© 2013 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324
series 28
HiPer-D Combo Connectors
280-053S right angle PC tail combo socket connectors with O-ring
flange for rear panel mounting

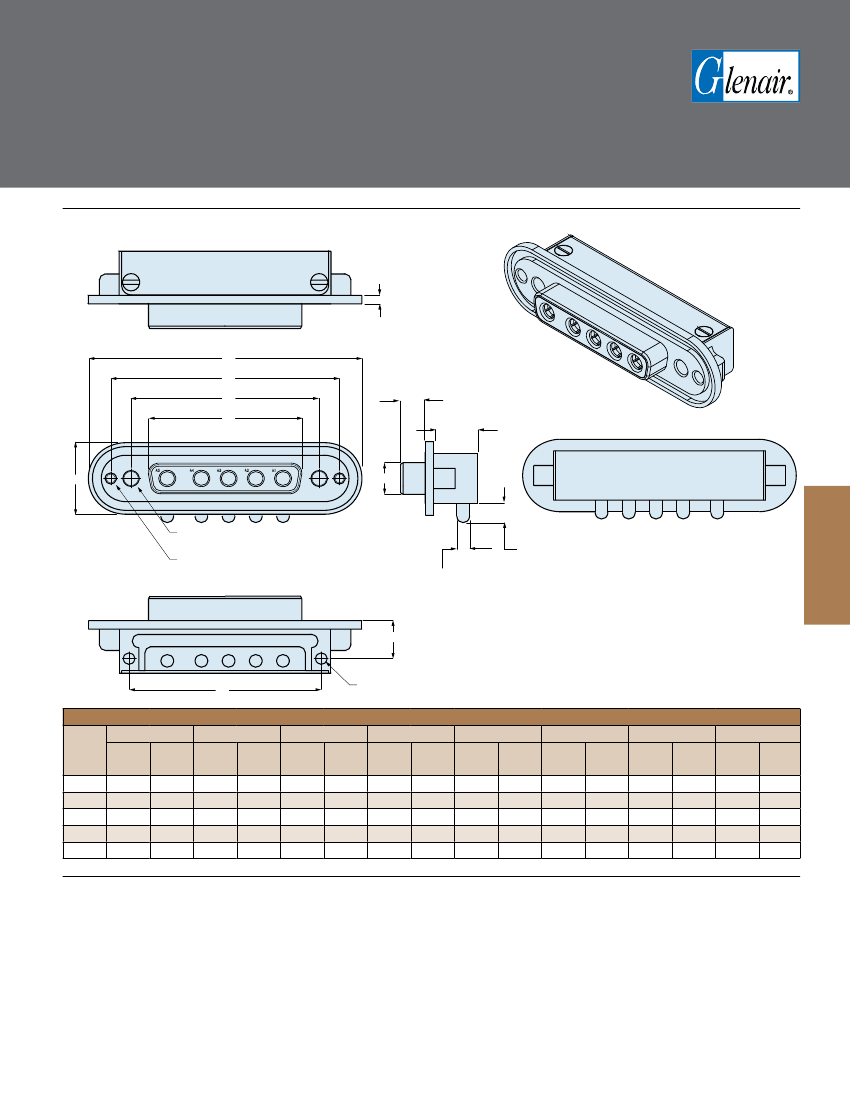

280-053S DIMENSIONS
.094
(2.39)
A
F
C
D
.243 ± .005
(6.17 ± 0.13)
G
B
E
8-32 UNC-2B .150
(3.81) DEEP 2 PLCS
4-40 UNC-2B .150
(3.81) DEEP 2 PLCS
PC TAIL DIAMETER
.125± .002 (3.18 ± 0.05) SIZE 8
.030 ± .002 (0.76 ± 0.05) SIZE 20
H
TAIL LENGTH ± .015
(0.38)
C
C
4-40 UNC-2B .150
(3.81) DEEP 2 PLCS
Dimensions
Shell
Size
1
2
3
4
5
A
in
± .015
1.865
2.200
2.736
3.385
3.289
mm
± 0.38
47.37
55.88
69.49
85.98
83.54
in
± .015
.725
.725
.725
.725
.837
B
mm
± 0.38
18.42
18.42
18.42
18.42
21.26
C Basic
in.
.984
1.312
1.852
2.500
2.406
mm
24.99
33.32
47.04
63.50
61.11
in
± .005
.643
.971
1.511
2.159
2.064
D
mm
± 0.13
16.33
24.66
38.38
54.84
52.43
in
± .005
.311
.311
.311
.311
.423
E
mm
± 0.13
7.90
7.90
7.90
7.90
10.74
F Basic
in
1.424
1.752
2.292
2.940
2.846
mm
36.17
44.50
58.22
74.68
72.29
in
.518
.518
.518
.518
.630
G
mm
13.16
13.16
13.16
13.16
16.00
in
± .005
.374
.374
.374
.374
.430
H
mm
± 0.13
9.50
9.50
9.50
9.50
10.92
NOTES
1.
2.
3.
4.
5.
6.
C-21
Contacts are factory-installed, non-removable and are potted with epoxy.
HiPer-D connectors are available with a wide variety of materials and finishes. See
About Series 28 HiPer-D Shell Plating Options
for
additional choices .
For panel cutout dimensions, refer to
Panel Cutouts and Printed Circuit Board Footprints.
For printed circuit board mounting dimensions, refer to
Panel Cutouts and Printed Circuit Board Footprints.
Combo HiPer-D connectors meet the applicable requirements of MIL-DTL-24308 and are intermateable with standard M24308-type
D-Subminiature combo connectors with corresponding contact arrangements and type.
Additional electrical, mechanical and environmental specifications are listed in
HiPer-D Product Specification.
© 2013 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324
