VFH240C Series
XO Hi-Rel/COTS
5x7mm SMD, 2.5V, 3.3V LVPECL / LVDS
Features
High speed – low jitter LVPECL or LVDS output
With tristate
Small SMD package (5X7 mm)
Stability options from
±
25ppm to
±
75ppm
Leadless chip carrier package is hermetically
sealed for superior aging and field performance
Crystal angle controlled to +/-0.5 for excellent
temperature stability
168 hour Class B burn-in and extensive
environmental testing for best performance in
rugged field environments
Tristate option available
Serialized test data available
Calculated MTBF is 3.8X10
6
hours at 125°C
RoHS Status
Applications
DSL
Fibre channel
Extended temperature applications
Description:
These high reliability oscillators provide LVPECL/LVDS waveforms for applications subjected to the
most stringent environmental conditions. They are mechanically robust and weigh less than 0.2 grams.
This 5X7 mm SMD package has a hermetic seal, thus ensuring the integrity of each oscillator. Each
oscillator is burned-in at 125°C for 168 hours, temperature cycled and centrifuged then fully tested in
accordance with Table 1. Reliability tests are performed per Table 2.
Table 1
1. Stabilization Bake
2. Temperature Cycling
3. Constant Acceleration
4. Burn-in
TABLE 1
Each unit undergoes the following:
MIL-STD-883 Method 1008, Cond,.B
MIL-STD-883 Method 1010, Cond, B
MIL-STD-883 Method 2001, Cond, A
MIL-STD-883 Method 1015, Cond B
(125°C for 168 hours with bias)
5. Fine Leak
MIL-STD-883 Method 1014, Cond. A1
6. Gross Leak
MIL-STD-883 Method 1014, Cond C
7. Electrical Test at 25°C and temperature extremes, as follows:
A. Frequency
B. Current
C. Rise Time
D. Fall Time
E. Duty Cycle
F. Duty Cycle
G. Frequency at 3.6V
H. Frequency at 3.0V
I. “Zero” logic level
J. “One” logic level
K. Tristate
Test Data on each unit is available for additional cost
75 South Street, Hopkinton, MA 01748 • 800-982-5737 • 508-435-6831 • FAX 508-435-5289 •
www.valpeyfisher.com
• RevC0608
1
VFH240C Series
XO Hi-Rel/COTS
5x7mm SMD, 2.5V, 3.3V LVPECL / LVDS
Electrical Specifications
Parameter
Frequency
Range
Symbol
F
Vs. Operating
Temperature
∆F/F
Vs. Supply Voltage
Vs. Aging / Year
-55°
-40°
LVPECL
LVDS
Vcc
77.76 MHz
155.52 MHz
311.08 MHz
622.08 MHz
155.52MHz
311.04MHz
622.08MHz
77.76MHz
155.52MHz
311.08MHz
622.08MHz
(V
DD
-1.3) V
DC
1.25V
DC
10Hz
100Hz
1KHz
10KHz
100KHz
10Hz
100Hz
1KHz
10KHz
100KHz
10Hz
100Hz
1KHz
10KHz
100KHz
10Hz
100Hz
1KHz
10KHz
100KHz
45
45
-66
-96
-124
-136
-132
-62
-92
-120
-132
-128
-59
-86
-116
-129
-124
-48
-80
-108
-118
-114
3.15
2.25
3.3
2.5
2.5
3
3
6
0.4
0.4
0.4
18
20
25
42
3.45
2.75
4
4
5
8
0.5
0.5
0.5
30
30
30
55
55
55
V
ps
±
3
±
3
±1
+125°
+85°
Condition
Min
38
Typ
Max
640
±
75
±
50
±
25
Unit
MHz
ppm
ppm/V
ppm
ppm
°C
Order Code A
Order Code B
Order Code C
First Year
After first year
Order Code D
Order Code G
Order Code L
Order Code D
Order Code E
Order Code G
Note
Frequency
Stability
Operating
Temperature
Output
Supply
Voltage
Period Jitter
RMS
Integrated
Jitter RMS
12KHz to 20MHz
T
ps
Period Jitter
Peak-to-Peak
Symmetry
ps
PECL
LVDS
@77.76MHz
%
Phase Noise
dBc/Hz
dBc/Hz
@155.52MHz
dBc/Hz
@311.04MHz
dBc/Hz
@622.08MHz
75 South Street, Hopkinton, MA 01748 • 800-982-5737 • 508-435-6831 • FAX 508-435-5289 •
www.valpeyfisher.com
• RevC0608
2
VFH240C Series
XO Hi-Rel/COTS
5x7mm SMD, 2.5V, 3.3V LVPECL / LVDS
Electrical Specifications
Parameter
Input Current
Symbol
Icc
Condition
38 – 100MHz
100 – 300MHz
300 – 640MHz
38 – 100MHz
100 – 320MHz
320 – 640MHz
Min
Typ
Max
65
80
90
45
60
70
Unit
mA
mA
Note
PECL
LVDS
Load
Output High
Voltage
Output Low
Voltage
Output
Differential
Voltage
Offset Voltage
Rise / Fall
Time
Tristate
V
OH
V
OL
V
OD
V
OS
Tr/Tf
20% to 80%
50 Ohm to V
DD
-2V (PECL)
100 Ohm (LVDS)
V
DD
-
1.025
1.6
1.4
V
DD
-
1.620
0.9
1.1
247
1.125
355
1.2
454
1.375
V
V
mV
V
PECL
LVDS
PECL
LVDS
LVDS
LVDS
PECL
0.6
1.5
ns
LVDS
0.7
1.0
“1”: Output Enable – Pin 1 may float 2.8V min (3.3V V
DD
) or 2.25V min (2.5V V
DD
)
“0”: Tristate – Pin 1 requires 0.4V max (3.3V or 2.5V V
DD
)
Absolute Maximum Ratings
Parameter
Lead
Temperature
Storage
Temperature
Junction
Temperature
ESD
Protection
Thermal
Resistance
Symbol
Ts
Tj
Human Body Model
Rθjc
Junction to case
16
Condition
Soldering, 10s max
Min
Typ
Max
260
-55
+125°
2
Unit
°C
°C
°C
KV
°C/Watt
Note
How to Order
VFH240C
—
Stability
Code
Specification
A
75 ppm
B
50 ppm
C*
25 ppm
*C available only for G
temperature range
Temperature Range
Code
Specification
E
-55°C to 125°C
G
-40°C to 85°C
—
FREQUENCY, MHz
Supply Voltage
Code
Output
E
3.3V
G
2.5V
Code
L
D
Output
Output
LVPECL
LVDS
75 South Street, Hopkinton, MA 01748 • 800-982-5737 • 508-435-6831 • FAX 508-435-5289 •
www.valpeyfisher.com
• RevC0608
3
VFH240C Series
XO Hi-Rel/COTS
5x7mm SMD, 2.5V, 3.3V LVPECL / LVDS
Environmental and Mechanical Conditions
Parameter
Shock
Humidity
Vibration
Leak
Case
Pads
Marking
Resistance to Solvents
Specification
MIL-STD 883, Method 2002, Test Condition B (1500 peak g,
0.5 ms duration, ½ sine wave, 5 shocks in 6 planes)
Resistant to 85 ºR.H. at 85 ºC
MIL-STD 883, Method 2007, Test Condition A (20-2000Hz of
.06:d.a. or 20 Gs, whichever is less)
MIL STD 883, Method 1014, Condition A1 and C1
Ceramic with hermetic reistance-welded metal lid
Solderable gold over nickel
Epoxy ink or laser engraved
MIL STD 202, Method 215
TABLE 2
Reliability Test Procedures and Conditions for Quartz Crystal Oscillators
1. Group A
B.
Electrical Characteristics at -55°, (0° for ‘5515), 25° and
125° (70° for M5515 and 85° for M5622)
Frequency @ 4.5, 5.0 and 5.5 volts (for 5 volts units)
Symmetry (Duty Cycle)
Input current
Zero/One levels
Rise/Fall times
Physical Dimensions
Length/width
Height
Package finish (Corrosion, discoloration, etc.)
Marking placement/legibility
2. Group B- Life Test
1000 hrs at 125°C with bias and load
MIL-STD-202
3. Group C- All units have passed Group A testing
A. Subgroup 1-8 pcs.
Standard
MIL-STD-883
Condition
Method 2002
COND.B
Method 2007
COND. A.
Description
Mechanical Shock
1500 g’s, 5ms
5 drops, 6 axis
Vibration, var.
freq. 20 g’s,
.06” disp., 20-
20, 000-20 Hz
Solderability
End Point
Measurement
Frequency
Output waveform
Standard
Frequency
Output waveform
MIL-STD-883
Visual 95%
Coverage
Method 210
COND.A
Standard
MIL-STD-883
Subgroup 2-4 pcs (One-half of Subgroup 1
Condition
Method 1011
COND. B
Method 105
COND. B
Method 1004
Description
Thermal Shock
Liq. To liq.
Altitude, 3.44
inch Hg. 12 hrs
End point
Measurement
Frequency
Output waveform
15cycles
Frequency
Output waveform
MIL-STD-202
MIL-STD-883
Moisture resist.
Frequency
with 5V applied
Output waveform
25-65°C, 90 to
100% RH, 10 cycles
Resistance to
Solder Heat
Frequency
Output waveform
Immersion @350ºC
3.5 sec
C.
Subgroups 3-4 pcs. (One half of Subgroup 1)
Condition
Storage Temp.
No. Oper
Method 1009
COND. A
Method 1014
COND. B
Method 1014
COND. C
Description
24 hrs. @ -55°C
24 hrs. @ 125°C
Salt Atmosphere
24 hrs. @ 35°C
.5-3.0% Solution
Fine Leak
Gross Leak
End point
Measurement
Frequency
Output waveform
Frequency
Output waveform
Visual
Qs <5 X10
-8
MIL-STD-883
MIL-STD-883
Method 2003
MIL-STD-883
MIL-STD-883
Visual in 125°C
Detector fluid
75 South Street, Hopkinton, MA 01748 • 800-982-5737 • 508-435-6831 • FAX 508-435-5289 •
www.valpeyfisher.com
• RevC0608
4
VFH240C Series
XO Hi-Rel/COTS
5x7mm SMD, 2.5V, 3.3V LVPECL / LVDS

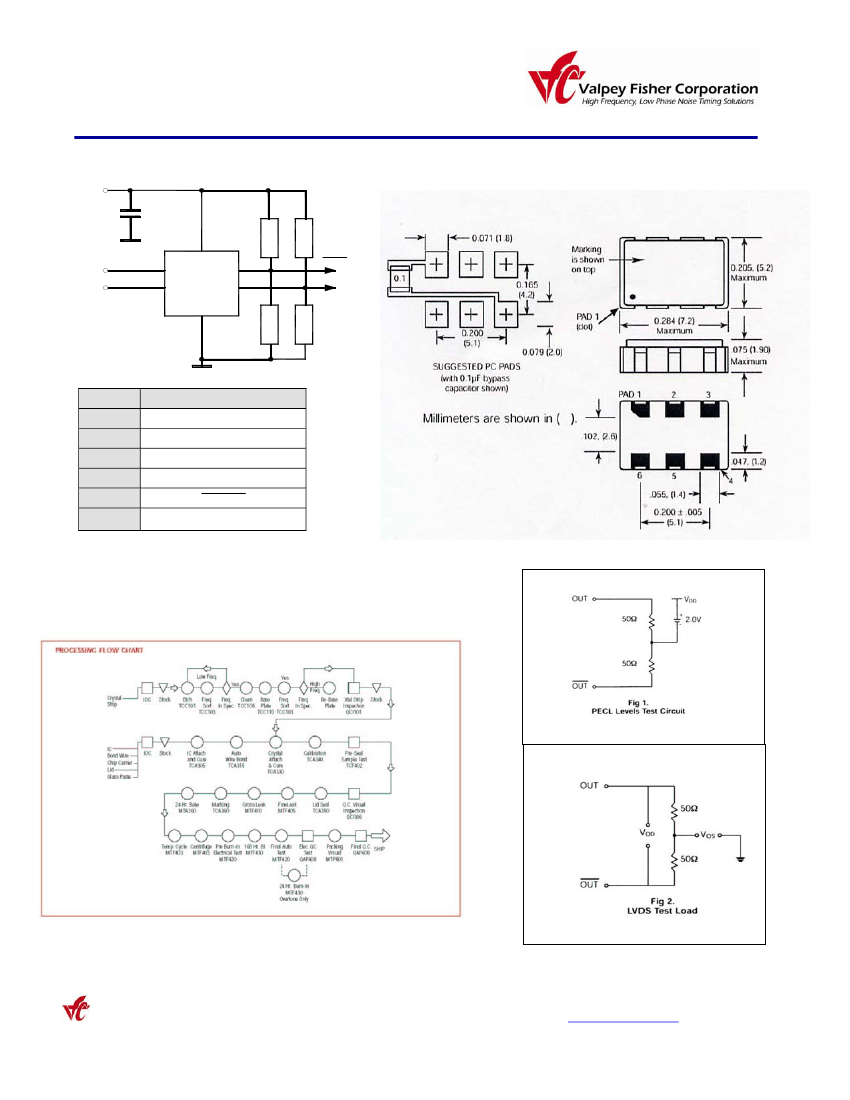

Vcc
5V
82 O hm
82 O hm
6
Vc
1
2
En/D is
3
120 O hm
DUT
4
5
O UT PUT
O UT PUT
120 O hm
G ND
Pin #
1
2
3
4
5
6
Connection
Tristate
N/C
Case, GND
Output
Output
Supply Voltage
75 South Street, Hopkinton, MA 01748 • 800-982-5737 • 508-435-6831 • FAX 508-435-5289 •
www.valpeyfisher.com
• RevC0608
5
