M52 Connectors Specification
Materials
Mouldings:
Contacts:
Finish:
High Temperature Plastic UL94V-0
Copper Alloy
Gold
Environmental
Operating temperature:
Solderability:
-40°C to +105°C
245°C for 5 seconds
Soldering heat resistance: 260°C for 5 seconds
Electrical
Current rating:
Voltage proof:
Contact resistance:
Insulation resistance:
1A per contact
500V AC, 1000V DC for 1 minute
30 mΩ max
1000 MΩ min
Mechanical
Durability:
Insertion force (max):
Withdrawal force (min):
Vibration sensitivity:
Shock severity:
300 operations
M52-500, 510: 1.0N per contact
Others: 1.5N per contact
M52-500, 510: 0.12N per contact
Others: 0.1N per contact
294m/s
2
(30G) for 11ms
All preferred sizes of this range are held in stock.
Check www.harwin.com for availability.

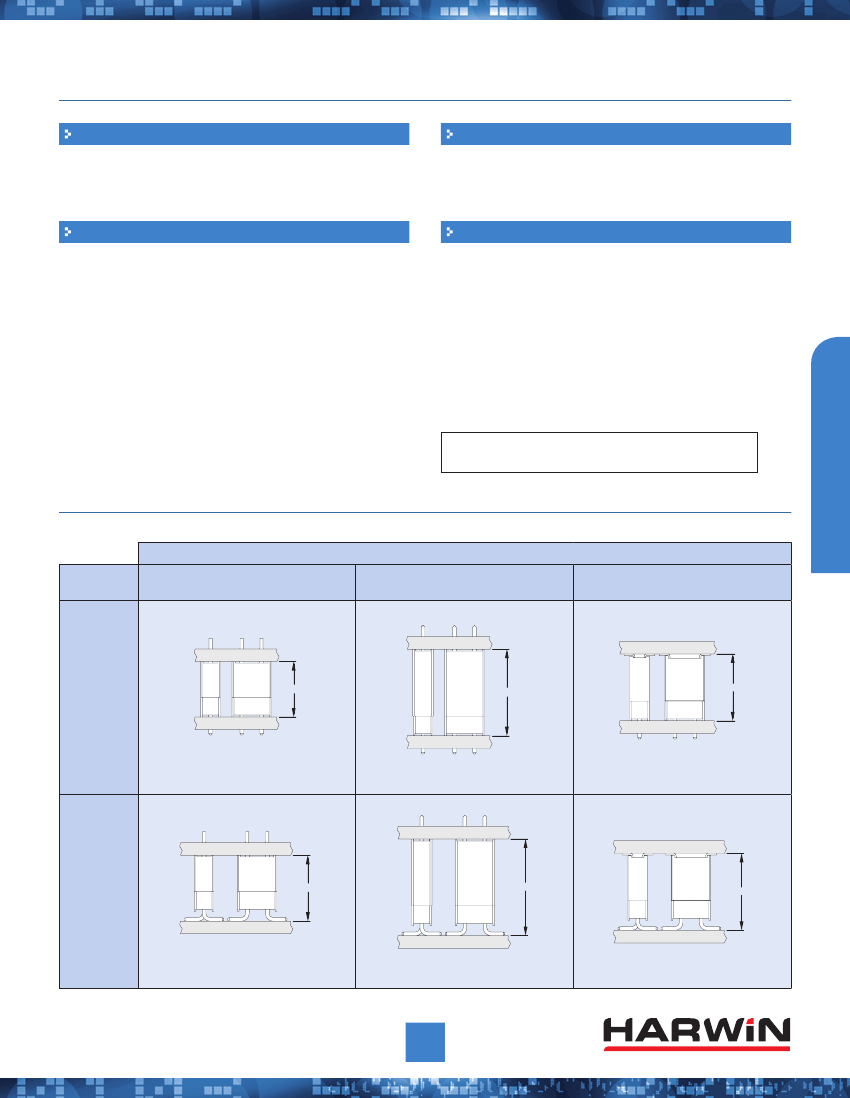

Mating Profiles
FEMALE
MALE
M52-500
M52-510
VERTICAL PC TAIL
(4.6mm height)
M52-501
M52-511
VERTICAL PC TAIL
(8.5mm height)
M52-505
M52-515
VERTICAL SMT
VERTICAL
PC TAIL
7.10
11.00
8.50
M52- 040023VXX45
M52- 040023WXX45
M52-500
M52-510
M52- 040023VXX45
M52- 040023WXX45
M52-501
M52-511
M52- 040023VXX45
M52- 040023WXX45
M52-505
M52-515
VERTICAL
SMT
8.37
12.27
9.77
M52- 040000PXX45
M52- 040000SXX45
All dimensions in mm.
M52- 040000PXX45
M52- 040000SXX45
M52- 040000PXX45
M52- 040000SXX45
www.harwin.com
117
1.27mm (.050") PITCH
50-2000Hz, 3.13G,
45 minutes duration
Archer Connectors – M52
Female Vertical PC Tail
A range of 1.27mm x 2.54mm male and female connectors,
for vertical board-to-board applications.
Choice of connector height.
Suitable for use with male connectors shown on pages 120 to 122.
SINGLE ROW
B
1.27mm (.050") PITCH
B
A
2.50
C
1.27
ø
0.70
Tail
0.40 square
1.27
Recommended PC Board Pattern
CalCulation
a
B
B + 1.67 (when C = 4.6mm)
B + 1.27 (when C = 8.5mm)
1.27 x (No. of contacts per row - 1)
DOUBLE ROW
B
2.54
B
A
5.00
ø
0.70
2.54
C
1.27
0.40 square
1.27
Tail
Recommended PC Board Pattern
HOW TO ORDER
M52 - 5 X X XX 45
series CoDe
no. oF roWs
0
1
Single Row
Double Row
Finish
45
Gold
no. oF ContaCts Per roW
heiGht
0
1
C = 4.6mm, Tail = 3.00mm
C = 8.5mm, Tail = 2.80mm
02 to 40
All dimensions in mm.
www.harwin.com
118

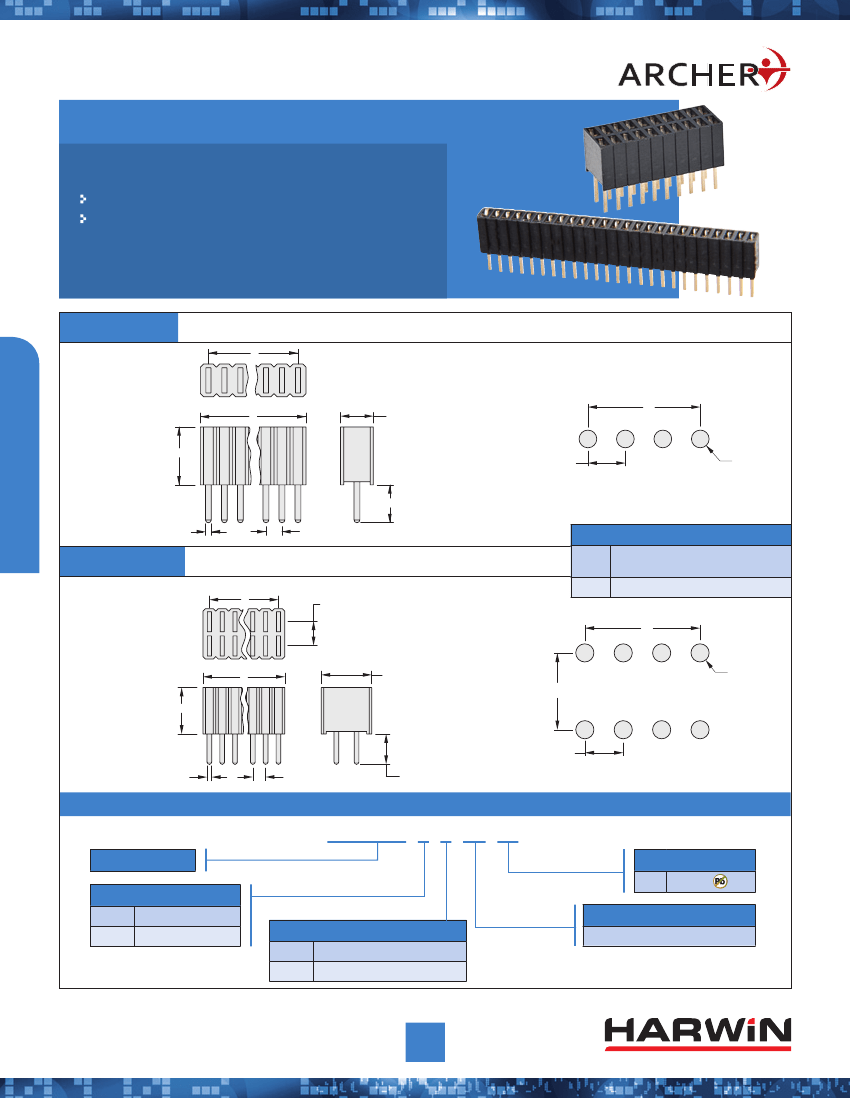

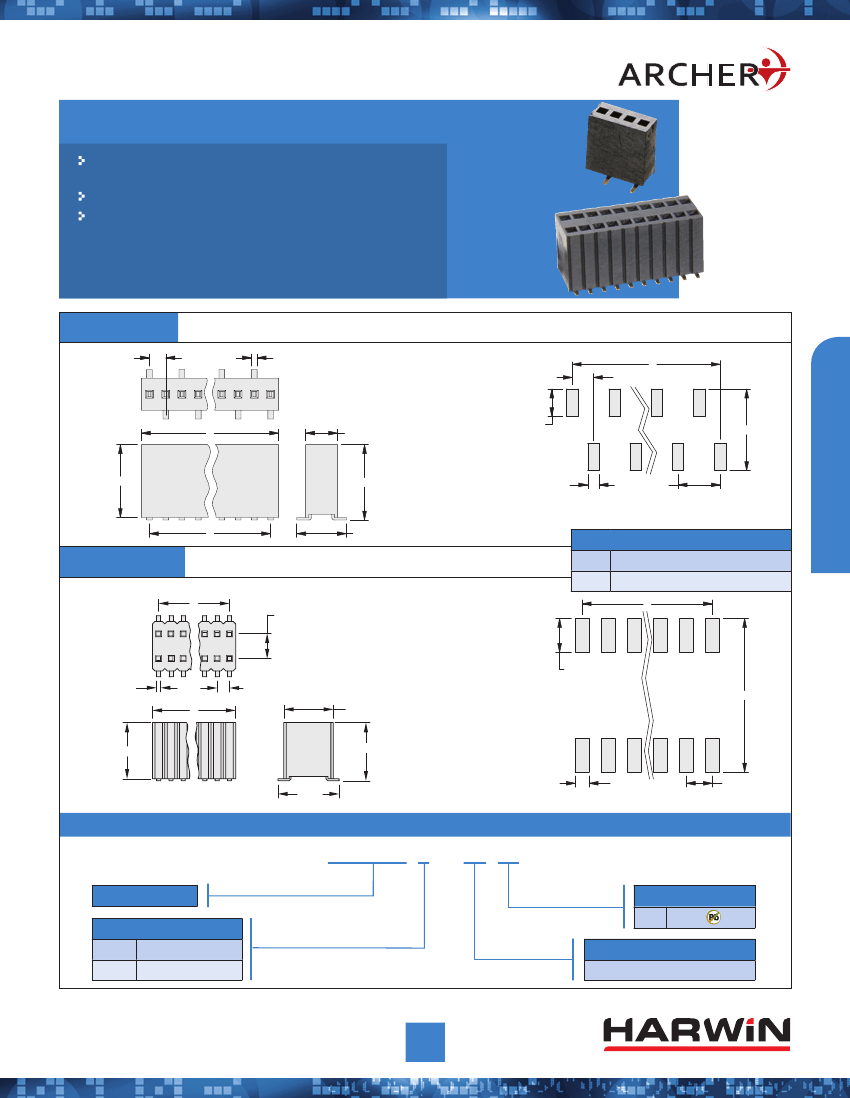

Archer Connectors – M52
Female Vertical Surface Mount
Suitable for use with male pin connectors shown
on pages 120 to 122.
Twin beam contact for cost-effective reliability.
Tape and reel option available.
Contact
technical@harwin.com
SINGLE ROW
1.27
0.44
B
1.27
A
2.50
1.65
4.90
5.70
6.00
0.68
2.54
Recommended PC Board Pattern
B
3.90
CalCulation
a
B
B + 1.67
1.27 x (No. of contacts per row - 1)
B
DOUBLE ROW
B
2.54
1.65
0.35
A
1.27
5.00
7.50
5.70
5.95
0.68
1.27
6.48
Recommended PC Board Pattern
HOW TO ORDER
M52 - 5 X 5 XX 45
series CoDe
no. oF roWs
0
1
All dimensions in mm.
Finish
45
Gold
Single Row
Double Row
no. oF ContaCts Per roW
03 to 50
www.harwin.com
119

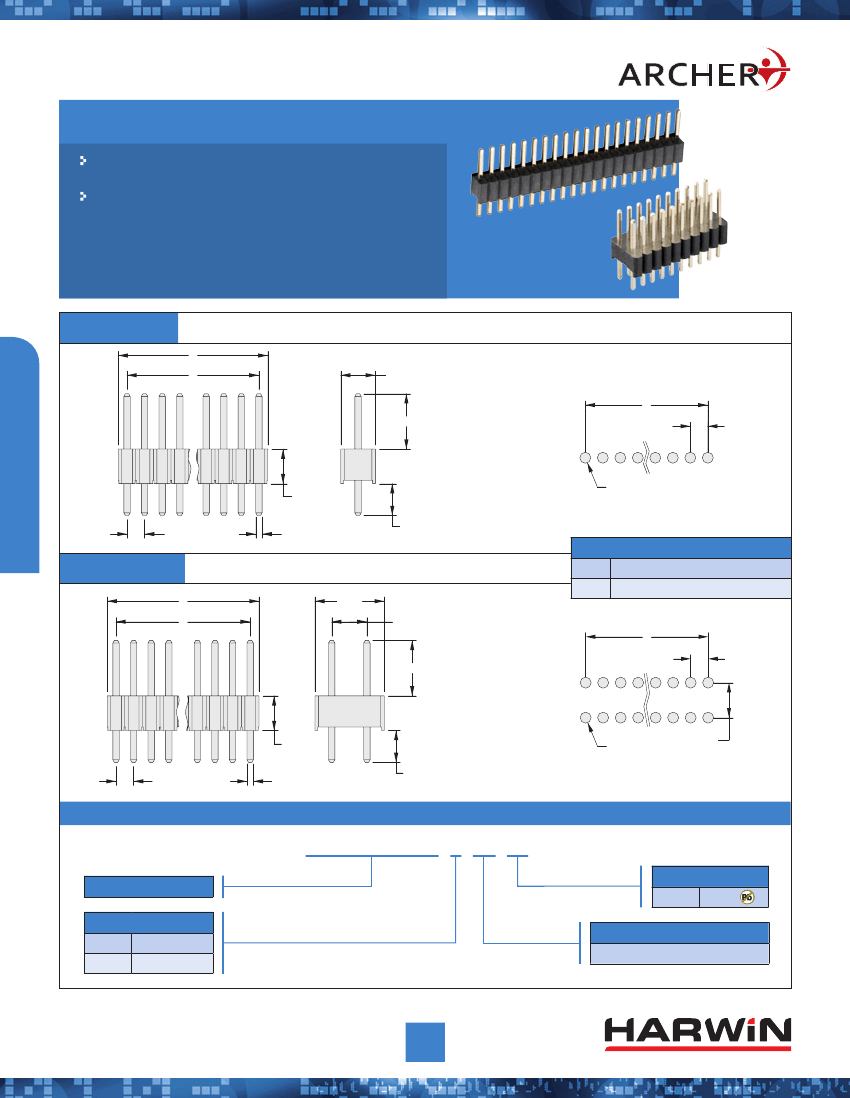

1.27mm (.050") PITCH
Archer Connectors – M52
Male Vertical PC Tail
Suitable for use with female connectors shown
on pages 118 to 119.
For alternative pin lengths, see pin header variants
on page 122.
SINGLE ROW
A
1.27mm (.050") PITCH
series CoDe
V
W
All dimensions in mm.
B
2.50
B
4.00
1.27
2.50
2.30
Ø
0.80
Recommended PC Board Pattern
1.27
0.46 square
CalCulation
DOUBLE ROW
A
B
5.00
2.54
a
B
1.27 x No. of contacts per row
1.27 x (No. of contacts per row - 1)
B
4.00
1.27
2.50
2.30
Ø
0.80
2.54
1.27
0.46 square
Recommended PC Board Pattern
HOW TO ORDER
M52 - 040023 X XX 45
Finish
45
Gold
ConneCtor tyPe
Single Row
Double Row
no. oF ContaCts Per roW
05, 10, 20, 25
www.harwin.com
120

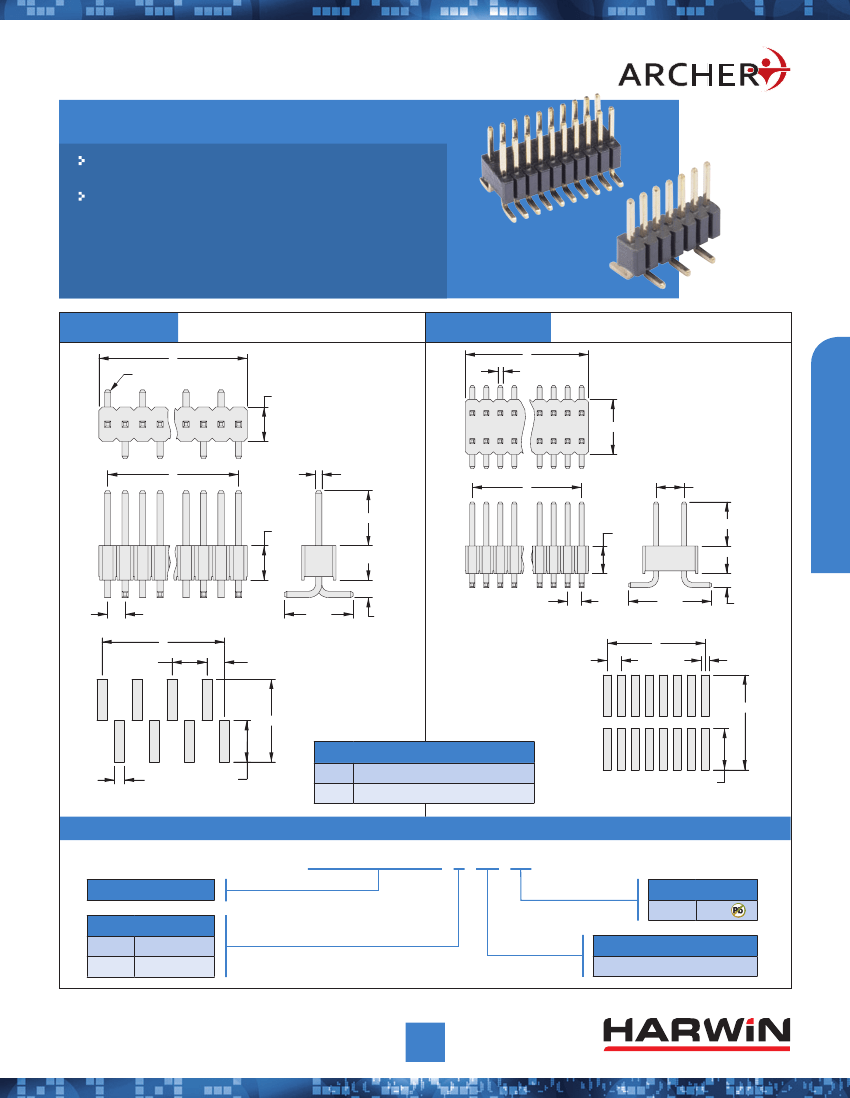

Archer Connectors – M52
Male Vertical Surface Mount
Suitable for use with female connectors shown
on pages 118 to 119.
For alternative pin lengths, see pin header variants
on page 122.
SINGLE ROW
A
No. 1 contact
2.50
DOUBLE ROW
A
5.00
B
0.46 square
B
4.00
2.50
2.50
2.54
4.00
1.27
1.27
B
2.54
1.27
1.27
5.00
1.27
B
7.20
1.27
0.74
8.60
6.00
CalCulation
0.74
3.00
a
B
1.27 x No. of contacts per row
1.27 x (No. of contacts per row - 1)
3.75
Recommended PC Board Pattern
Recommended PC Board Pattern
HOW TO ORDER
M52 - 040000 X XX 45
series CoDe
ConneCtor tyPe
P
s
Single Row
Double Row
Finish
45
Gold
no. oF ContaCts Per roW
05, 10, 20, 25
All dimensions in mm.
www.harwin.com
121
1.27mm (.050") PITCH
0.46 square
