3SBMA05F datasheet, PDF - EEWORLD Datasheet

3SBMA05F: DescriptionBridge Rectifier Diode, 1 Phase, 3A, 50V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size49KB，2 Pages; ManufacturerSEMTECH; Websitehttp://www.semtech.com

Download Datasheet Parametric Compare View All

3SBMA05F Overview

Bridge Rectifier Diode, 1 Phase, 3A, 50V V(RRM), Silicon,

Parameter Name	Attribute value
Reach Compliance Code	unknown
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JESD-30 code	R-PDIP-W4
Maximum non-repetitive peak forward current	150 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	50 V
Maximum reverse recovery time	0.15 µs
surface mount	NO
Terminal form	WIRE
Terminal location	DUAL
Base Number Matches	1

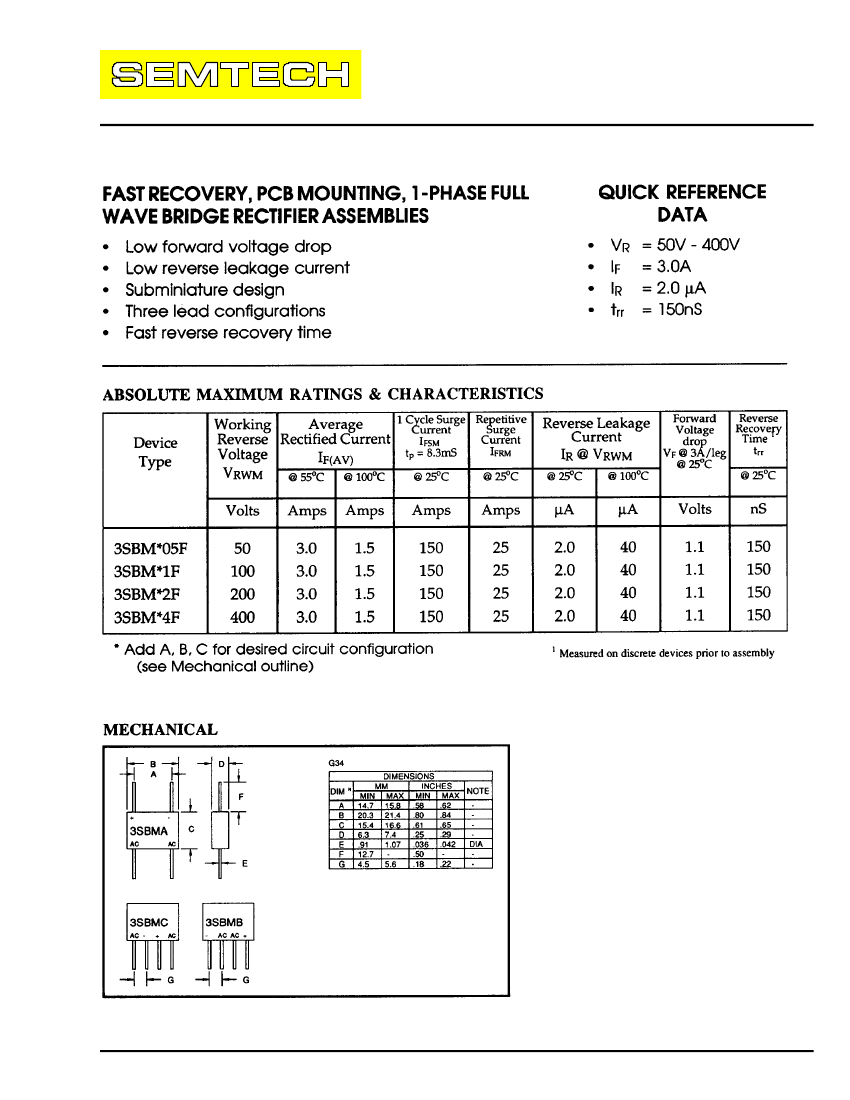

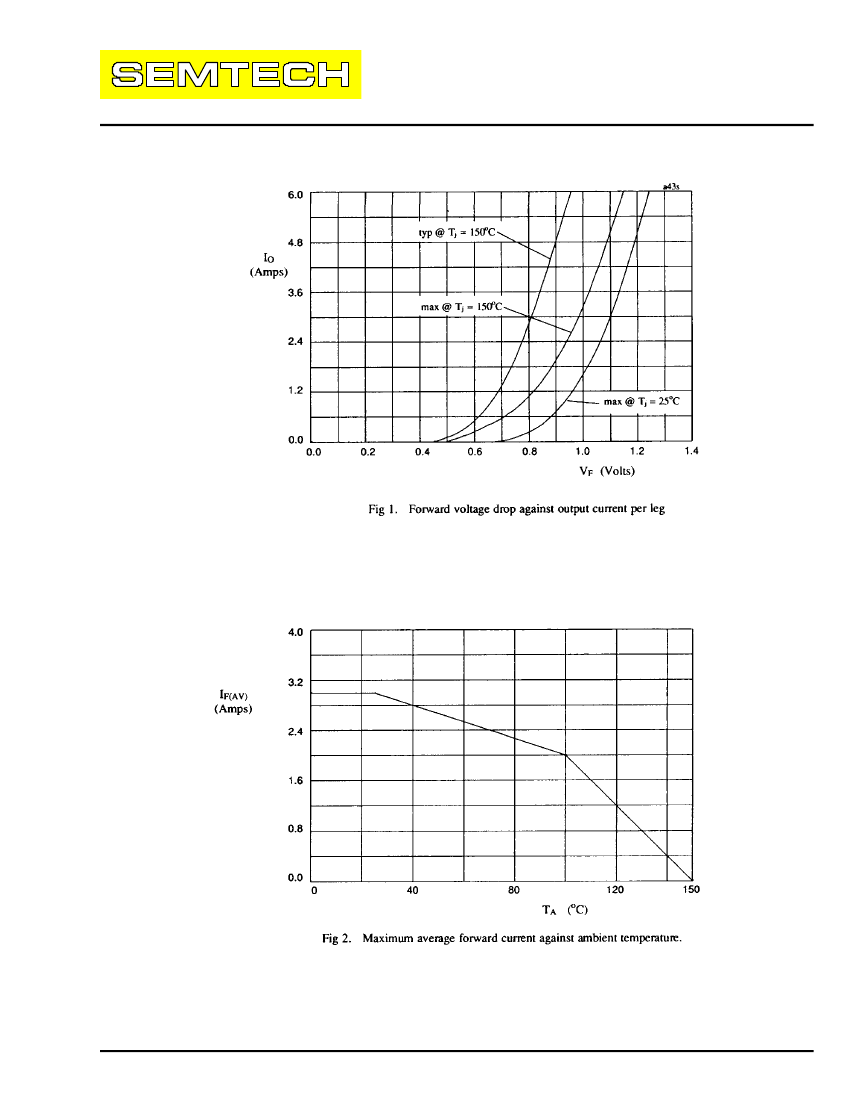

FAST RECOVERY 1 PHASE

SILICON BRIDGE RECTIFIERS

3SBM*05F

thru

3SBM*4F

January 16, 1998

TEL:805-498-2111 FAX:805-498-3804 WEB:http://www.semtech.com

652 MITCHELL ROAD NEWBURY PARK CA 91320

	3SBMA05F	3SBMC05F	3SBMA1F	3SBMA4F
Description	Bridge Rectifier Diode, 1 Phase, 3A, 50V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 3A, 50V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 3A, 100V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 3A, 400V V(RRM), Silicon,
Reach Compliance Code	unknown	unknown	unknown	unknown
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V	1.1 V	1.1 V
JESD-30 code	R-PDIP-W4	R-PSIP-W4	R-PDIP-W4	R-PDIP-W4
Maximum non-repetitive peak forward current	150 A	150 A	150 A	150 A
Number of components	4	4	4	4
Phase	1	1	1	1
Number of terminals	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Maximum output current	3 A	3 A	3 A	3 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	50 V	50 V	100 V	400 V
Maximum reverse recovery time	0.15 µs	0.15 µs	0.15 µs	0.15 µs
surface mount	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE
Terminal location	DUAL	SINGLE	DUAL	DUAL
Base Number Matches	1	1	1	1
Maker	-	SEMTECH	SEMTECH	SEMTECH
