Printview: THR PCB terminal block; Push-button; 1.5 mm²; Pin spacing 3.5 mm; 2-pole; Push-in CAGE
CLAMP® - Item No.: 805-302/200-604
.
THR PCB terminal block; Push-button; 1.5 mm²; Pin spacing 3.5
mm; 2-pole; Push-in CAGE CLAMP®
Item No.: 805-302/200-604
.

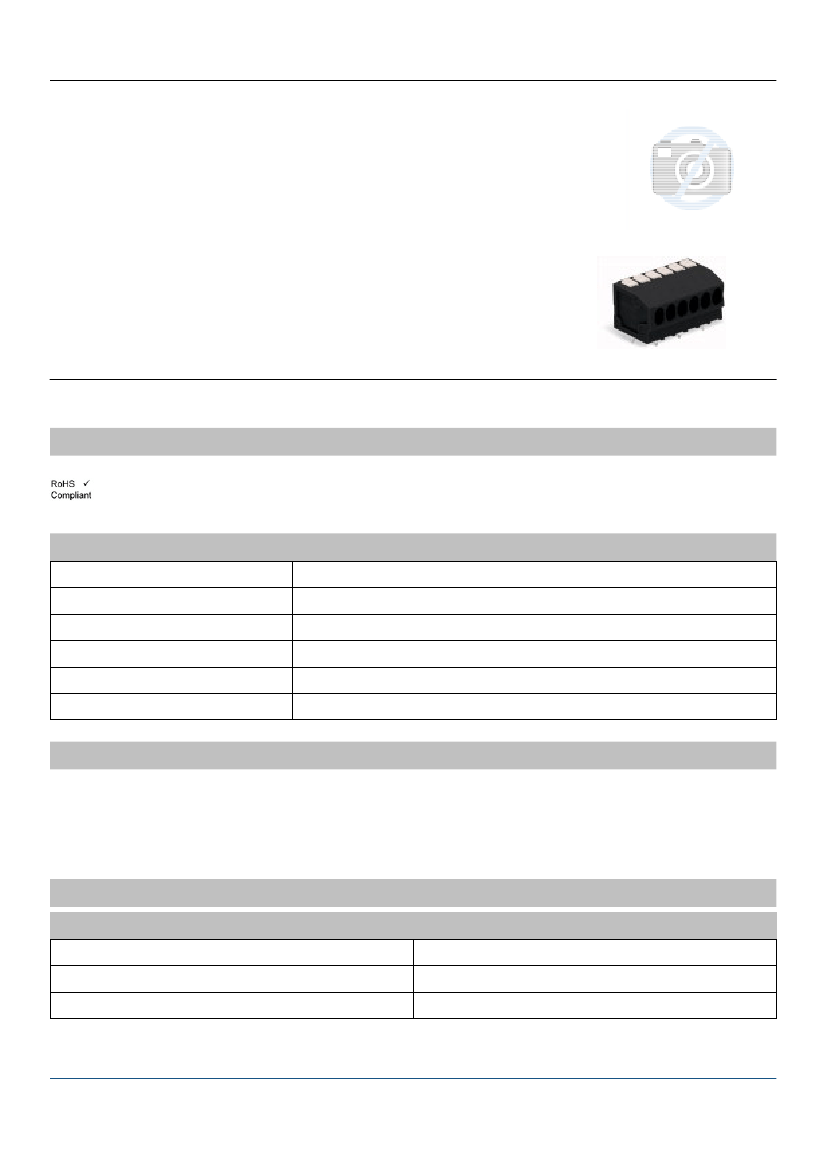

THR PCB terminal block; Push-button; 1.5 mm²; Pin spacing 3.5 mm; 2-pole; Push-in CAGE CLAMP®
.
Marking
.
Business data
Supplier
Item no.
GTIN / EAN
Content
Order amount
Customer item number
.
Notes
WAGO
805-302/200-604
4050821403746
1
145
Item description:Terminal strips with push-button actuated CAGE CLAMP® SPush-in termination of solid and
ferruled, fine-stranded conductorsPush-buttons that close flush with minimal force for convenient termination/removal
of fine-stranded conductorsConvenient, tool-free operation
Technical data
Miscellaneous
No. of poles
Pin spacing
Total number of connection points
2
3.5 mm (0.138 in)
2
WAGO Kontakttechnik GmbH & Co. KG
1
Printview: THR PCB terminal block; Push-button; 1.5 mm²; Pin spacing 3.5 mm; 2-pole; Push-in CAGE
CLAMP® - Item No.: 805-302/200-604
Technical data
Total number of potentials
Color
Ratings per
Rated voltage (III / 3) [V]
Rated impulse voltage (III / 3) [kV]
Rated voltage (III/2) [V]
Rated impulse voltage (III / 2) [kV]
Rated voltage (II / 2) [V]
Rated impulse voltage (II / 2) [kV]
Rated current [A]
Number of connection objects
Number of levels
Connection technology
Number of connection points connector
Actuation type
Solid conductors, tool-operated termination
Fine-stranded conductors, tool-operated termination
Fine-stranded conductors with insulated ferrule
Fine-stranded conductors with uninsulated ferrule
Strip length
Conductor entry angle to the PCB [°]
Solder pin arrangement
Solder pin length [mm]
Plated through-hole diameter (THR) [mm]
Material group
Insulating material
Flammability class per UL94
Limit temperature range
Clamping spring material
Contact material
Contact plating
Fire load [MJ]
Weight [g]
Width
2
black
IEC/EN 60664-1
200 [V]
4 [kV]
320 [V]
4 [kV]
320 [V]
4 [kV]
17.5 [A]
1
1
Push-in CAGE CLAMP®
1
Operating lever
0.2 … 1.5 mm² / 24 … 16 AWG
0.2 … 1.5 mm² / 24 … 16 AWG
0.25 … 1 mm² / …
0.25 … 1 mm² / …
9 … 10 mm / 0.35 … 0.39 inch
0 [°]
staggered
2.2 [mm]
1.1 (+ 0.1) [mm]
III a
Polyamide 46 (PA 46)
V0
-60 … 105 C
Chrome-nickel spring steel (CrNi)
Electrolytic copper (Ecu)
tin-plated
0.033 [MJ]
1.358 [g]
8.5 mm / 0.335 in.
