DS1868SN-050 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> DS1868SN-050

DS1868SN-050: DescriptionDigital Potentiometer, 2 Func, 50000ohm, 3-wire Serial Control Interface, 256 Positions, CMOS, PDSO16, 0.300 INCH, SOIC-16; CategoryAnalog mixed-signal IC converter; File Size754KB，14 Pages; ManufacturerDALLAS; Websitehttp://www.dalsemi.com

Download Datasheet Parametric Compare View All

DS1868SN-050 Overview

Digital Potentiometer, 2 Func, 50000ohm, 3-wire Serial Control Interface, 256 Positions, CMOS, PDSO16, 0.300 INCH, SOIC-16

DS1868SN-050 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	DALLAS
package instruction	0.300 INCH, SOIC-16
Reach Compliance Code	unknown
Other features	OPERATE WITH SINGLE 5V SUPPLY
control interface	3-WIRE SERIAL
Converter type	DIGITAL POTENTIOMETER
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
Nominal negative supply voltage	-3 V
Number of functions	2
Number of positions	256
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3/5 V
Certification status	Not Qualified
resistance law	LINEAR
Nominal supply voltage	3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal total resistance	50000 Ω
Base Number Matches	1

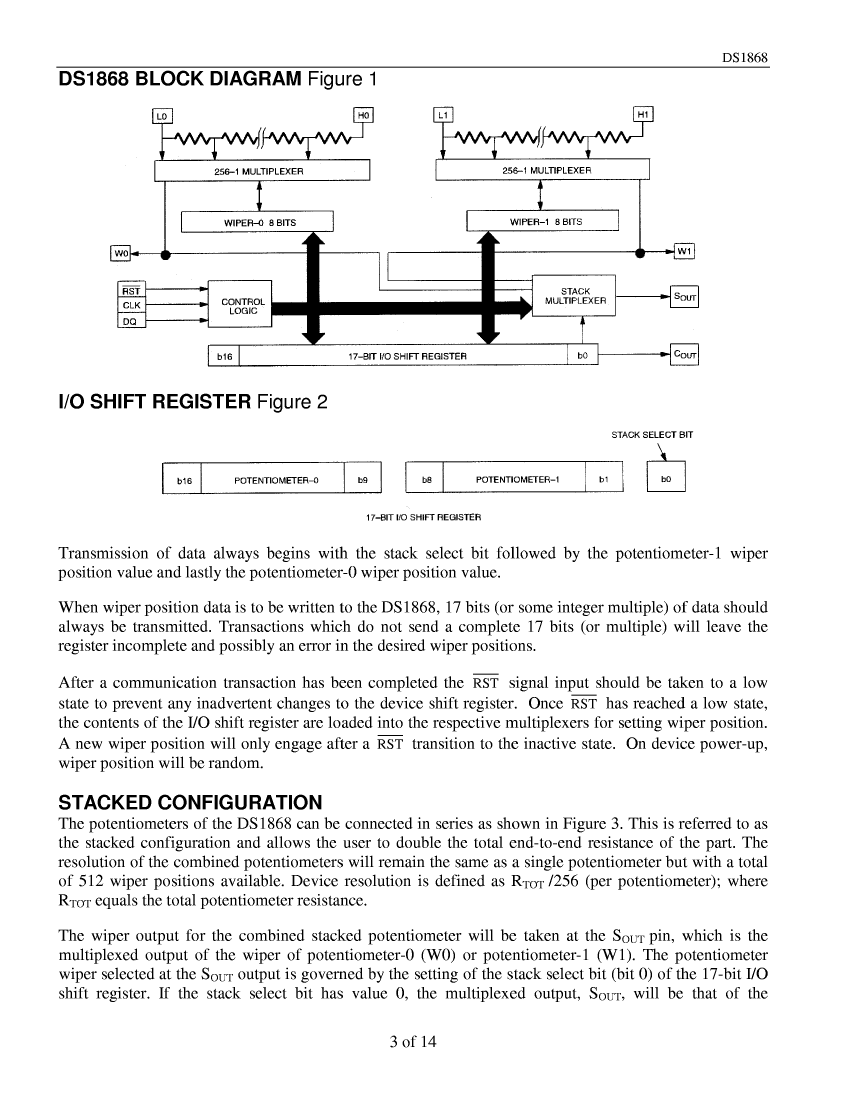

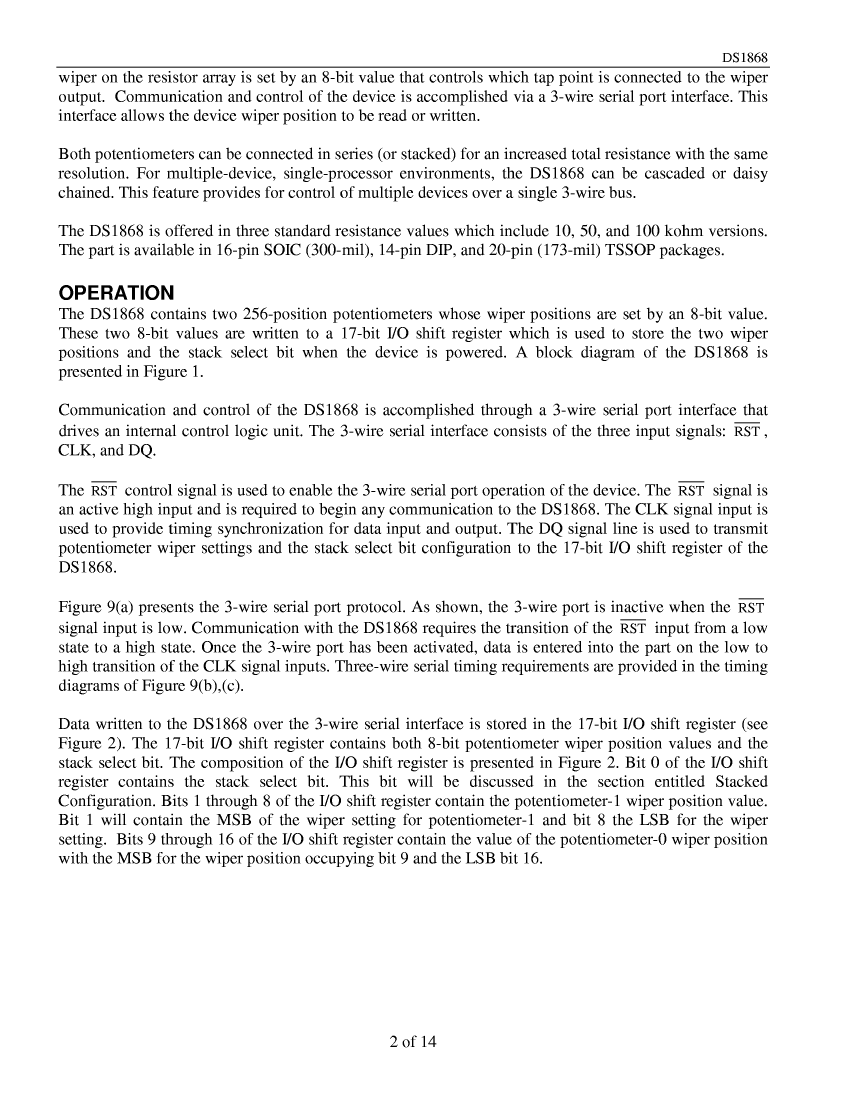

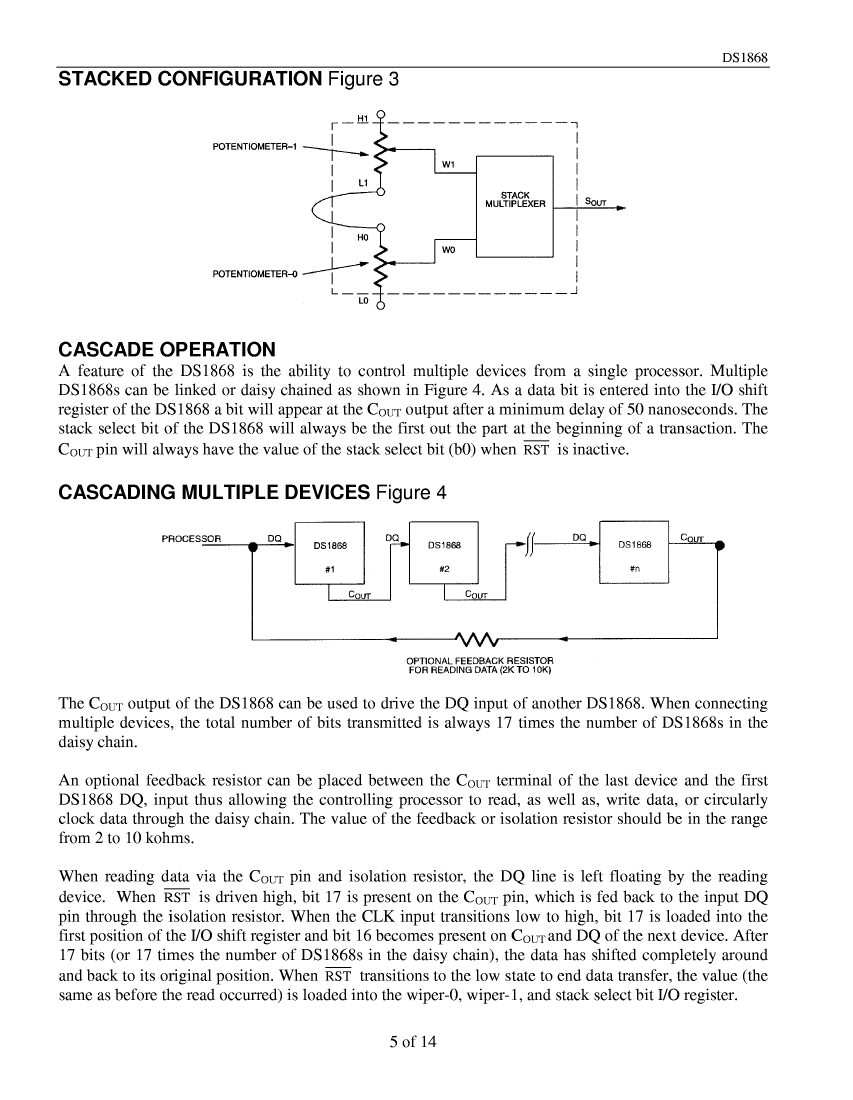

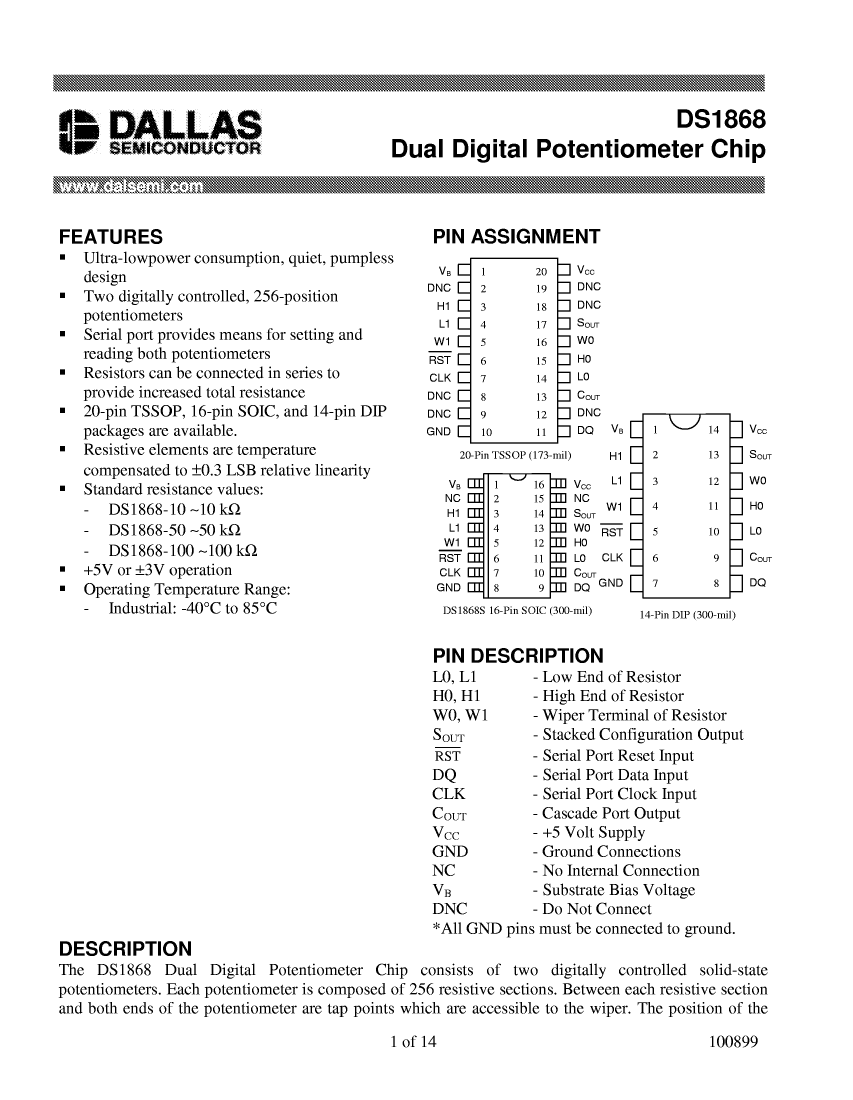

Preview

Download Datasheet

View All

DS1868SN-050 Related Products

	DS1868SN-050	DS1868EN-100	DS1868N-050	DS1868N-010	DS1868EN-010	RAF05K2152FC	DS1868SN-010	DS1868SN-100	DS1868N-100
Description	Digital Potentiometer, 2 Func, 50000ohm, 3-wire Serial Control Interface, 256 Positions, CMOS, PDSO16, 0.300 INCH, SOIC-16	Digital Potentiometer, 2 Func, 100000ohm, 3-wire Serial Control Interface, 256 Positions, CMOS, PDSO20, 0.173 INCH, TSSOP-20	Digital Potentiometer, 2 Func, 50000ohm, 3-wire Serial Control Interface, 256 Positions, CMOS, PDIP14, 0.300 INCH, DIP-14	Digital Potentiometer, 2 Func, 10000ohm, 3-wire Serial Control Interface, 256 Positions, CMOS, PDIP14, 0.300 INCH, DIP-14	Digital Potentiometer, 2 Func, 10000ohm, 3-wire Serial Control Interface, 256 Positions, CMOS, PDSO20, 0.173 INCH, TSSOP-20	Fixed Resistor, Metal Glaze/thick Film, 0.25W, 21500ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP	Digital Potentiometer, 2 Func, 10000ohm, 3-wire Serial Control Interface, 256 Positions, CMOS, PDSO16, 0.300 INCH, SOIC-16	Digital Potentiometer, 2 Func, 100000ohm, 3-wire Serial Control Interface, 256 Positions, CMOS, PDSO16, 0.300 INCH, SOIC-16	Digital Potentiometer, 2 Func, 100000ohm, 3-wire Serial Control Interface, 256 Positions, CMOS, PDIP14, 0.300 INCH, DIP-14
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	conform to	incompatible	incompatible	incompatible
package instruction	0.300 INCH, SOIC-16	0.173 INCH, TSSOP-20	0.300 INCH, DIP-14	0.300 INCH, DIP-14	0.173 INCH, TSSOP-20	CHIP	0.300 INCH, SOIC-16	0.300 INCH, SOIC-16	0.300 INCH, DIP-14
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Number of terminals	16	20	14	14	20	2	16	16	14
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	155 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-55 °C	-40 °C	-40 °C	-40 °C
Package form	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMT	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
surface mount	YES	YES	NO	NO	YES	YES	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	METAL GLAZE/THICK FILM	CMOS	CMOS	CMOS
Maker	DALLAS	DALLAS	DALLAS	DALLAS	DALLAS	-	-	DALLAS	DALLAS
Other features	OPERATE WITH SINGLE 5V SUPPLY	OPERATE WITH SINGLE 5V SUPPLY	OPERATE WITH SINGLE 5V SUPPLY	OPERATE WITH SINGLE 5V SUPPLY	OPERATE WITH SINGLE 5V SUPPLY	-	OPERATE WITH SINGLE 5V SUPPLY	OPERATE WITH SINGLE 5V SUPPLY	OPERATE WITH SINGLE 5V SUPPLY
control interface	3-WIRE SERIAL	3-WIRE SERIAL	3-WIRE SERIAL	3-WIRE SERIAL	3-WIRE SERIAL	-	3-WIRE SERIAL	3-WIRE SERIAL	3-WIRE SERIAL
Converter type	DIGITAL POTENTIOMETER	DIGITAL POTENTIOMETER	DIGITAL POTENTIOMETER	DIGITAL POTENTIOMETER	DIGITAL POTENTIOMETER	-	DIGITAL POTENTIOMETER	DIGITAL POTENTIOMETER	DIGITAL POTENTIOMETER
JESD-30 code	R-PDSO-G16	R-PDSO-G20	R-PDIP-T14	R-PDIP-T14	R-PDSO-G20	-	R-PDSO-G16	R-PDSO-G16	R-PDIP-T14
JESD-609 code	e0	e0	e0	e0	e0	-	e0	e0	e0
Nominal negative supply voltage	-3 V	-3 V	-3 V	-3 V	-3 V	-	-3 V	-3 V	-3 V
Number of functions	2	2	2	2	2	-	2	2	2
Number of positions	256	256	256	256	256	-	256	256	256
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	TSSOP	DIP	DIP	TSSOP	-	SOP	SOP	DIP
Encapsulate equivalent code	SOP16,.4	TSSOP20,.25	DIP14,.3	DIP14,.3	TSSOP20,.25	-	SOP16,.4	SOP16,.4	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	3/5 V	3/5 V	3/5 V	3/5 V	3/5 V	-	3/5 V	3/5 V	3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
resistance law	LINEAR	LINEAR	LINEAR	LINEAR	LINEAR	-	LINEAR	LINEAR	LINEAR
Nominal supply voltage	3 V	3 V	3 V	3 V	3 V	-	3 V	3 V	3 V
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	-	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	-	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	0.635 mm	2.54 mm	2.54 mm	0.635 mm	-	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	-	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Nominal total resistance	50000 Ω	100000 Ω	50000 Ω	10000 Ω	10000 Ω	-	10000 Ω	100000 Ω	100000 Ω
Base Number Matches	1	1	1	1	1	-	1	-	-
