2532715010 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2532715010

2532715010: DescriptionBoard Connector, 27 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size180KB，2 Pages; ManufacturerW+P Products GmbH

Download Datasheet Parametric View All

2532715010 Overview

Board Connector, 27 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug

2532715010 Parametric

Parameter Name	Attribute value
Maker	W+P Products GmbH
Reach Compliance Code	compliant
body width	0.1 inch
subject depth	0.165 inch
body length	2.7 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1400VAC V
Insulation resistance	10000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	253
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	27
Base Number Matches	1

Preview

Download Datasheet

View All

253

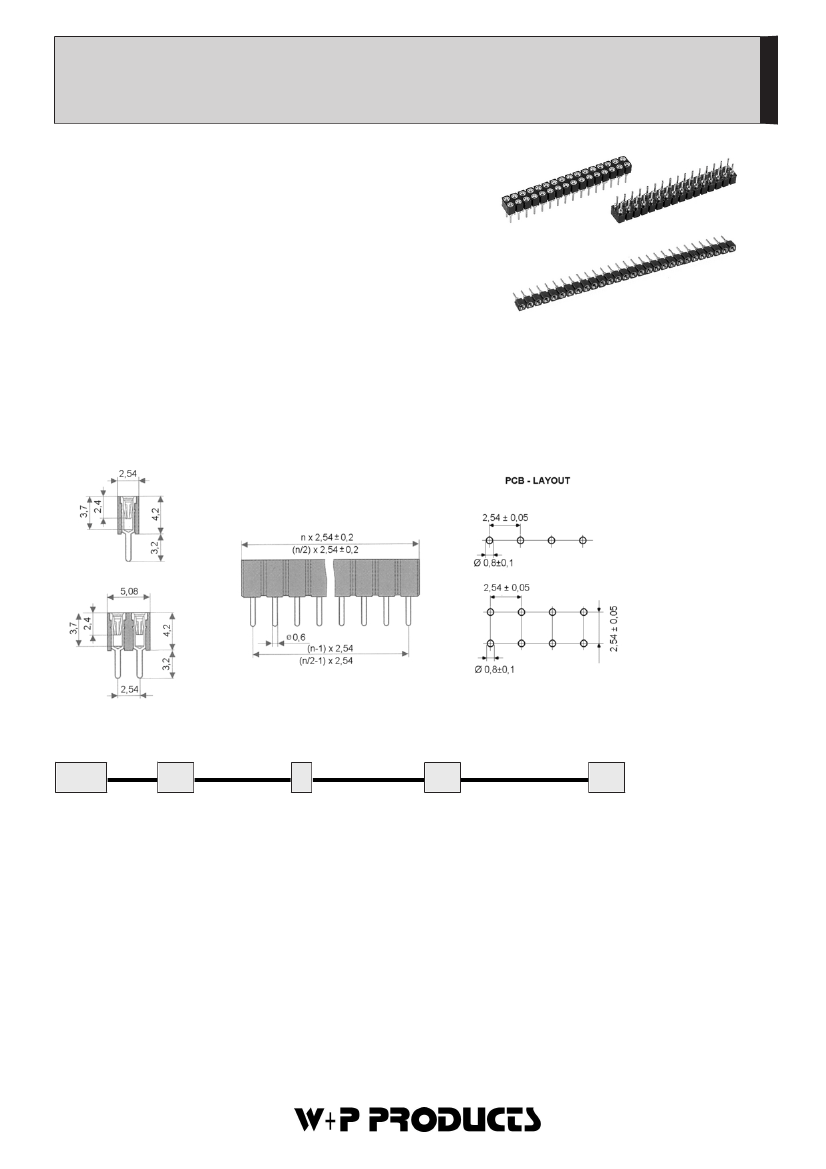

Präzisions-Buchsenleisten - RM 2,54mm - BH 4,2mm - 1-/2-reihig

Precision Female Headers - Single / Double Row - 2,54mm Pitch - 4,2mm Height

Technische Daten /Technical

Data

Isolierkörper

Thermoplastischer Kunststoff, nach UL94 V-0

Insulator

Thermoplastic, rated UL94 V-0

Kontaktmaterial

Hülse: Messing gedreht

Feder: 6-Lamellen-Clip, Beryllium-Kupfer

Contact Material

Sleeve: screw machined brass

Clip: 6 Finger-Clip, Beryllium-Copper

Kontaktoberfläche

Lt. Oberflächenoptionen, über Ni (1,3 ... 2,5µm)

Contact Surface

Acc. to options (see below), over Ni (1,3 ... 2,5µm)

Lötbarkeit

IEC512-12A

Solderability

IEC512-12A

Durchgangswiderstand

< 10mΩ

Contact Resistance

< 10mΩ

Isolationswiderstand

> 10

Ω

Insulation Resistance

> 10

Ω

Spannungsfestigkeit

1000V

RMS

Test Voltage

1000V

RMS

Nennstrom

Current Rating

Temperaturbereich

-55°C ... +125°C

Temperature Range

-55°C ... +125°C

Verarbeitung

Reflow-Lötverfahren; weitere Informationen in Kapitel T

Processing

Reflow-soldering, detailed information in ch. T

Einsetzbar für Rundstift Ø 0,65 - 0,85mm oder

Vierkantstift 0,635mm

Accepts round pin Ø 0,65 - 0,85mm or square

pin 0,635mm

Series

Contacts

Rows

Sleeve Plating

Clip Plating

253

02-32

Einreihig

Single row

04-64

Zweireihig

Double row

Einreihig

Single row

Zweireihig

Double row

Hülse verzinnt

Tin plated sleeve

Feder vergoldet

Gold plated clip

Feder 0,25µm Gold

0,25µm gold plated clip

Feder 0,75µm Gold

0,75µm gold plated clip

Verzinnt

Tin plated

Auch in dreireihig lieferbar!

Triple row also available!

(

Bestellbeispiel - Bitte durch Ihre

Spezifikationen ersetzen.

Order example - To be replaced by your

specifications.)

TEL.: +49 5223 98507-0

FAX.: +49 5223 98507-50

E-MAIL: sales@wppro.com

INTERNET: www.wppro.com
