518D475M025HX7S datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 518D475M025HX7S

518D475M025HX7S: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 25 V, 4.7 uF, SURFACE MOUNT, 1717, 5.5 mmH CHIP; CategoryPassive components capacitor; File Size386KB，4 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

518D475M025HX7S Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 25 V, 4.7 uF, SURFACE MOUNT, 1717, 5.5 mmH CHIP

518D475M025HX7S Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	, 1717
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	4.7 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	4 mm
dielectric materials	ALUMINUM (WET)
JESD-609 code	e0
leakage current	0.001175 mA
length	5.5 mm
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	SMT
method of packing	TR
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V
ripple current	16 mA
series	518D
size code	1717
surface mount	YES
Delta tangent	0.14
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	ONE SURFACE
Base Number Matches	1

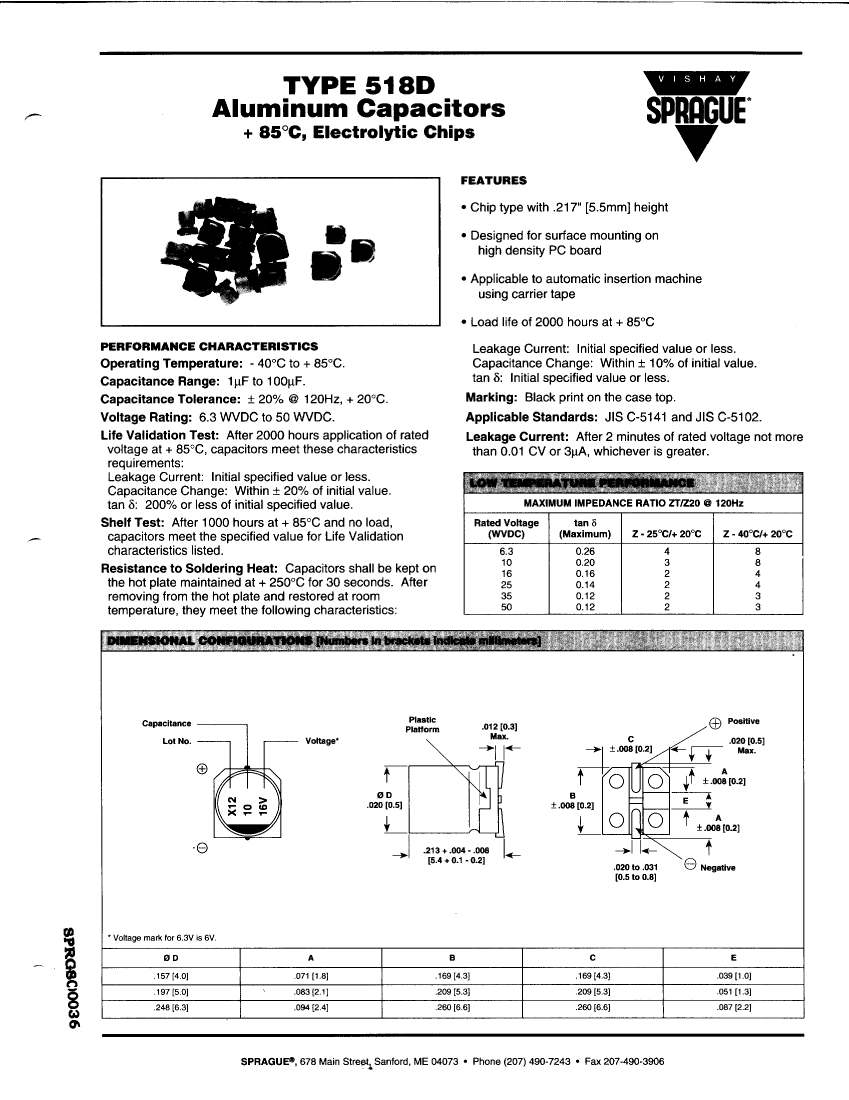

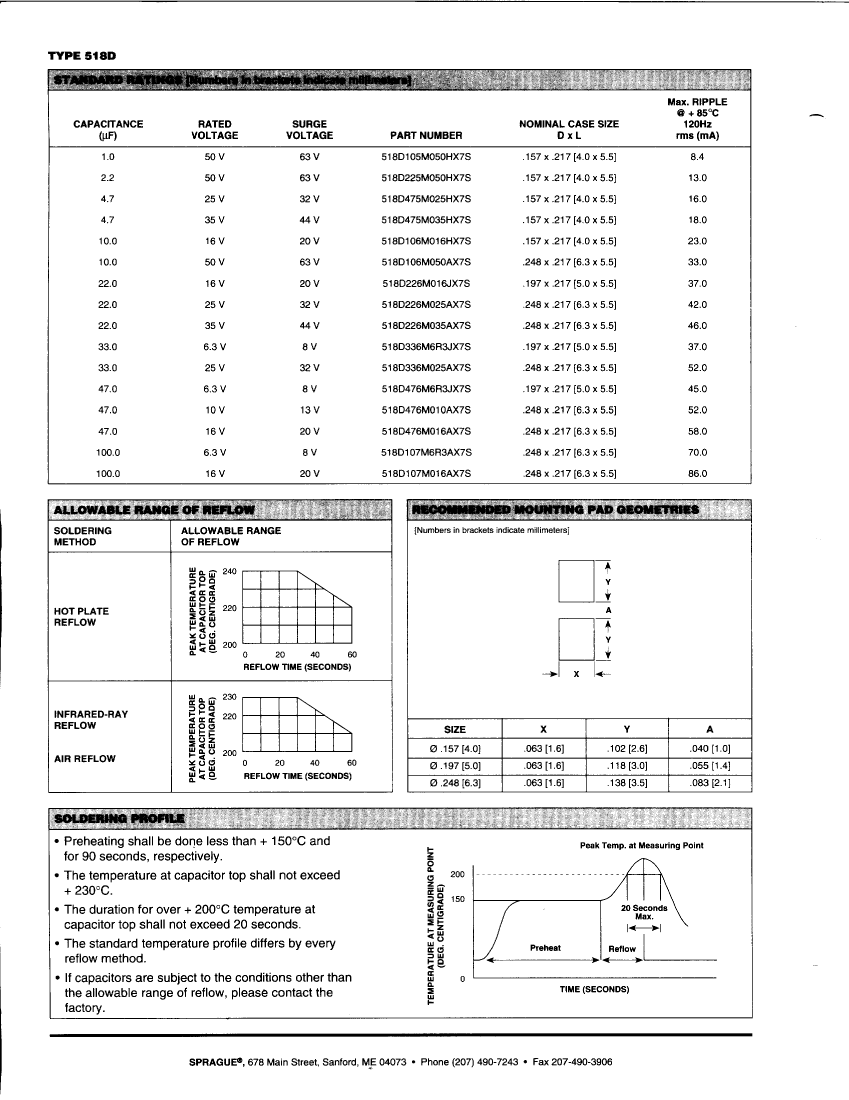

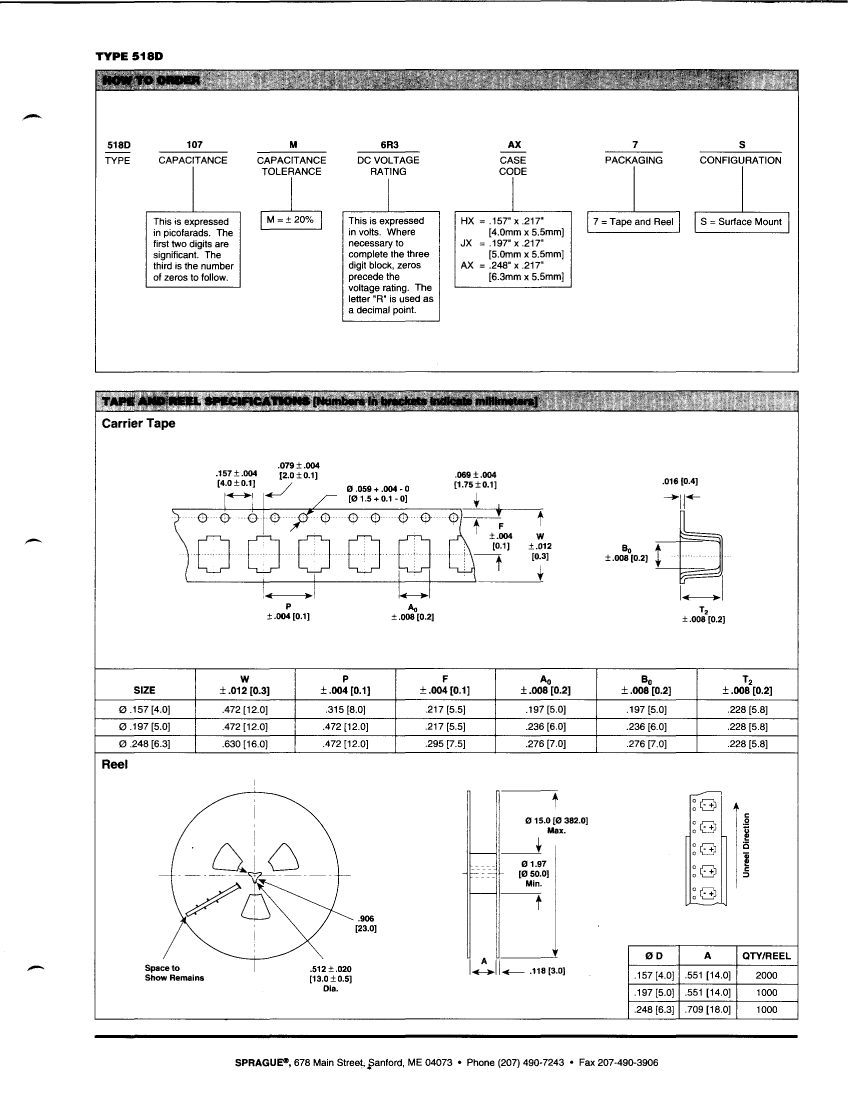

Preview

Download Datasheet

View All

518D475M025HX7S Related Products

	518D475M025HX7S	518D106M050AX7S	518D225M050HX7S	518D476M010AX7S	518D226M016JX7S	518D226M025AX7S	518D476M6R3JX7S	518D336M6R3JX7S
Description	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 25 V, 4.7 uF, SURFACE MOUNT, 1717, 5.5 mmH CHIP	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 50 V, 10 uF, SURFACE MOUNT, 2626, 5.5 mmH CHIP	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 50 V, 2.2 uF, SURFACE MOUNT, 1717, 5.5 mmH CHIP	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 10 V, 47 uF, SURFACE MOUNT, 2626, 5.5 mmH CHIP	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 16 V, 22 uF, SURFACE MOUNT, 2121, 5.5 mmH CHIP	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 25 V, 22 uF, SURFACE MOUNT, 2626, 5.5 mmH CHIP	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 6.3 V, 47 uF, SURFACE MOUNT, 2121, 5.5 mmH CHIP	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 6.3 V, 33 uF, SURFACE MOUNT, 2121, 5.5 mmH CHIP
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	, 1717	, 2626	, 1717	, 2626	, 2121	, 2626	, 2121	, 2121
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	4.7 µF	10 µF	2.2 µF	47 µF	22 µF	22 µF	47 µF	33 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	4 mm	5 mm	4 mm	5 mm	6.3 mm	5 mm	6.3 mm	6.3 mm
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
leakage current	0.001175 mA	0.005 mA	0.0011 mA	0.0047 mA	0.00352 mA	0.0055 mA	0.002961 mA	0.002079 mA
length	5.5 mm	5.5 mm	5.5 mm	5.5 mm	5.5 mm	5.5 mm	5.5 mm	5.5 mm
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
negative tolerance	20%	20%	20%	20%	20%	20%	20%	20%
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
Package form	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT
method of packing	TR	TR	TR	TR	TR	TR	TR	TR
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	20%	20%	20%	20%	20%
Rated (DC) voltage (URdc)	25 V	50 V	50 V	10 V	16 V	25 V	6.3 V	6.3 V
ripple current	16 mA	33 mA	13 mA	52 mA	37 mA	42 mA	45 mA	37 mA
series	518D	518D	518D	518D	518D	518D	518D	518D
size code	1717	2626	1717	2626	2121	2626	2121	2121
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Delta tangent	0.14	0.12	0.12	0.2	0.16	0.14	0.26	0.26
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal shape	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE
Base Number Matches	1	1	1	1	1	1	1	1
