5962-8985502M3A datasheet, PDF

Datasheet> All Categories > Programmable logic devices> Programmable logic> 5962-8985502M3A

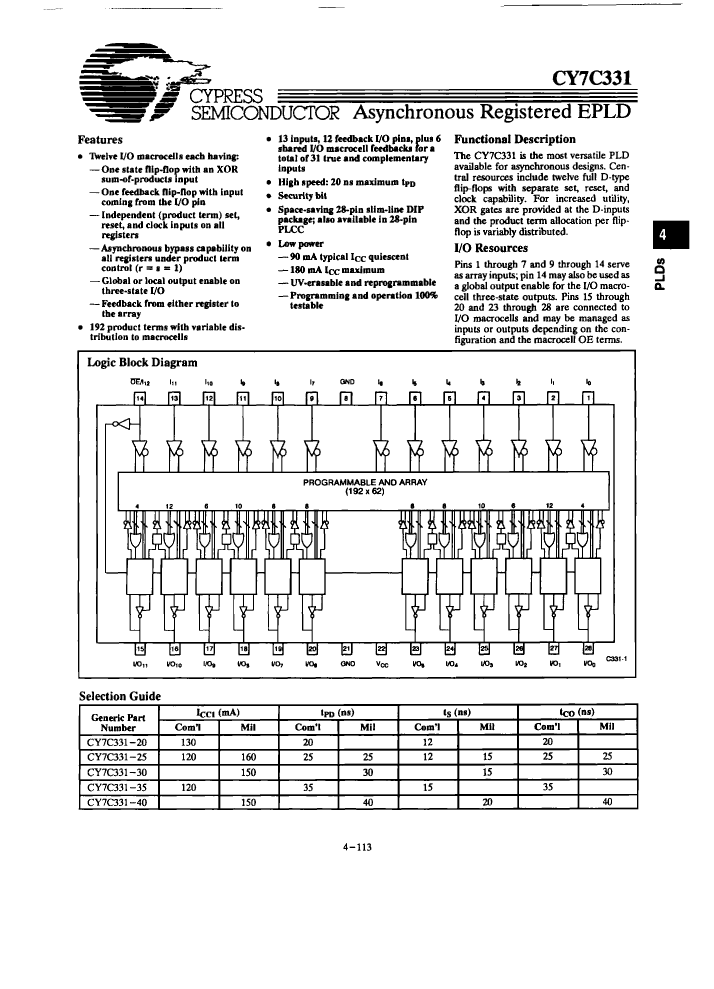

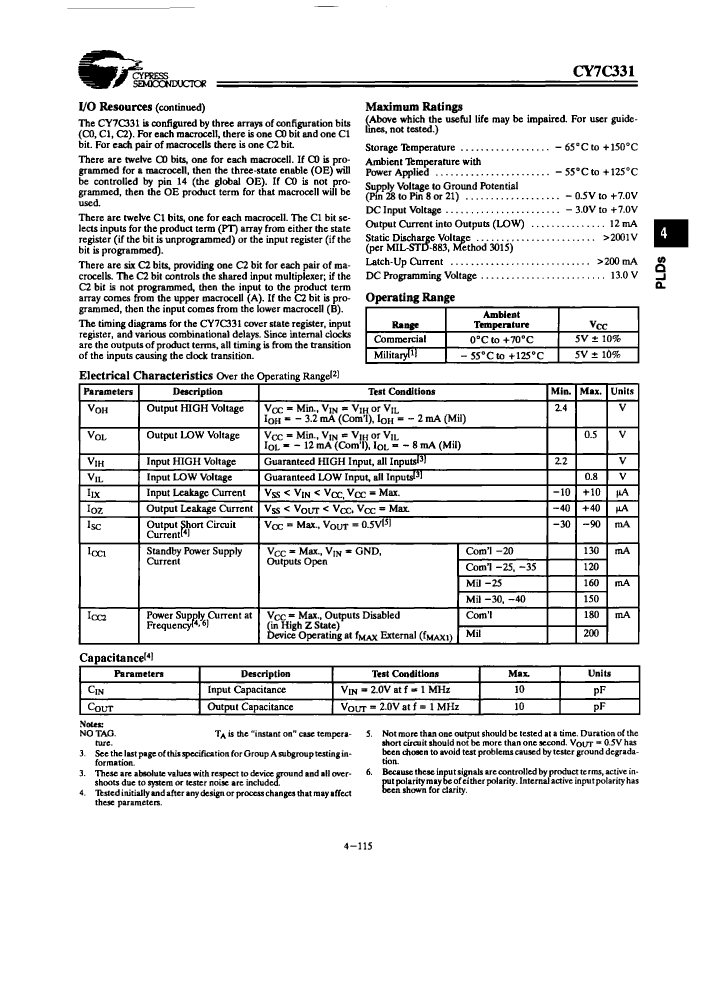

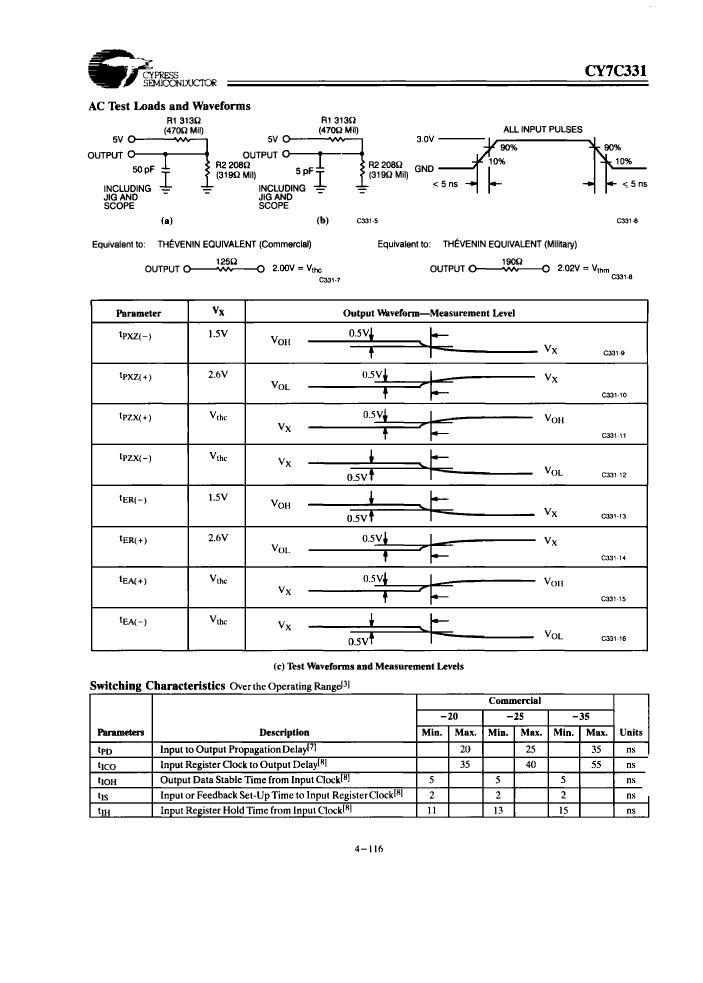

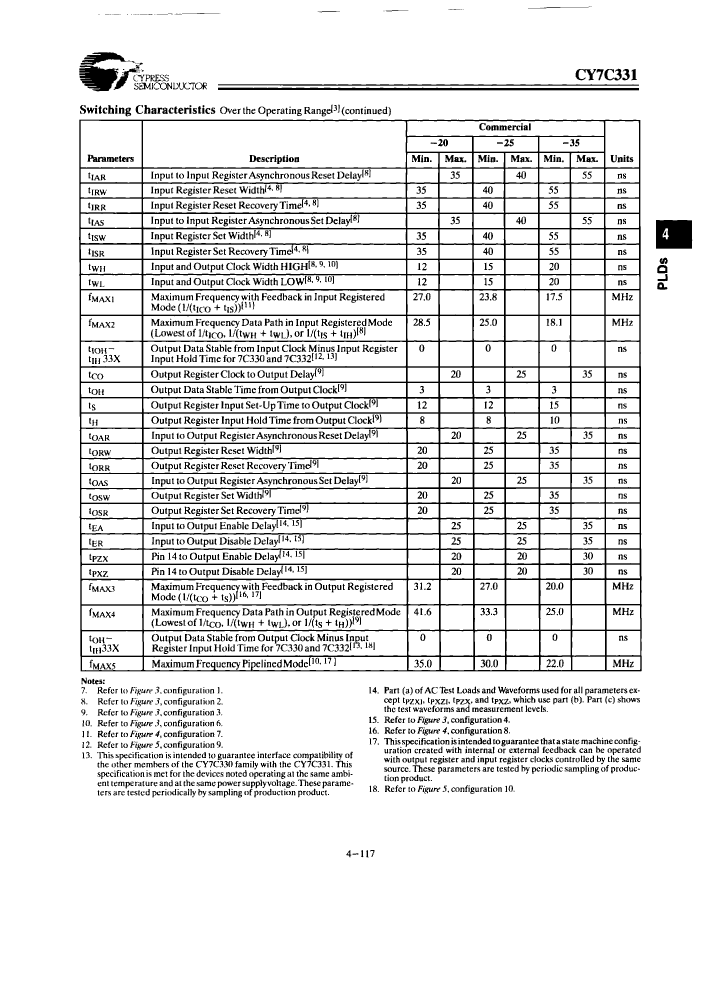

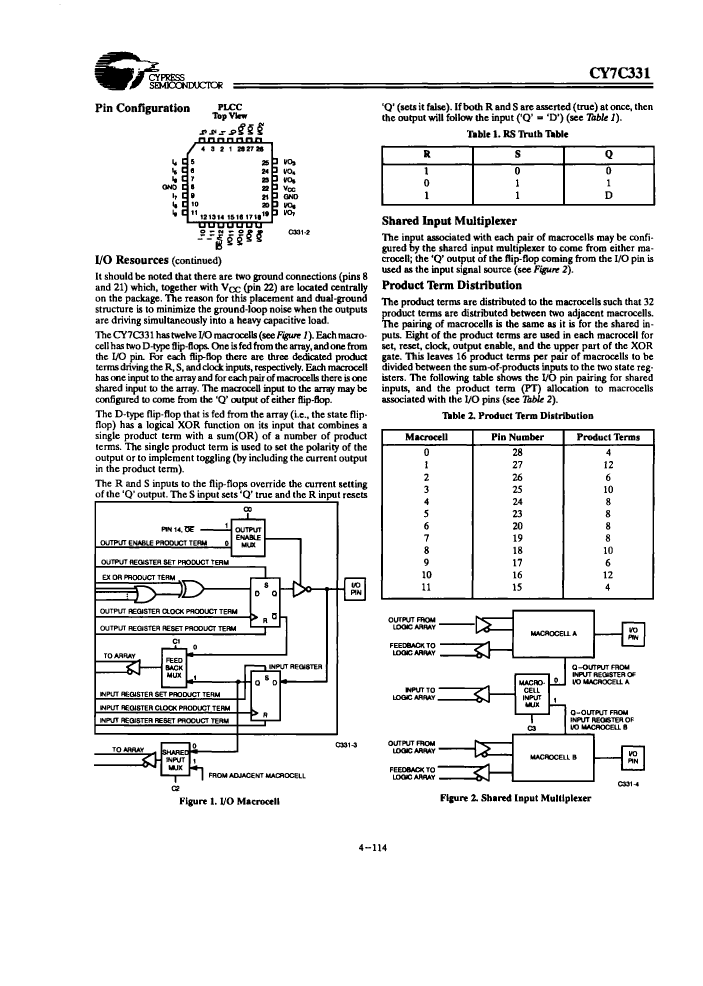

5962-8985502M3A: DescriptionOT PLD, 30ns, CMOS, CQCC28, CERAMIC, LCC-28; CategoryProgrammable logic devices Programmable logic; File Size424KB，13 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

5962-8985502M3A Overview

OT PLD, 30ns, CMOS, CQCC28, CERAMIC, LCC-28

5962-8985502M3A Parametric

Parameter Name	Attribute value
Parts packaging code	QLCC
package instruction	QCCN,
Contacts	28
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	ASYNCHRONOUS REGISTERED; 12 I/O MACROCELLS; VARIABLE PRODUCT TERMS
maximum clock frequency	18.1 MHz
JESD-30 code	S-CQCC-N28
JESD-609 code	e0
length	11.43 mm
Dedicated input times	12
Number of I/O lines	12
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	12 DEDICATED INPUTS, 12 I/O
Output function	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Programmable logic type	OT PLD
propagation delay	30 ns
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	1.9812 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	11.43 mm
Base Number Matches	1

Preview

Download Datasheet

View All

5962-8985502M3A Related Products

	5962-8985502M3A	5962-9075401M3A	5962-8985501MXA	CY7C331-35JCR	CY7C331-35JCT	5962-9075401MXA	5962-9075402MXA
Description	OT PLD, 30ns, CMOS, CQCC28, CERAMIC, LCC-28	UV PLD, 40ns, CMOS, CQCC28, WINDOWED, CERAMIC, LCC-28	OT PLD, 40ns, CMOS, CDIP28, 0.300 INCH, CERDIP-28	OT PLD, 35ns, CMOS, PQCC28, PLASTIC, LCC-28	OT PLD, 35ns, CMOS, PQCC28, PLASTIC, LCC-28	UV PLD, 40ns, CMOS, CDIP28, 0.300 INCH, WINDOWED, CERDIP-28	UV PLD, 30ns, CMOS, CDIP28, 0.300 INCH, WINDOWED, CERDIP-28
Parts packaging code	QLCC	QLCC	DIP	QLCC	QLCC	DIP	DIP
package instruction	QCCN,	WQCCN,	DIP,	QCCJ,	QCCJ,	WDIP,	WDIP,
Contacts	28	28	28	28	28	28	28
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	ASYNCHRONOUS REGISTERED; 12 I/O MACROCELLS; VARIABLE PRODUCT TERMS	ASYNCHRONOUS REGISTERED; 12 I/O MACROCELLS; VARIABLE PRODUCT TERMS	ASYNCHRONOUS REGISTERED; 12 I/O MACROCELLS; VARIABLE PRODUCT TERMS	ASYNCHRONOUS REGISTERED; 12 I/O MACROCELLS; VARIABLE PRODUCT TERMS	ASYNCHRONOUS REGISTERED; 12 I/O MACROCELLS; VARIABLE PRODUCT TERMS	ASYNCHRONOUS REGISTERED; 12 I/O MACROCELLS; VARIABLE PRODUCT TERMS	ASYNCHRONOUS REGISTERED; 12 I/O MACROCELLS; VARIABLE PRODUCT TERMS
maximum clock frequency	18.1 MHz	14.2 MHz	14.2 MHz	17.5 MHz	17.5 MHz	14.2 MHz	18.1 MHz
JESD-30 code	S-CQCC-N28	S-CQCC-N28	R-GDIP-T28	S-PQCC-J28	S-PQCC-J28	R-GDIP-T28	R-GDIP-T28
length	11.43 mm	11.43 mm	37.0205 mm	11.5316 mm	11.5316 mm	37.0205 mm	37.0205 mm
Dedicated input times	12	12	12	12	12	12	12
Number of I/O lines	12	12	12	12	12	12	12
Number of terminals	28	28	28	28	28	28	28
Maximum operating temperature	125 °C	125 °C	125 °C	70 °C	70 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-	-55 °C	-55 °C
organize	12 DEDICATED INPUTS, 12 I/O	12 DEDICATED INPUTS, 12 I/O	12 DEDICATED INPUTS, 12 I/O	12 DEDICATED INPUTS, 12 I/O	12 DEDICATED INPUTS, 12 I/O	12 DEDICATED INPUTS, 12 I/O	12 DEDICATED INPUTS, 12 I/O
Output function	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	QCCN	WQCCN	DIP	QCCJ	QCCJ	WDIP	WDIP
Package shape	SQUARE	SQUARE	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER, WINDOW	IN-LINE	CHIP CARRIER	CHIP CARRIER	IN-LINE, WINDOW	IN-LINE, WINDOW
Programmable logic type	OT PLD	UV PLD	OT PLD	OT PLD	OT PLD	UV PLD	UV PLD
propagation delay	30 ns	40 ns	40 ns	35 ns	35 ns	40 ns	30 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.9812 mm	2.8956 mm	5.08 mm	4.57 mm	4.57 mm	5.08 mm	5.08 mm
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY
Terminal form	NO LEAD	NO LEAD	THROUGH-HOLE	J BEND	J BEND	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	QUAD	QUAD	DUAL	QUAD	QUAD	DUAL	DUAL
width	11.43 mm	11.43 mm	7.62 mm	11.5316 mm	11.5316 mm	7.62 mm	7.62 mm
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	-	-	3A001.A.2.C	3A001.A.2.C
JESD-609 code	e0	e0	e0	-	-	e0	e0
Filter level	MIL-STD-883	MIL-STD-883	MIL-STD-883	-	-	MIL-STD-883	MIL-STD-883
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	-	-	TIN LEAD	TIN LEAD
Base Number Matches	1	1	1	1	1	-	-
Maker	-	Cypress Semiconductor	Cypress Semiconductor	-	-	Cypress Semiconductor	Cypress Semiconductor
