54LS295BJ/B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54LS295BJ/B

54LS295BJ/B: DescriptionParallel In Parallel Out; Categorylogic logic; File Size441KB，7 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

54LS295BJ/B Overview

Parallel In Parallel Out

54LS295BJ/B Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	,
Reach Compliance Code	unknown
Logic integrated circuit type	PARALLEL IN PARALLEL OUT
Base Number Matches	1

Preview

Download Datasheet

View All

REI Datasheet

SN54LS295B, SN74LS295B

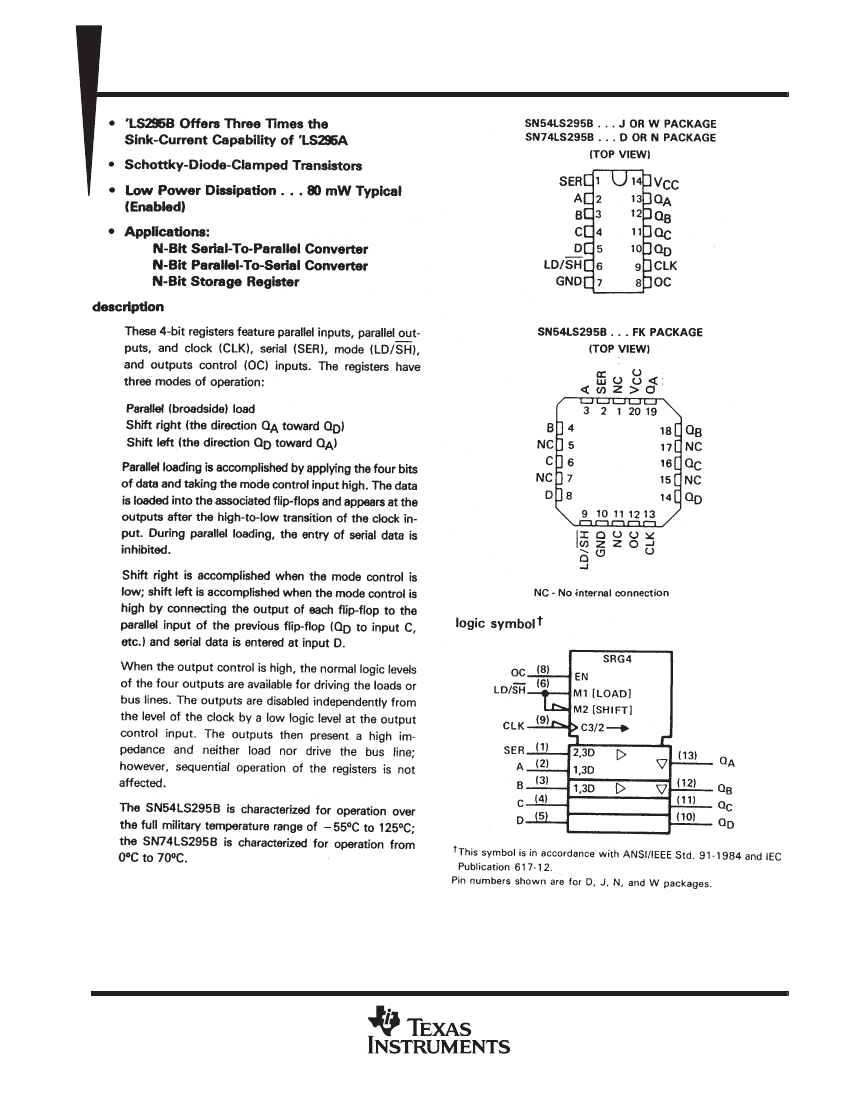

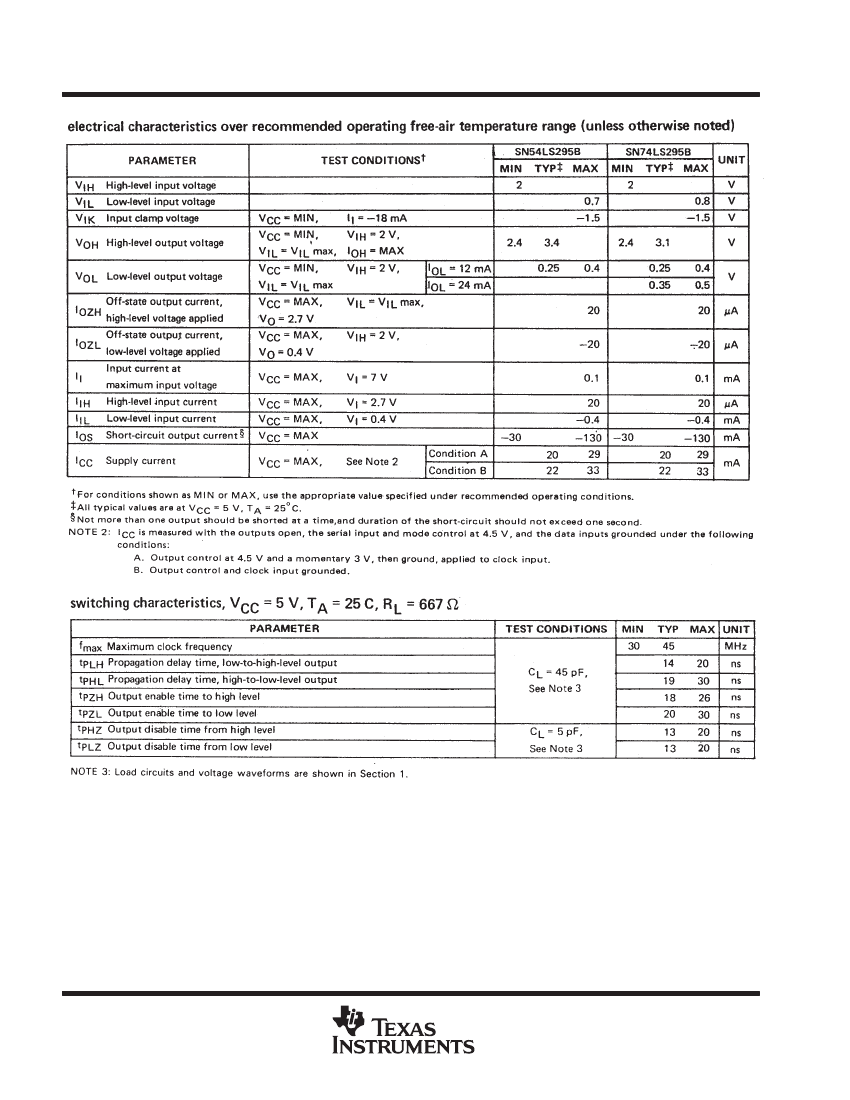

4-Bit Right-Shift Left-Shift Registers

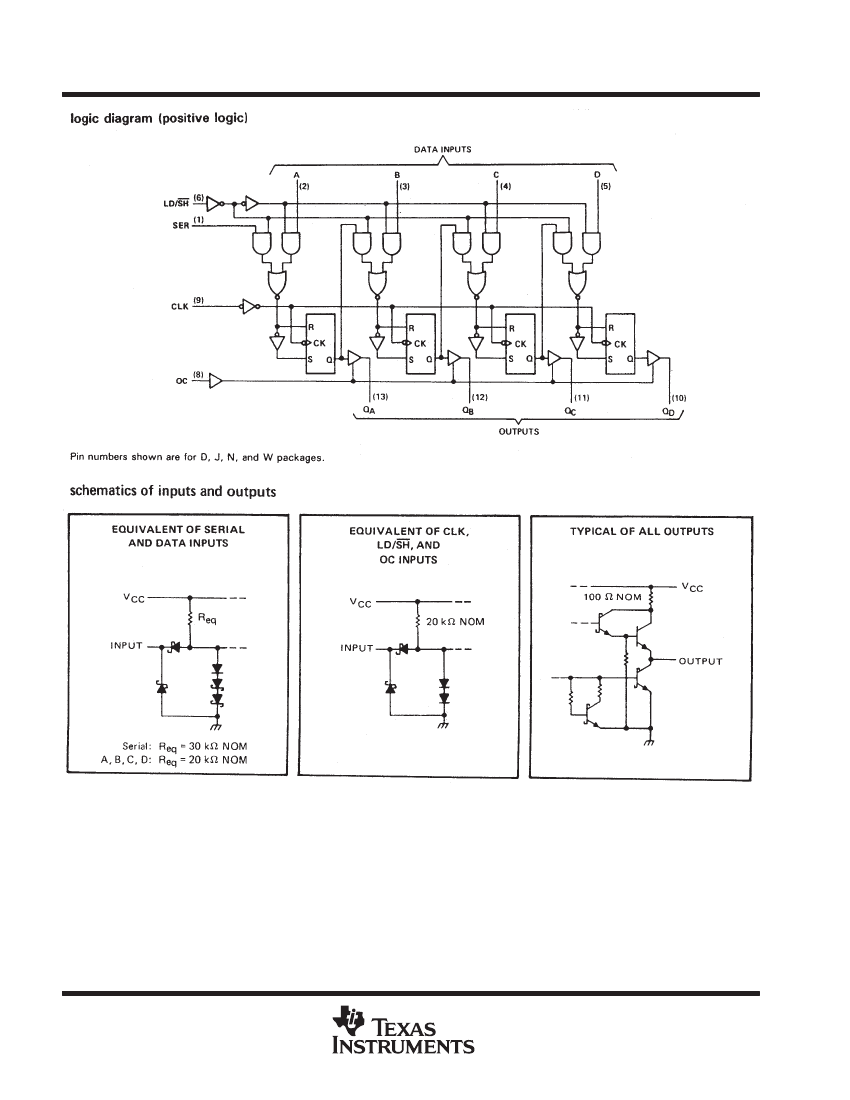

These 4-bit registers feature parallel inputs, parallel outputs, and clock (CLK), serial (SER), mode

(LD/SH), and outputs control (OC) inputs. The registers have three modes of operation: parallel, shift

right, and shift left.

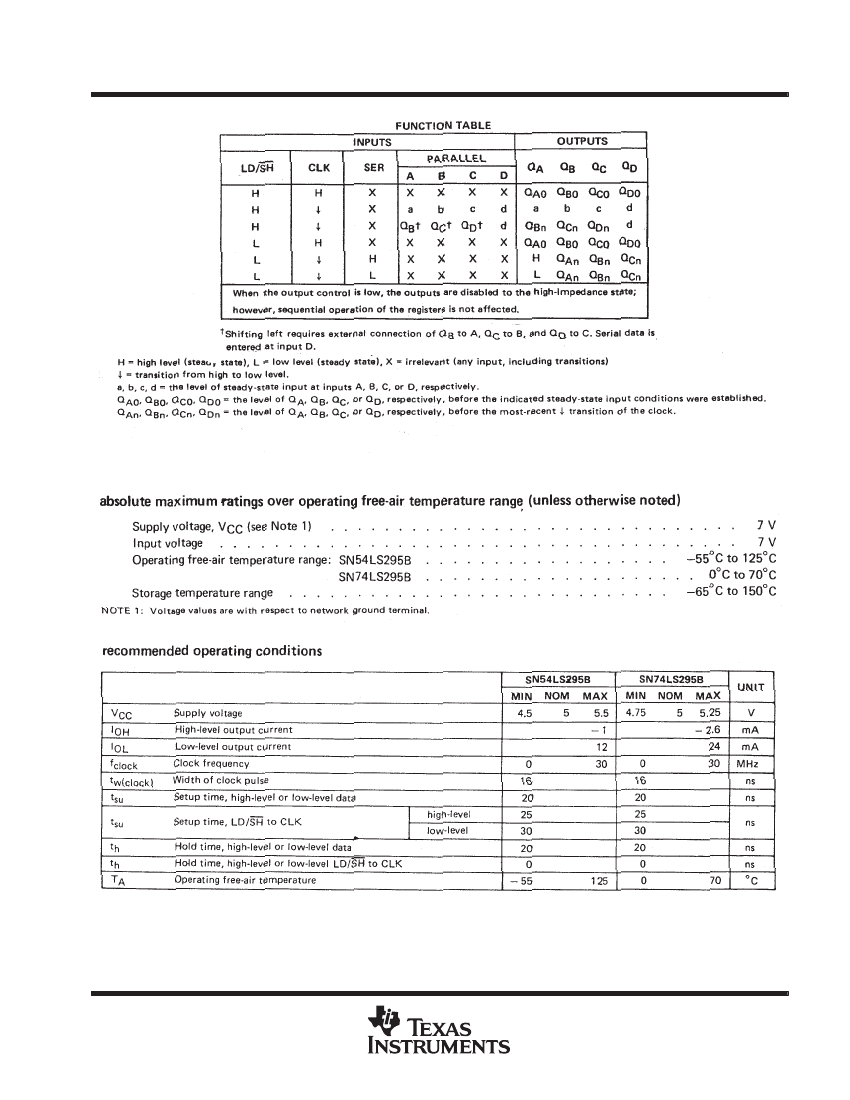

Parallel loading is accomplished by applying the four bits of data and taking the mode control input

high. The data is loaded into the associated flip-flops and appears at the outputs after the high-to-low

transition of the clock input. During parallel loading, the entry of serial data is inhibited.

Shift right is accomplished when the mode control is low; shift left is accomplished when the mode

control is high by connecting the output of each flip-flop to the parallel input of the previous flip-flop

to input C, etc) and serial data is entered at input D.

Rochester Electronics

Manufactured Components

Rochester branded components are

manufactured using either die/wafers

purchased from the original suppliers

or Rochester wafers recreated from the

original IP. All recreations are done with

the approval of the OCM.

Parts are tested using original factory

test programs or Rochester developed

test solutions to guarantee product

meets or exceeds the OCM data sheet.

Quality Overview

•

ISO-9001

• AS9120 certification

• Qualified Manufacturers List (QML) MIL-PRF-38535

• Class Q Military

•

Class V Space Level

• Qualified Suppliers List of Distributors (QSLD)

•

Rochester is a critical supplier to DLA and

meets all industry and DLA standards.

Rochester Electronics, LLC is committed to supplying

products that satisfy customer expectations for

quality and are equal to those originally supplied by

industry manufacturers.

The original manufacturer’s datasheet accompanying this document reflects the performance

and specifications of the Rochester manufactured version of this device. Rochester Electronics

guarantees the performance of its semiconductor products to the original OEM specifications.

‘Typical’ values are for reference purposes only. Certain minimum or maximum ratings may be

based on product characterization, design, simulation, or sample testing.

To learn more, please visit

www.rocelec.com

54LS295BJ/B Related Products

	54LS295BJ/B	74LS295BD	SN74LS295BJ
Description	Parallel In Parallel Out	Parallel In Parallel Out	Parallel In Parallel Out, LS Series, 4-Bit, Right Direction, True Output, TTL, CDIP14, DIP-14
Maker	Rochester Electronics	Rochester Electronics	Rochester Electronics
Reach Compliance Code	unknown	unknown	unknown
Logic integrated circuit type	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT
Base Number Matches	1	1	-
