General Purpose, High Stability and AC Line EMI Suppression
MDC Series Dual In-Line, 50 – 630 VDC, High Current
Overview

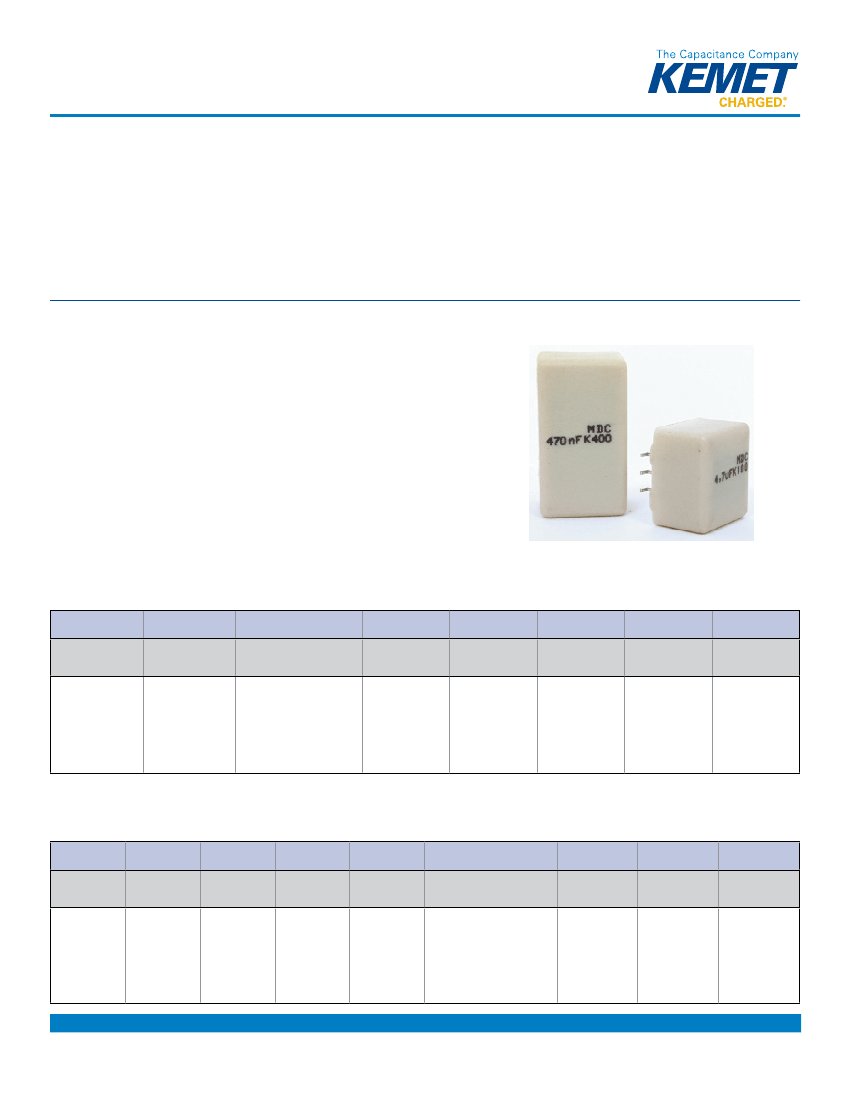

Dual in-line (DIL) metallized polyester (PET) film capacitor for
surface mounting. Encapsulation in self-extinguishing material
meeting the requirements of UL 94 V–0.
Applications
Typical applications include high frequency switched-mode
power supplies, DC/DC converters and input/output filtering.
Benefits
•
•
•
•
•
•
•
Rated voltage: 50 – 630 VDC
Rated voltage: 30 – 220 VAC
Capacitance range: 0.033 – 15 µF
Capacitance tolerance: ±5%, ±10%, other tolerances on request
Climatic category: 55/125/56
RoHS Compliant and lead-free terminations
Operating temperature range of -55˚C to +125˚C
Legacy Part Number System
MDC
Series
Dual In-Line,
Metallized
Polyester
10
Lead Spacing
(mm)
10
15
333
Capacitance Code (pF)
First two digits indicate
the two most significant
digits of the capacitance
value in picofarads. The
third digit is the number of
following zeros.
K
Capacitance
Tolerance
J = ±5
K = ±10%
Other tolerances
on request
50
Rated Voltage
(VDC)
50
100
250
400
630
A52
Size Code
See Dimension
Table
P3
TUBE
Number of Leads
Packaging Code
per Side
P3 = 3 leads
P4 = 4 leads
P5 = 5 leads
P7 = 7 leads
P8 = 8 leads
See Ordering
Options Table
New KEMET Part Number System
F
Capacitor Class
F = Film
15
Series
Dual In-Line,
Metallized
Polyester
3
A
A
Size Code
333
Capacitance Code (pF)
K
Capacitance
Tolerance
J = ±5
K = ±10%
Other
tolerances on
request
050
T
Number of
Lead Spacing
Leads per Side
(mm)
3 = 3 leads
4 = 4 leads
5 = 5 leads
7 = 7 leads
8 = 8 leads
A = 10
B = 15
Rated Voltage
Packaging Code
(VDC)
050 = 50
100 = 100
250 = 250
400 = 400
630 = 630
See Ordering
Options Table
A = Standard First two digits indicate the
box size
two most significant digits
of the capacitance value in
picofarads. The third digit
is the number of following
zeros.
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3074_MDC • 4/4/2013
1
Film Surface Mount Capacitors
General Purpose, High Stability and AC Line EMI Suppression – MDC Series Dual In-Line, 50 – 630 VDC, High Current
Ordering Options Table
Packaging Type
Standard Packaging Options
Bulk (Tube)
Case Size A53 Tape & Reel (Standard Reel)
T
VV687
TUBE
TR32
KEMET
Packaging
Code
Legacy
Packaging
Code
Dimensions – Millimeters
L
LL
Center line
B
H1
L3
See note
W
Board
mounting
surface
H
P1
B
+/-0.2
12.2
12.7
12.2
12.2
16.5
16.5
12.7
12.2
12.2
16.5
12.2
12.7
12.7
12.7
12.7
X
Y
P2
L2
P3
Z
H
+/-0.2
6.05
9.0
6.05
6.05
6.05
6.05
9.0
6.05
6.05
6.05
6.05
9.0
11.0
9.0
11.0
Legacy Leads P1
P2 P3
(1)
Size
per
Code
Side
+/-0.2 +/-0.2 +/-0.2
A52
A53
A54
A55
B53
B55
A53
A54
A55
B55
A55
A57
A58
A57
A58
3
3
3
3
3
3
4
4
4
4
5
7
7
8
8
10.0
10.0
10.0
10.0
15.0
15.0
10.0
10.0
10.0
15.0
10.0
10.0
10.0
10.0
10.0
2.54
2.54
2.54
2.54
2.54
2.54
2.54
2.54
2.54
2.54
2.54
2.54
2.54
2.54
2.54
5.08
5.08
5.08
5.08
5.08
5.08
7.62
7.62
7.62
7.62
10.16
15.24
15.24
17.78
17.78
L
+/-0.2
11.0
14.0
13.5
16.5
11.0
12.2
14.0
13.5
16.5
12.2
16.5
23.0
23.0
23.0
23.0
H1
+/-0.4
7.75
10.5
7.75
7.75
7.75
7.75
10.5
7.75
7.75
7.75
7.75
10.7
12.5
10.7
12.5
L2
+/-0.2
2.96
4.46
4.21
5.71
2.96
3.56
3.19
2.94
4.44
2.29
3.17
3.88
3.88
2.61
2.61
L3
(2)
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
W
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
X
+/-0.05
0.35
0.35
0.35
0.35
0.35
0.35
0.35
0.35
0.35
0.35
0.35
0.35
0.35
0.35
0.35
Y
+/-0.2
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
Z
Nominal
0.25
0
0.25
0.25
0.6
0.6
0
0.25
0.25
0.6
0.25
0
0
0
0
LL
+/-0.2
1.7
1.5
1.7
1.7
1.7
1.7
1.5
1.7
1.7
1.7
1.7
1.7
1.5
1.7
1.5
Maximum +/-0.05
Drawing shows MDC with three leads per side. Similar dimensional requirements apply to the 4, 5, 7, and 8 leads per side configurations.
(1) P3 represents the cumulative tolerance of all leads.
(2) L3 represents the extent to which the center line of the leads misaligns with the center line of the body. Dimension shown is the maximum such misalignment
allowed.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3074_MDC • 4/4/2013
2
Film Surface Mount Capacitors
General Purpose, High Stability and AC Line EMI Suppression – MDC Series Dual In-Line, 50 – 630 VDC, High Current
Performance Characteristics
Rated Voltage (VDC)
Rated Voltage (VAC)
Capacitance Range (µF)
Capacitance Tolerance
Category Temperature Range
Rated Temperature
Voltage Derating
Climatic Category
Test Voltage
50
30
0.033 – 15
100
63
0.033 – 10
250
160
0.033 – 1.5
400
200
0.033 – 0.47
630
220
0.033 – 0.18
±5%, ±10%, other tolerances on request
-55°C to +125°C
+85°C
The rated voltage is decreased with 1.25%/°C from +85°C
55/125/56
1.6 x V
R
, 60 seconds
Measured at +20°C According to IEC 60384–2
Minimum Value Between Terminals
Insulation Resistance
V
R
≤ 100
V
R
> 100
C ≤ 0.1 µF
Dissipation Factor
1 kHz
10 kHz
100 kHz
Self Inductance
Approximately 4 nH
0.8%
1.5%
2.5%
C ≤ 0.33 µF
15,000 MΩ
30,000 MΩ
Maximum Values at +23°C
0.1 < C < 3.3 µF
0.8%
1.5%
5.0%
C > 0.33 µF
5,000 MΩ • µF
10,000 MΩ • µF
3.3 ≤ C ≤ 10 µF
0.8%
1.5%
C > 10 µF
0.8%
2.0%

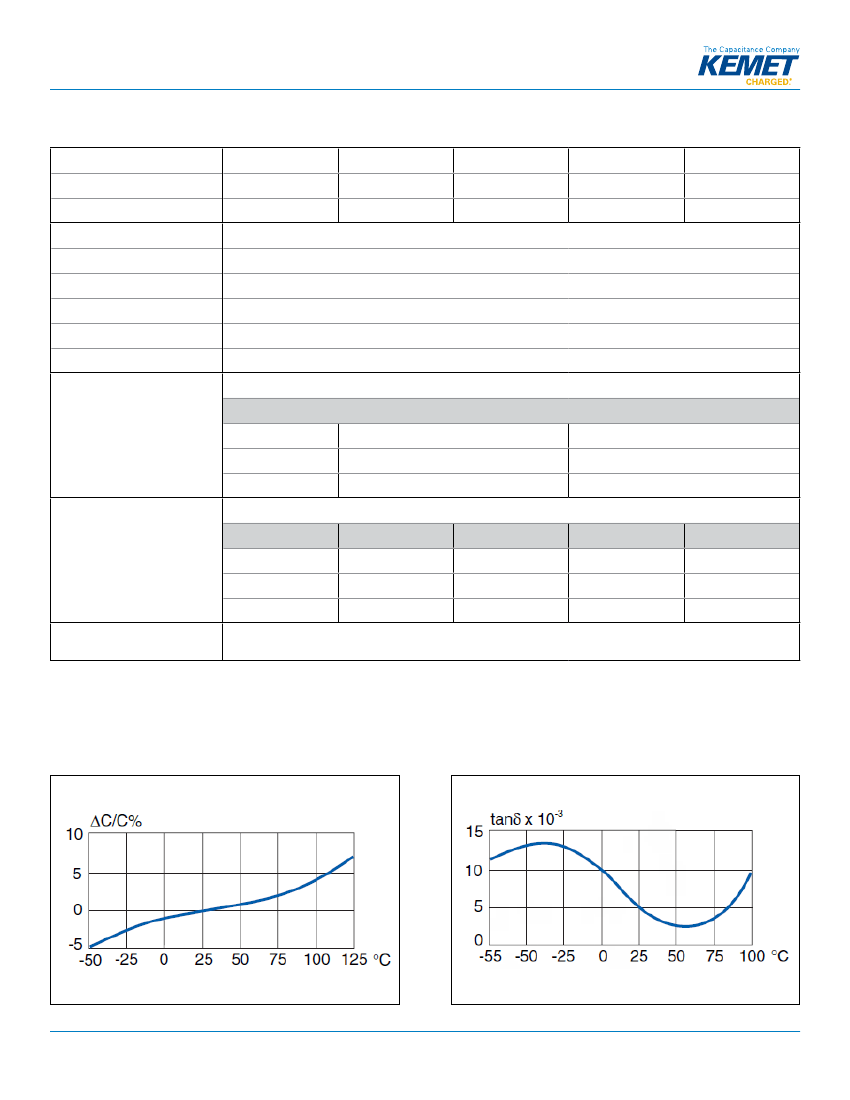

Typical Capacitance vs. Temperature at 1 kHz
Typical Dissipation Factor vs.
Temperature at 1 kHz
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3074_MDC • 4/4/2013
3
Film Surface Mount Capacitors
General Purpose, High Stability and AC Line EMI Suppression – MDC Series Dual In-Line, 50 – 630 VDC, High Current
Maximum RMS Voltage V
rms
(V) vs. Frequency
Value
1.0 μF
2.2 μF
3.9 μF
4.7 μF
6.8 μF
10 μF
Rated
Voltage
250 V
100 V
100 V
100 V
100 V
100 V
Case
Size
A57
A52
A52
A54
A57
A58
1 kHz
150.0
50.0
50.0
50.0
50.0
50.0
10 kHz
36.0
25.0
18.0
16.0
15.5
15.0
100 kHz
9.2
5.0
4.0
3.5
2.2
2.0
500 kHz
2.9
1.2
1.0
0.7
0.5
0.4
1 MHz
1.3
0.6
0.3
0.2
0.2
0.2
Maximum RMS Current I
rms
(A) vs. Frequency
Value
1.0 μF
2.2 μF
3.9 μF
4.7 μF
6.8 μF
10 μF
Rated
Voltage
250 V
100 V
100 V
100 V
100 V
100 V
Case
Size
A57
A52
A52
A54
A57
A58
1 kHz
1.0
1.5
2.0
2.0
3.0
4.0
10 kHz
2.2
2.3
4.0
4.5
6.0
9.0
100 kHz
5.5
6.0
10.0
10.0
11.0
13.0
500 kHz
9.0
7.5
11.0
12.5
13.0
14.0
1 MHz
10.0
10.0
11.5
12.5
13.5
14.5
Environmental Compliance
