5611R3 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 5611R3

Preview

5611R3: DescriptionSingle Color LED, Amber, Diffused, 7.3mm,; CategoryLED optoelectronic/LED photoelectric; File Size29KB，1 Pages; ManufacturerCML Innovative Technologies

Download Datasheet Parametric Compare View All

5611R3 Overview

Single Color LED, Amber, Diffused, 7.3mm,

5611R3 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
color	AMBER
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	DIFFUSED
Nominal luminous intensity	3.5 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-20 °C
Optoelectronic device types	SINGLE COLOR LED
method of packing	BULK
peak wavelength	600 nm
shape	RECTANGULAR
size	7.3 mm
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

147 Central Avenue

Hackensack, New Jersey 07601

Tel: 201-489-8989 • Fax: 201-489-6911

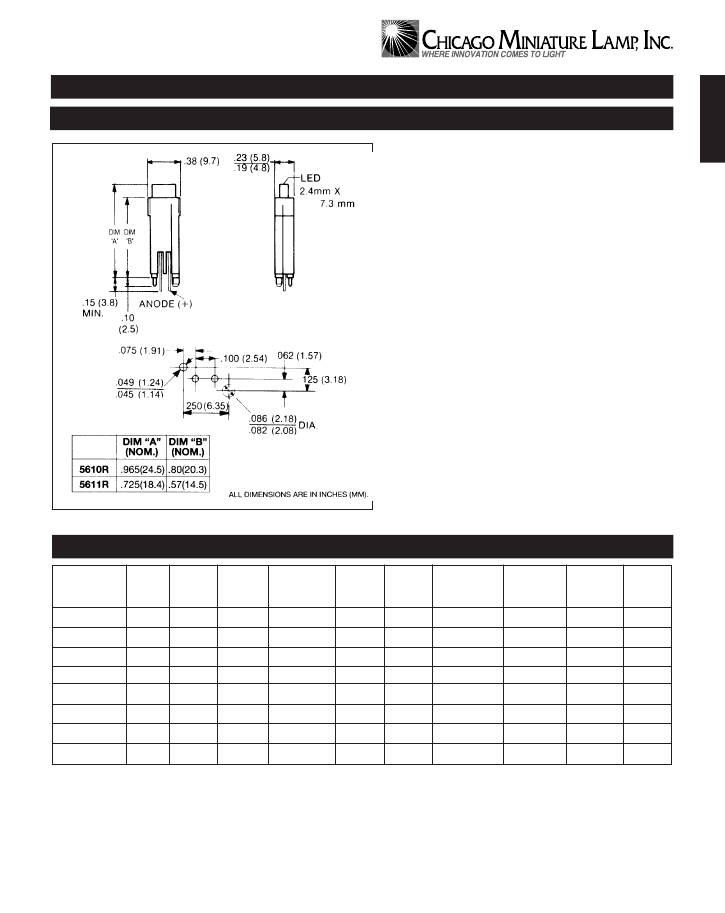

5610R, 5611R Series Rectangular LED Assembly

D E S C R I P T I O N

A N D

F E A T U R E S

1

FEATURES

• Block mounting design assures height and side-by-side spacing-

alignment saves assembly costs

• High light output-5 mcd (red)

• Large 2.4 mm x 7.3 flat LED face has even light distribution

• Diffusion lens

• Holding/Press-in pins secures block to board while being soldered

• Standoffs prevent flux entrapment

Housing:

Black Nylon (UL 94V-O)

E L E C T R O - O P T I C A L C H A R A C T E R I S T I C S A N D R AT I N G S

Part

Number

5610R1

5610R3

5610R5

5610R7

5611R1

5611R3

5611R5

5611R7

Color

Typical

Rated

Intensity Current

(mcd)

(mA)

5

3.5

3

5

3.5

7

5

20

For More

Reverse

Continuous Forward Forward Peak Forward

Peak

Breakdown Wavelength Complete

Current At

Forward

Voltage Voltage

LED Data

1ms-300 PPS Voltage Min.

Max.

Current Max.

Typ.

nM)

(Page)

(V)

(A)

(V)

(mA)

(V)

30

2.1

2.2

2.3

2.2

2.1

2.2

2.3

2.2

3.0

.09

.06

.09

.06

5

635

600

565

585

635

600

565

585

1-101

Red

Amber

Green

Yellow

Red

Amber

Green

Yellow

Chicago Miniature Lamp reserves the right to make specification revisions that enhance the design and/or performance of the product.

1-164

5611R3 Related Products

	5611R3	5611R7
Description	Single Color LED, Amber, Diffused, 7.3mm,	Single Color LED, Yellow, Diffused, 7.3mm, ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	unknown	unknown
color	AMBER	YELLOW
Configuration	SINGLE	SINGLE
Maximum forward current	0.03 A	0.03 A
Lens type	DIFFUSED	DIFFUSED
Nominal luminous intensity	3.5 mcd	5.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1
Number of terminals	2	2
Maximum operating temperature	100 °C	100 °C
Minimum operating temperature	-20 °C	-20 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED
method of packing	BULK	BULK
peak wavelength	600 nm	585 nm
shape	RECTANGULAR	RECTANGULAR
size	7.3 mm	7.3 mm
surface mount	NO	NO
Base Number Matches	1	1
