ISB80C186-25 datasheet, PDF - EEWORLD Datasheet

ISB80C186-25: Description16-BIT, 16 MHz, MICROPROCESSOR, PQCC68; Categorysemiconductor The embedded processor and controller; File Size4MB，103 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric View All

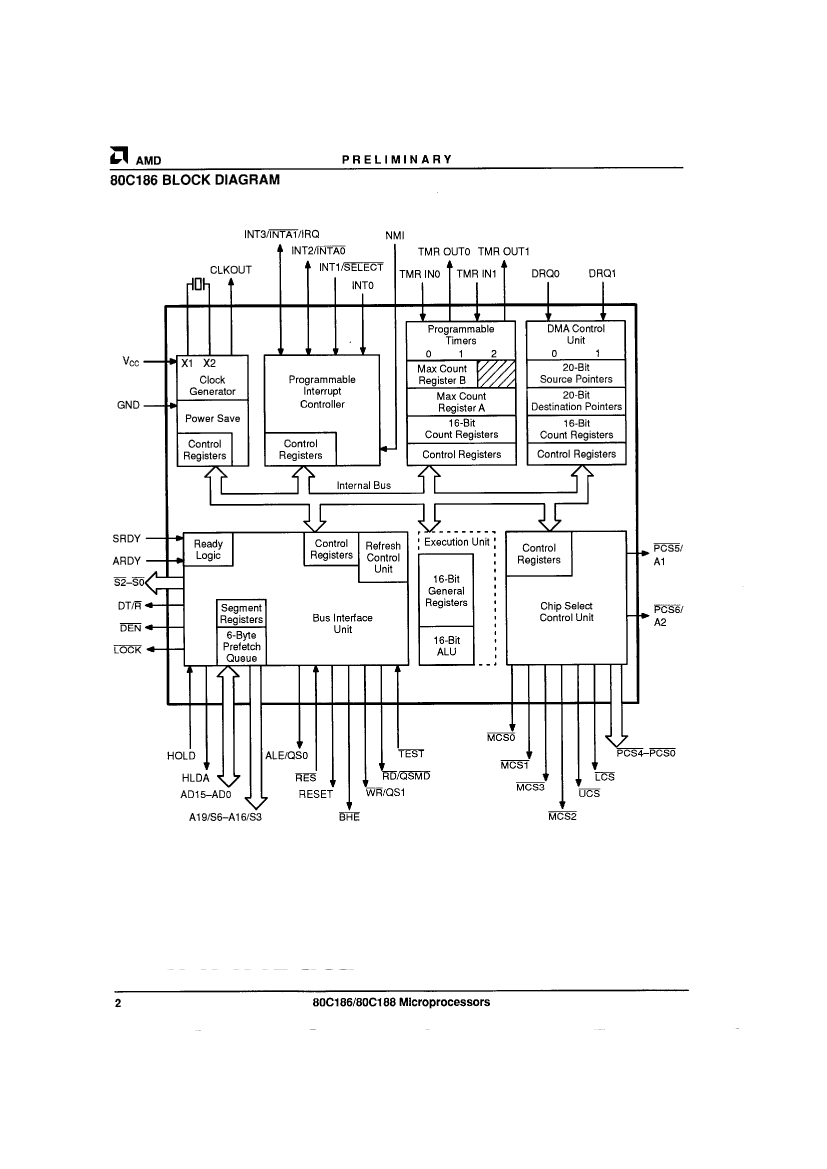

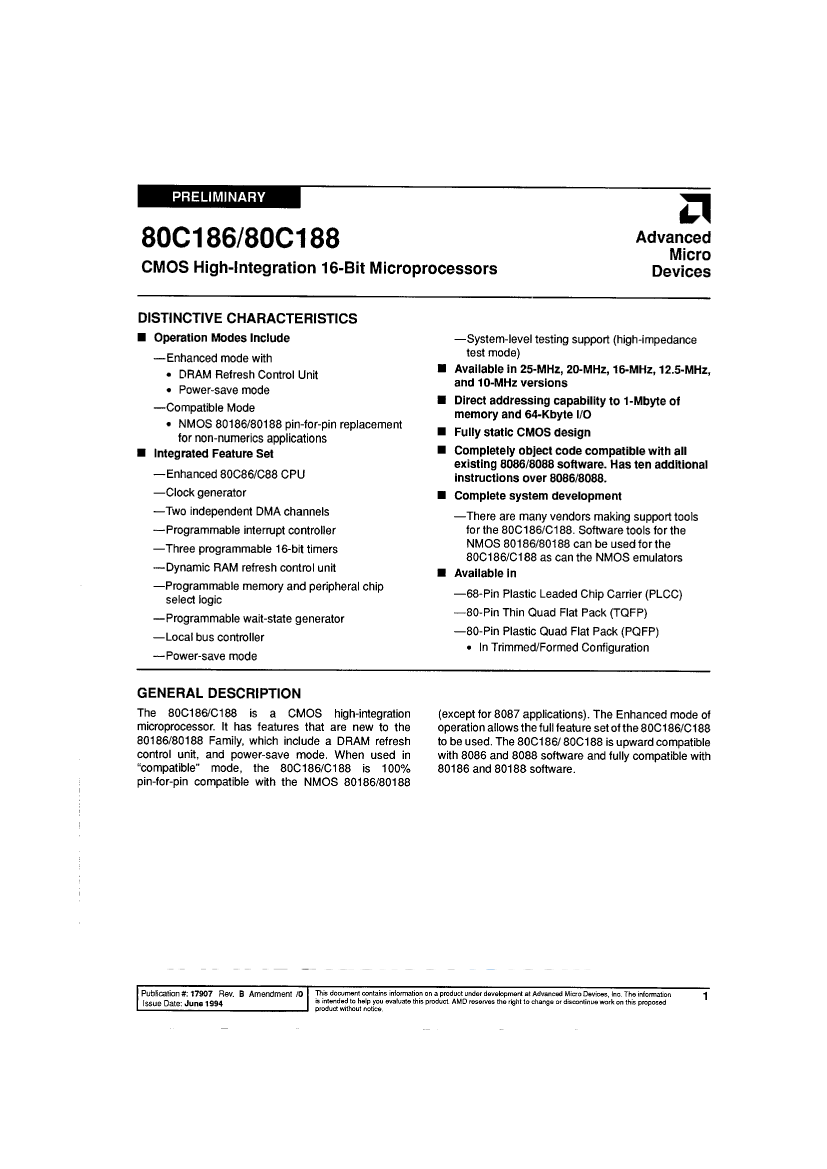

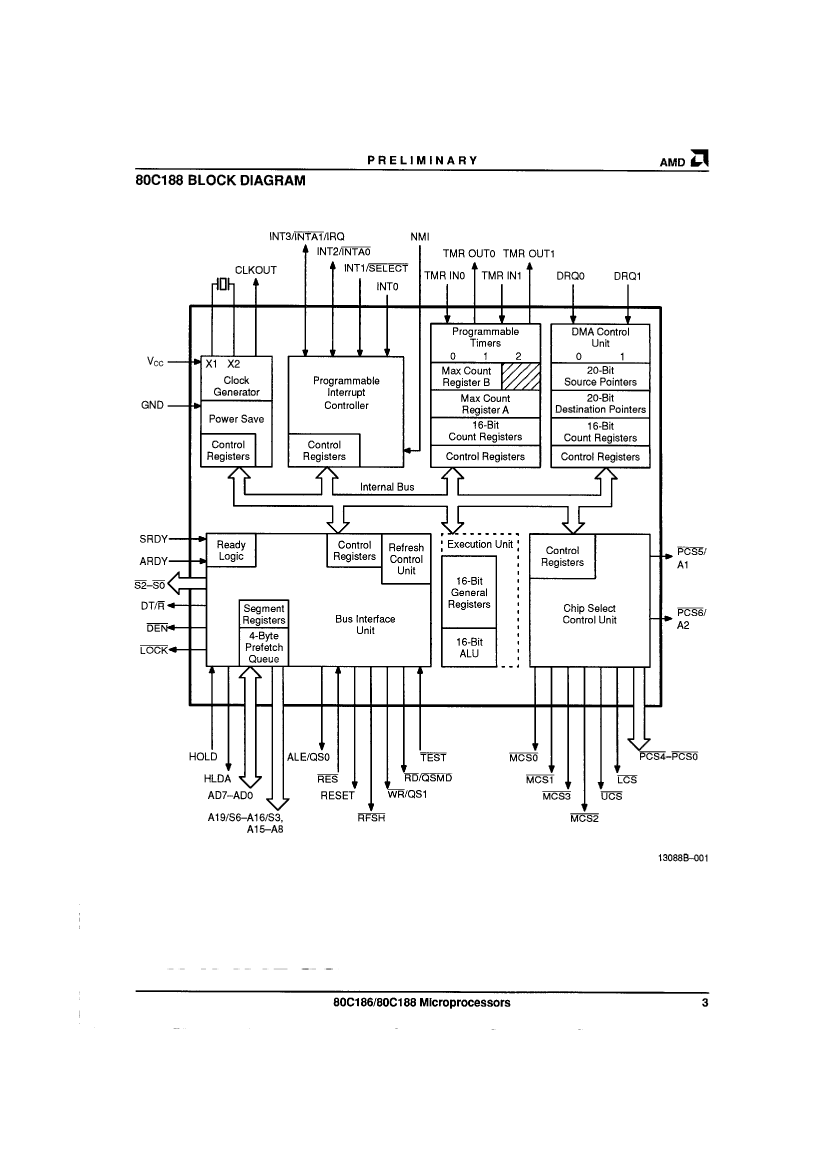

ISB80C186-25 Overview

16-BIT, 16 MHz, MICROPROCESSOR, PQCC68

Parameter Name	Attribute value
Number of functions	1

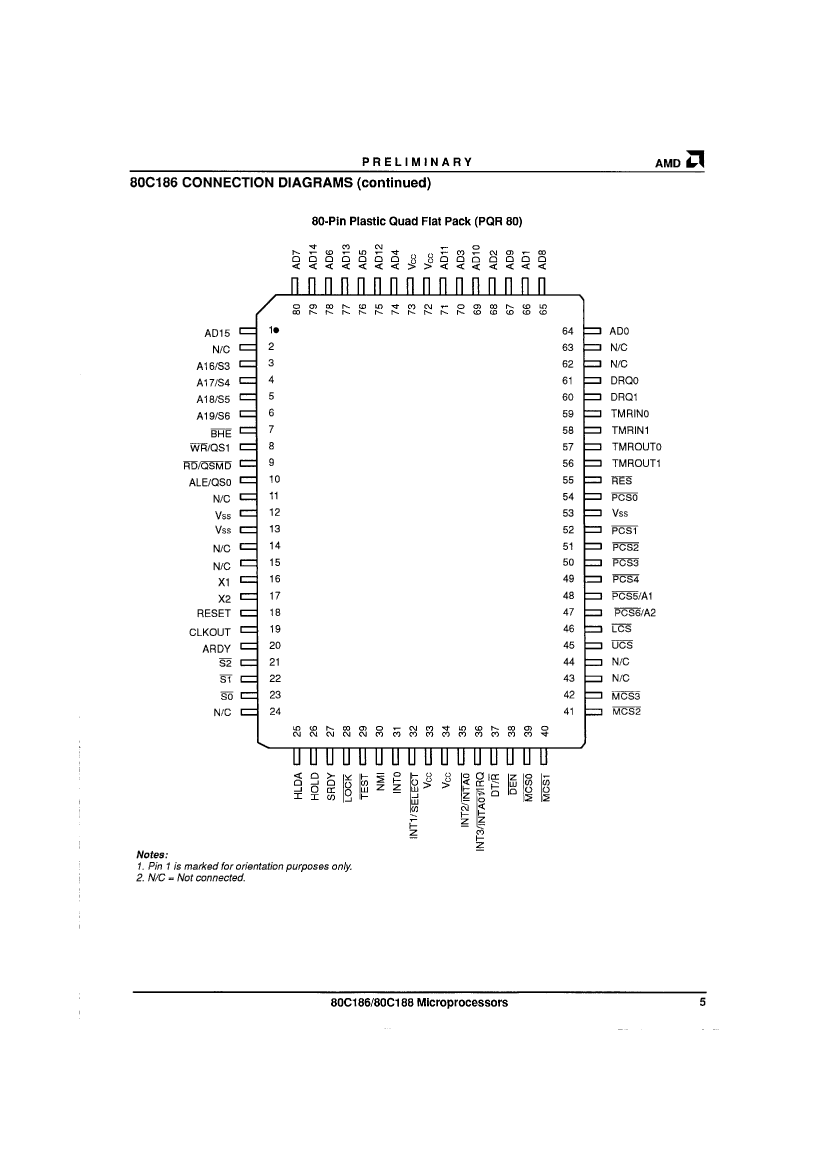

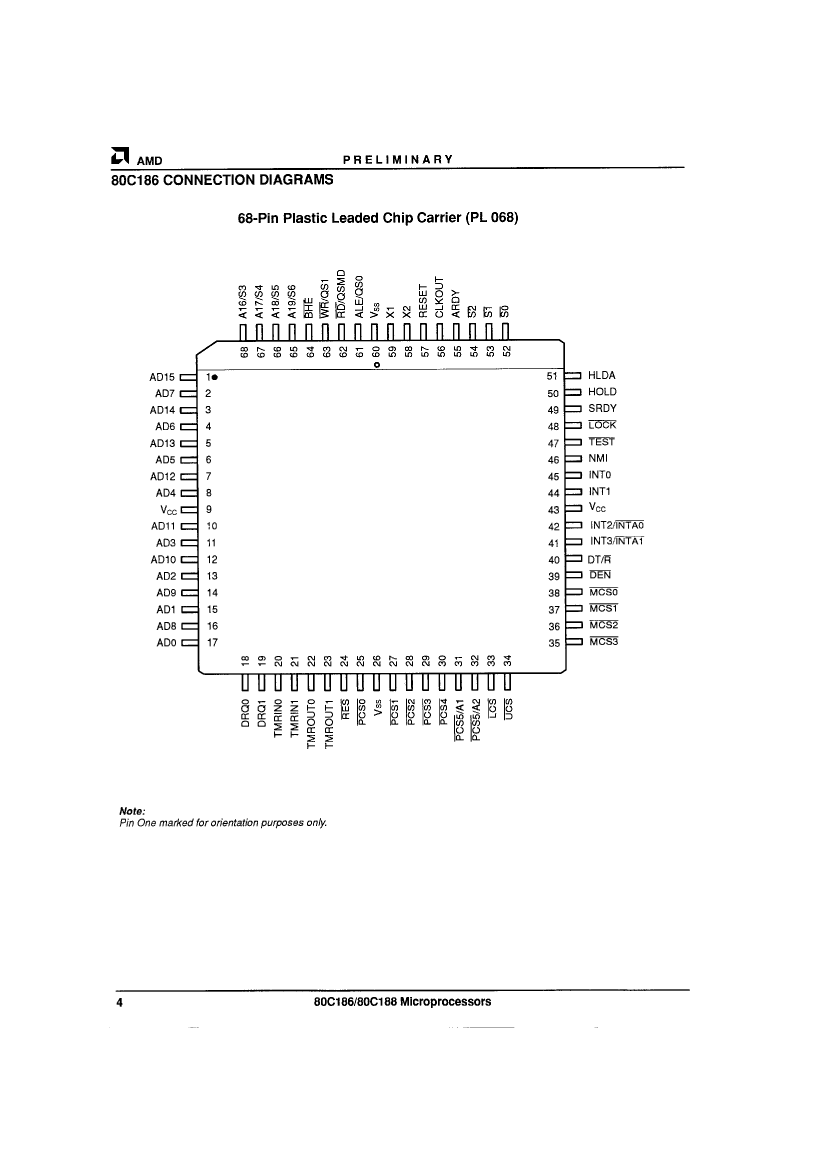

Number of terminals	68
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
Maximum supply/operating voltage	5.5 V
Minimum supply/operating voltage	4.5 V
Rated supply voltage	5 V
External data bus width	16
Line speed	16 MHz
Processing package description	PLASTIC, LCC-68
state	ACTIVE
Craftsmanship	CMOS
packaging shape	SQUARE
Package Size	CHIP CARRIER
surface mount	Yes
Terminal form	J BEND
Terminal spacing	1.27 mm
terminal coating	NOT SPECIFIED
Terminal location	QUAD
Packaging Materials	PLASTIC/EPOXY
Temperature level	INDUSTRIAL
Address bus width	20
Number of digits	16
Maximum FCLK clock frequency	32 MHz
low power mode	Yes
Microprocessor type	MICROPROCESSOR
