OX4570A-D3-0.5-20.000-3 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> OX4570A-D3-0.5-20.000-3

OX4570A-D3-0.5-20.000-3: DescriptionCMOS Output Clock Oscillator, 20MHz Nom,; CategoryPassive components oscillator; File Size430KB，4 Pages; ManufacturerRaltron; Websitehttp://www.raltron.com/; Environmental Compliance

Download Datasheet Parametric View All

OX4570A-D3-0.5-20.000-3 Overview

CMOS Output Clock Oscillator, 20MHz Nom,

OX4570A-D3-0.5-20.000-3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Raltron
Reach Compliance Code	unknown
Ageing	0.3 PPM/FIRST YEAR
Maximum control voltage	2.8 V
Minimum control voltage	0.2 V
Frequency Adjustment - Mechanical	NO
frequency stability	0.005%
Frequency Stability - Voltage	0.01 ppm
input power	0.5 W
Installation features	SURFACE MOUNT
Number of terminals	4
Nominal operating frequency	20 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	15 pF
Oven power supply voltage	3.3V

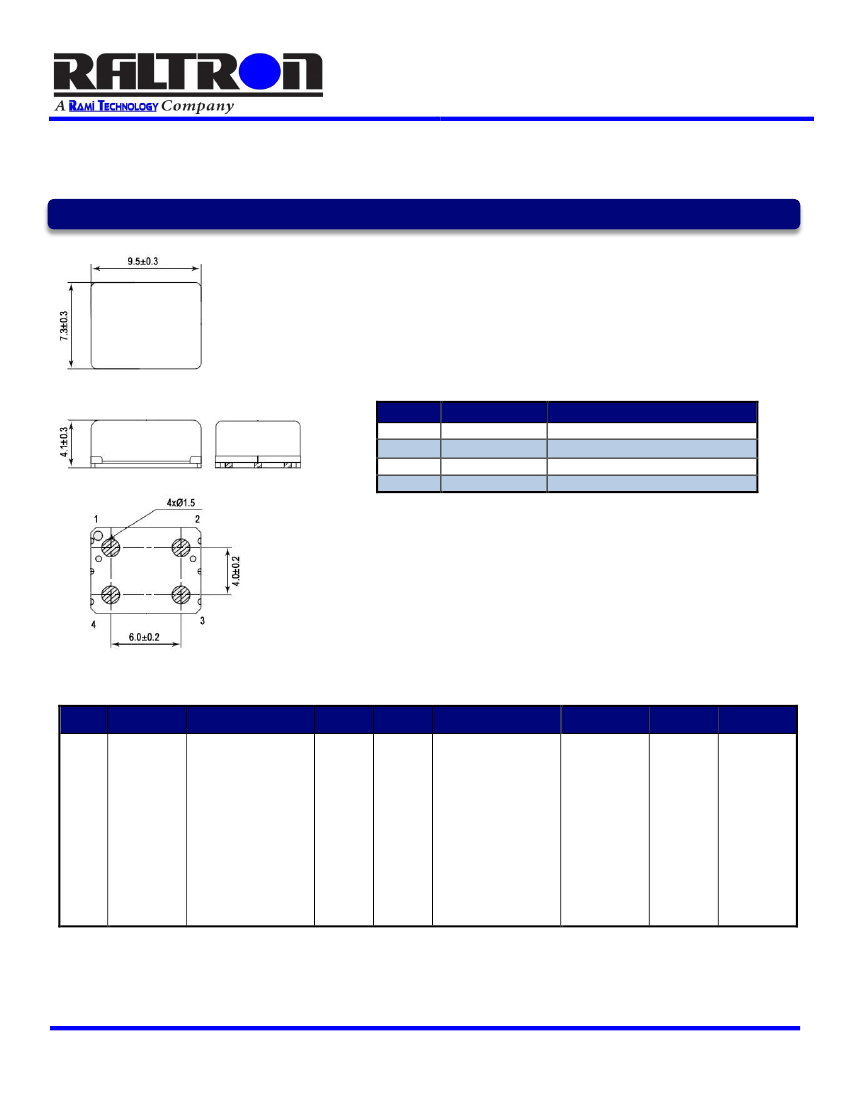

physical size	9.5mm x 7.3mm x 4.1mm
Maximum slew rate	151.515 mA
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
Preheating power	0.9 W
Maximum warm-up time	3 Minute
Base Number Matches	1

Preview

Download Datasheet

View All

Oven Controlled Crystal

Oscillator

OCXO SERIES 7000

FEATURES

Compact

High reliability

Frequencies up to 40 MHz

ELECTRICAL SPECIFICATIONS

PARAMETER

SYMBOL

CONDITION

Min.

VALUE

Typ.

Max.

40.000

3.3

0.35

0.8

3.465

0.5

UNIT

Frequency Range*

Nominal Frequencies

Supply Voltage

Power Consumption

S,w

Vs ±5%

Steady state, @ 25°C

During warm-up ,@ 25°C

Vs, Ta=+25°C, within ±100ppb of final

frequency with reference after 1 hour on

Ta=+25°C, Vc at center, before

shipment

5.000

10, 12.8, 13, 19.2, 20, 25, 25.6, 30.72, 30.88

3.135

MHz

0.9

min

ppb

C

ppm

Warm-up Time

Frequency Calibration

Frequency Stability vs.

Temperature*

Frequency Stability vs. Supply

Voltage

Aging, after 30 days of

operation

Operating Temperature Range*

Storage Temperature Range

Control Voltage Range

Frequency Tuning Range

Slope

Δf/f

-500

-10

-0.5

-300

-40

±5

+500

+10

+0.5

+300

+85

+90

1.5

2.8

Δf/f

) Over Operating temperature range

Δf/f

(ΔV

)

Δf/Δt

Ta=25°C, Vs±5%

Per day

First year

(stg)

Δf/f

Positive

-45

0.2

±5

*Not any Combination Frequency-Operating Temperature Range- Stability is available. Please consult factory

RALTRON ELECTRONICS

▪

10400 N.W. 33

▪

Miami, Florida 33172

▪

U.S.A.

Tel: +1-305-593-6033

▪

Fax: +1-305-594-3973

▪

email: sales@raltron.com

▪

web site: http://www.raltron.com
