F.LL.D3.042A.BN.R1

Description
Three Phase EMI Filter, 520V, 50/60HzHz,
CategoryAnalog mixed-signal IC    filter
File Size201KB，2 Pages
ManufacturerKEMET
Websitehttp://www.kemet.com
Download Datasheet Parametric Compare View All

F.LL.D3.042A.BN.R1 Overview

Three Phase EMI Filter, 520V, 50/60HzHz,

F.LL.D3.042A.BN.R1 Parametric

Parameter NameAttribute value
MakerKEMET
Reach Compliance Codecompliant
CertificationCUL
filter typeTHREE PHASE EMI FILTER
high85 mm
high potential3470 V
Maximum leakage current3 mA
length280 mm
Manufacturer's serial numberF.LL.D3
Installation typePANEL MOUNT
working frequency50/60Hz Hz
Maximum operating temperature100 °C
Minimum operating temperature-25 °C
physical sizeL280.0XB50.0XH85.0 (mm)/L11.024XB1.969XH3.346 (inch)
Rated current42 A
Rated voltage520 V
Base Number Matches1

Preview

Download Datasheet
Three Phase Filters
Industrial environments
General performance, slim, compact design
This wide range of compact three phase filters offer a very economical
design solution for the suppression of inverters, frequency converters and
powerdrive applications.
Universal voltage and technical specifications ensure the range meets the
needs of worldwide power drive systems and are ideally suited for long
motor cable runs.

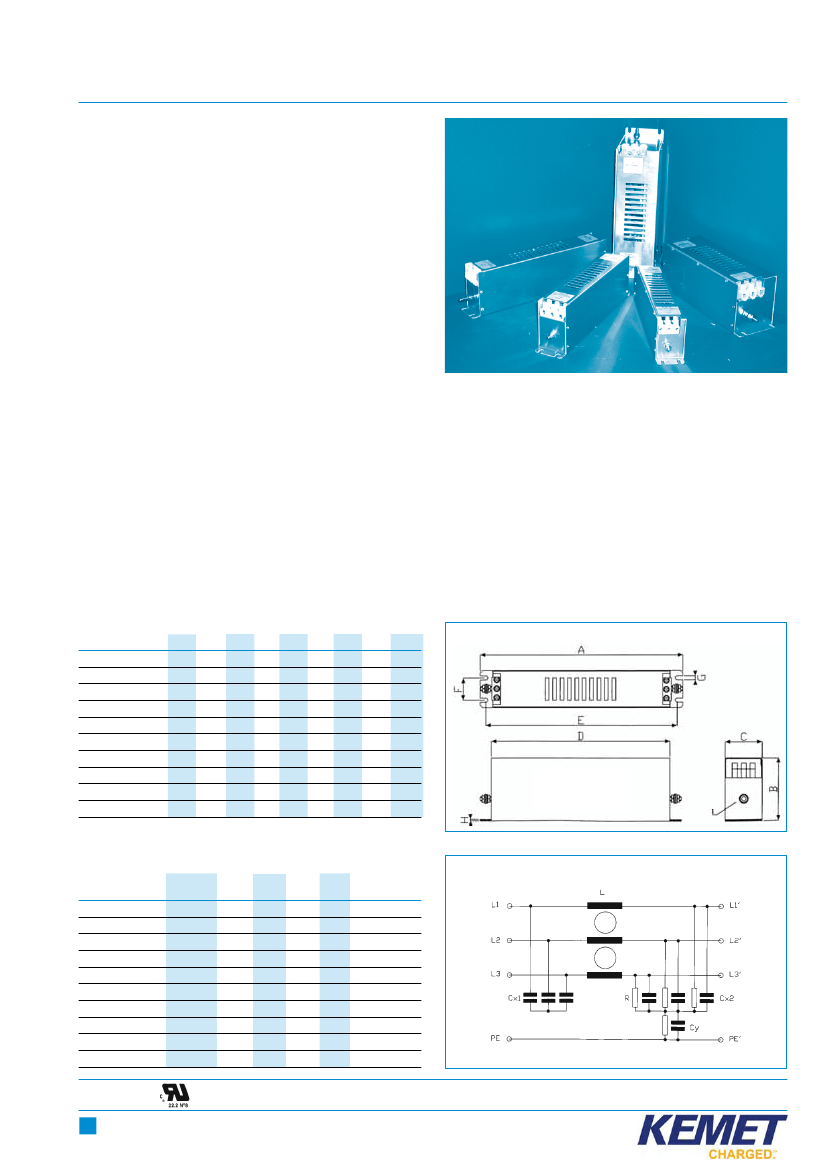

F.LL.D3
series –
BN
type
•
Current ratings from 7A to 180A
•
High attenuation performance
•
High voltage 520Vac design for worldwide applications
•
Space saving, lightweight construction
•
Excellent saturation resistance
•
Screw terminals for quick and easy installation
Mechanical specifications
Manufacture: aluminium enclosure
Connections: strip terminal block -
6mm
2
solid wire, 4mm
2
flex wire - 7A, 16A
16mm
2
solid wire, 10mm
2
flex wire - 30A, 42A
25mm
2
solid wire, 16mm
2
flex wire - 55A, 75A
safety terminal block -
50mm
2
solid wire plus flex wire - 100A, 130A, 150A
95mm
2
solid wire plus flex wire - 180A
Electrical specifications
Rated voltage (V
R
): 520Vac 50/60 Hz
Rated current (I
R
):
referred to 50°C (40°C)
fault condition: 260mA
(only one phase remaining)
Voltage test (2
S
.):
Climatic category:
line to ground 3470Vdc
line to line 1700Vdc
HMF (25/100/21):
temperature range: -25°C to +100°C
Leakage current (I
L
): normal condition: < 3mA
Dimensions
Code
F.LL.D3.007A.BN.R1
F.LL.D3.016A.BN.R1
F.LL.D3.030A.BN.R1
F.LL.D3.042A.BN.R1
F.LL.D3.055A.BN.R1
F.LL.D3.075A.BN.R1
F.LL.D3.100A.BN.R1
F.LL.D3.130A.BN.R1
F.LL.D3.150A.BN.R1
F.LL.D3.180A.BN.R1
A
190
250
270
310
250
270
270
270
380
380
B
70
70
85
85
90
135
150
150
170
170
C
40
45
50
50
85
80
90
90
120
120
D
160
220
240
280
220
240
240
240
350
350
E
180
235
255
295
235
255
255
255
365
365
F
20
25
30
30
60
60
65
65
102
102
G
4.5
5.4
5.4
5.4
5.4
6.5
6.5
6.5
6.5
6.5
H
2
2
2
2
2
3
3
3
3
3
I
M5
M5
M5
M6
M6
M6
M10
M10
M10
M10
Dimensions (mm) and connections
Filter range
Circuit diagram
Code
F.LL.D3.007A.BN.R1
F.LL.D3.016A.BN.R1
F.LL.D3.030A.BN.R1
F.LL.D3.042A.BN.R1
F.LL.D3.055A.BN.R1
F.LL.D3.075A.BN.R1
F.LL.D3.100A.BN.R1
F.LL.D3.130A.BN.R1
F.LL.D3.150A.BN.R1
F.LL.D3.180A.BN.R1
l
R
(A)
7
(7.7)
16 (17.5)
30 (32.9)
42 (46)
55 (60.2)
75 (82.2)
L
(mH)
3x2
3x1.9
3x1.4
3x1.1
3x0.7
3x0.8
Cx
1
(µF)
3x5.6
3x5.6
3x5.6
3x5.6
3x5.6
3x5.6
3x5.6
3x5.6
3x5.6
3x5.6
Cx
2
(µF)
3x3.3
3x3.3
3x3.3
3x3.3
3x3.3
3x3.3
3x3.3
3x3.3
3x3.3
3x3.3
Cy
(µF)
1x3.3
1x3.3
1x3.3
1x3.3
1x3.3
1x3.3
1x3.3
1x3.3
1x3.3
1x3.3
R
(MΩ)
3x1 + 1x0.66
3x1 + 1x0.66
3x1 + 1x0.66
3x1 + 1x0.66
3x1 + 1x0.66
3x1 + 1x0.66
3x1 + 1x0.66
3x1 + 1x0.66
3x1 + 1x0.66
3x1 + 1x0.66
100 (109.5) 3x0.5
130 (142.4) 3x0.4
150 (164)
3x0.3
180 (197.1) 3x0.3

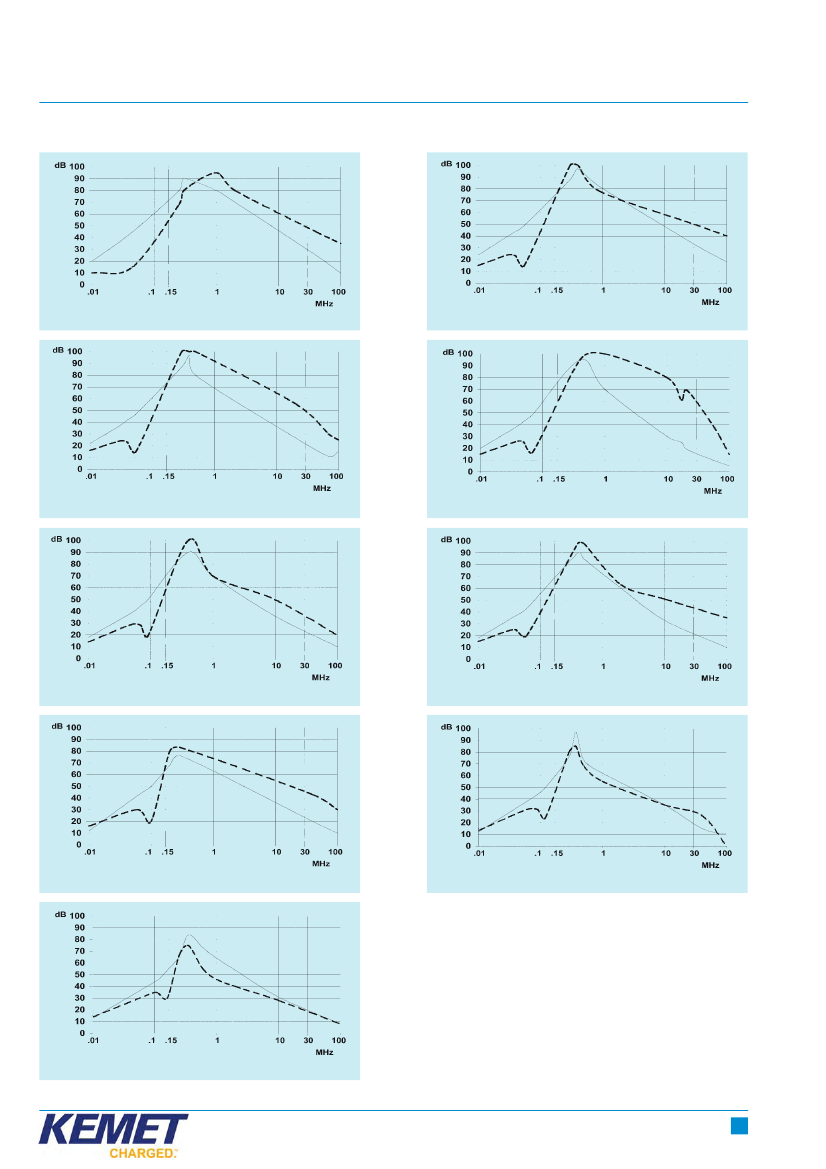

Approvals
22
Line
Load
