54F20/B2A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F20/B2A

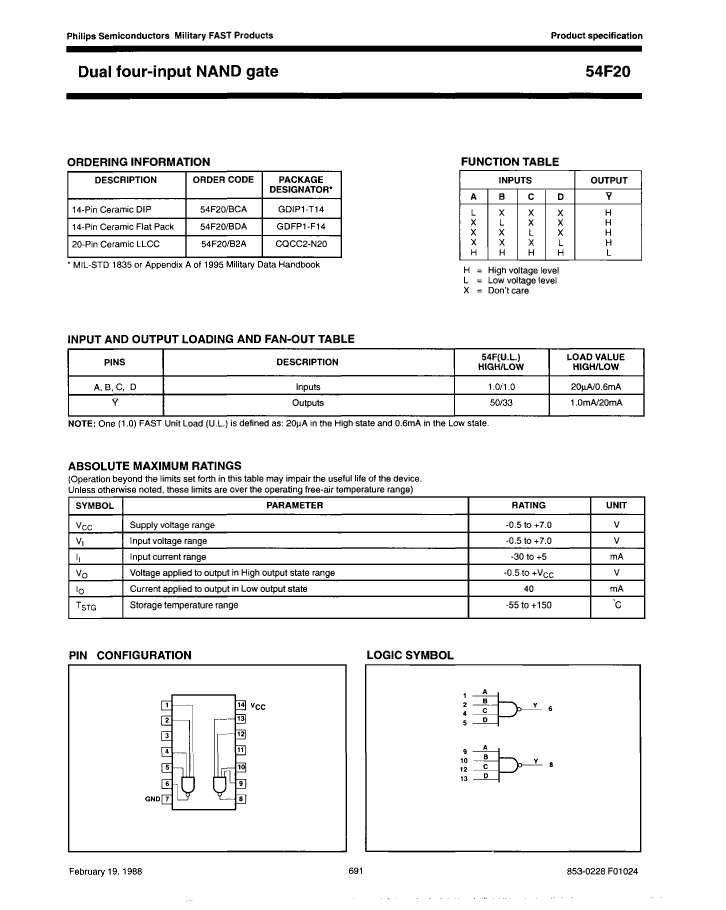

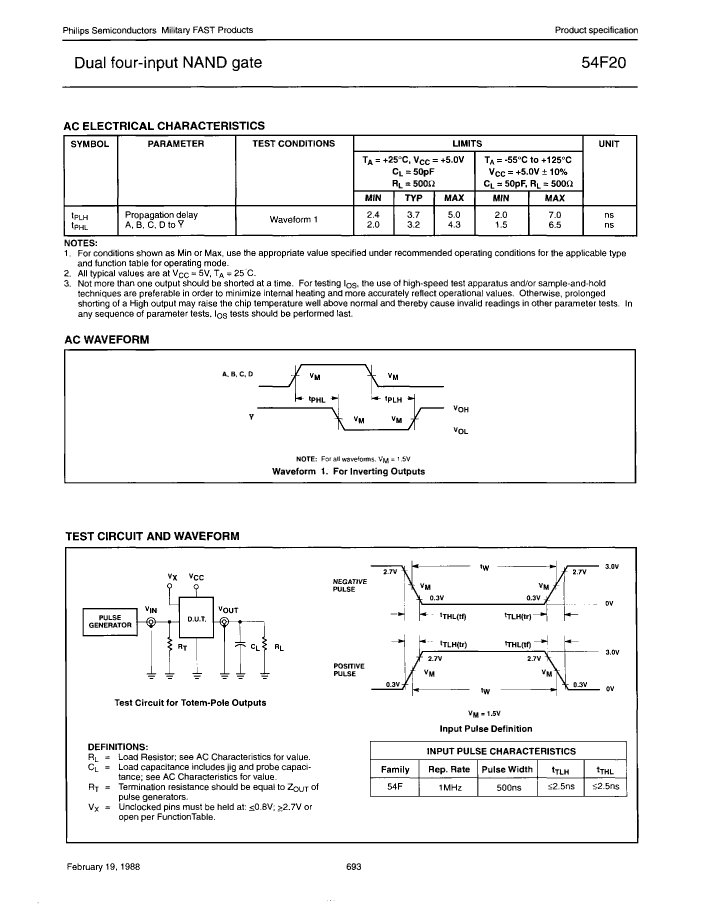

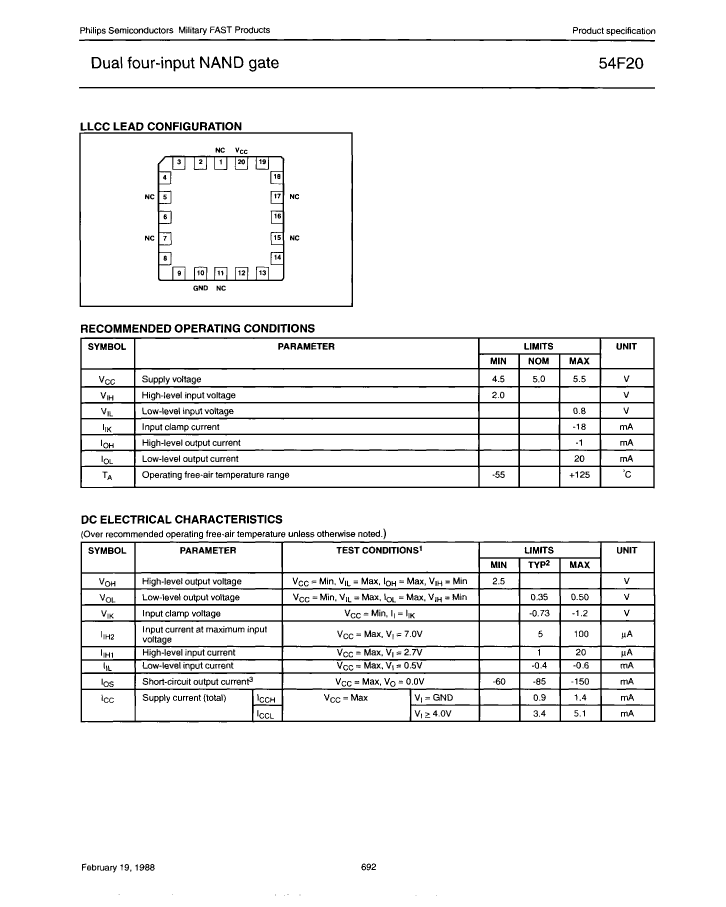

54F20/B2A: DescriptionIC F/FAST SERIES, DUAL 4-INPUT NAND GATE, CQCC20, Gate; Categorylogic logic; File Size73KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54F20/B2A Overview

IC F/FAST SERIES, DUAL 4-INPUT NAND GATE, CQCC20, Gate

54F20/B2A Parametric

Parameter Name	Attribute value
package instruction	QCCN,
Reach Compliance Code	unknown
series	F/FAST
JESD-30 code	S-CQCC-N20
Load capacitance (CL)	50 pF
Logic integrated circuit type	NAND GATE
Number of functions	2
Number of entries	4
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Maximum supply current (ICC)	5.1 mA
propagation delay (tpd)	6.5 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	QUAD
Base Number Matches	1

Preview

Download Datasheet

View All

54F20/B2A Related Products

	54F20/B2A	N54F20/BDA	54F20/BDA	N54F20/B2A	54F20/BCA
Description	IC F/FAST SERIES, DUAL 4-INPUT NAND GATE, CQCC20, Gate	IC F/FAST SERIES, DUAL 4-INPUT NAND GATE, CDFP14, CERAMIC, DFP-14, Gate	IC F/FAST SERIES, DUAL 4-INPUT NAND GATE, CDFP14, Gate	IC F/FAST SERIES, DUAL 4-INPUT NAND GATE, CQCC20, CERAMIC, LLCC-20, Gate	IC F/FAST SERIES, DUAL 4-INPUT NAND GATE, CDIP14, Gate
package instruction	QCCN,	DFP,	DFP,	QCCN,	DIP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
series	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	S-CQCC-N20	R-CDFP-F14	R-CDFP-F14	S-CQCC-N20	R-GDIP-T14
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE
Number of functions	2	2	2	2	2
Number of entries	4	4	4	4	4
Number of terminals	20	14	14	20	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	QCCN	DFP	DFP	QCCN	DIP
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	FLATPACK	FLATPACK	CHIP CARRIER	IN-LINE
Maximum supply current (ICC)	5.1 mA	5.1 mA	5.1 mA	5.1 mA	5.1 mA
propagation delay (tpd)	6.5 ns	6.5 ns	6.5 ns	6.5 ns	6.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	NO
technology	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	FLAT	FLAT	NO LEAD	THROUGH-HOLE
Terminal location	QUAD	DUAL	DUAL	QUAD	DUAL
Base Number Matches	1	1	1	1	1
Maximum seat height	-	2.159 mm	-	1.905 mm	5.08 mm
Terminal pitch	-	1.27 mm	-	1.27 mm	2.54 mm
width	-	6.2865 mm	-	8.89 mm	7.62 mm
