Document order number: MM908E625
Rev 3.0, 09/2004
Advance Information
Integrated Quad Half H-Bridge with
Power Supply, Embedded MCU, and
LIN Serial Communication
The 908E625 is an integrated single-package solution that includes a high-
performance HC08 microcontroller with a
SMARTMOS
TM
analog control IC.
The HC08 includes flash memory, a timer, enhanced serial communications
interface (ESCI), an analog-to-digital converter (ADC), serial peripheral
interface (SPI), and an internal clock generator (ICG) module. The analog
control die provides fully protected H-Bridge/high-side outputs, voltage
regulator, autonomous watchdog with cyclic wake-up, and local interconnect
network (LIN) physical layer.
The single-package solution, together with LIN, provides optimal
application performance adjustments and space-saving PCB design. It is well
suited for the control of automotive mirror, door lock, and light-levelling
applications.
Features
• High-Performance M68HC08EY16 Core
• 16 K Bytes of On-Chip Flash Memory
• 512 Bytes of RAM
• Internal Clock Generation Module
• Two 16-Bit, 2-Channel Timers
• 10-Bit Analog-to-Digital Converter
• Three 2-Terminal Hall-Effect Sensor Input Ports
• One Analog Input with Switchable Current Source
• Four Low R
DS(ON)
Half-Bridge Outputs
• One Low R
DS(ON)
High-Side Output
• 13 Microcontroller I/Os
908E625
Simplified Application Diagram
Simplified Application Diagram
908E625
908E625
LIN
VREFH
VDDA
EVDD
VDD
VREFL
VSSA
EVSS
VSS
RST
RST_A
IRQ
IRQ_A
SS
PTB1/AD1
RXD
PTE1/RXD
PTD1/TACH1
FGEN
BEMF
PTD0/TACH0/BEMF
VSUP[1:3]
HB1
M
HB2
HB3
HB4
HS
High-Side
Output
HVDD
H1
H2
H3
PA1
Port A I/Os
Port B I/Os
Port C I/Os
Switchable Internal
V
DD
Output
M
M
908E625
H-BRIDGE POWER SUPPLY
WITH EMBEDDED MCU AND LIN
Freescale Semiconductor, Inc...
DWB SUFFIX
CASE 1400-01
54-TERMINAL SOICWB-EP
ORDERING INFORMATION
Device
MM908E625ACDWB/R2
Temperature
Range (T
A
)
-40°C to 85°C
Package
54 SOIC
WB-EP
4 Half-Bridges
Controlling 3 Loads
Three
2-Terminal Hall-Effect
Sensor Inputs
Analog Input with
Current Source
Microcontroller
Ports
GND[1:2] EP
This document contains certain information on a new product.
Specifications and information herein are subject to change without notice.
© Motorola, Inc. 2004
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc...
PTD0/TACH0
PTB1/AD1
VSUP1-3
CPU
Registers
5-Bit Keyboard
Interrupt Module
Internal Bus
DDRC
DDRA
PORT A
PTC3/OSC2
PTD1/TACH1
PTD0/TACH0
PORT C
DDRD
PORT D
PORT B
DDRB
DDRE
PTB7/AD7/TBCH1
PTB6/AD6/TBCH0
PTB5/AD5
PTB4/AD4
PTB3/AD3
PTB2/AD2
PTB1/AD1
PTB0/AD0
PTE1/RxD
PTE0/TxD
PORT E
908E625
2
GND1-2
RST_A
IRQ_A
FGEN
BEMF
SS
RXD
PTD1/TACH1
PTE1/RXD
RST
LIN
IRQ
Single Breakpoint
Break Module
Voltage
Regulator
VREFH
VSS
VDD
PTE0/TXD
TXD
LIN Physical
Layer
2-Channel Timer
Interface Module A
Reset Control
Module
2-channel Timer
Interface Module B
FGEN
VSUP
VREFL
Control and Status Register,
64 Bytes
VDDA
Switched VDD
Driver &
Diagnostic
M68HC08 CPU
User Flash, 15,872 Bytes
User RAM, 512 Bytes
Monitor ROM, 310 Bytes
EVDD
HVDD
EVSS
VSSA
ALU
PTA0/KBD0
Enhanced Serial
Communication
Interface Module
Computer Operating
Properly Module
Interrupt
Control
Module
High Side
Driver &
Diagnostic
Flash Programming (burn in)
ROM, 1024 Bytes
PTA1/KBD1
SS
FGEN
User Flash Vector Space,
36 Bytes
HS
VSUP
OSC2
OSC1
PTA2/KBD2
Internal Clock
Generator Module
PTA3/KBD3
Serial Pheripheral
Interface Module
RST
24 Internal System
Integration Module
PTC0/MISO
PTC1/MOSI
MOSI
SPSCK
PTA5/SPSCK
SPI
&
CONTROL
MISO
BEMF
Half Bridge
Driver &
Diagnostic
HB1
PTA4/KBD4
Configuration Register
Module
IRQ
Single External IRQ
Module
VSUP
FGEN
PTB3/AD3
Periodic Wake-Up
Timebase Module
PTB4/AD4
Arbiter Module
VREFH
VDDA
VREFL
VSSA
10 Bit Analog-to-
Digital Converter
Module
BEMF
Half Bridge
Driver &
Diagnostic
VSUP
FGEN
HB2
PTB5/AD5
Prescaler Module
VDD
VSS
POWER
PTB6/AD6/TBCH0
Power-On Reset
Module
BEMF
Half Bridge
Driver &
Diagnostic
Autonomous
Watchdog
VSUP
FGEN
HB3
PTB7/AD7/TBCH1
BEMF Module
Security Module
PTC2/MCLK
PTC4/OSC1
PTC3/OSC2
PTC2/MCLK
PTC1/MOSI
PTC0/MISO
Chip Temp
BEMF

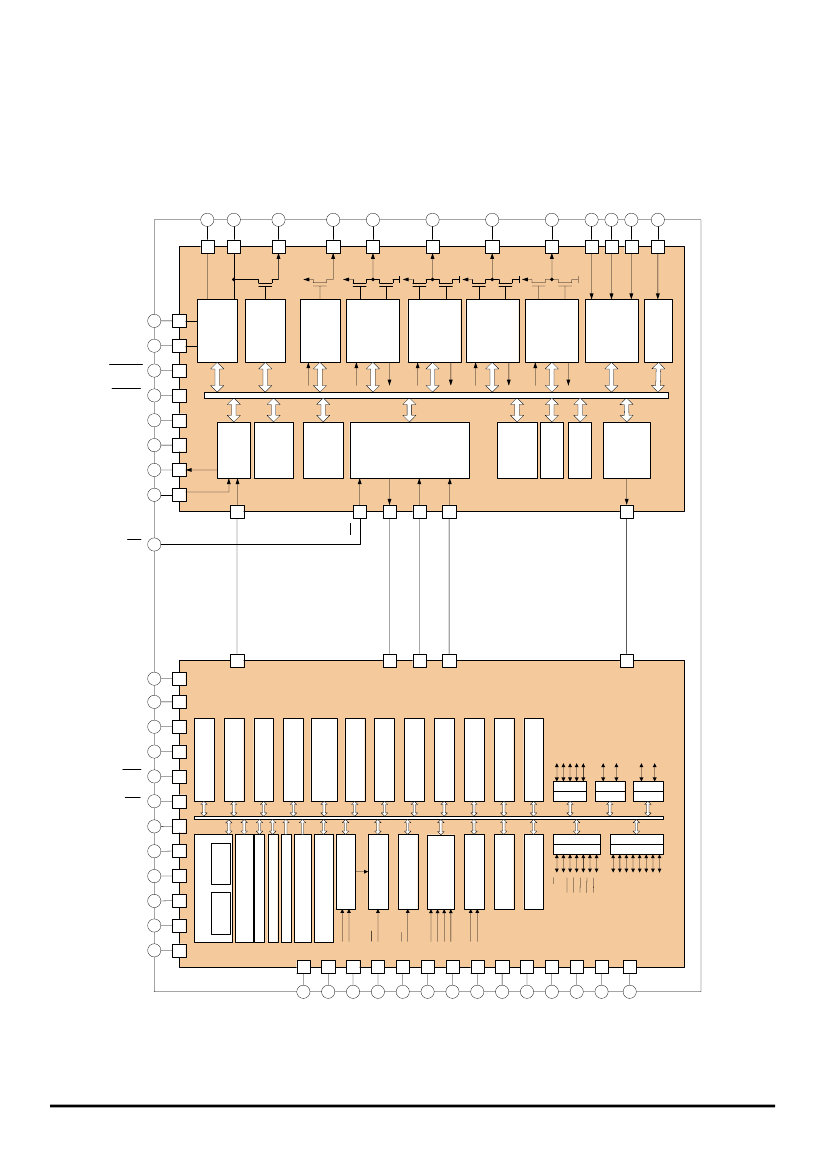

Figure 1. 908E625 Simplified Internal Block Diagram
HB4
VSUP
Prescaler
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
Half Bridge
Driver &
Diagnostic
PTC4/OSC1
PTB0/AD0
PTA6/SS
PTA5/SPSCK
PTA4/KBD4
PTA3/KBD3
PTA2/KBD2
PTA1/KBD1
PTA0/KBD0
H1
ADOUT
Hall-Effect
Sensor Inputs
Analog
Multiplexer
H2
H3
Analog Input
with Current
Source
FLSVPP
MCU Die
Analog Die
PA1
MOTOROLA ANALOG INTEGRATED CIRCUIT DEVICE DATA
Figure 1. 908E625 Simplified Internal Block Diagram
Freescale Semiconductor, Inc.
Transparent Top
View of Package
PTB7/AD7/TBCH1
PTB6/AD6/TBCH0
PTC4/OSC1
PTC3/OSC2
PTC2/MCLK
PTB5/AD5
PTB4/AD4
PTB3/AD3
IRQ
RST
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
54
53
52
51
50
49
48
47
46
45
44
43
42
Freescale Semiconductor, Inc...
PTB1/AD1
PTD0/TACH0/BEMF
PTD1/TACH1
NC
FGEN
BEMF
RST_A
IRQ_A
SS
Exposed
Pad
41
40
39
38
37
36
35
34
33
32
31
30
29
28
LIN
NC
NC
HB1
VSUP1
GND1
HB2
VSUP2
PTA0/KBD0
PTA1/KBD1
PTA2/KBD2
FLSVPP
PTA3/KBD3
PTA4/KBD4
VREFH
VDDA
EVDD
EVSS
VSSA
VREFL
PTE1/RXD
RXD
VSS
PA1
VDD
H1
H2
H3
HVDD
NC
HB4
VSUP3
GND2
HB3
HS
TERMINAL DEFINITIONS
A functional description of each terminal can be found in the System/Application Information section beginning on
page 15.
Die
MCU
Terminal
1
2
6
7
8
11
3
4
5
9
10
12
13
14, 21, 22,
33
42
43
48
44
47
Terminal Name
PTB7/AD7/TBCH1
PTB6/AD6/TBCH0
PTB5/AD5
PTB4/AD4
PTB3/AD3
PTB1/AD1
PTC4/OSC1
PTC3/OSC2
PTC2/MCLK
IRQ
RST
Formal Name
Port B I/Os
Definition
These terminals are special-function, bidirectional I/O port terminals that
are shared with other functional modules in the MCU.
MCU
Port C I/Os
These terminals are special-function, bidirectional I/O port terminals that
are shared with other functional modules in the MCU.
This terminal is an asynchronous external interrupt input terminal.
This terminal is bidirectional, allowing a reset of the entire system. It is
driven low when any internal reset source is asserted.
These terminals are special-function, bidirectional I/O port terminals that
are shared with other functional modules in the MCU.
Not connected.
This terminal is a special-function, bidirectional I/O port terminal that can
is shared with other functional modules in the MCU.
These terminals are the reference voltage terminals for the analog-to-
digital converter (ADC).
These terminals are the power supply terminals for the analog-to-digital
converter.
MCU
MCU
MCU
–
MCU
MCU
MCU
External Interrupt
Input
External Reset
Port D I/Os
No Connect
Port E I/O
ADC References
ADC Supply
Terminals
PTD0/TACH0/BEMF
PTD1/TACH1
NC
PTE1/RXD
VREFL
VREFH
VSSA
VDDA
MOTOROLA ANALOG INTEGRATED CIRCUIT DEVICE DATA
For More Information On This Product,
Go to: www.freescale.com
908E625
3
Freescale Semiconductor, Inc.
TERMINAL DEFINITIONS (continued)
A functional description of each terminal can be found in the System/Application Information section beginning on
page 15.
Die
MCU
MCU
Terminal
45
46
49
50
52
53
54
51
15
16
17
18
19
20
23
26
29
32
24
27
31
25
30
28
34
Terminal Name
EVSS
EVDD
PTA4/KBD4
PTA3/KBD3
PTA2/KBD2
PTA1/KBD1
PTA0/KBD0
FLSVPP
FGEN
BEMF
Formal Name
MCU Power Supply
Terminals
Port A I/Os
Definition
These terminals are the ground and power supply terminals, respectively.
The MCU operates from a single power supply.
These terminals are special-function, bidirectional I/O port terminals that
are shared with other functional modules in the MCU.
MCU
Analog
Test Terminal
Current Limitation
Frequency Input
Back Electromagnetic
Force Output
Internal Reset
Internal Interrupt
Output
Slave Select
LIN Bus
Half-Bridge Outputs
For test purposes only. Do not connect in the application.
This is the input terminal for the half-bridge current limitation and the high-
side inrush current limiter PWM frequency.
This terminal gives the user information about back electromagnetic force
(BEMF).
This terminal is the bidirectional reset terminal of the analog die.
This terminal is the interrupt output terminal of the analog die indicating
errors or wake-up events.
This terminal is the SPI slave select terminal for the analog chip.
This terminal represents the single-wire bus transmitter and receiver.
This device includes power MOSFETs configured as four half-bridge
driver outputs. These outputs may be configured for step motor drivers,
DC motor drivers, or as high-side and low-side switches.
These terminals are device power supply terminals.
Freescale Semiconductor, Inc...
Analog
Analog
Analog
Analog
Analog
Analog
RST_A
IRQ_A
SS
LIN
HB1
HB2
HB3
HB4
VSUP1
VSUP2
VSUP3
GND1
GND2
HS
HVDD
Analog
Power Supply
Terminals
Power Ground
Terminals
High-Side Output
Switchable V
DD
Output
Hall-Effect Sensor
Inputs
Voltage Regulator
Output
Analog Input
Voltage Regulator
Ground
LIN Transceiver
Output
Exposed Pad
Analog
Analog
Analog
These terminals are device power ground connections.
This output terminal is a low R
DS(ON)
high-side switch.
This terminal is a switchable V
DD
output for driving resistive loads
requiring a regulated 5.0 V supply; e.g., 3-terminal Hall-effect sensors.
These terminals provide inputs for Hall-effect sensors and switches.
Analog
35
36
37
38
39
40
41
EP
H3
H2
H1
VDD
PA1
VSS
RXD
Exposed Pad
Analog
Analog
Analog
Analog
–
The +5.0 V voltage regulator output terminal is intended to supply the
embedded microcontroller.
This terminal is an analog input port with selectable source values.
Ground terminal for the connection of all non-power ground connections
(microcontroller and sensors).
This terminal is the output of LIN transceiver.
The exposed pad terminal on the bottom side of the package conducts
heat from the chip to the PCB board.
908E625
4
For More Information On This Product,
Go to: www.freescale.com
MOTOROLA ANALOG INTEGRATED CIRCUIT DEVICE DATA
Freescale Semiconductor, Inc.
MAXIMUM RATINGS
All voltages are with respect to ground unless otherwise noted. Exceeding limits on any terminal may cause permanent damage to
the device.
Rating
Symbol
Value
Unit
ELECTRICAL RATINGS
Supply Voltage
Analog Chip Supply Voltage under Normal Operation (Steady-State)
Analog Chip Supply Voltage under Transient Conditions (Note 1)
Microcontroller Chip Supply Voltage
Input Terminal Voltage
Analog Chip
Microcontroller Chip
V
IN
(ANALOG)
V
IN
(MCU)
I
PIN
(1)
I
PIN
(2)
I
MVSS
I
MVDD
-0.3 to 5.5
V
SS
-0.3 to V
DD
+0.3
mA
±15
±25
100
100
mA
mA
V
V
BUS(SS)
V
BUS(DYNAMIC)
V
ESD1
V
ESD2
V
ESD3
-18 to 28
40
V
±3000
±150
±500
V
SUP(
SS
)
V
SUP(
PK
)
V
DD
-0.3 to 28
-0.3 to 40
-0.3 to 6.0
V
V
Freescale Semiconductor, Inc...
Maximum Microcontroller Current per Terminal
All Terminals Except VDD, VSS, PTA0:PTA6, PTC0:PTC1
Terminals PTA0:PTA6, PTC0:PTC1
Maximum Microcontroller V
SS
Output Current
Maximum Microcontroller V
DD
Input Current
LIN Supply Voltage
Normal Operation (Steady-State)
Transient Conditions (Note 1)
ESD Voltage
Human Body Model (Note 2)
Machine Model (Note 3)
Charge Device Model (Note 4)
THERMAL RATINGS
Storage Temperature
Operating Case Temperature (Note 5)
Operating Junction Temperature
Analog
MCU
Terminal Soldering Temperature (Note 6)
Thermal Resistance (Junction to Ambient)
All Outputs ON (Note 7), (Note 9)
Single Output ON (Note 8), (Note 9)
R
θ
JA1
R
θ
JA2
24
27
T
J(ANALOG)
T
J(MCU)
T
SOLDER
-40 to 150
-40 to 125
245
°C
°C/W
T
STG
T
C
-40 to 150
-40 to 85
°C
°C
°C
Notes
1. Transient capability for pulses with a time of t < 0.5 sec.
2. ESD1 testing is performed in accordance with the Human Body Model (C
ZAP
= 100 pF, R
ZAP
= 1500
Ω).
3.
4.
5.
6.
7.
8.
9.
ESD2 testing is performed in accordance with the Machine Model (C
ZAP
=200 pF, R
ZAP
= 0
Ω).
ESD3 testing is performed in accordance with Charge Device Model, robotic (C
ZAP
=4.0 pF).
The limiting factor is junction temperature, taking into account the power dissipation, thermal resistance, and heat sinking.
Terminal soldering temperature is for 10 seconds maximum duration. Not designed for immersion soldering. Exceeding these limits may
cause malfunction or permanent damage to the device.
All outputs ON and dissipating equal power.
One output ON and dissipating power.
Per JEDEC JESD51-2 at natural convection, still air condition; and 2s2p thermal test board per JEDEC JESD51-7 and JESD51-5 (thermal
vias connected to top ground plane).
MOTOROLA ANALOG INTEGRATED CIRCUIT DEVICE DATA
For More Information On This Product,
Go to: www.freescale.com
908E625
5
京公网安备 11010802033920号
EEWORLD
