Part Number

Search

B40HFL100S05

Description
Rectifier Diode, 1 Phase, 1 Element, 40A, 1000V V(RRM), Silicon, POWER MODULE-2
CategoryDiscrete semiconductor    diode
File Size297KB,7 Pages
ManufacturerInternational Rectifier ( Infineon )
Websitehttp://www.irf.com/
Download Datasheet Parametric Compare View All

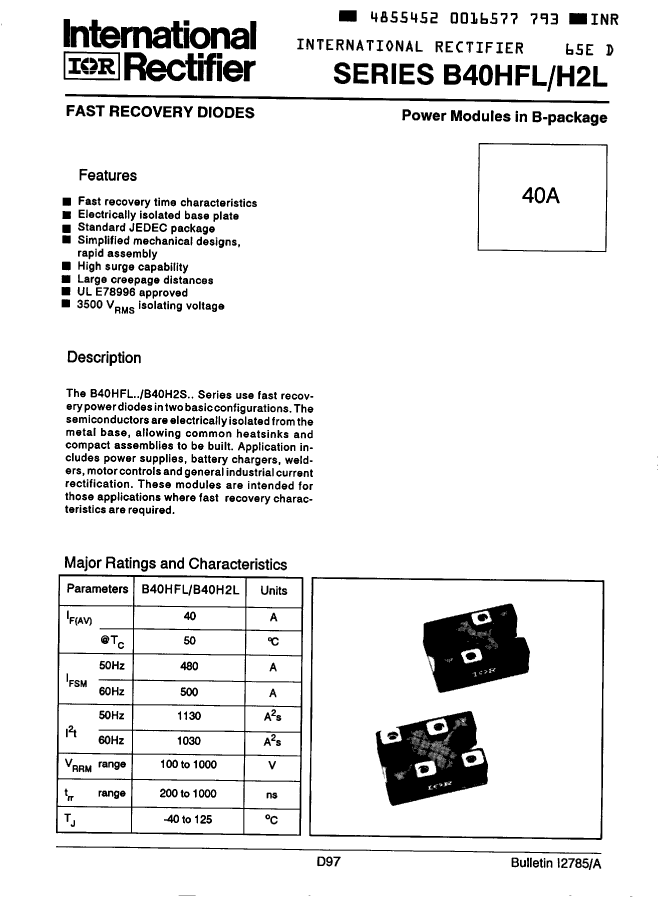

B40HFL100S05 Overview

Rectifier Diode, 1 Phase, 1 Element, 40A, 1000V V(RRM), Silicon, POWER MODULE-2

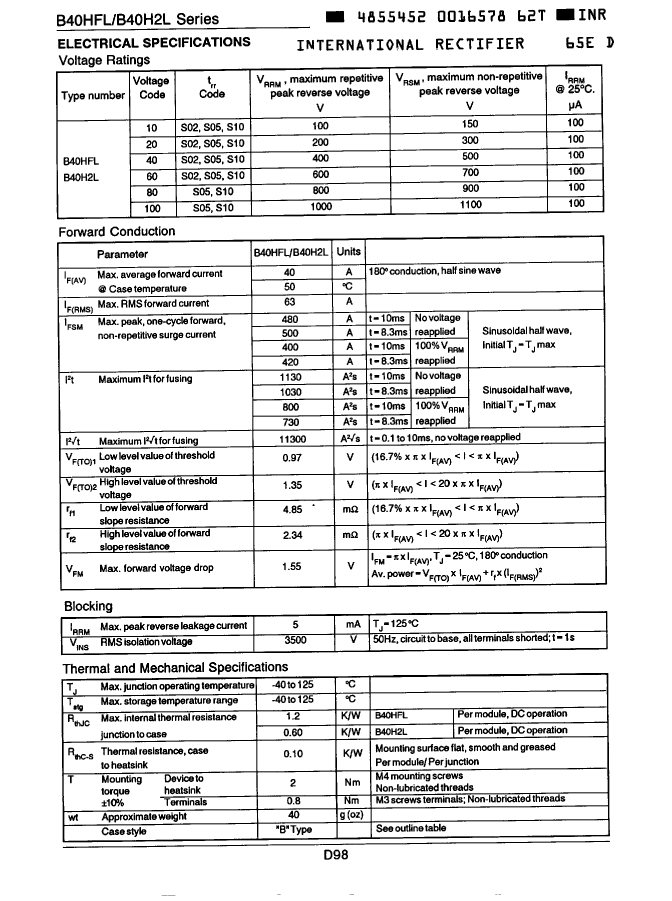

B40HFL100S05 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerInternational Rectifier ( Infineon )
Parts packaging codeMODULE
package instructionR-PUFM-X2
Contacts2
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresUL RECOGNIZED
applicationFAST RECOVERY
Shell connectionISOLATED
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE

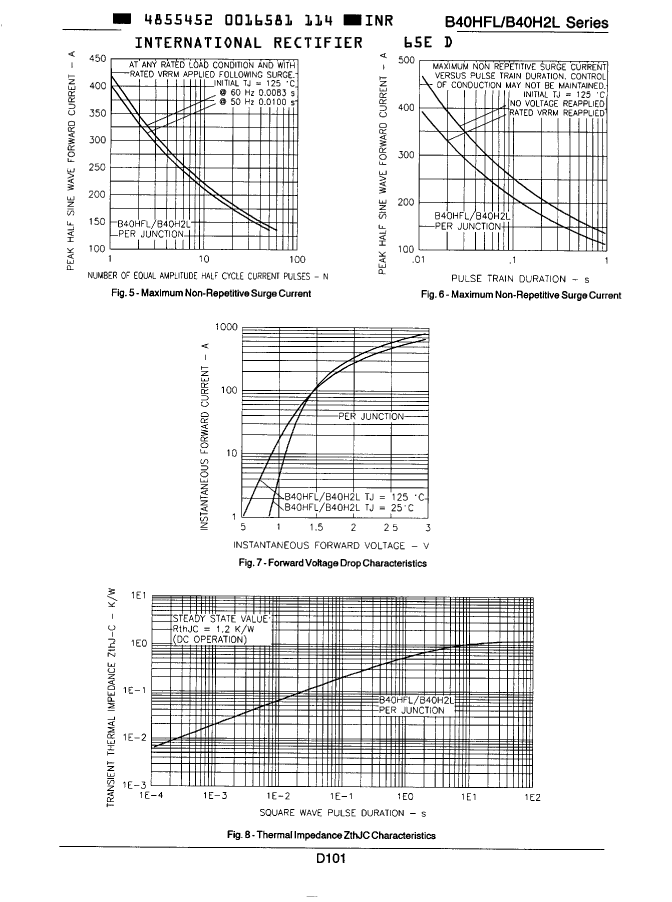

Maximum forward voltage (VF)1.55 V
JESD-30 codeR-PUFM-X2
JESD-609 codee0
Maximum non-repetitive peak forward current500 A
Number of components1
Phase1
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Maximum output current40 A

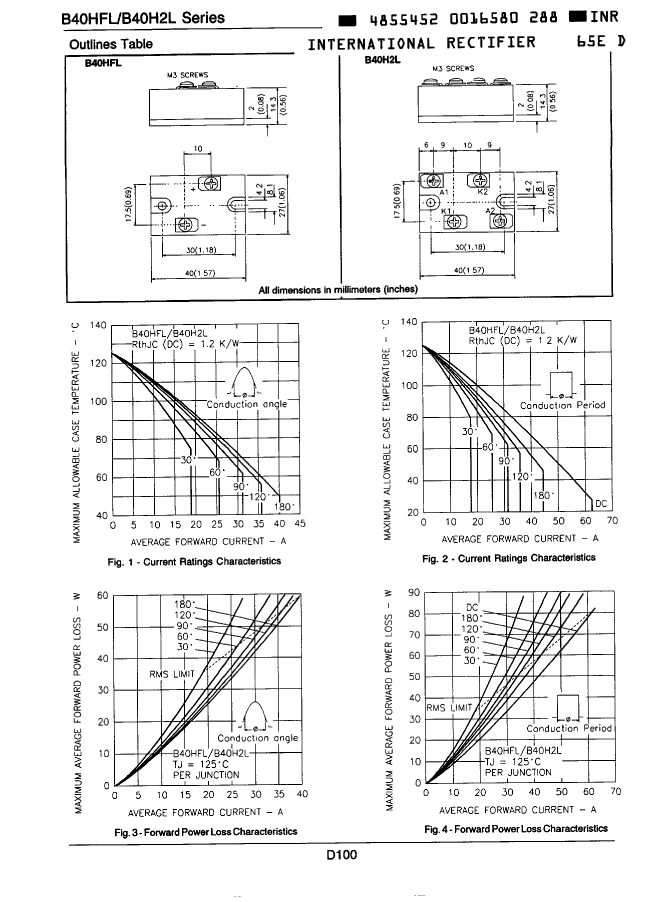

Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum repetitive peak reverse voltage1000 V
Maximum reverse current100 µA

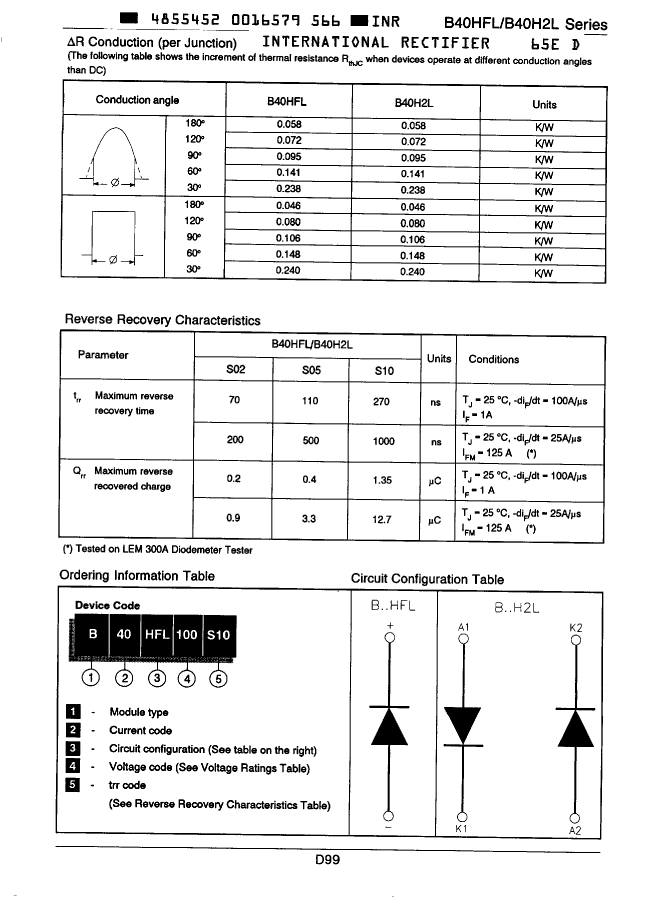

Maximum reverse recovery time0.5 µs
surface mountNO
Terminal surfaceTIN LEAD
Terminal formUNSPECIFIED
Terminal locationUPPER
Maximum time at peak reflow temperatureNOT SPECIFIED
Base Number Matches1

B40HFL100S05 Related Products

B40HFL100S05 B40HFL100S10
Description Rectifier Diode, 1 Phase, 1 Element, 40A, 1000V V(RRM), Silicon, POWER MODULE-2 Rectifier Diode, 1 Phase, 1 Element, 40A, 1000V V(RRM), Silicon, POWER MODULE-2
Is it lead-free? Contains lead Contains lead
Is it Rohs certified? incompatible incompatible
Maker International Rectifier ( Infineon ) International Rectifier ( Infineon )
Parts packaging code MODULE MODULE
package instruction R-PUFM-X2 R-PUFM-X2
Contacts 2 2
Reach Compliance Code compliant compliant
ECCN code EAR99 EAR99
Other features UL RECOGNIZED UL RECOGNIZED
application FAST RECOVERY FAST RECOVERY
Shell connection ISOLATED ISOLATED
Configuration SINGLE SINGLE
Diode component materials SILICON SILICON
Diode type RECTIFIER DIODE RECTIFIER DIODE
Maximum forward voltage (VF) 1.55 V 1.55 V
JESD-30 code R-PUFM-X2 R-PUFM-X2
JESD-609 code e0 e0
Maximum non-repetitive peak forward current 500 A 500 A
Number of components 1 1
Phase 1 1
Number of terminals 2 2
Maximum operating temperature 125 °C 125 °C
Minimum operating temperature -40 °C -40 °C
Maximum output current 40 A 40 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR
Package form FLANGE MOUNT FLANGE MOUNT
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED
Certification status Not Qualified Not Qualified
Maximum repetitive peak reverse voltage 1000 V 1000 V
Maximum reverse current 100 µA 100 µA
Maximum reverse recovery time 0.5 µs 1 µs
surface mount NO NO
Terminal surface TIN LEAD TIN LEAD
Terminal form UNSPECIFIED UNSPECIFIED
Terminal location UPPER UPPER
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED
Base Number Matches 1 1
