BAV70E6327 datasheet, PDF - EEWORLD Datasheet

BAV70E6327: DescriptionRectifier Diode, 2 Element, 0.2A, Silicon; CategoryDiscrete semiconductor diode; File Size77KB，4 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

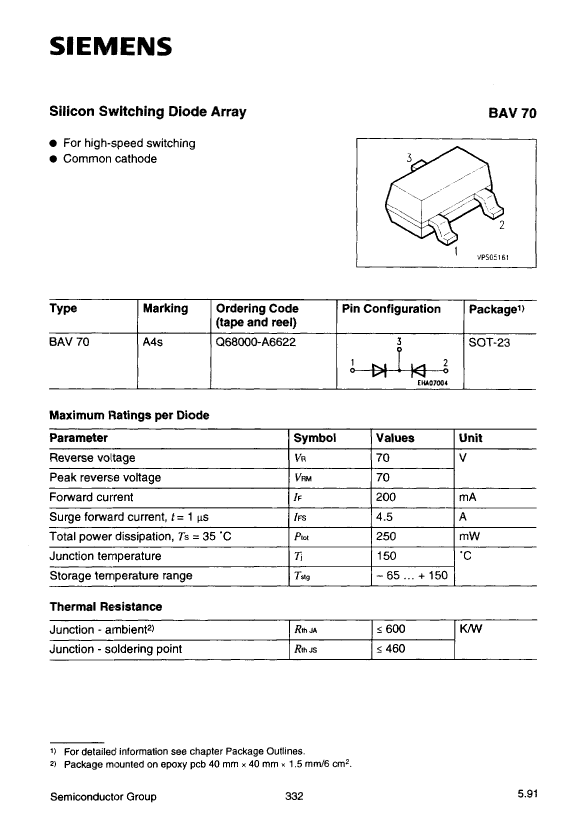

BAV70E6327 Overview

Rectifier Diode, 2 Element, 0.2A, Silicon

Parameter Name	Attribute value
Maker	SIEMENS
package instruction	R-PDSO-G3
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE

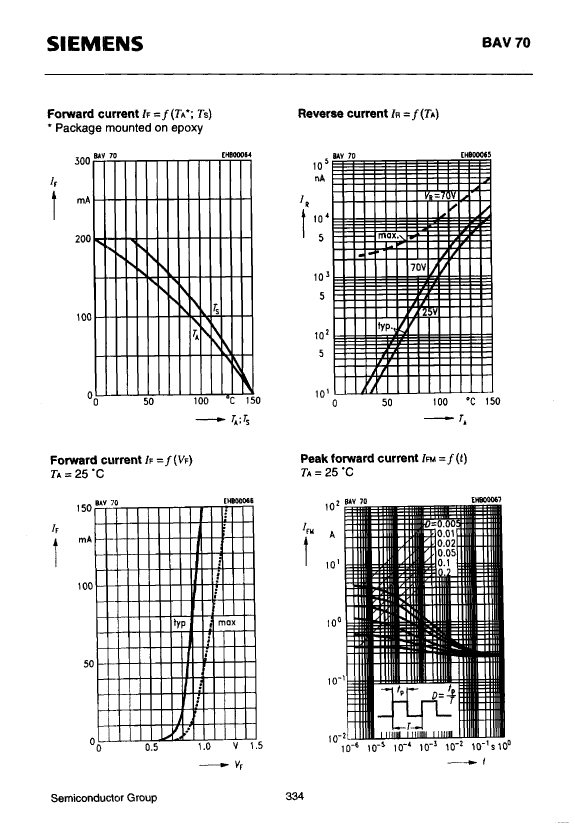

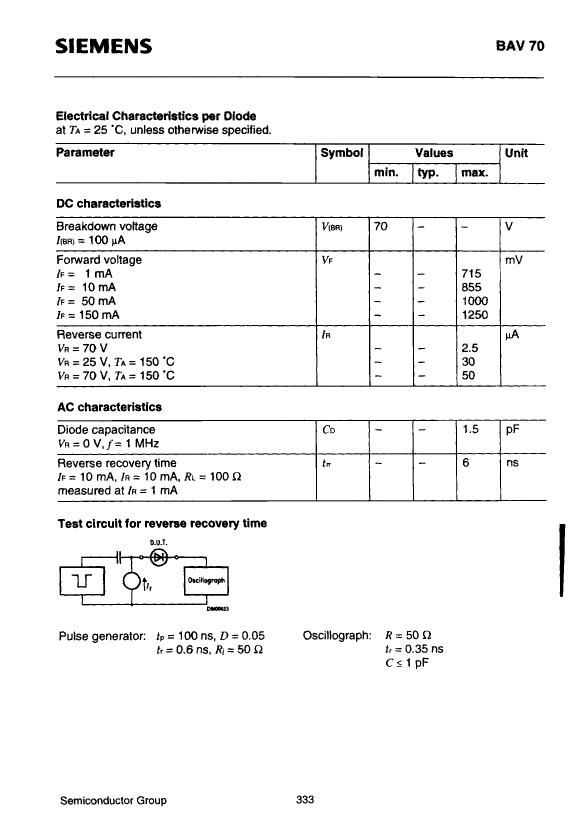

Maximum forward voltage (VF)	1.25 V
JESD-30 code	R-PDSO-G3
Maximum non-repetitive peak forward current	4.5 A
Number of components	2
Number of terminals	3
Maximum operating temperature	150 °C
Maximum output current	0.2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.25 W
Certification status	Not Qualified
Maximum reverse current	2.5 µA
Maximum reverse recovery time	0.006 µs
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

	BAV70E6327	BAV70E6433
Description	Rectifier Diode, 2 Element, 0.2A, Silicon	Rectifier Diode, 2 Element, 0.2A, 70V V(RRM), Silicon, SOT-23, 3 PIN
Maker	SIEMENS	SIEMENS
package instruction	R-PDSO-G3	R-PDSO-G3
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.25 V	1.25 V
JESD-30 code	R-PDSO-G3	R-PDSO-G3
Maximum non-repetitive peak forward current	4.5 A	4.5 A
Number of components	2	2
Number of terminals	3	3
Maximum operating temperature	150 °C	150 °C
Maximum output current	0.2 A	0.2 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Maximum power dissipation	0.25 W	0.25 W
Certification status	Not Qualified	Not Qualified
Maximum reverse current	2.5 µA	2.5 µA
Maximum reverse recovery time	0.006 µs	0.006 µs
surface mount	YES	YES
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
Base Number Matches	1	1
