5962R9580101V9A datasheet, PDF

5962R9580101V9A: DescriptionInverter, HC/UH Series, 6-Func, 1-Input, CMOS; Categorylogic logic; File Size177KB，7 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

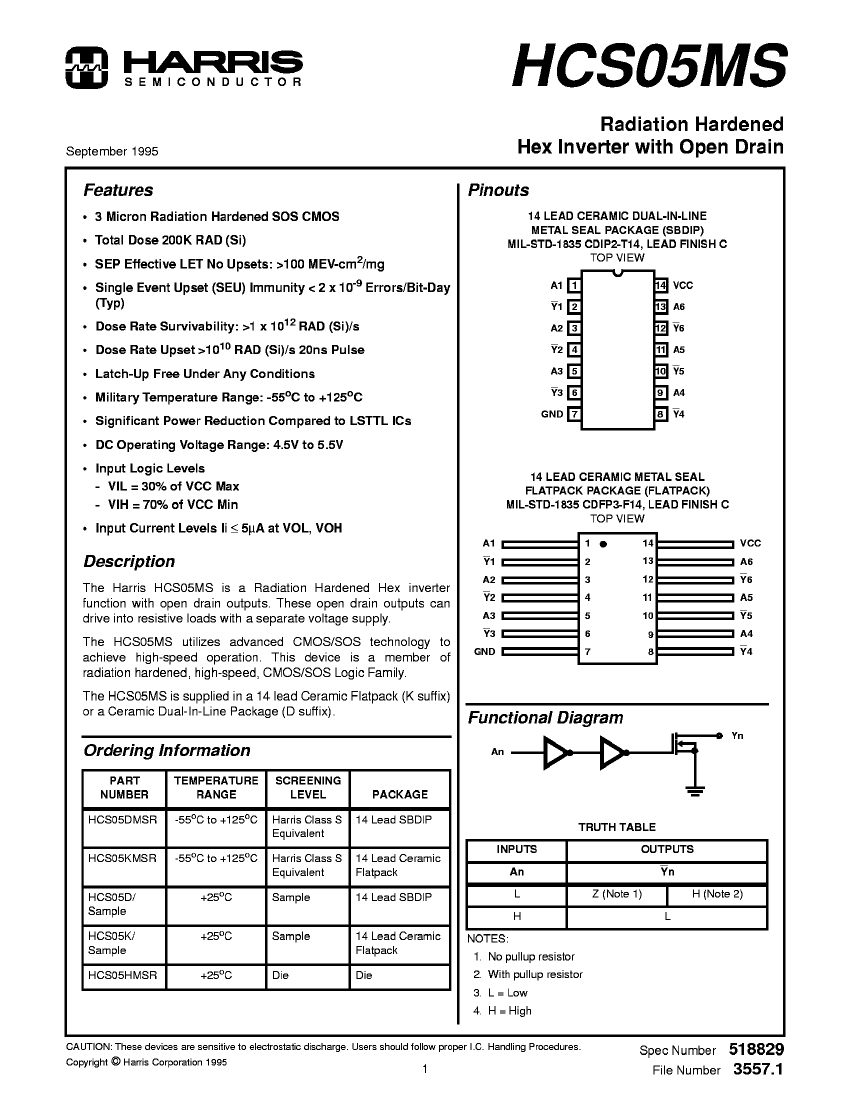

5962R9580101V9A Overview

Inverter, HC/UH Series, 6-Func, 1-Input, CMOS

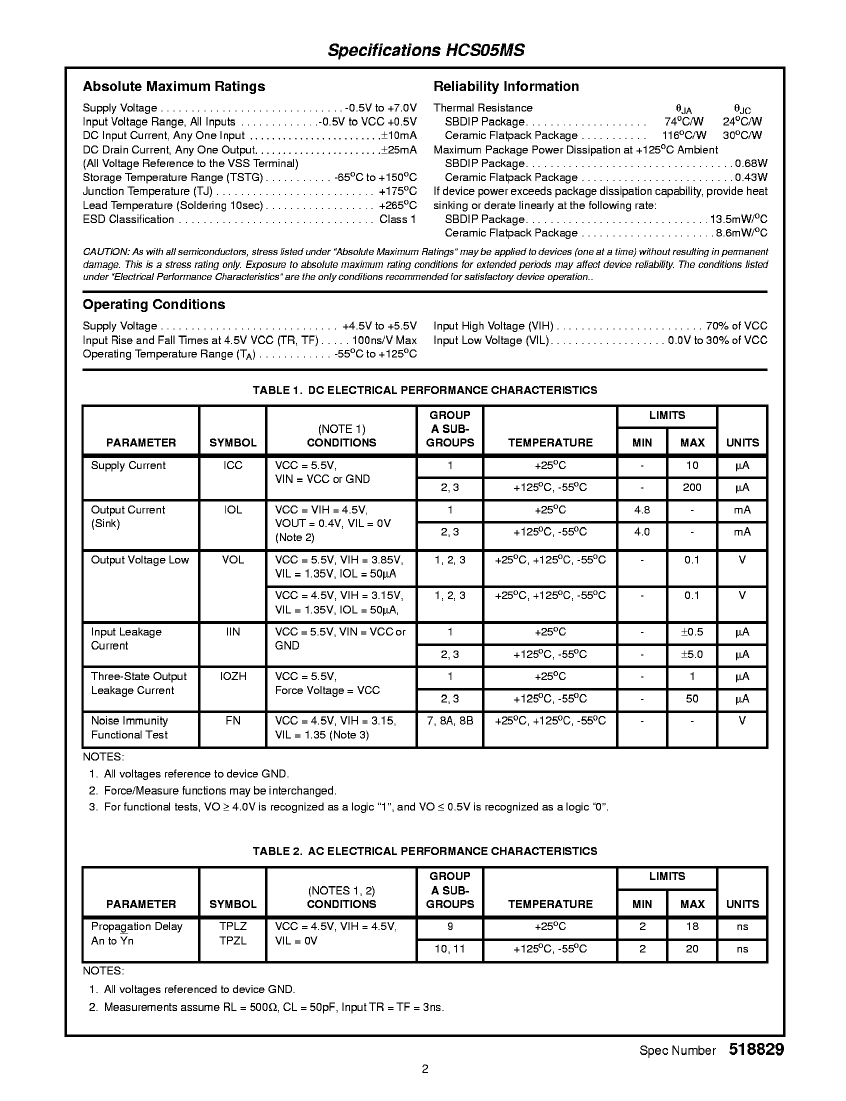

Parameter Name	Attribute value
Maker	Harris
package instruction	DIE,
Reach Compliance Code	unknown
series	HC/UH
JESD-30 code	X-XUUC-N14
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	INVERTER
Number of functions	6
Number of entries	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-DRAIN
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	UNSPECIFIED
Package form	UNCASED CHIP
propagation delay (tpd)	18 ns

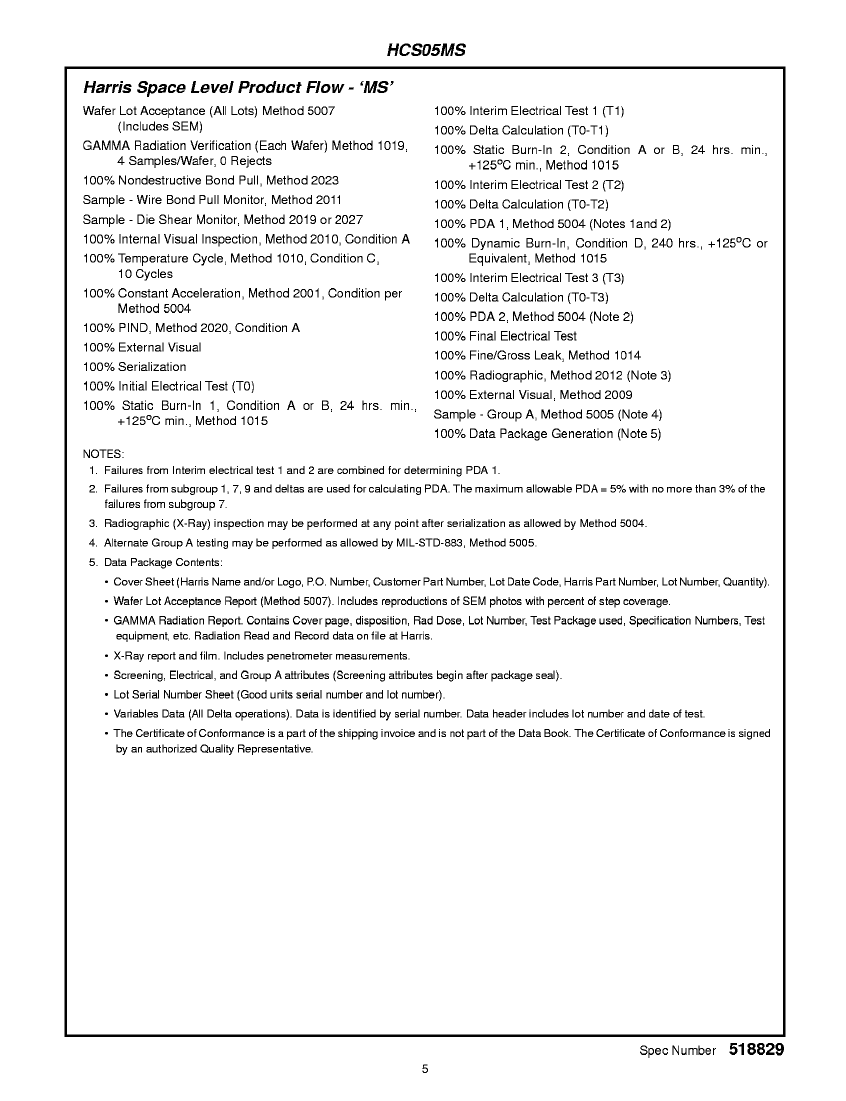

Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal location	UPPER

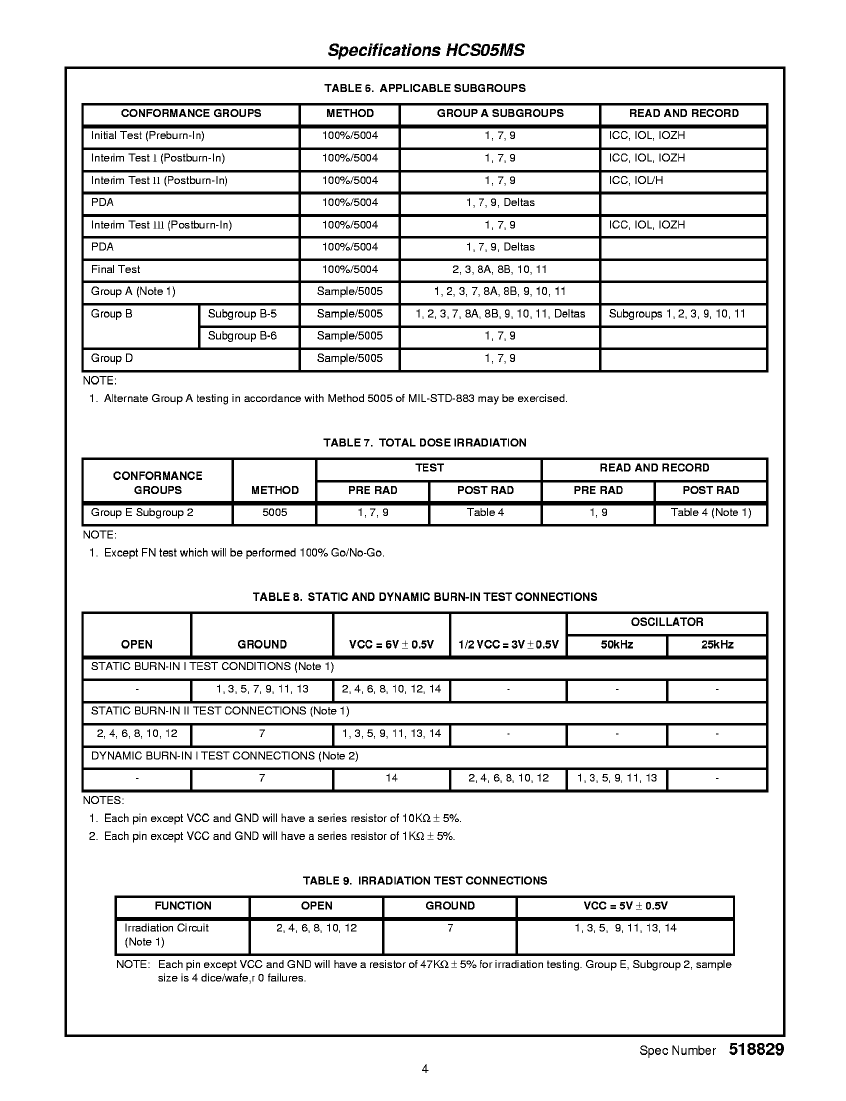

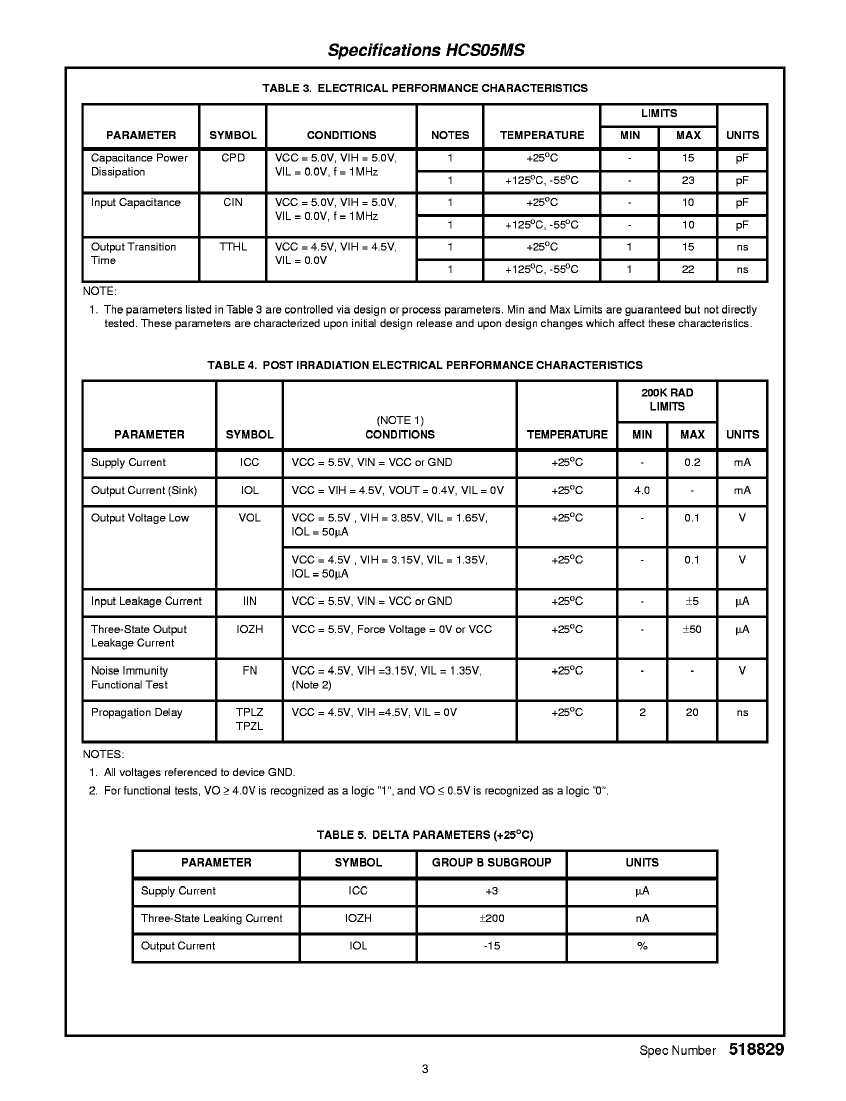

total dose	100k Rad(Si) V
Base Number Matches	1

	5962R9580101V9A	5962R9580101VXC	5962R9580101VCC
Description	Inverter, HC/UH Series, 6-Func, 1-Input, CMOS	Inverter, HC/UH Series, 6-Func, 1-Input, CMOS, CDFP14, CERAMIC, DFP-14	Inverter, HC/UH Series, 6-Func, 1-Input, CMOS, CDIP14
package instruction	DIE,	DFP,	,
Reach Compliance Code	unknown	unknown	unknown
series	HC/UH	HC/UH	HC/UH
JESD-30 code	X-XUUC-N14	R-CDFP-F14	R-CDIP-T14
JESD-609 code	e0	e4	e4
Load capacitance (CL)	50 pF	50 pF	50 pF
Logic integrated circuit type	INVERTER	INVERTER	INVERTER
Number of functions	6	6	6
Number of entries	1	1	1
Number of terminals	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output characteristics	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN
Package body material	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	UNSPECIFIED	RECTANGULAR	RECTANGULAR
Package form	UNCASED CHIP	FLATPACK	IN-LINE
propagation delay (tpd)	18 ns	20 ns	20 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	NO
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	GOLD	GOLD
Terminal form	NO LEAD	FLAT	THROUGH-HOLE
Terminal location	UPPER	DUAL	DUAL
total dose	100k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V
Base Number Matches	1	1	1
Maker	Harris	Harris	-
encapsulated code	DIE	DFP	-
