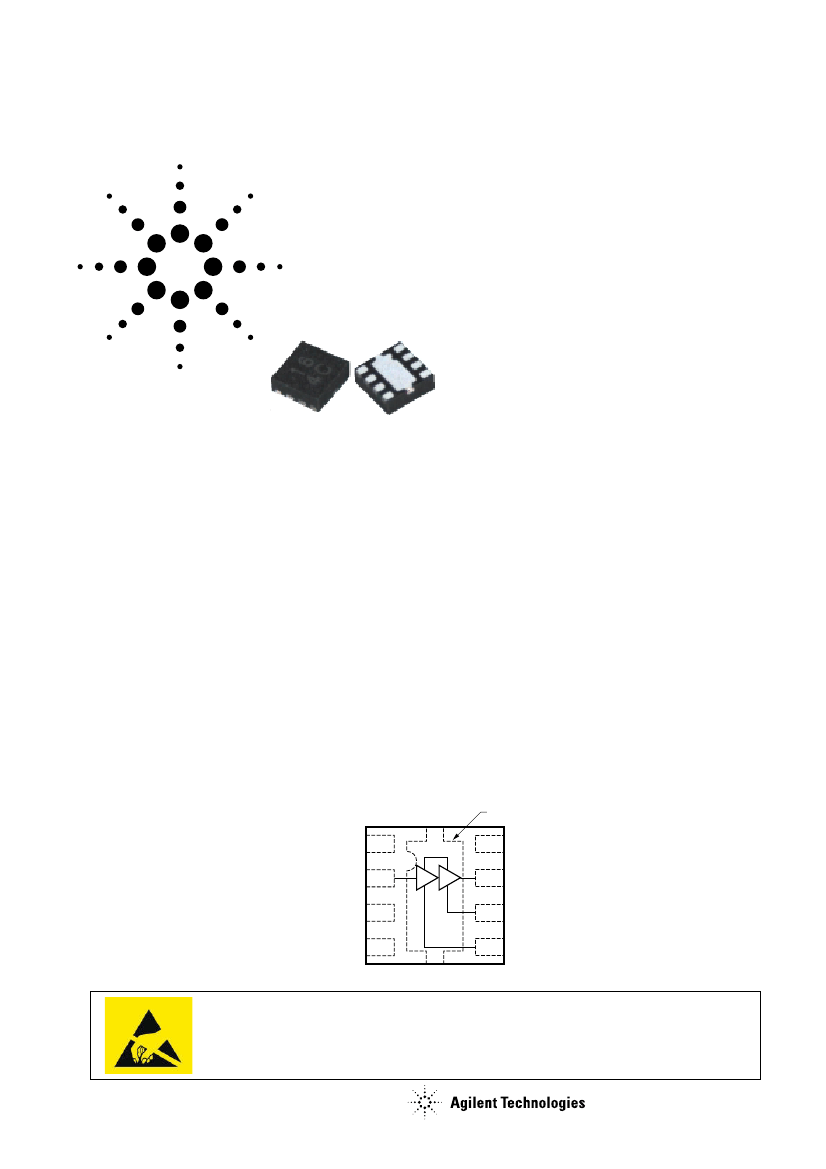

Agilent MGA-665P8

GaAs Enhancement-Mode

PHEMT 0.5 – 6 GHz Low Noise

Amplifier

Data Sheet

Surface Mount, 2.0 x 2.0 x 0.75 mm 8-lead LPCC

Description

Agilent’s MGA-665P8 is an

economical, easy-to-use GaAs

MMIC Low Noise Amplifier (LNA)

with a unique active-low power-

down function. The LNA has low

noise figure and high gain

achieved through the use of

Agilent Technologies’ proprietary

GaAs Enhancement-mode PHEMT

process. It is housed in a

miniature 2.0 x 2.0 x 0.75 mm

8-pin Leadless-Plastic-Chip-

Carrier (LPCC) package. The

compact footprint and low profile

coupled with low noise, high gain

and high linearity makes the

MGA-665P8 an ideal choice as an

LNA for broadband general-

purpose applications. Its excellent

broadband isolation also makes it

a good buffer amplifier.

The output of the MGA-665P8

provides a very good broadband

match to 50

Ω.

Its input requires a

simple external LC network to

provide a low noise figure and

good input return loss. Power

supply voltage is applied to both

the output terminal and a

separate V

terminal. A simple

external bias insertion circuit

consisting of a shunt inductor and

a series dc block capacitor is

sufficient to apply power supply

voltage to the output of the MGA-

665P8. The MGA-665P8 provides

typical device performance of

1.45 dB noise figure, 16 dB gain

and an OIP3 of +18.1 dBm at

5.25 GHz, at a bias point of 3 V

and 20.5 mA.

Pin Configuration, Top View

GND PADDLE

Features

• Active-low power-down function

• Single +3 V supply operation

• Low noise and high gain MMIC

• Output 50

Ω

match

• Excellent isolation

• Minimal match and external

biasing components

• Housed in miniature 2 x 2 x 0.75 mm

LPCC package

• Pb-free & MSL-1 package

Specifications

• 0.5 to 6 GHz operation

• At 3 V, 20.5 mA, 2.4 GHz:

NF = 1.2 dB

Gain = 18.4 dB

OIP3 = 19 dBm

• At 3 V, 20.5 mA, 5.25 GHz:

NF = 1.45 dB

Gain = 16 dB

OIP3 = 18.1 dBm

1: GND

8: UNUSED

POWER DOWN FUNCITON:

LOGIC LOW (0-1 V): POWER ON

LOGIC HIGH (2-3 V): POWER OFF

NOTES:

1. PINS 1, 3, AND PADDLE NEED TO BE

PROPERLY GROUNDED TO OBTAIN

SPECIFIED PERFORMANCE.

2. SUPPLY VOLTAGE, V

, NEEDS TO BE

APPLIED AT PINS 6 & 7. SUPPLY AT

PIN 7 TO BE APPLIED USING A BIAS

TEE OR EQUIVALENT.

2: RF

7: RF

OUT

& V

3: GND

6: V

4: UNUSED

5: POWERDOWN

Attention:

Observe precautions for handling electrostatic sensitive devices.

ESD Machine Model = 40 V

ESD Human Body Model = 150 V

Refer to Agilent Application Note A004R:

Electrostatic Discharge, Damage and Control.
