Industrial Line – PMF20 Series
20W 2:1 SINGLE & DUAL OUTPUT HIGH PERFORMANCE DC/DC CONVERTER
Specifications
INPUT
Voltage range
12V nominal input
9-18VDC
24V nominal input
18-36VDC
48V nominal input
36-75VDC
Pi type.
12V nominal input
25VDC 1 sec max
24V nominal input
50VDC 1 sec max
48V nominal input
100VDC 1 sec max
30mA p-p, nominal Vin and full load.
Power up 30mS max
Remote ON/OFF 30mS max
Nominal Vin and constant resistive load.
12V nominal input
9VDC max
24V nominal input
18VDC max
48V nominal input
36VDC max
12V nominal input
8VDC
24V nominal input
16VDC
48V nominal input
33VDC
Positive logic:
DC/DC ON: Open or 3V < Vr < 15V
DC/DC OFF: Short or 0V < Vr < 1.2V
Negative logic:
DC/DC ON: Short or 0V < Vr < 1.2V
DC/DC OFF: pen or 35V < Vr < 15V
Input current of remote control pin
Nominal input: 0.5ma-1.0mA
Remote off state current
Nominal input: 2.0mA
Input filter
Input surge voltage
100mS max
Reflected ripple
Start up time
Start up voltage

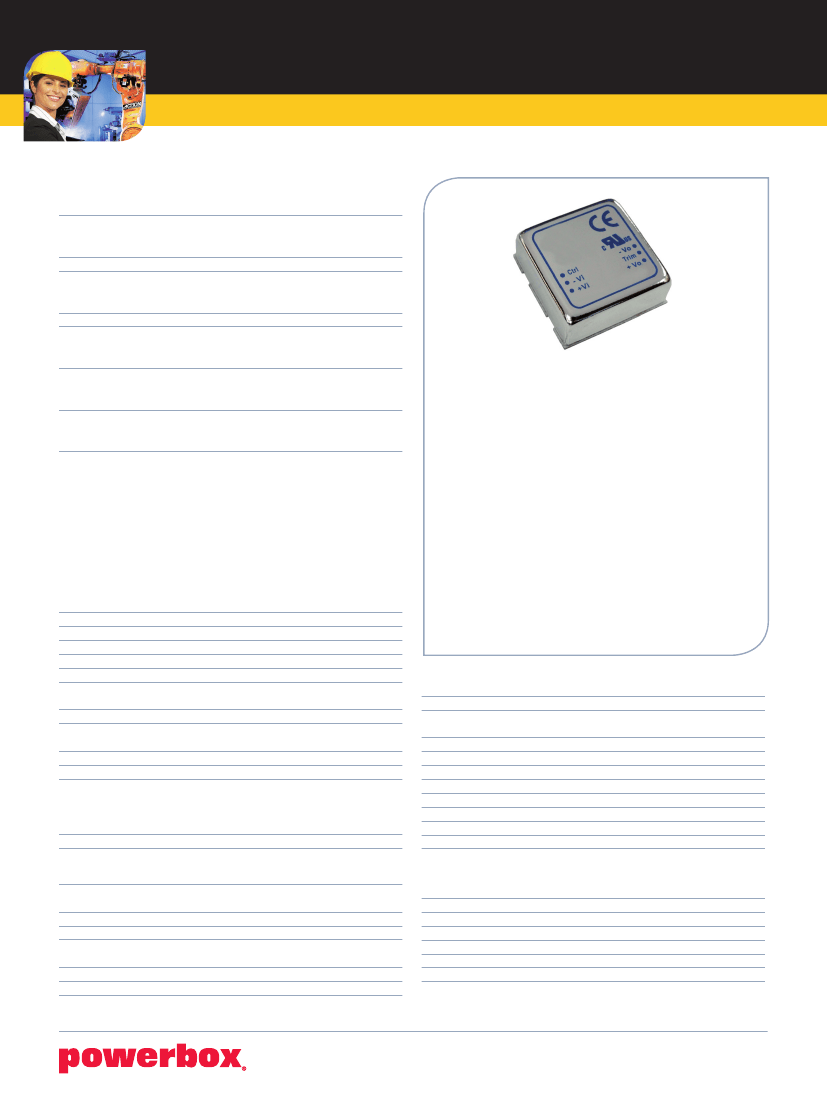

Features
• 20 watts maximum output power
• Ultra low quiscent current
• Single output up to 4.5A
• Small size and low profile
• High efficiency up to 91%
• 2:1 wide input voltage range
• Six-sided continuous shield
• Meet EN55022 Class A without external components
• Fixed switching frequency
• Input to output isolation:1600VDC
• CE mark meets 2006/95/EC, 93/68/EEC and 2004/108/EC
• UL60950-1, EN60950-1 and IEC60950-1 licenced
• RoHS Directive compliant
Shutdown voltage
Remote ON/OFF
6
OUTPUT
Power
Voltage accuracy
Min load
Voltage adjustability
5
Line regulation
Load regulation
20W.
±1%.
0%.
Single +10%.
Single ±0.2%. Dual ±0.5% LL to HL at full load.
Single ±0.2%. Dual ±1.0% No load to full load.
Single ±0.1%. Dual ±0.8% 10% load to 90% load.
Cross regulation (dual) ±5%, asymmetrical load 25% / 100% FL.
Ripple and noise
See table, 20MHz BW. (Measured with a 1mF
M/C X7R and a 10mF T/C).
Temperature coefficient ±0.02%/°C max.
Transient response
250mS,recovery time 25% load step change.
Overvoltage protection 3.3VDC output
3.7-5.4VDC
5VDC output
5.6-7.0VDC
12VDC output
13.5-19.6VDC
15VDC output
16.8-20.5VDC
Overload protection
150% of FL at nominal input.
Short circuit protection Hiccups, automatics recovery.
ENVIRONMENTAL
Operating temperature
7
–40°C to +60°C (without derating).
+60°C to +101°C (with derating).
Max case temperature +105°C.
Storage temperature
–55°C to +125°C.
Thermal impedance
17.6°C/W Natural convection.
14.8°C/W Natural convection with heat-sink.
Thermal shock
MIL-STD-810F.
Vibration
MIL-STD-810F.
Relative humidity
5-95% RH.
GENERAL
Efficiency
Isolation voltage
Isolation resistance
Isolation capacitance
Switching frequency
Case material.
Base material
Potting material
Dimensions
Weight
MTBF
1
STANDARDS
Safety standards
EMC EMI
9
ESD
Radiated immunity
Fast transient
10
Surge
10
Conducted immunity
See table.
1600VDC min, input to output.
1000VDC min, input (output) to case.
10
9
ohms, min.
1500pF, max.
330KHz ±10%.
Nickel-coated copper.
FR4 PCB.
Silicon (UL94-V0).
25.4 x 25.4 x 9.9 mm.
15g.
1.766 x 10
6
hrs BELLCORE TR-NWT-000332.
5.530 x 10
5
MIL-HDBK-217F.
IEC60950-1, UL60950-1, EN60950-1.
EN55022 Class B.
EN61000-4-2 Criteria A, air 8KV, contact ±8KV.
EN61000-4-3 Criteria A, 10V/m.
EN61000-4-4 Criteria A, ±2KV.
EN61000-4-5 Criteria A, ±1KV.
EN61000-4-6 Criteria A, 10 Vr.m.s.
20120508
INDUSTRIAL LINE
www.powerbox.info
Industrial Line – PMF20 Series
20W 2:1 SINGLE & DUAL OUTPUT HIGH PERFORMANCE DC/DC CONVERTER
MODEL
NUMBER
PMF20-12S3P3
PMF20-12S05
PMF20-12S12
PMF20-12S15
PMF20-12D12
PMF20-12D15
PMF20-24S3P3
PMF20-24S05
PMF20-24S12
PMF20-24S15
PMF20-24D12
PMF20-24D15
PMF20-48S3P3
PMF20-48S05
PMF20-48S12
PMF20-48S15
PMF20-48D12
PMF20-48D15
INPUT
RANGE
9 ~ 18 VDC
9 ~ 18 VDC
9 ~ 18 VDC
9 ~ 18 VDC
9 ~ 18 VDC
9 ~ 18 VDC
18 ~ 36 VDC
18 ~ 36 VDC
18 ~ 36 VDC
18 ~ 36 VDC
18 ~ 36 VDC
18 ~ 36 VDC
36 ~ 75 VDC
36 ~ 75 VDC
36 ~ 75 VDC
36 ~ 75 VDC
36 ~ 75 VDC
36 ~ 75 VDC
OUTPUT
VOLTAGE
3.3 VDC
5 VDC
12 VDC
15 VDC
± 12 VDC
± 15 VDC
3.3 VDC
5 VDC
12 VDC
15 VDC
± 12 VDC
± 15 VDC
3.3 VDC
5 VDC
12 VDC
15 VDC
± 12 VDC
± 15 VDC
OUPUT CURRENT
MIN LOAD
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
OUTPUT CURRENT
FULL LOAD
4500mA
4000mA
1670mA
1330mA
± 833mA
± 667mA
4500mA
4000mA
1670mA
1330mA
± 833mA
± 667mA
4500mA
4000mA
1670mA
1330mA
± 833mA
± 667mA
OUTPUT
3
RIPPLE&NOISE
75mVp-p
75mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
75mVp-p
75mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
75mVp-p
75mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
NO LOAD
2
INPUT CURRENT
10mA
10mA
10mA
10mA
10mA
10mA
6mA
6mA
6mA
6mA
6mA
6mA
4mA
4mA
4mA
4mA
4mA
4mA
EFFICIENCY
3
87
89
89
89
89
90
87
90
90
91
90
90
87
89
90
90
89
90
CAPACITOR
4
LOAD MAX
7000μF
5000μF
850μF
700μF
± 500μF
± 350μF
7000μF
5000μF
850μF
700μF
± 500μF
± 350μF
7000μF
5000μF
850μF
700μF
± 500μF
± 350μF
Notes:
1. BELLCORE TR-NWT-000332. Case 1: 50% Stress, Temperature at 40ºC. MIL-HDBK-217F Notice2 @Ta=25 ºC, Full load (Ground, Benign, controlled environment)
2. Typical value at nominal input and no load.
3. Typical value at nominal input and full load.
4. Test by minimum input and constant resistive load.
5. Trimming allows the user to increase or decrease the output voltage set point of the module. This is accomplished by connecting an external resistor between the TRIM pin and either the
+OUTPUT pin or the -OUTPUT pin.
6. The CTRL pin voltage is reference to -INPUT. The order number please see product standard table.
7. Test condition with vertical direction by natural convection (20LFM).
8. Heat-sink is optional and P/N:7G-0047C-F
9. EN55022
1) To meet Class A without external components.
2) To meet Class B please refer to the suggestion filter in next page.
10.An external input filter capacitor is required if the module has to meet EN61000-4-4, EN61000-4-5.
The filter capacitor Powerbox suggest: Nippon chemi-con KY series, 220μF/100V, ESR 48mW.
CAUTION: This power module is not internally fused. An input line fuse must always be used.

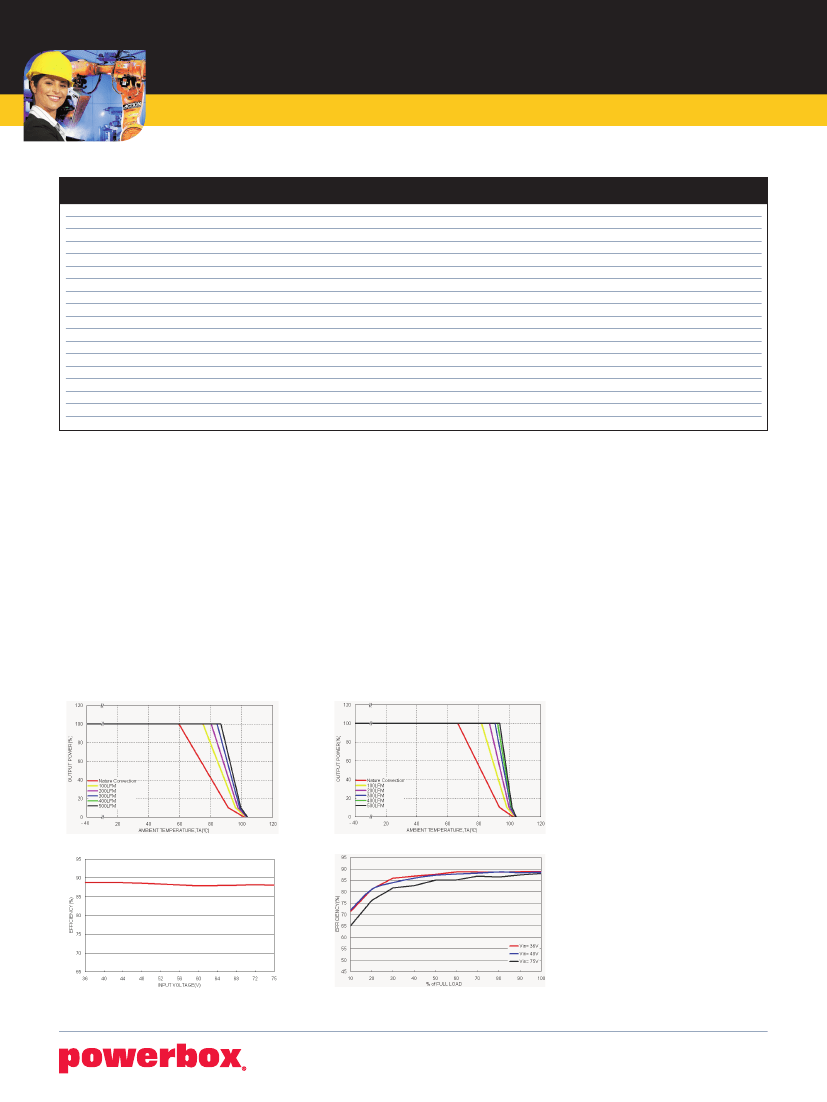

Derating Curve
PMF20-48S05 Derating Curve
PMF20-48S05 Derating Curve With Heat-sink
PMF20-48S05 Efficiency VS Input Voltage
PMF20-48S05 Efficiency VS Output Current
INDUSTRIAL LINE
www.powerbox.info
Industrial Line – PMF20 Series
20W 2:1 SINGLE & DUAL OUTPUT HIGH PERFORMANCE DC/DC CONVERTER

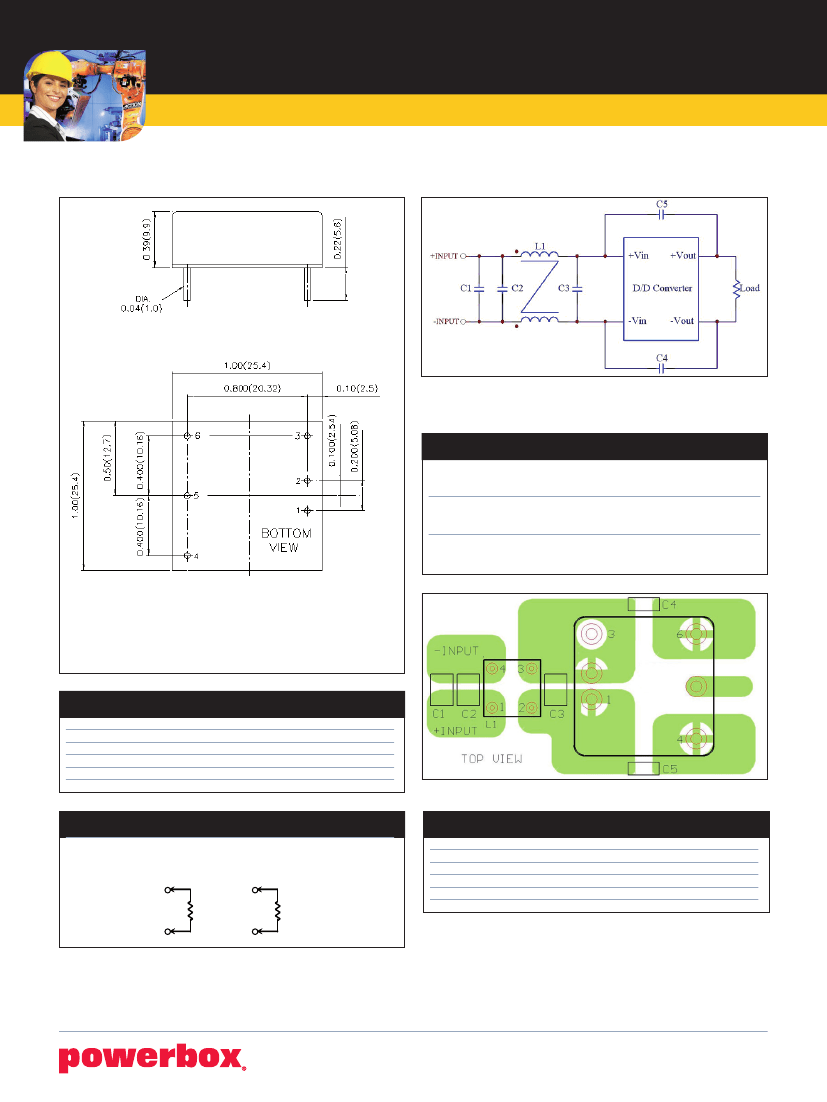

Mechanical
Filter
Recommended filter for Class B compliance
The components used in the above figure, together with the manufacturer’s part numbers for
these components, are as follows:
PME20-
12xxx
PME20-
24xxx
PME20-
48xxx
C1
4.7mF/25V
1812 MLCC
4.7mF/50V
1812 MLCC
2.2mF/100V
1812 MLCC
C2
N/A
C3
N/A
C4 & C5
470pF/2KV
1808 MLCC
470pF/2KV
1808 MLCC
1000pF/2KV
1808 MLCC
N/A
N/A
2.2mF/100V
1812 MLCC
2.2mF/100V
1812 MLCC
L1
325mH
Common Choke
PMT-050
325mH
Common Choke
PMT-050
325mH
Common Choke
PMT-050
Notes:
1. All dimensions in Inch (mm)
Tolerance: X.XX±0.02 (X.X±0.5)
X.XXX±0.01 (X.XX±0.25)
2. Pin pitch tolerance ±0.01(0.25)
3. Pin dimension tolerance ±0.004 (0.1)
PIN CONNECTION
PIN
SINGLE
1
+INPUT
2
–INPUT
3
CTRL
4
+OUTPUT
5
TRIM
6
–OUTPUT
DUAL
+INPUT
–INPUT
CTRL
+OUTPUT
COMMON
–OUTPUT
Recommended EN55022 Class B Filter Circuit Layout
EXTERNAL OUTPUT TRIMMING
1
CTR
CTR
Output can be externally trimmed by using the method shown below.
T R IM U P
T R IM D O W N
6
5
R
U
5
4
R
D
PRODUCT STANDARD TABLE
OPTION
Negative logic remote ON/OFF(Standard)
Positive logic remote ON/OFF
Without CTRL pin
Negative remote logic ON/OFF without TRIM pin
Without CTRL & TRIM pin
Positive remote logic ON/OFF without TRIM pin
SUFFIX
-A
-B
-C
-D
-E
INDUSTRIAL LINE
www.powerbox.info
