PE42CC500 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> PE42CC500

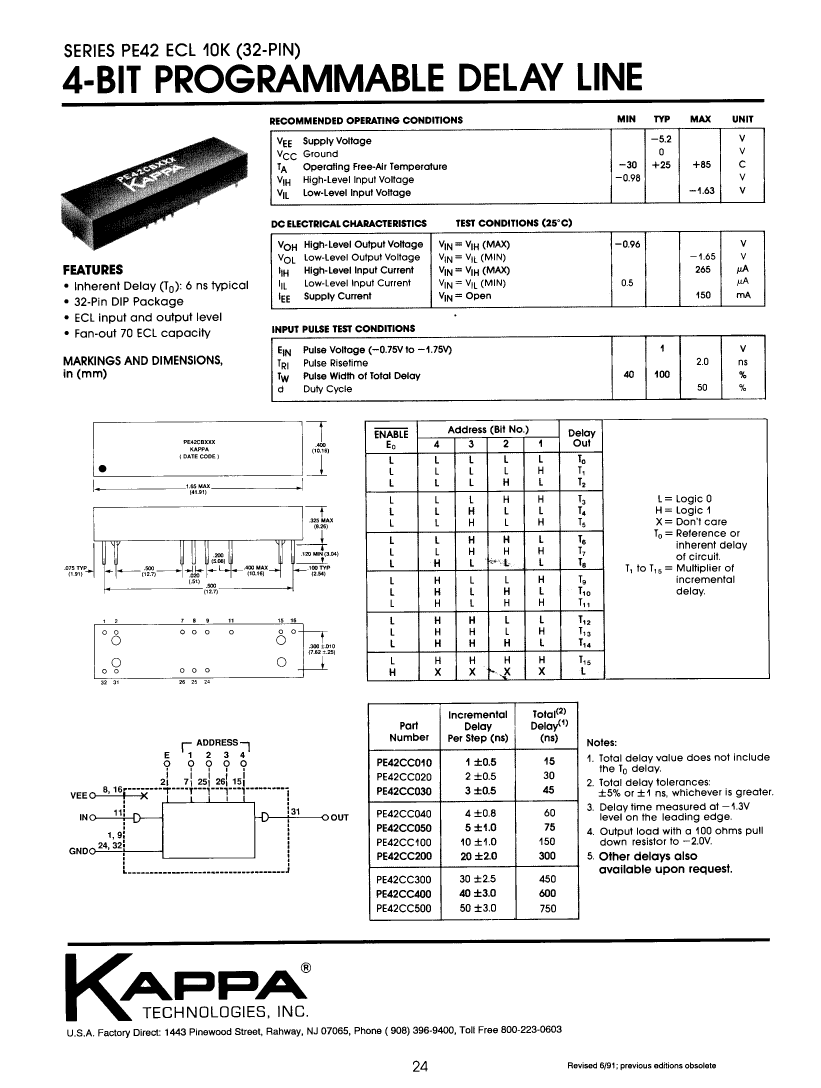

PE42CC500: DescriptionDelay Line, Programmable, 1-Func, 1-Tap, Hybrid, PDIP32; Categorylogic logic; File Size95KB，1 Pages; ManufacturerKappa Networks Inc

Download Datasheet Parametric Compare View All

PE42CC500 Overview

Delay Line, Programmable, 1-Func, 1-Tap, Hybrid, PDIP32

PE42CC500 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP32,.3
Reach Compliance Code	unknown
JESD-30 code	R-PDIP-T32
JESD-609 code	e0
Number of functions	1
Number of taps/steps	1
Number of terminals	32
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP32,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	-5.2 V
Maximum supply current (ICC)	150 mA
programmable delay line	YES
Prop。Delay @ Nom-Sup	756 ns
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

PE42CC500 Related Products

	PE42CC500	PE42CC200	PE42CC020	PE42CC030	PE42CC040	PE42CC100
Description	Delay Line, Programmable, 1-Func, 1-Tap, Hybrid, PDIP32	Delay Line, Programmable, 1-Func, 1-Tap, Hybrid, PDIP32	Delay Line, Programmable, 1-Func, 1-Tap, Hybrid, PDIP32	Delay Line, Programmable, 1-Func, 1-Tap, Hybrid, PDIP32	Delay Line, Programmable, 1-Func, 1-Tap, Hybrid, PDIP32	Delay Line, Programmable, 1-Func, 1-Tap, Hybrid, PDIP32
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP32,.3	DIP, DIP32,.3	DIP, DIP32,.3	DIP, DIP32,.3	DIP, DIP32,.3	DIP, DIP32,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-PDIP-T32	R-PDIP-T32	R-PDIP-T32	R-PDIP-T32	R-PDIP-T32	R-PDIP-T32
JESD-609 code	e0	e0	e0	e0	e0	e0
Number of functions	1	1	1	1	1	1
Number of taps/steps	1	1	1	1	1	1
Number of terminals	32	32	32	32	32	32
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP32,.3	DIP32,.3	DIP32,.3	DIP32,.3	DIP32,.3	DIP32,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	-5.2 V	-5.2 V	-5.2 V	-5.2 V	-5.2 V	-5.2 V
Maximum supply current (ICC)	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA
programmable delay line	YES	YES	YES	YES	YES	YES
Prop。Delay @ Nom-Sup	756 ns	306 ns	36 ns	51 ns	66 ns	156 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	-	Kappa Networks Inc	Kappa Networks Inc	Kappa Networks Inc	Kappa Networks Inc	Kappa Networks Inc
