2B-7506-44: DescriptionPower/Signal Relay, DPDT, Momentary, 0.039A (Coil), 26.5VDC (Coil), 1033.5mW (Coil), 2A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount,; CategoryMechanical and electronic products relay; File Size181KB，2 Pages; ManufacturerHi-G Relays

Download Datasheet Parametric View All

2B-7506-44 Overview

Power/Signal Relay, DPDT, Momentary, 0.039A (Coil), 26.5VDC (Coil), 1033.5mW (Coil), 2A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount,

2B-7506-44 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PANEL MOUNTABLE
body width	10.41 mm
body height	22.86 mm
Body length or diameter	20.5 mm
Maximum coil current (DC)	0.039 A
Coil operating voltage (DC)	18 V
Coil power	1033.5 mW
Coil release voltage (DC)	1.5 V
Coil resistance	675 Ω
Maximum coil voltage (DC)	26.5 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	.3A@115VAC
Maximum contact current (AC)	0.3 A
Maximum contact current (DC)	2 A
Contact (DC) maximum rated R load	2A@28VDC
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
JESD-609 code	e4
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	7 ms
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
physical size	20.5mm x 10.41mm x 22.86mm
Guideline	MIL-R-5757/10
Relay action	MOMENTARY
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	7 ms
seal	HERMETICALLY SEALED
surface mount	NO
Terminal surface	GOLD
Termination type	SOLDER
Base Number Matches	1

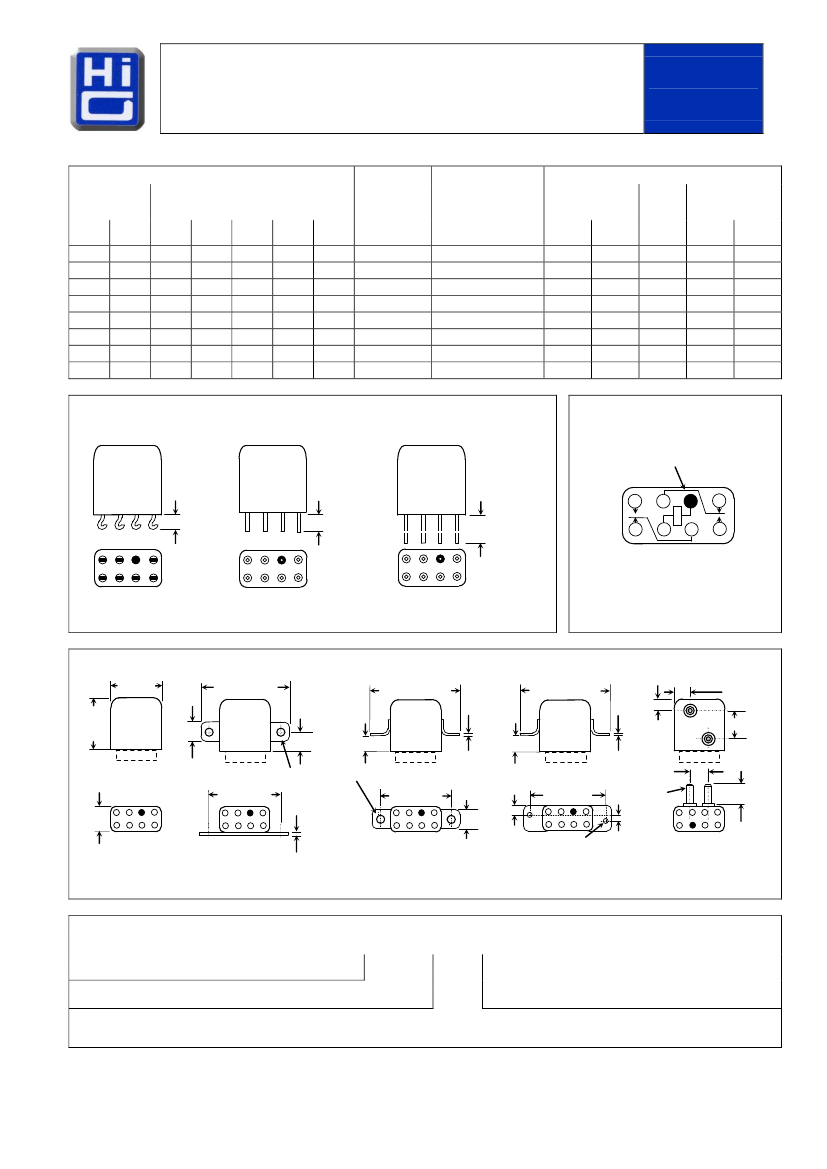

Preview

Download Datasheet

View All

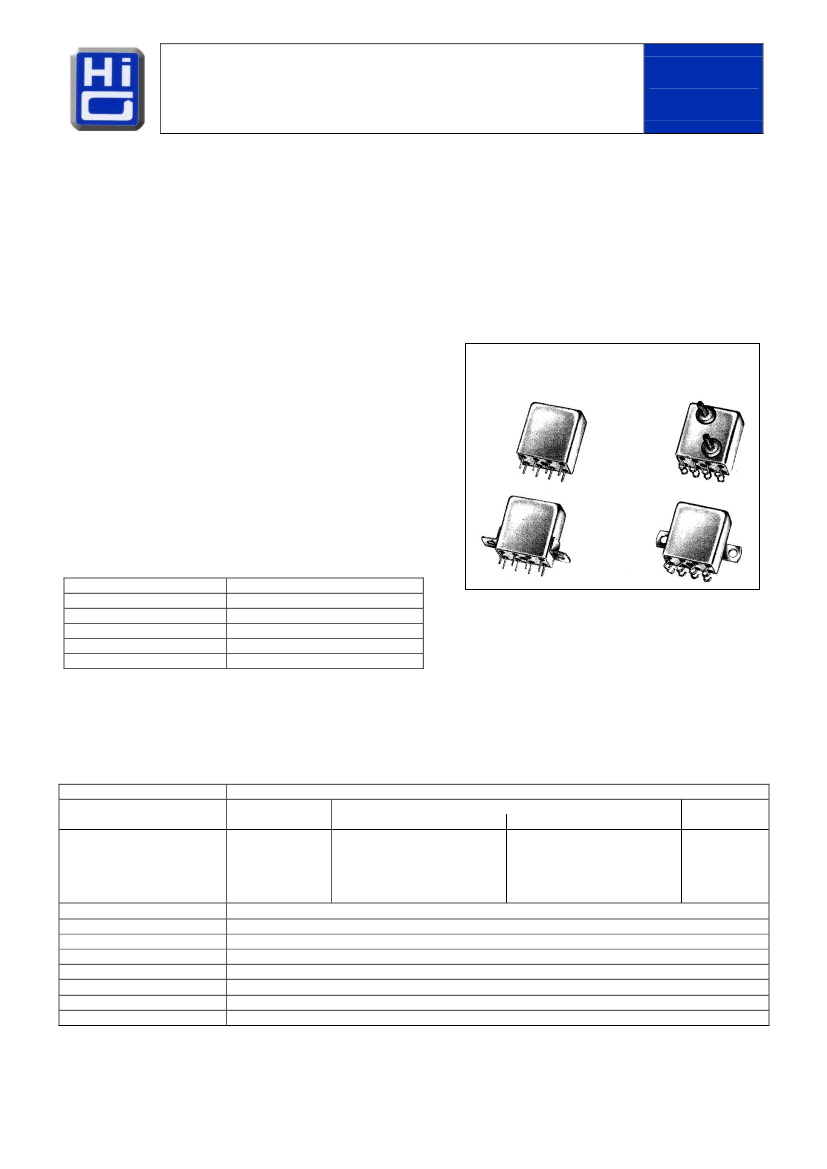

FULL SIZE CRYSTAL CAN RELAY

Series

2 AMPERE DPDT

2B-7506

Product Description

A complete series of full crystal can hermetically sealed relays manufactured in compliance to the referenced Military specification.

The leading relay design in military and commercial application is represented in Hi-G 2B-7506 series relay. The product advanced

design provides superior performance in the environmental and operational requirements of today’s sophisticated equipment.

The following construction features ensure the highest reliability in extreme environments:

All welded relay construction

Cleaning and sealing techniques ensures maximum internal cleanliness

Low level to 2 amperes switching

2 form C, DPDT contacts, special metal alloy with gold plating

Frame, armature designs and force / mass ratio provides exceptional immunity to shock and vibration.

COMPLIANT TO

MIL-R-5757/10

Series Type

2B-7506

2 form C, DPDT

Environmental and Physical Specifications

Temperature (Ambient)

Shock

Vibration (sinusoidal)

Acceleration

Sealing

Weight

- 65°C to + 125°C

100 g, 6 ms.

20 g, 10 to 2000 Hz

50 g

All welded, Hermetic

0,8 oz. (22,68 grams) max.

Electrical Characteristics

(over the Temperature range. Unless otherwise noted)

Coil Data

Contact Rating

(Note: All ratings with grounded

case)

See Typical Characteristics chart

Cycles min.

High Level

Low Level

Resistive

2 A / 28 Vdc

100.000

10 to 50

A

/ 10 to 50 mV

0,3 A / 115 Vac, 60 and 400 Hz N/A

100.000

Overload

4 A / 28 Vdc

100

N/A

Inductive

1 A / 28 Vdc (200 mH)

100.000

N/A

Lamp

0,1 A / 28 Vdc

100.000

N/A

0,05



max. initial, 0,1



max. after life high level, 0,15



max. after low level

6,0 ms. Max.

High Level 1,0 ms. max., Low Level 2,0 msec. max.

1.000 Vrms min., 60 Hz, all points, 500 Vrms min. between open contacts and coil to case, at sea level

1.000 M min. all points at 500 Vdc

2,5 pF between contacts

1,0 W max. at nominal rated coil voltage, at 25 °C

Type Load

Contact Load

Contact Resistance

Operate Time

Release Time

Contact Bounce

Dielectric Strength

Insulation Resistance

Intercontact Capacitance

Sensitivity

High Generation S.r.l.

Tel: + 39 06 96873136

Fax: + 39 06 94443060

REV. 0/2012
