5962-8773801PA Overview

5962-8773801PA amplifier basic information:

5962-8773801PA is an OPERATIONAL AMPLIFIER.

5962-8773801PA amplifier core information:

The minimum operating temperature of 5962-8773801PA is -55 °C and the maximum operating temperature is 150 °C. Its maximum average bias current is 0.004 µA

How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of 5962-8773801PA is 0.25 V/us. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the 5962-8773801PA gain becomes 0.707 times the low-frequency gain is 800 kHz.

The nominal supply voltage of 5962-8773801PA is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of 5962-8773801PA is 60 µV (Input offset voltage: the compensation voltage between the two input terminals required to make the output terminal of the operational amplifier 0V (or close to 0V).) The width of 5962-8773801PA is: 7.62 mm .

Related dimensions of 5962-8773801PA:

5962-8773801PA has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm.

5962-8773801PA amplifier additional information:

Its temperature grade is: MILITARY. The corresponding JESD-30 code is: R-CDIP-T8. The corresponding JESD-609 code is: e0. The packaging code of 5962-8773801PA is: DIP. 5962-8773801PA packaging materials are mostly CERAMIC, METAL-SEALED COFIRED.

The package shape is RECTANGULAR. The 5962-8773801PA package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE. The maximum seat height is 5.08 mm.

5962-8773801PA Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.004 µA
Nominal Common Mode Rejection Ratio	122 dB
Maximum input offset voltage	60 µV
JESD-30 code	R-CDIP-T8
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	5.08 mm
Nominal slew rate	0.25 V/us
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Nominal Uniform Gain Bandwidth	800 kHz
width	7.62 mm
Base Number Matches	1

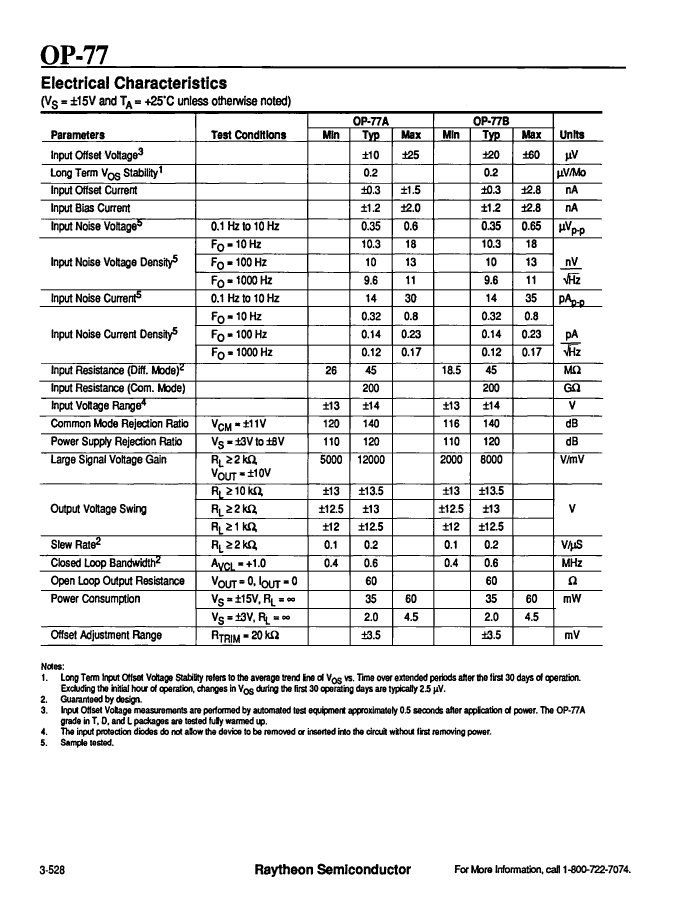

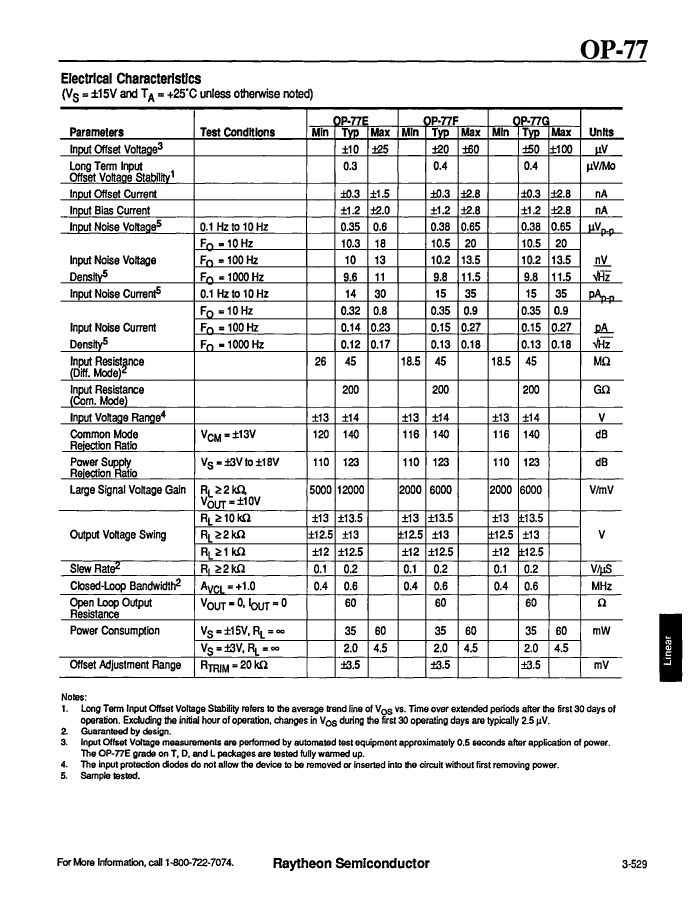

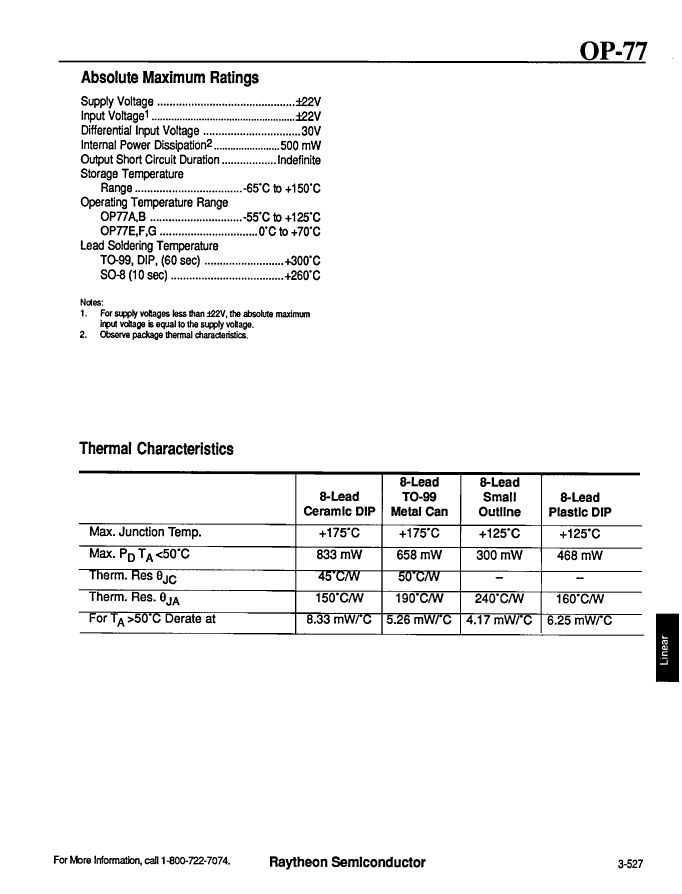

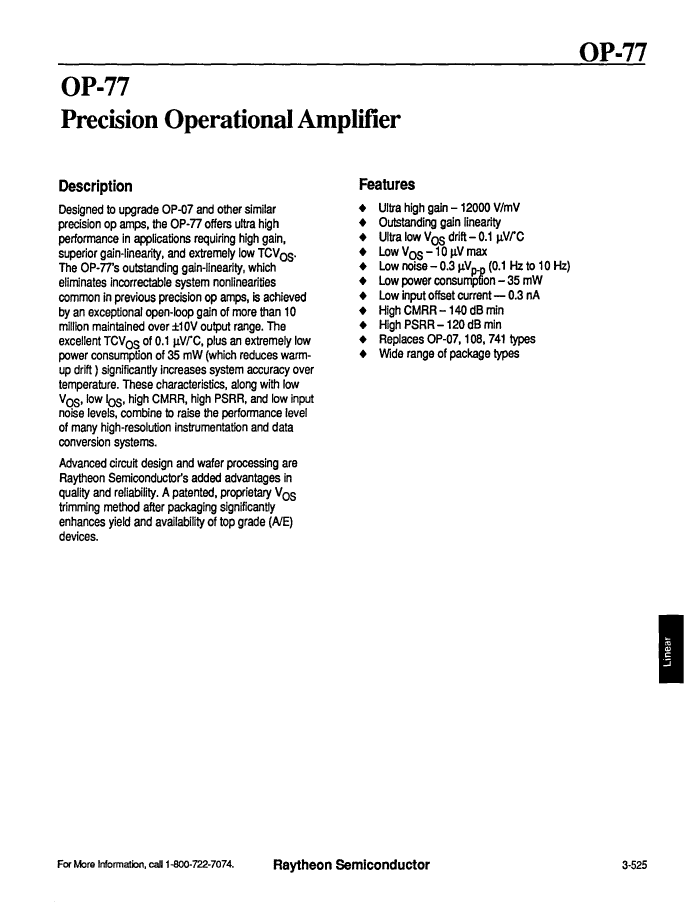

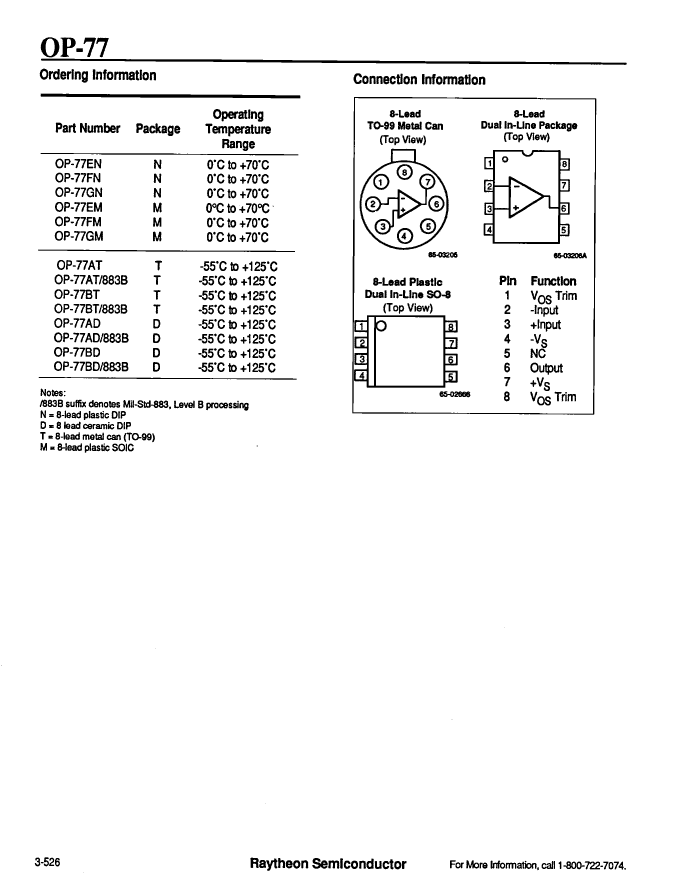

Preview

Download Datasheet

View All

5962-8773801PA Related Products

	5962-8773801PA	5962-8773802GA	5962-8773802PA	5962-8773801GA	5962-8773801GC	5962-8773802GC
Description	Operational Amplifier, 1 Func, 60uV Offset-Max, BIPolar, CDIP8,	Operational Amplifier, 1 Func, 60uV Offset-Max, BIPolar, MBCY8,	Operational Amplifier, 1 Func, 60uV Offset-Max, BIPolar, CDIP8,	Operational Amplifier, 1 Func, 60uV Offset-Max, BIPolar, MBCY8,	Operational Amplifier, 1 Func, 160uV Offset-Max, MBCY8, METAL CAN, 8-PIN	Operational Amplifier, 1 Func, 60uV Offset-Max, BIPolar, MBCY8, METAL CAN, 8-PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.004 µA	0.002 µA	0.002 µA	0.004 µA	0.008 µA	0.004 µA
Nominal Common Mode Rejection Ratio	122 dB	120 dB	120 dB	122 dB	106 dB	120 dB
Maximum input offset voltage	60 µV	60 µV	60 µV	60 µV	160 µV	60 µV
JESD-30 code	R-CDIP-T8	O-MBCY-W8	R-CDIP-T8	O-MBCY-W8	O-MBCY-X8	O-MBCY-X8
JESD-609 code	e0	e0	e0	e0	e0	e0
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8
Maximum operating temperature	150 °C	125 °C	125 °C	150 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	METAL	CERAMIC, METAL-SEALED COFIRED	METAL	METAL	METAL
Package shape	RECTANGULAR	ROUND	RECTANGULAR	ROUND	ROUND	ROUND
Package form	IN-LINE	CYLINDRICAL	IN-LINE	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO	NO	NO
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	WIRE	THROUGH-HOLE	WIRE	UNSPECIFIED	UNSPECIFIED
Terminal location	DUAL	BOTTOM	DUAL	BOTTOM	BOTTOM	BOTTOM
Nominal Uniform Gain Bandwidth	800 kHz	600 kHz	600 kHz	800 kHz	400 kHz	400 kHz
Base Number Matches	1	1	1	1	1	1
encapsulated code	DIP	TO-99	DIP	-	-	TO-99
Nominal slew rate	0.25 V/us	0.3 V/us	0.3 V/us	0.25 V/us	-	0.3 V/us
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	-	BIPOLAR
Negative supply voltage upper limit	-	-22 V	-22 V	-	-22 V	-22 V
Supply voltage upper limit	-	22 V	22 V	-	22 V	22 V
