Ordering number : EN5681
CMOS LSI
LC75392, 75392M
Single-Chip Electronic Volume Control System
Overview
The LC75392 (DIP-30SD) and the LC75392M (MFP-
30S) are electronic volume control ICs that provide input
and output switching, volume, and tone control functions
controlled by data transferred over a serial interface.

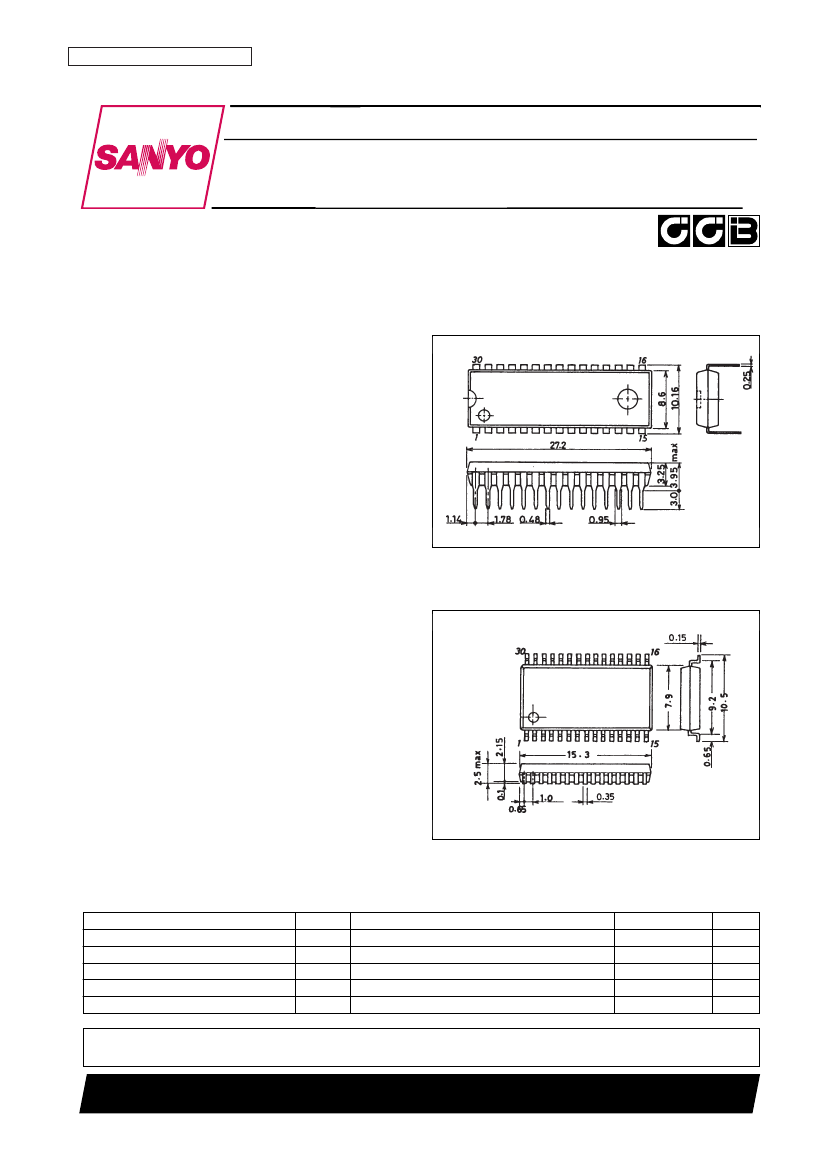

Package Dimensions
unit: mm
3196-DIP30SD
[LC75392]
Functions
• Input and output switching: Four inputs and outputs can
be switched independently.
• Volume control: A balance function can be implemented
by controlling the left and right levels independently.
Each channel can be set to 0 to –20 dB in 2 dB steps,
–20 to –32 dB in 3 dB steps, –32 to –52 dB in 4 dB
steps, –52 dB to –70 dB in 4.5 dB steps, and –∞.
•Tone controls: Internal switches are provided to select
between four sets of frequency characteristics. A buffer
function can be implemented using external
components.
SANYO: DIP30SD
unit: mm
3216-MFP30S
[LC75392M]
Features
Serial data interface: Support for control and
communication in the CCB format.
SANYO: MFP30S
Specifications
Absolute Maximum Ratings
at Ta = 25°C, V
SS
= 0 V
Parameter
Maximum supply voltage
Maximum input voltage
Allowable power dissipation
Operating temperature
Storage temperature
Symbol
V
DD
max
V
IN
max
Pd max
Topr
Tstg
V
DD
CL, DI, CE, L1, L2, L3, L4, R1, R2, R3, R4
Ta
≤
85°C
Conditions
Ratings
12
V
SS
– 0.3 to V
DD
+ 0.3
160
–40 to +85
–50 to +125
Unit
V
V
mW
°C
°C
• CCB is a trademark of SANYO ELECTRIC CO., LTD.
• CCB is SANYO’s original bus format and all the bus addresses are controlled by SANYO.
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110 JAPAN
73097HA(OT) No. 5681-1/12
LC75392, 75392M
Allowable Operating Ranges
at Ta = 25°C, V
SS
= 0 V
Parameter
Supply voltage
Input high-level voltage
Input low-level voltage
Input voltage amplitude
Input pulse width
Setup time
Hold time
Operating frequency
Symbol
V
DD
V
IH
V
IL
V
IN
t
øW
t
setup
t
hold
fopg
V
DD
CL, DI, CE
CL, DI, CE
L1, L2, L3, L4, R1, R2, R3, R4
CL
CL, DI, CE
CL, DI, CE
CL
Conditions
Ratings
min
5.5
4.0
V
SS
V
SS
1.0
1.0
1.0
500
typ
max
11.0
V
DD
1.0
V
DD
Unit
V
V
V
Vp-p
µs
µs
µs
kHz

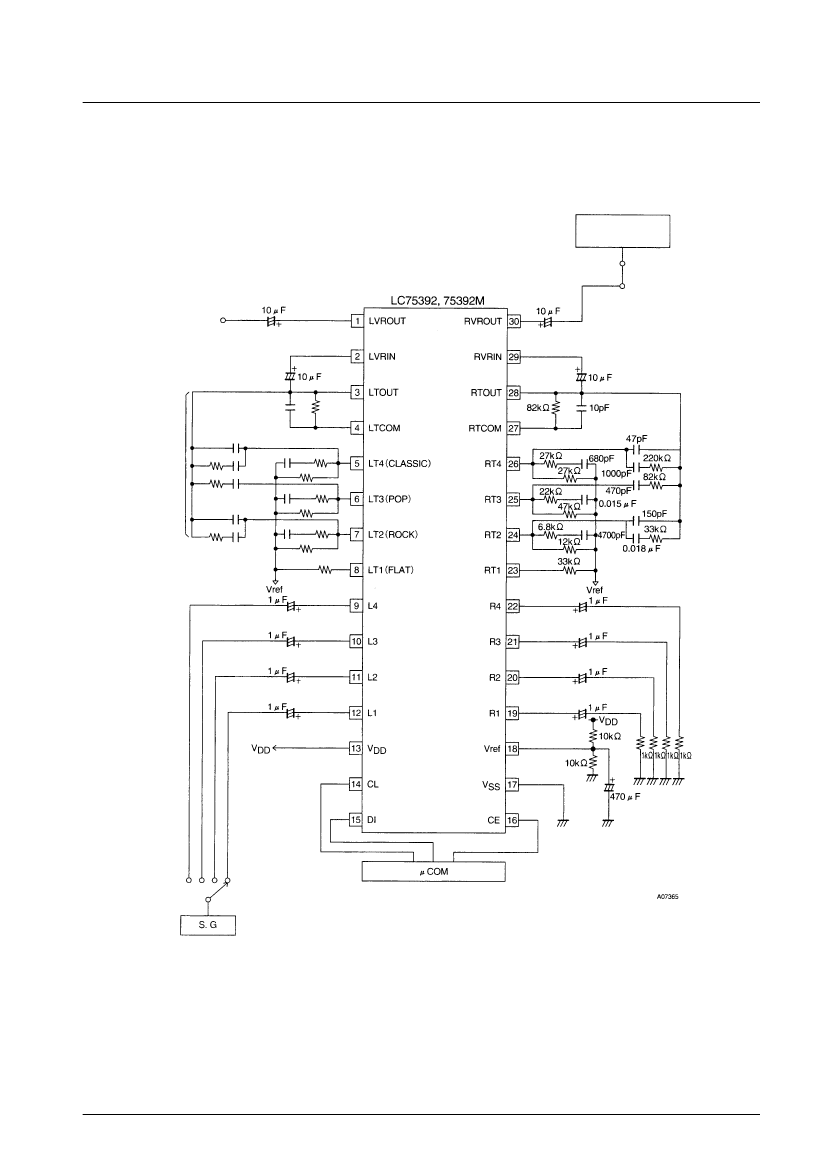

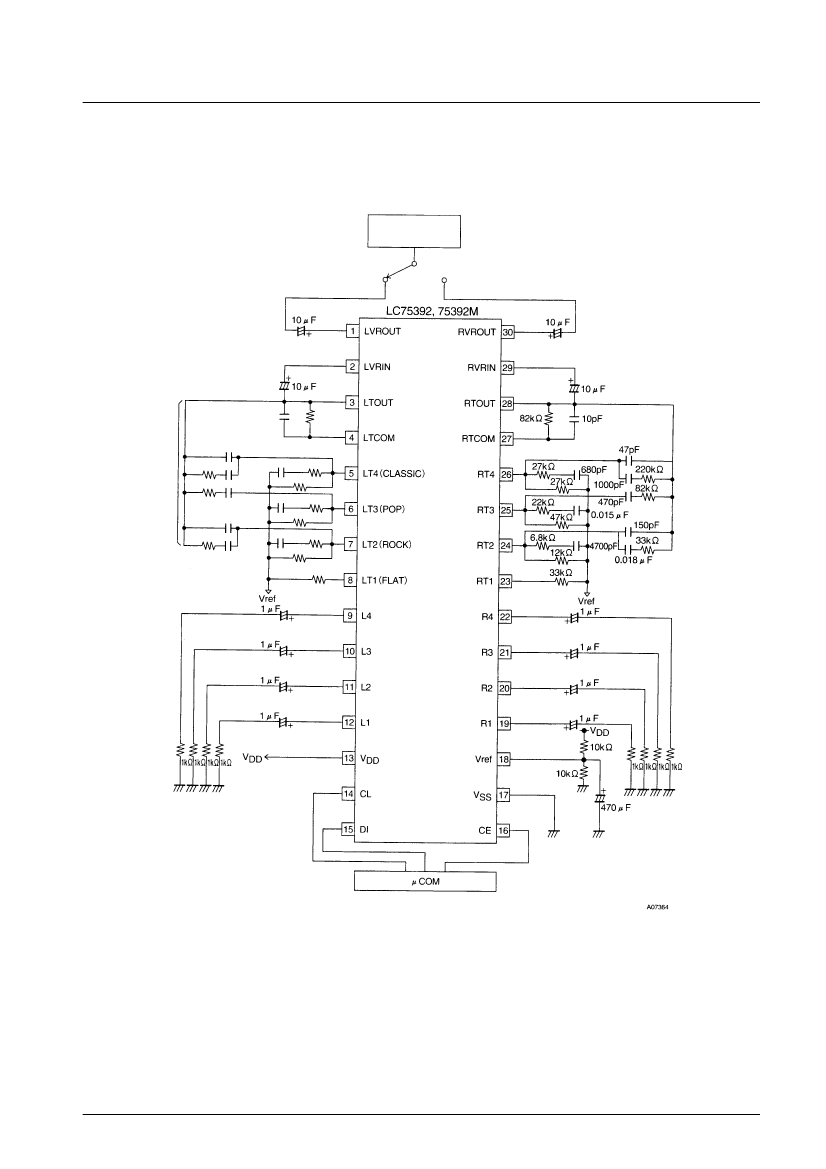

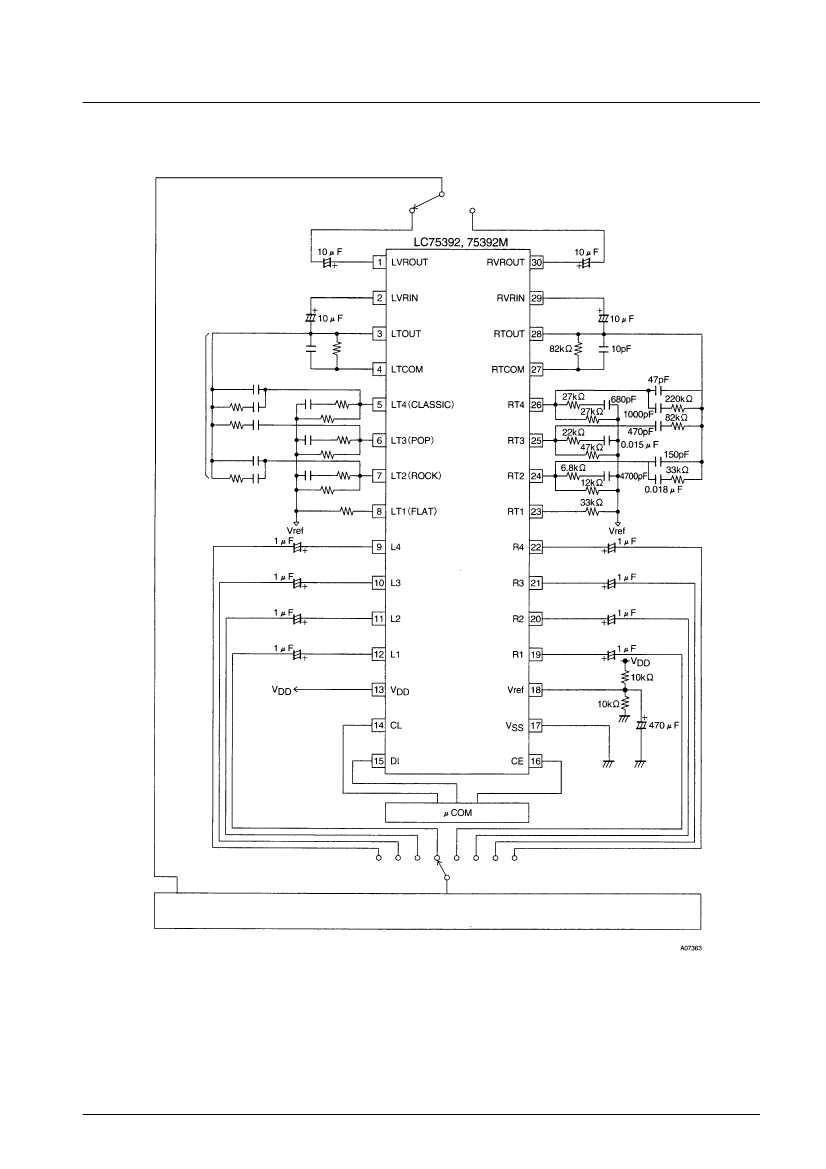

Electrical Characteristics
at Ta = 25°C, V
DD
= 10 V, V
SS
= 0 V
Parameter
[Input Block]
Input resistance
[Overall]
THD1
Total harmonic distortion
THD2
Crosstalk
Output at maximum attenuation
CT
V
O
min
V
N
1
Output noise voltage
V
N
2
Current drain
Input high-level current
Input low-level current
I
DD
I
IH
I
IL
V
IN
= 100 mV rms, f = 1 kHz,
overall, buffer mode off, flat state
V
IN
= 100 mV rms, f = 20 kHz,
overall, buffer mode off, flat state
V
IN
= 1 V rms, f = 1 kHz, overall, Rg = 1 kΩ,
buffer mode off, flat state
V
IN
= 1 V rms, f = 1 kHz, main volume set to
–∞, buffer mode on
Flat overall (IHF-A), Rg = 1 kΩ,
buffer mode off, flat state
Flat overall (DIN-AUDIO), Rg = 1 kΩ,
buffer mode off, flat state
V
DD
– V
SS
= 11 V
CL, DI, CE, V
IN
= 10 V
CL, DI, CE, V
IN
= 0 V
–10
0.013
0.013
81
–80
15
22
7
10
10
%
%
dB
dB
µV
µV
mA
µA
µA
Rin
L1, L2, L3, L4, R1, R2, R3, R4
500
kΩ
Symbol
Conditions
Ratings
min
typ
max
Unit
Equivalent Circuit Block Diagram
Latch
Decoder
Control
Shift register
No. 5681-2/12
