2729GN-150

Description
RF Power Field-Effect Transistor, N-Channel
CategoryDiscrete semiconductor    The transistor
File Size154KB,5 Pages
ManufacturerMicrosemi
Websitehttps://www.microsemi.com
Download Datasheet Parametric View All

2729GN-150 Online Shopping

Suppliers Part Number Price MOQ In stock
2729GN-150 - - View Buy Now

2729GN-150 Overview

RF Power Field-Effect Transistor, N-Channel

2729GN-150 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid1209290978
Reach Compliance Codeunknown
ECCN codeEAR99
Maximum operating temperature200 °C
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typeN-CHANNEL
Maximum power consumption environment330 W
Maximum time at peak reflow temperatureNOT SPECIFIED
2729GN-150 Rev 1
2729GN – 150
150 Watts - 60 Volts, 100
μs,
10%
Radar 2700 - 2900 MHz

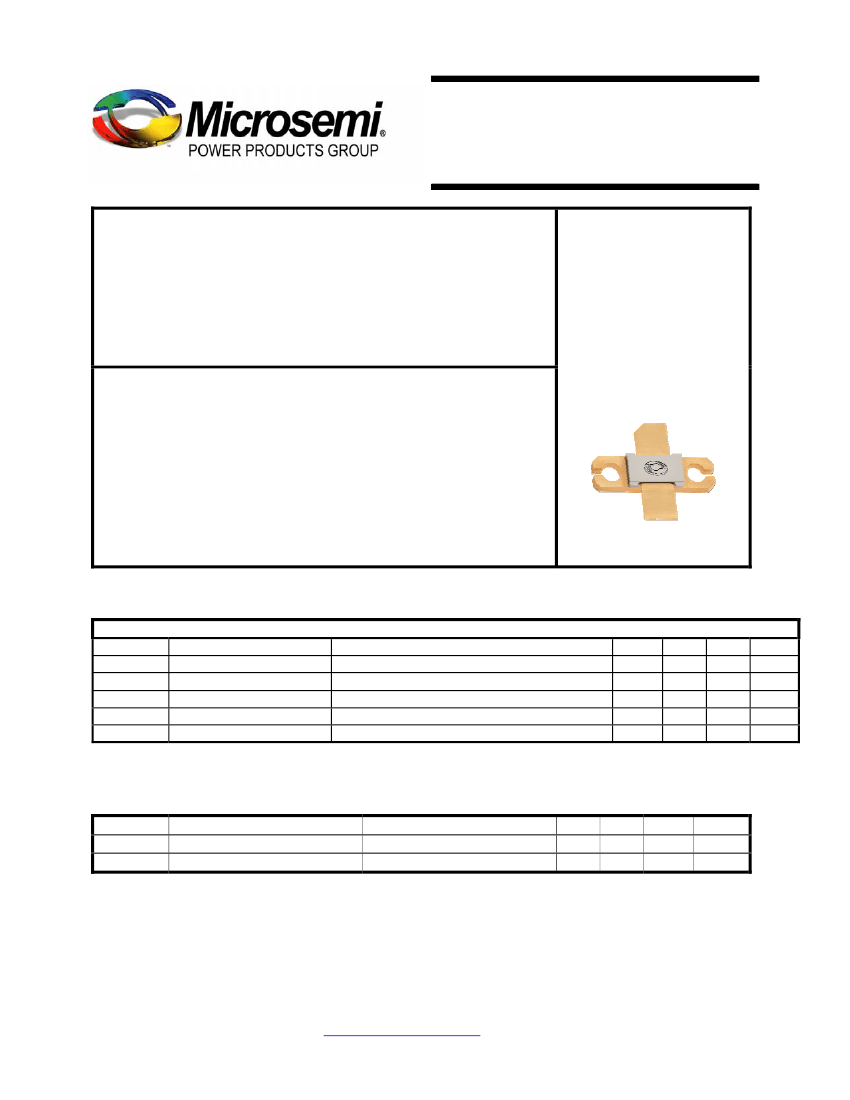

GENERAL DESCRIPTION
The 2729GN-150 is an internally matched, COMMON SOURCE, class AB
GaN on SiC transistor capable of providing 13dB gain, 150 Watts of pulsed RF
output power at 100µs pulse width, 10% duty factor across the 2700 to 2900
MHz band. The transistor has internal pre-match for optimal performance. This
hermetically sealed transistor is specifically designed for S-band radar
applications. It utilizes gold metallization and eutectic attach to provide highest
reliability and superior ruggedness.

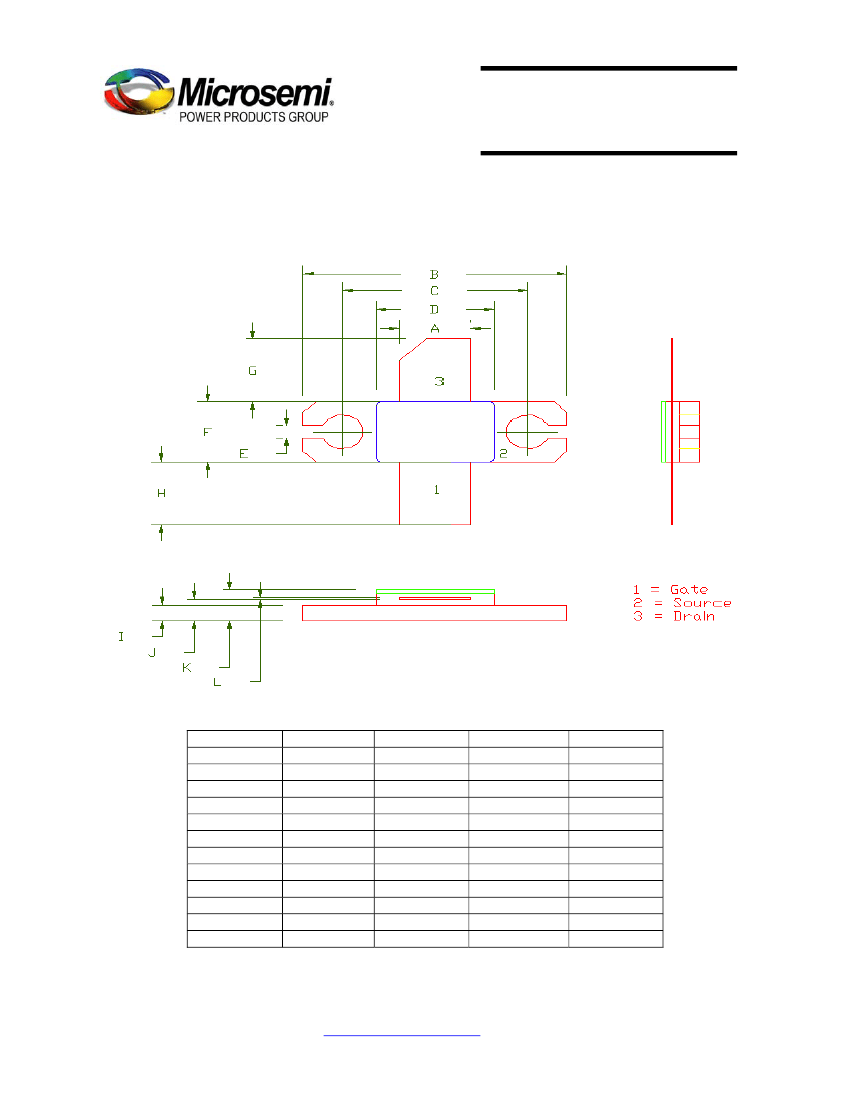

CASE OUTLINE
55-QP
Common Source
ABSOLUTE MAXIMUM RATINGS
Maximum Power Dissipation
330 W
Device Dissipation @ 25°C
Maximum Voltage and Current
150 V
Drain-Source Voltage (V
DSS
)
Gate-Source Voltage (V
GS
)
-8 to +0 V
Maximum Temperatures
Storage Temperature (T
STG
)
-55 to +125
°C
Operating Junction Temperature
+200
°C
ELECTRICAL CHARACTERISTICS @ 25°C
Symbol
Pout
Gp
ηd
R/L
VSWR-T
Өjc
Characteristics
Output Power
Power Gain
Drain Efficiency
Input Return Loss
Load Mismatch Tolerance
Thermal Resistance
Test Conditions
Pin=8W, Freq=2.7, 2.8, 2.9 GHz
Pin=8W, Freq=2.7, 2.8, 2.9 GHz
Pin=8W, Freq=2.7, 2.8, 2.9 GHz
Pin=8W, Freq=2.7, 2.8, 2.9 GHz
Pout=150W, Freq= 2.7 GHz
Pulse Width=100uS, Duty=10%
Min
150
12.7
50
-9
Typ
165
13.2
60
Max
Units
W
dB
%
dB
°C/W
5:1
1.1
Bias Condition: Vdd=+60V, Idq=250mA peak current (Vgs= -2.0 ~ -4.5V typical)
FUNCTIONAL CHARACTERISTICS @ 25°C
I
D(Off)
I
G(Off)
BV
DSS
Drain leakage current
Gate leakage current
Drain-source breakdown voltage
V
gS
= -8V, V
D
= 60V
V
gS
= -8V, V
D
= 0V
V
gs
=-8V, I
D
= 2mA
2.5
2
250
mA
mA
V
Issue July 2011
MICROSEMI RFIS TS RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE. TO VERIFY THE CURRENT VERSION
PLEASE CHECK OUR WEB SITE AT
WWW.MICROSEMI.COM
OR CONTACT OUR FACTORY DIRECTLY.
