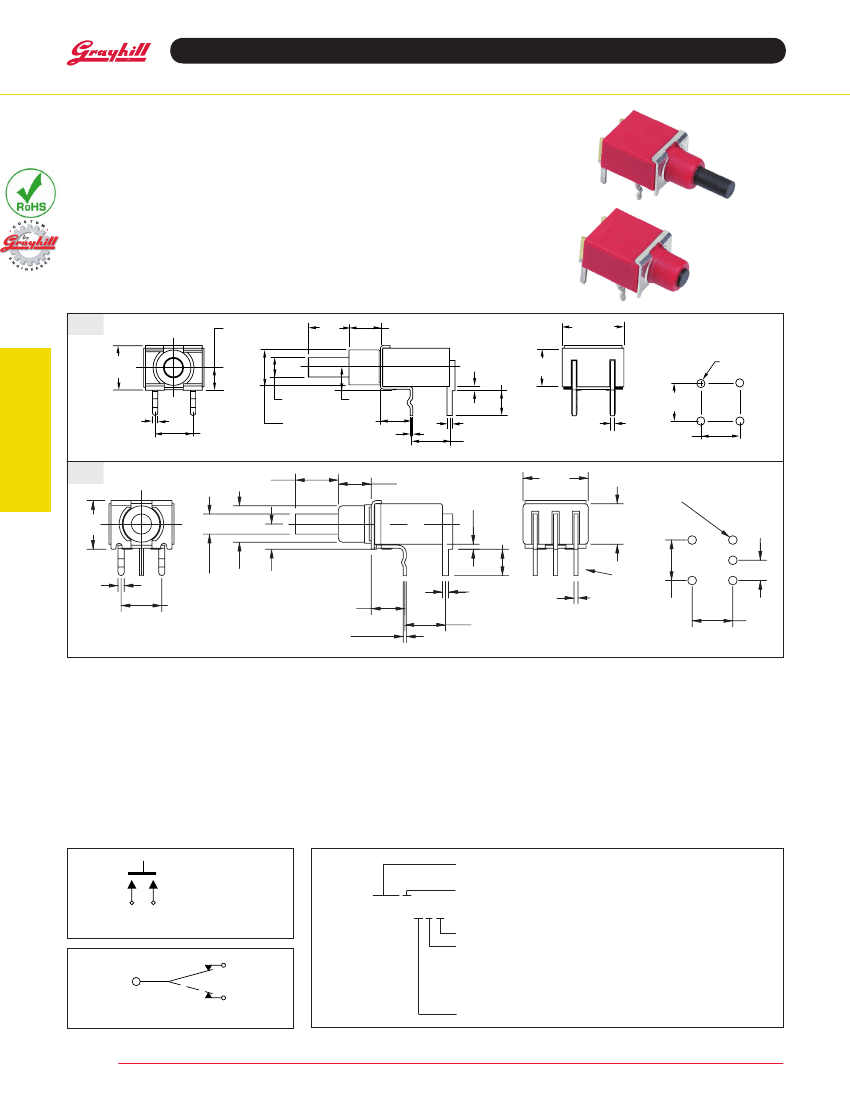

Butt Contact Pushbutton Switches

SERIES 38BT and 38BH

Sub-Miniature Horizontal PC Mount

FEATURES

• Drop-In Replacement for Industry Stan-

dard

• Sealed Plunger Option

• Printed Circuit Board Mount

• SPST and SPDT, Momentary Contact

DIMENSIONS

In inches (and millimeters)

38BT

C

L

.249

(6,32)

.125

(3,18)

.215

(5,46)

.162

(4,11)

.025

(0,64) .130

(3,30)

.100 (2,54)

DIA.

.030

(0,76)

TYP.

.200

(5,08)

.125

(3,18)

.180 (4,57) .165 (4,19)

DIA.

.015 (0,38) TYP.

.200

(5,08)

.200

(5,08)

.030 (0,76) TYP.

.200 (5,08)

.020

(0,51)

TYP.

.200

(5,08)

.320 (8,13)

PC Mounting

.043 (1,09)

DIA. TYP.

C

L

Pushbutton Switches

SPST

38BH

C

L

DIM. "A"

.162

(4.11)

.025

(0.64)

.130

(3.30)

.320

(8.13)

.200

(5.08)

.043 (1.09)

DIA. TYP.

PC Mounting

.100

(2.54)

TYP.

.249

(6.32)

C

L

.030

(0.76)

TYP.

.200

(5.08)

.180

.125

.100

(4.57) (3.18)

(2.54)

DIA.

1

2

3

.165

(4.19)

.015

(0.38)

TYP.

SPDT

.030

(0.76)

TYP.

.200

(5.08)

.020

(0.51)

TYP.

TERMINAL

IDENT-

IFICATION

.200

(5.08)

.200

(5.08)

SPECIFICATIONS

Rating Criteria

Operating Life:

80,000 make-and-break cycles

at full load

Contact Rating (resistive load):

Gold Contacts:

0.4 VA maximum at 20 Vac or

Vdc maximum

Silver Contacts:

1.0 Amp maximum at 120 Vac

or 28 Vdc

Contact Resistance:

Below 20 milliohms typical

initial at 2-4 Vdc, 100 mA

Insulation Resistance:

1000 megaohms

minimum

Voltage Breakdown:

1000 Vrms minimum at

sea level

Operating Temperature:

-30°C. to +85°C.

Solderability:

Per MIL-STD-202F, Method

208D, or EIA RS-186E Method 9 (1 hour steam

aging)

Unless otherwise indicated, tolerances are ± .010 (0,25)

Base and Cover:

Thermoplastic (UL 94V-0)

Plunger:

Thermoplastic (UL 94V-0), (S versions

include an internal o-ring seal)

Terminals:

Copper alloy, gold or silver plate (as

specified) over nickel plate

Spring:

Plated Music Wire

Contact System:

Copper alloy, gold or silver

plate (as specified) over nickel plate

Switch Support:

Brass, tin-plated

Materials and Finishes

CIRCUITRY

ORDERING INFORMATION

Series:

38BT = SPST, Momentary, Thru Hole

Series:

38BH = SPDT, Momentary, Thru Hole

Dimension A:

0 = 0.020" 4 = 0.215"

38BX-4-H-3-N

Seal:

S = O-Ring Seal, N = No Seal

Contact Plating Material:

1 = Solder Dip over Gold (Non-RoHS)

2 = Solder Dip over Silver (Non-RoHS)

3 = Gold - RoHS Compliant

4 = Silver - RoHS Compliant

Orientation:

H = Horizontal to PCB

Available from your local Grayhill Distributor

For prices and discounts, contact a local Sales

Office, an authorized local distributor, or Grayhill.

SPST–N.O.

SPST N.O.

COMM

TERM. 2

N.C.

TERM. 1

N.O.

TERM. 3

SPDT–N.O.

Pushbutton

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com

6

38BH-4-H-1-N Related Products

	38BH-4-H-1-N	38BT-0-H-4-S
Description	Pushbutton Switches 38BH-4-H-1-N er, gold plate over nickel contact, o-ring seal, RoHS Compliant	Pushbutton Switches Pushbutton Switch, .020" plunger, gold contact, o-ring seal, RoHS Compliant
Is it lead-free?	Contains lead	Lead free
Is it Rohs certified?	incompatible	conform to
Maker	Grayhill	Grayhill
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Actuator type	PLUNGER	PLUNGER
body width	8.13 mm	8.13 mm
body height	5.08 mm	5.08 mm
Body length or diameter	9.27 mm	9.27 mm
Contact (AC) maximum rated R load	.02A@20VAC	1A@120VAC
Maximum contact current (AC)	0.02 A	1 A
Maximum contact current (DC)	0.02 A	1 A
Contact (DC) maximum rated R load	.02A@20VDC	1A@28VDC
Maximum contact voltage (AC)	20 V	120 V
Maximum contact voltage (DC)	20 V	28 V
Electrical life	80000 Cycle(s)	80000 Cycle(s)
JESD-609 code	e4	e4
Installation features	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C
surface mount	NO	NO
Switch action	MOMENTARY	MOMENTARY
switch function	SPDT	SPST
Switch type	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH
Terminal surface	Gold (Au)	Silver (Ag)
Termination type	SOLDER	SOLDER
