54MT80KB

Description
50 A, 1600 V, SCR
CategoryAnalog mixed-signal IC    Trigger device
File Size155KB,10 Pages
ManufacturerInternational Rectifier ( Infineon )
Websitehttp://www.irf.com/
Download Datasheet Parametric Compare View All

54MT80KB Overview

50 A, 1600 V, SCR

54MT80KB Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerInternational Rectifier ( Infineon )
package instructionFLANGE MOUNT, R-XUFM-X12
Contacts12
Reach Compliance Codecompliant
Other featuresUL APPROVED
Shell connectionISOLATED
ConfigurationCOMPLEX
Maximum DC gate trigger current150 mA
Maximum DC gate trigger voltage2.5 V
Quick connection description6G
Description of screw terminals6AK
Maximum holding current200 mA
JESD-30 codeR-XUFM-X12
JESD-609 codee0
Maximum leakage current20 mA
On-state non-repetitive peak current345 A
Number of components6
Number of terminals12
Maximum on-state current50000 A
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum rms on-state current50 A
Off-state repetitive peak voltage800 V
Repeated peak reverse voltage800 V
surface mountNO
Terminal surfaceTIN LEAD
Terminal formUNSPECIFIED
Terminal locationUPPER
Maximum time at peak reflow temperatureNOT SPECIFIED
Trigger device typeSCR
Base Number Matches1
Bulletin I27504 08/97
MT..KB SERIES
THREE PHASE AC SWITCH
Power Modules
Features
Package fully compatible with the industry standard INT-A-pak
power modules series
High thermal conductivity package, electrically insulated case
Outstanding number of power encapsulated components
Excellent power volume ratio
4000 V
RMS
isolating voltage
UL E78996 approved
50 A
90 A
100 A
Description
A range of extremely compact, encapsulated three phase
AC-switches offering efficient and reliable operation. They
are intended for use in general purpose and heavy duty
applications as control motor starter.
Major Ratings and Characteristics
Parameters
I
O
@ T
C
I
FSM
@ 50Hz
@ 60Hz
I
2
t
@ 50Hz
@ 60Hz
I
2
√t
V
RRM
range
T
STG
range
T
J
range
54MT.KB 94MT.KB 104MT.KB Units
50
80
390
410
770
700
7700
90
80
950
1000
4525
4130
45250
800 to 1600
- 40 to 125
- 40 to 125
100
80
1130
1180
6380
5830
63800
A
°C
A
A
A
2
s
A
2
s
A
2
√s
V
°C
°C
www.irf.com
1

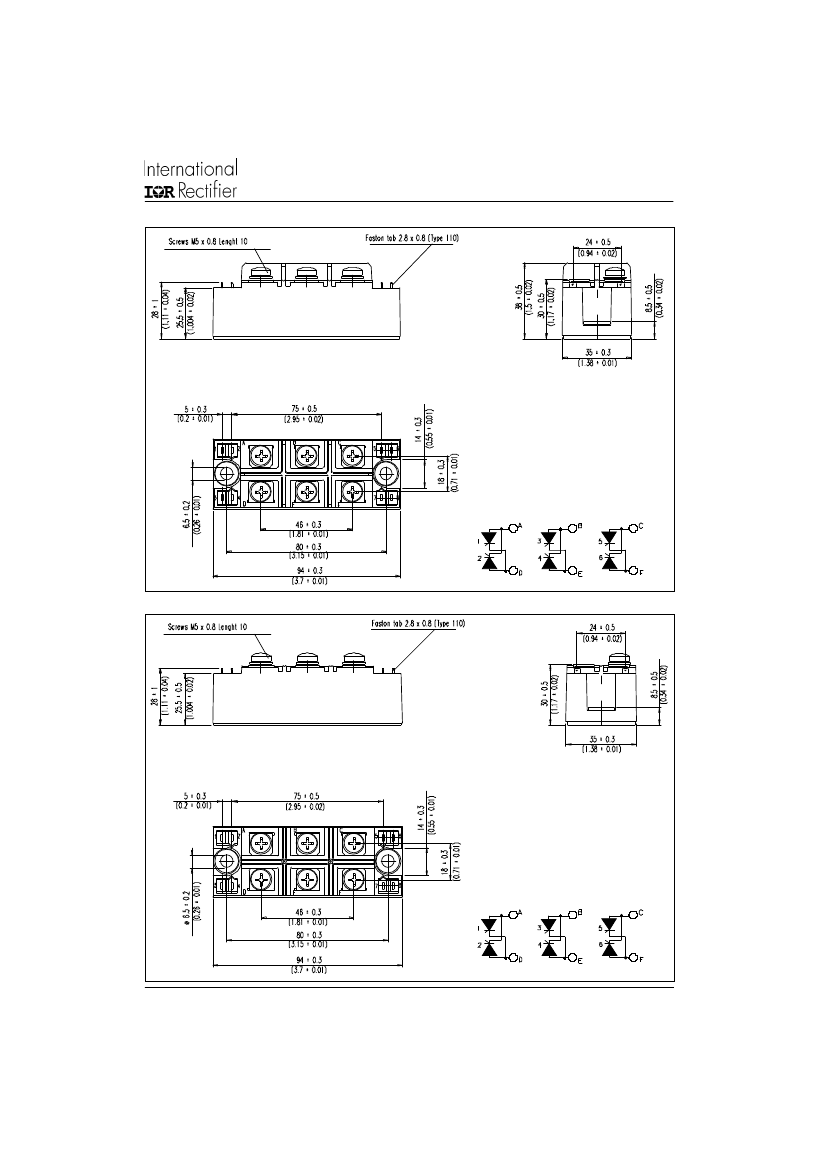

54MT80KB Related Products

54MT80KB 54MT120KB 54MT100KB 54MT160KB 54MT140KB
Description 50 A, 1600 V, SCR 50 A, 1600 V, SCR 50 A, 1600 V, SCR 50 A, 1600 V, SCR 50 A, 1600 V, SCR
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible
Maker International Rectifier ( Infineon ) International Rectifier ( Infineon ) International Rectifier ( Infineon ) International Rectifier ( Infineon ) International Rectifier ( Infineon )
package instruction FLANGE MOUNT, R-XUFM-X12 FLANGE MOUNT, R-XUFM-X12 FLANGE MOUNT, R-XUFM-X12 FLANGE MOUNT, R-XUFM-X12 FLANGE MOUNT, R-XUFM-X12
Contacts 12 12 12 12 12
Reach Compliance Code compliant compliant unknown compliant unknown
Other features UL APPROVED UL APPROVED UL APPROVED UL APPROVED UL APPROVED
Shell connection ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED
Configuration COMPLEX COMPLEX COMPLEX COMPLEX COMPLEX
Maximum DC gate trigger current 150 mA 150 mA 150 mA 150 mA 150 mA
Maximum DC gate trigger voltage 2.5 V 2.5 V 2.5 V 2.5 V 2.5 V
Quick connection description 6G 6G 6G 6G 6G
Description of screw terminals 6AK 6AK 6AK 6AK 6AK
Maximum holding current 200 mA 200 mA 200 mA 200 mA 200 mA
JESD-30 code R-XUFM-X12 R-XUFM-X12 R-XUFM-X12 R-XUFM-X12 R-XUFM-X12
Maximum leakage current 20 mA 20 mA 20 mA 20 mA 20 mA
On-state non-repetitive peak current 345 A 345 A 345 A 345 A 345 A
Number of components 6 6 6 6 6
Number of terminals 12 12 12 12 12
Maximum on-state current 50000 A 50000 A 50000 A 50000 A 50000 A
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C -40 °C
Package body material UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum rms on-state current 50 A 50 A 50 A 50 A 50 A
Off-state repetitive peak voltage 800 V 1200 V 1000 V 1600 V 1400 V
Repeated peak reverse voltage 800 V 1200 V 1000 V 1600 V 1400 V
surface mount NO NO NO NO NO
Terminal form UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED
Terminal location UPPER UPPER UPPER UPPER UPPER
Trigger device type SCR SCR SCR SCR SCR
Base Number Matches 1 1 1 1 1
JESD-609 code e0 e0 - e0 -
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED - NOT SPECIFIED -
Terminal surface TIN LEAD TIN LEAD - TIN LEAD -
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED - NOT SPECIFIED -
