DF62W-2S-22C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> DF62W-2S-22C

DF62W-2S-22C: DescriptionHeaders & Wire Housings 2P Socket Slim InLine Con; CategoryThe connector; File Size812KB，12 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric Compare View All

DF62W-2S-22C Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DF62W-2S-22C	-	-	View	Buy Now

DF62W-2S-22C Overview

Headers & Wire Housings 2P Socket Slim InLine Con

DF62W-2S-22C Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Hirose
Product Category	Headers & Wire Housings
RoHS	Details
Product	Wire Housings
Type	Socket Assembly
Number of Positions	2 Position
Pitch	2.2 mm
Mounting Style	-
Termination Style	-
Mounting Angle	-
Contact Gender	-
Contact Plating	-
Packaging	Bulk
Contact Type	Socket
Voltage Rating	250 V
Contact Material	-
Row Spacing	2.2 mm
Housing Gender	Socket
Mating Post Length	-
Factory Pack Quantity	100
Termination Post Length	-
Unit Weight	0.001693 oz

Preview

Download Datasheet

View All

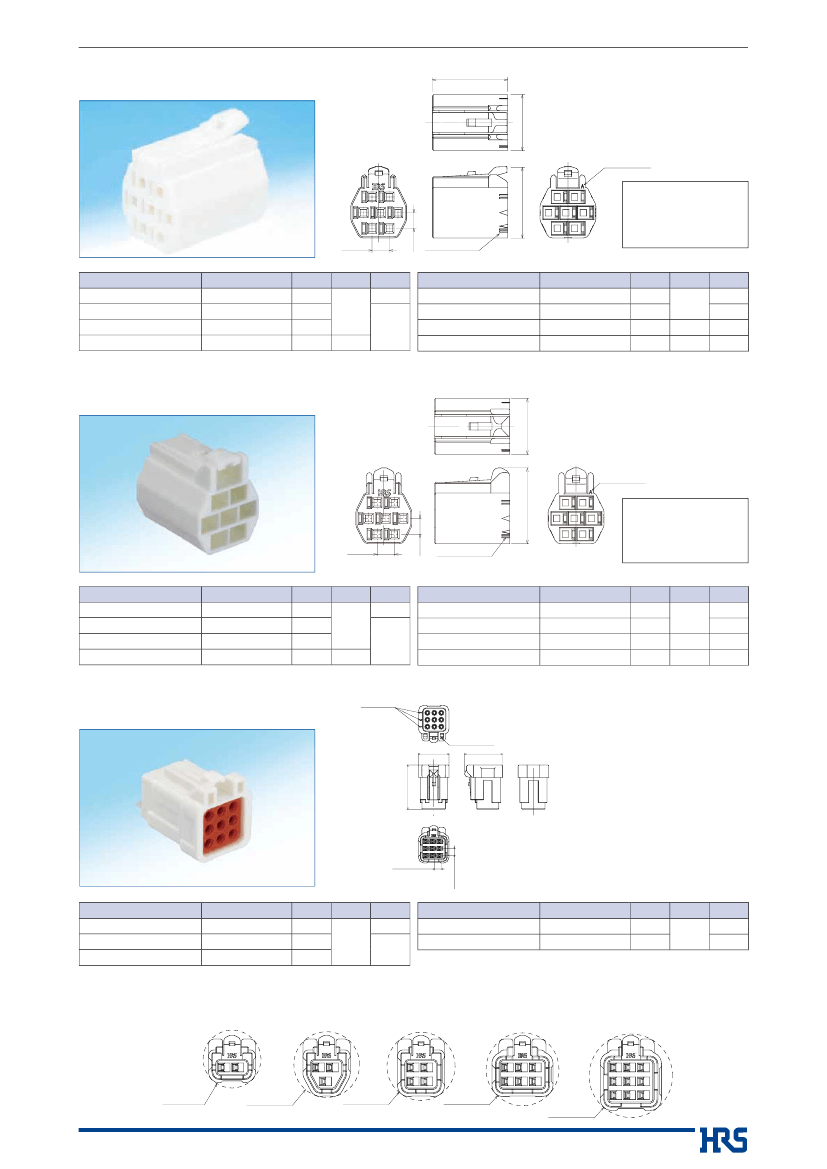

2 × 2.2mm Pitch, Wire-to-Wire Connectors for Small Spaces

DF62 Series / DF62W Series

（UL, C-UL Listed）

Non-waterproof

type

（DF62B, DF62C,

DF62P）

Waterproof type

（DF62W）

■Features

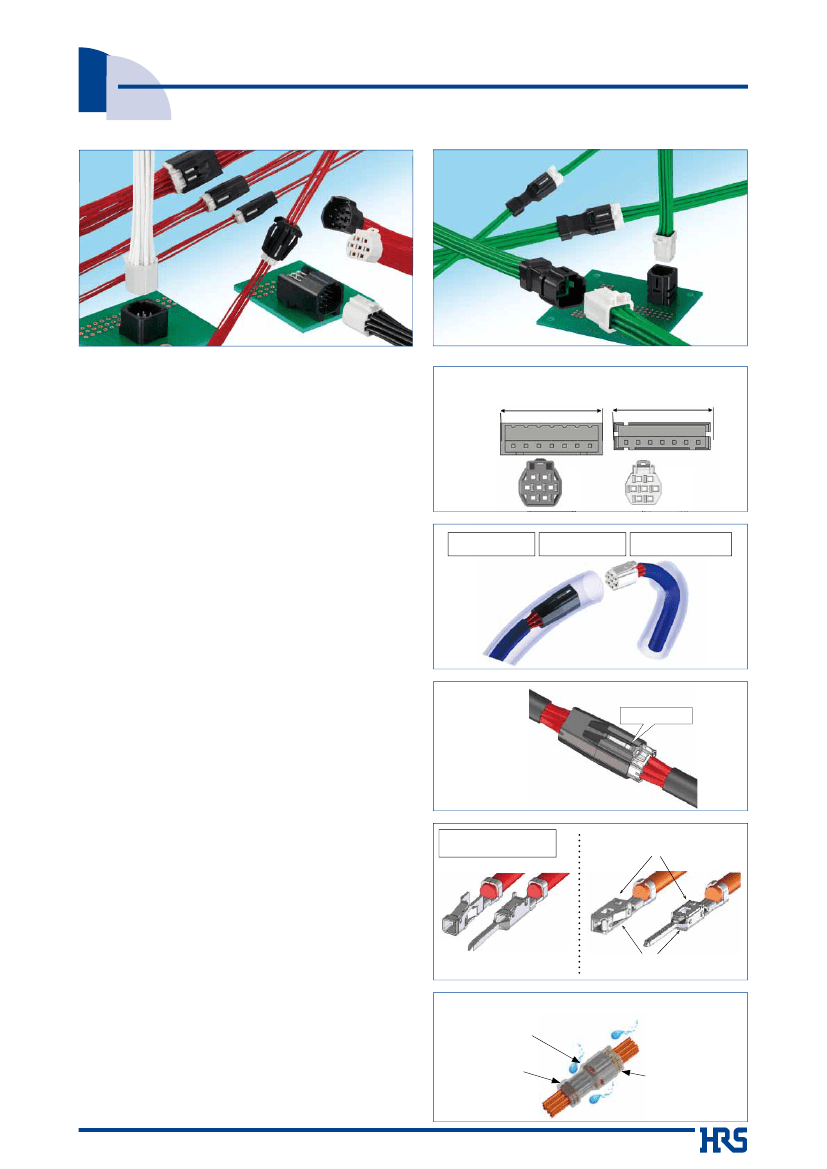

1. The slim, sleek design and smooth contour combine

to complete connections in tight spaces.

These connectors were designed to take full advantage

of small/narrow spaces. The contacts are arranged in a

grid pattern which shortens the diagonal distances and

the body was slimmed down by creating smooth outer

surfaces. This design helps to save precious space and

makes these connectors virtually tangle free. There is

no visible or exposed metal which would eliminate the

possibility of electrical arcing between the connector

and the inside of a metal conduit. (Please refer to Fig. 1

and 2)

Compact shape due to 2 × 2.2 grid layout of pins

*Both are 7 contacts with 3A current rating

Existing

products

DF62

Fig.1

Smooth external

shape

No exposed metal

Grid Arrangement

2. Secure lock mechanism

The locking structure emits a clear tactile click upon

lock completion. After completion, a second indicator

can be utilized. The socket lock can be visually

checked through the plug window after mating. These

indicators function together to prevent incomplete

mating. (Please refer to Fig. 3)

Fig.2

Visual check

for complete

mating

3. Reliable contact structure

The structure utilizes two contact points to provide

a reliable contact that resists damage from vibration

and rough operation.

1.Visual check area

4. Robust contact structure

The unique structure provides protection to the

contacts and lance areas, it prevents any bending

or deformity that might occur during mating, the

assembly procedure or while in transportation.

(Please refer to Fig. 4)

2. Locking is confirmed

by an audible click.

Fig.3

（Water-resistant

type (DF62W)）

Robust box-shaped contact structure

Image of the outward

appearance of the contact

（For

non-water-proof type）

5. Multiple variations available

There are several different wire counts available,

giving the designer the variety needed to complete

the application. Protected lock type, panel mount

type and pin header type are also available.

6. Applicator sharing

The applicators for the DF11 and DF59 series (existing

products) can be adapted to accommodate the DF62

series applicators.

*Some

modifications are required.

Please contact Hirose for additional details.

（Non-water-resistant

type (DF62) contacts）

Designed for easy

contact insertion.

Fig.4

Condensation prevention measure

(IP67 level Water-resistance)

Housing seal

7. Condensation prevention measure

(Water-resistant type DF62W)

IP67 level water-resistance in mated condition.

(Fig. 5)

Wire seal

Fig.5

2018.3④

DF62W-2S-22C Related Products

	DF62W-2S-22C	DF62W-3S-22C	DF62W-EP2226PCF
Description	Headers & Wire Housings 2P Socket Slim InLine Con	Headers & Wire Housings 3P Socket Slim InLine Con	Headers & Wire Housings Slim InLn Male Contact 22-26AWG
Product Attribute	Attribute Value	Attribute Value	-
Manufacturer	Hirose	Hirose	-
Product Category	Headers & Wire Housings	Headers & Wire Housings	-
RoHS	Details	Details	-
Product	Wire Housings	Wire Housings	-
Type	Socket Assembly	Socket Assembly	-
Number of Positions	2 Position	3 Position	-
Pitch	2.2 mm	2.2 mm	-
Packaging	Bulk	Bulk	-
Contact Type	Socket	Socket	-
Voltage Rating	250 V	250 V	-
Row Spacing	2.2 mm	2.2 mm	-
Housing Gender	Socket	Socket	-
Factory Pack Quantity	100	100	-
Unit Weight	0.001693 oz	0.021164 oz	-
