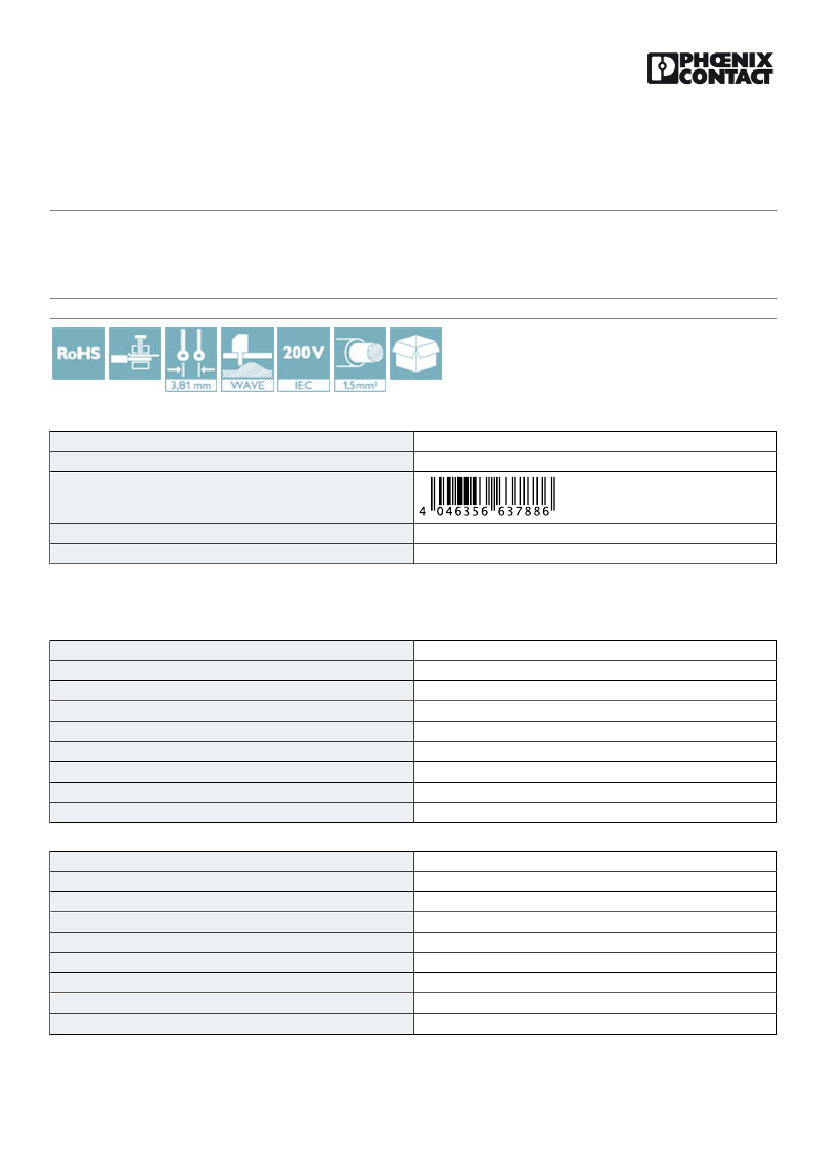

PCB terminal block - MKDS 1/ 4-3,81 VPE500 - 1703125
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, Nominal current: 13.5 A, Nom. voltage: 200 V, Pitch: 3.81 mm, Number of positions:
4, Connection method: Screw connection with tension sleeve, Mounting: Wave soldering, Conductor/PCB
connection direction: 0 °, Color: green
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Custom tariff number
4046356637886
85369010
500 STK
500 STK
Technical data
Dimensions
Length
Pitch
Dimension a
Width
Constructional height
Height
Length of the solder pin
Pin dimensions
Hole diameter
7.3 mm
3.81 mm
11.43 mm
15.23 mm
8.5 mm
12 mm
3.5 mm
0,5 x 0,9 mm
1.1 mm
General
Range of articles
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
MKDS 1
2.5 kV
2.5 kV
2.5 kV
160 V
200 V
400 V
EN-VDE
13.5 A
11/14/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/1703125
PCB terminal block - MKDS 1/ 4-3,81 VPE500 - 1703125
Technical data
General
Nominal cross section
Solder pin surface
Stripping length
Number of positions
Screw thread
Tightening torque, min
Tightening torque max
1.5 mm²
Sn
5 mm
4
M2
0.22 Nm
0.25 Nm
Connection data
Conductor cross section AWG min.
Conductor cross section AWG max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
26
16
0.14 mm²
0.5 mm²
0.14 mm²
0.34 mm²
Standards and Regulations
Connection in acc. with standard
EN-VDE
CSA
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Approvals
Approvals
Approvals
SEV / CCA / CSA / EAC
Ex Approvals
Approval details
SEV https://www.electrosuisse.ch/en/meta/shop/product-certificates.html IK-3542-M1
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
1.5
12 A
125 V
11/14/2016 Page 2 / 3
https://www.phoenixcontact.com/hq/products/1703125
PCB terminal block - MKDS 1/ 4-3,81 VPE500 - 1703125
Approvals
CCA IK-2722
CSA
http://www.csagroup.org/services/testing-and-certification/certified-product-listing/ 13631
B
28-16
10 A
150 V
D
28-16
10 A
300 V
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
EAC B.01742
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/14/2016 Page 3 / 3
