54104-3096

Description
FFC & FPC Connectors .50MM FFC/FPC RA 30P SMT zif top contact
CategoryThe connector    The connector
File Size31KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

54104-3096 Online Shopping

Suppliers Part Number Price MOQ In stock
54104-3096 - - View Buy Now

54104-3096 Overview

FFC & FPC Connectors .50MM FFC/FPC RA 30P SMT zif top contact

54104-3096 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
package instructionLEAD FREE
Reach Compliance Codecompliant
Factory Lead Time7 weeks
Samacsys DescriptionMolex FFC/FPC SMT 54104 Series 0.5mm Pitch 30 Way Right Angle SMT Female FPC Connector, ZIF Top Contact
Other featuresZIF
Board mount optionsFITTING NAIL
Connector typeFFC/FPC CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleBELLOWED TYPE
DIN complianceNO
Dielectric withstand voltage250VAC V
Durability20 Cycles
Filter functionNO
IEC complianceNO
maximum insertion forceZIF N
Insulation resistance50000000 Ω
insulator materialNYLON
MIL complianceNO
Plug contact pitch0.02 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.5 mm
Termination typeSURFACE MOUNT
Total number of contacts30
UL Flammability Code94V-0
Evacuation force-minimum valueZIF N
Base Number Matches1

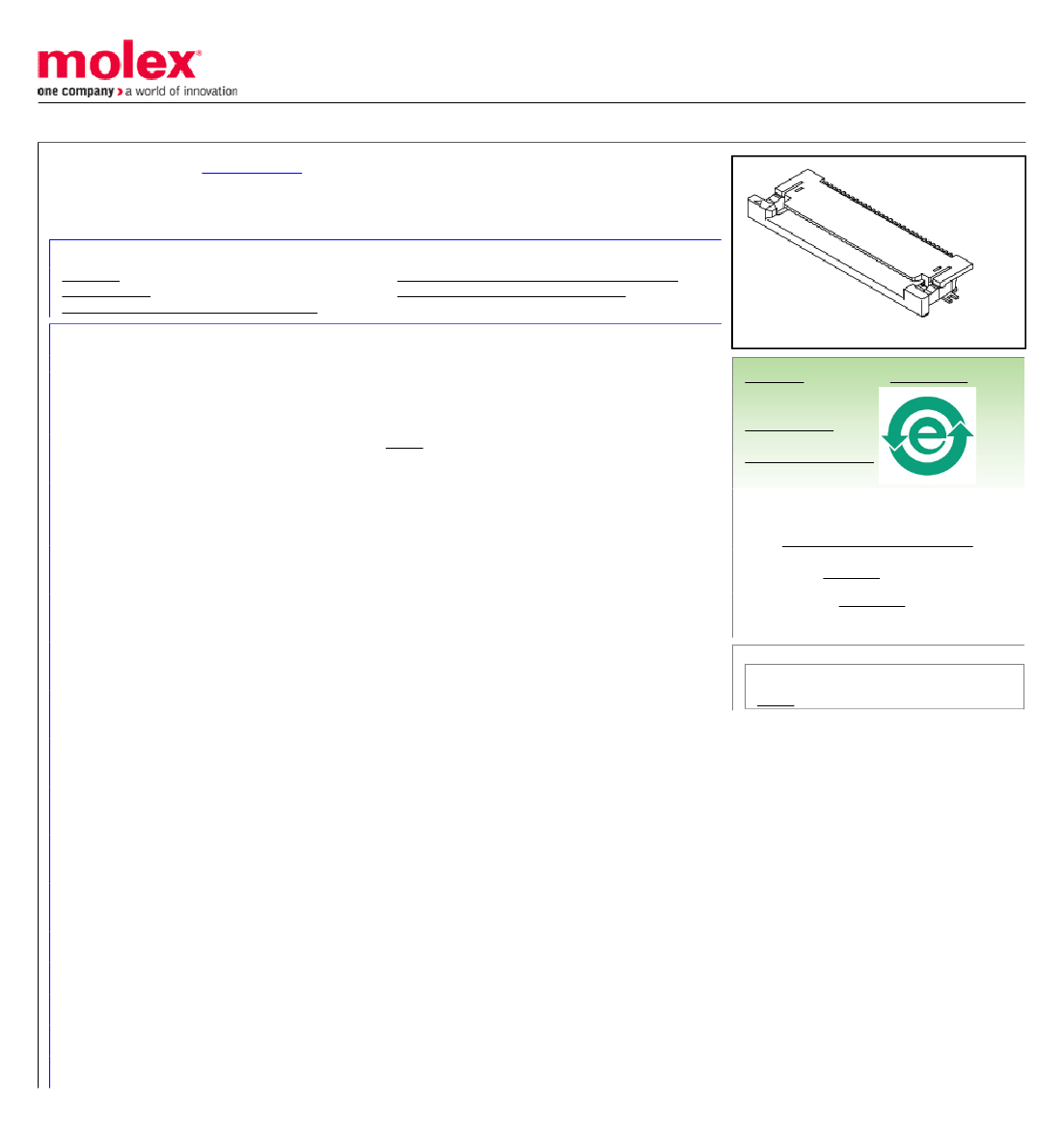

This document was generated on 03/08/2013
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
54104-3096
Active
0.50mm Pitch FFC/FPC Connector, Right Angle, SMT, ZIF, Top Contact Style, 30
Circuits, Lead-Free
Documents:
3D Model
Drawing (PDF)
Product Specification PS-54104-069 (PDF)
Packaging Specification SPK-54104-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
Agency Certification
CSA
UL
LR19980
E29179
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Not Low-Halogen
China RoHS
General
Product Family
Series
Product Name
UPC
FFC/FPC Connectors
54104
N/A
822348113378
Physical
Circuits (Loaded)
Color - Resin
Contact Position
Durability (mating cycles max)
Entry Angle
Flammability
Mated Height
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface
Plating min - Mating
Plating min - Termination
Polarized to PCB
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Wire/Cable Type
30
Natural
Top
20
90° Angle
94V-0
2.00mm
Phosphor Bronze
Tin-Bismuth
Tin-Bismuth
High Temperature Thermoplastic
357.100/mg
1
Right Angle
No
None
Embossed Tape on Reel
0.50mm
1.016µm
1.016µm
Yes
No
N/A
-40°C to +85°C
Surface Mount
FFC/FPC
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
54104Series
Electrical
Current - Maximum per Contact
Voltage - Maximum
0.5A
50V
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
SPK-54104-001
PS-54104-069, RPS-54104-075, RPS-54104-078
