PV1
S
erieS
XXX
S
erieS
a
Nti
-
VaNdal
S
witCh
ANTI-VANDAL
SWITCHES
SWITCHES
a
pplicationS
/ M
arketS
DETECTOR
SWITCHES
Audio / Visual
Security Devices
Industrial Controls
KEYLOCK
SWITCHES
DIP
SWITCHES
Kiosks
Electrical Housewares
Medical Equipment
NAVIGATION
SWITCHES
RoHS
S
pecificationS
Electrical Rating:
2A, 36VDC
Mechanical Life:
1,000,000 Cycles
Electrical Life:
200,000 Cycles
Contact Resistance:
50mΩ Max.
Insulation Resistance:
1000 MΩ Min.
Dielectric Strength:
2,000VAC
Operating/Storage Temperature:
-20°C to 55°C
Travel:
2.50mm
Moisture Protection:
IP65
Contact Arrangement:
SPST Off-(On)
Actuation Force:
4 N
Panel Thickness:
1-8mm
Mounting Nut Torque:
0.8Nm
f
eatureS
& B
enefitS
•
•
•
•
19mm panel cutout
Solder or screw termination options
Flat, high or domed actuator options
IP65 rated
SLIDE
SWITCHES
ROTARY
SWITCHES
ROCKER
SWITCHES
PUSHBUTTON
SWITCHES
P
art
N
umber
C
oNfigurator
Series
Actuator
Options
Terminal Function
Options Options
Rating
Options
Body
Finish
Options
Actuator
Finish
Options
Contact
Material
Options
Marking
Options
SNAP ACTION
SWITCHES

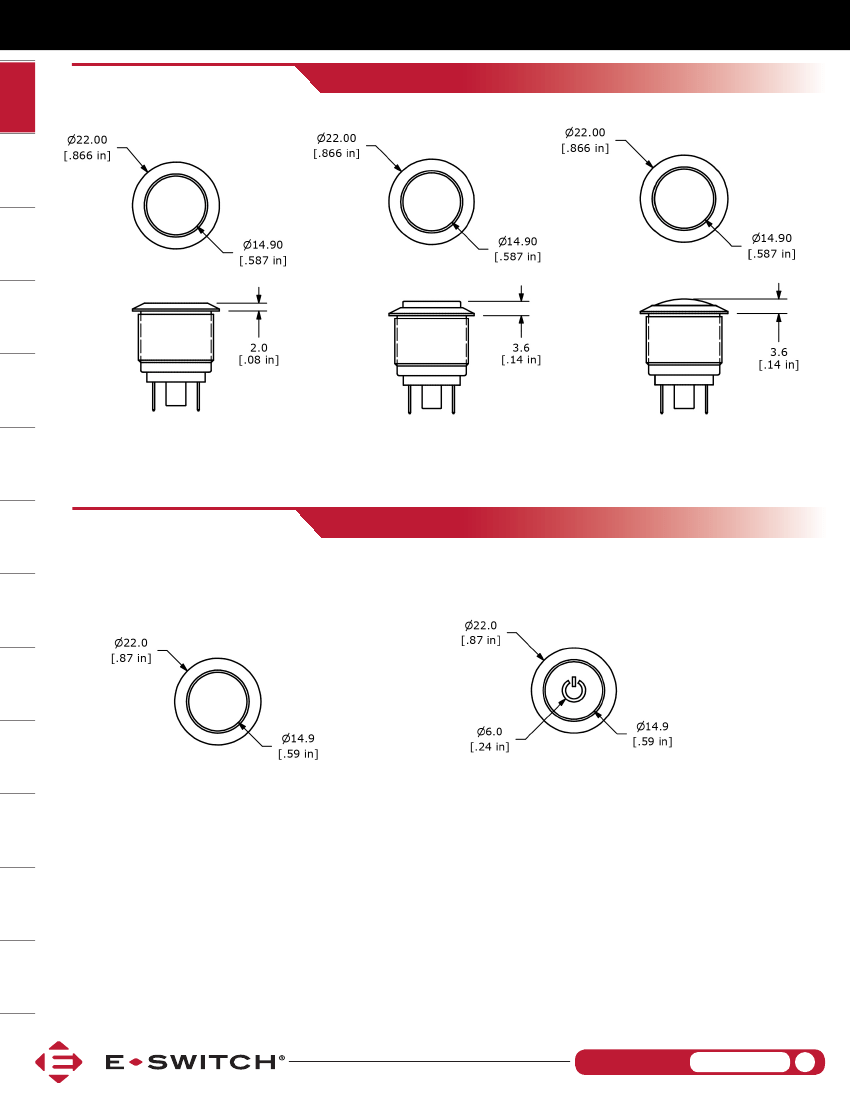

CAP
OPTIONS
TOGGLE
SWITCHES
TACTILE
SWITCHES
PV1
F
- Flat
H
- High
S
- Domed
2
- Solder
6
- Screw
4
- Off - (On)*
0
- 2A,
36VDC
G
- Gold
N
- Nickel
S
- Polished
Stainless
B
- Brushed
Stainless
1
- Black Anodized
G
- Gold
N
- Nickel
S
- Polished
Stainless
B
- Brushed
Stainless
1
- Black Anodized
NONE
- Silver
G
- Gold
NONE
- Non-
Illuminated
M01
- Power
Symbol
NOTES:
*(ON) Denotes function is momentary
Specifications subject to change without notice
www.e-switch.com
800.867.2717
2
