PV3H2G0NN-214 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> PV3H2G0NN-214

PV3H2G0NN-214: DescriptionIlluminated Pushbutton Switches Illuminated, Sealed Anti-vandal switch; CategoryTopical application Mechanical and electrical/engineering/automation; File Size285KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet Parametric Compare View All

PV3H2G0NN-214 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PV3H2G0NN-214	-	-	View	Buy Now

PV3H2G0NN-214 Overview

Illuminated Pushbutton Switches Illuminated, Sealed Anti-vandal switch

PV3H2G0NN-214 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	E-Switch
Product Category	Illuminated Pushbutton Switches
Product	Standard Switches
Type	Anti-Vandal
Contact Form	DPST
Switch Function	ON - ON
Current Rating	2 A
Voltage Rating DC	48 VDC
Mounting Style	Through Hole
Mounting Type	Bushing
Illumination	LED
Illumination Color	Red
Termination Style	Solder Pin
Actuator	Round
Contact Plating	Silver
Housing Material	Brass
Flammability Rating	UL 94 V-2
Life	50000 Cycles
Factory Pack Quantity	1

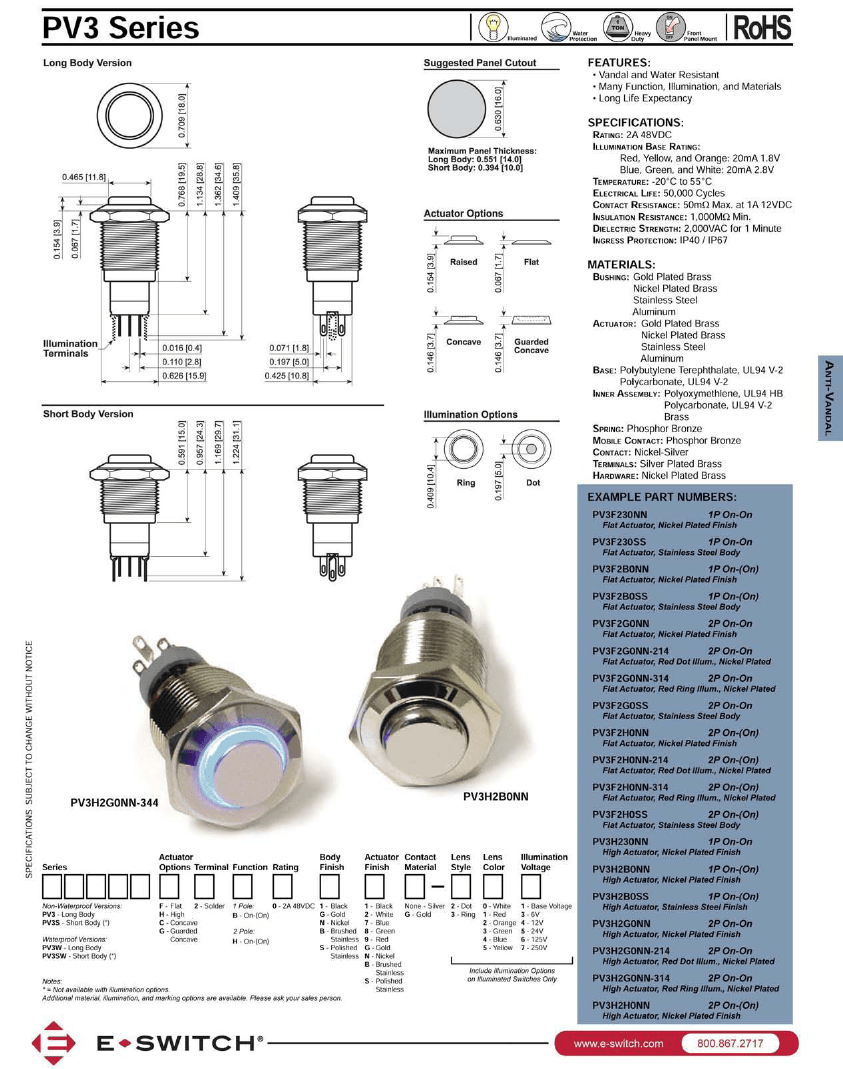

Preview

Download Datasheet

View All

PV3H2G0NN-214 Related Products

	PV3H2G0NN-214	PV3H230SS	PV3H2G0NN-244	PV3H23011-345	PV3H230NN	PV3H230SS-344	PV3H2G0BBG-345	PV3F2G0SS	PV3WF230SS-3N4	PV3WF23011-333
Description	Illuminated Pushbutton Switches Illuminated, Sealed Anti-vandal switch	Pushbutton Switches ANTI-VANDAL	Illuminated Pushbutton Switches ANTI-VANDAL	Illuminated Pushbutton Switches Illuminated, Sealed Anti-vandal switch	Illuminated Pushbutton Switches Illuminated, Sealed Anti-vandal switch	Illuminated Pushbutton Switches Illuminated, Sealed Anti-vandal switch	Illuminated Pushbutton Switches ANTI-VANDAL	Illuminated Pushbutton Switches ANIT-VANDAL	Illuminated Pushbutton Switches ANTI-VANDAL	Illuminated Pushbutton Switches ANTI-VANDAL
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	E-Switch	E-Switch	E-Switch	E-Switch	E-Switch	E-Switch	E-Switch	E-Switch	E-Switch	E-Switch
Product Category	Illuminated Pushbutton Switches	Pushbutton Switches	Illuminated Pushbutton Switches	Illuminated Pushbutton Switches	Illuminated Pushbutton Switches	Illuminated Pushbutton Switches	Illuminated Pushbutton Switches	Illuminated Pushbutton Switches	Illuminated Pushbutton Switches	Illuminated Pushbutton Switches
Product	Standard Switches	Standard Switches	Standard Switches	Standard Switches	Standard Switches	Standard Switches	Standard Switches	Standard Switches	Standard Switches	Standard Switches
Type	Anti-Vandal	Anti-Vandal	Anti-Vandal	Anti-Vandal	Anti-Vandal	Anti-Vandal	Anti-Vandal	Anti-Vandal	Anti-Vandal	Anti-Vandal
Contact Form	DPST	SPST	DPST	DPST	SPST	SPST	SPST	DPST	SPST	DPST
Switch Function	ON - ON	ON - ON	ON - ON	ON - (ON)	ON - ON	ON - ON	ON - (ON)	ON - ON	ON - ON	ON - (ON)
Current Rating	2 A	2 A	2 A	2 A	2 A	2 A	2 A	2 A	2 A	2 A
Voltage Rating DC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC
Mounting Style	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Mounting Type	Bushing	Bushing	Bushing	Bushing	Bushing	Bushing	Bushing	Bushing	Bushing	Bushing
Termination Style	Solder Pin	Solder Pin	Solder Pin	Solder Pin	Solder Pin	Solder Pin	Solder Pin	Solder Pin	Solder Pin	Solder Pin
Actuator	Round	Round	Round	Round, Flat	Round	Round	Round	Round, Flat	Round, Flat	Round
Contact Plating	Silver	Silver	Silver	Silver	Silver	Silver	Silver	Silver	Silver	Silver
Housing Material	Brass	Brass	Brass	Stainless Steel	Aluminum	Stainless Steel	Stainless Steel	Brass	Aluminum	Stainless Steel
Flammability Rating	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2
Life	50000 Cycles	50000 Cycles	50000 Cycles	50000 Cycles	50000 Cycles	50000 Cycles	50000 Cycles	50000 Cycles	50000 Cycles	50000 Cycles
Illumination	LED	-	LED	LED	LED	LED	LED	LED	LED	LED
Illumination Color	Red	-	Green	Yellow	Blue	Blue	Blue	Blue	Green	Green
