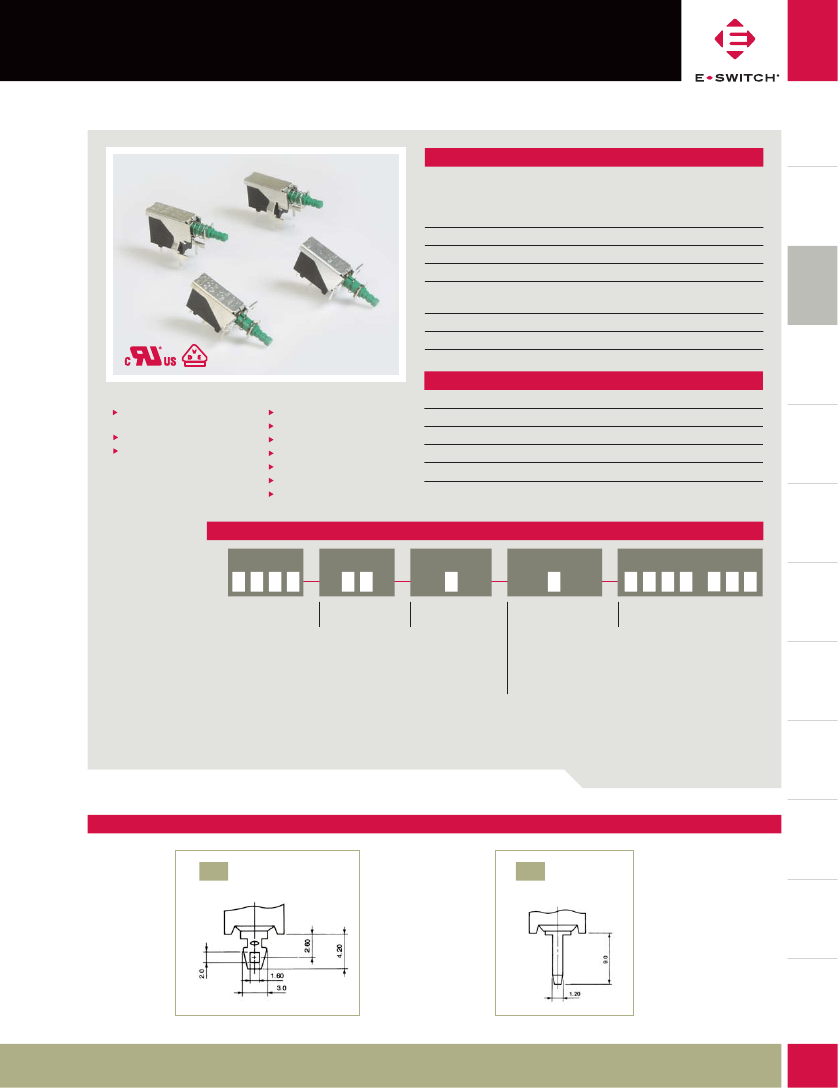

SERIES P197 SWITCHES
SPECIFICATIONS
NAVIGATION
SWITCHES
CAP
COLOR
SNAP-ACTION
SWITCHES
CAP
OPTIONS
DETECTOR
SWITCHES
ROTARY
SWITCHES
KEYLOCK
SWITCHES
DIP
SWITCHES
SLIDE
SWITCHES
MECHANICAL
CONFIGURATION
TERMINATION

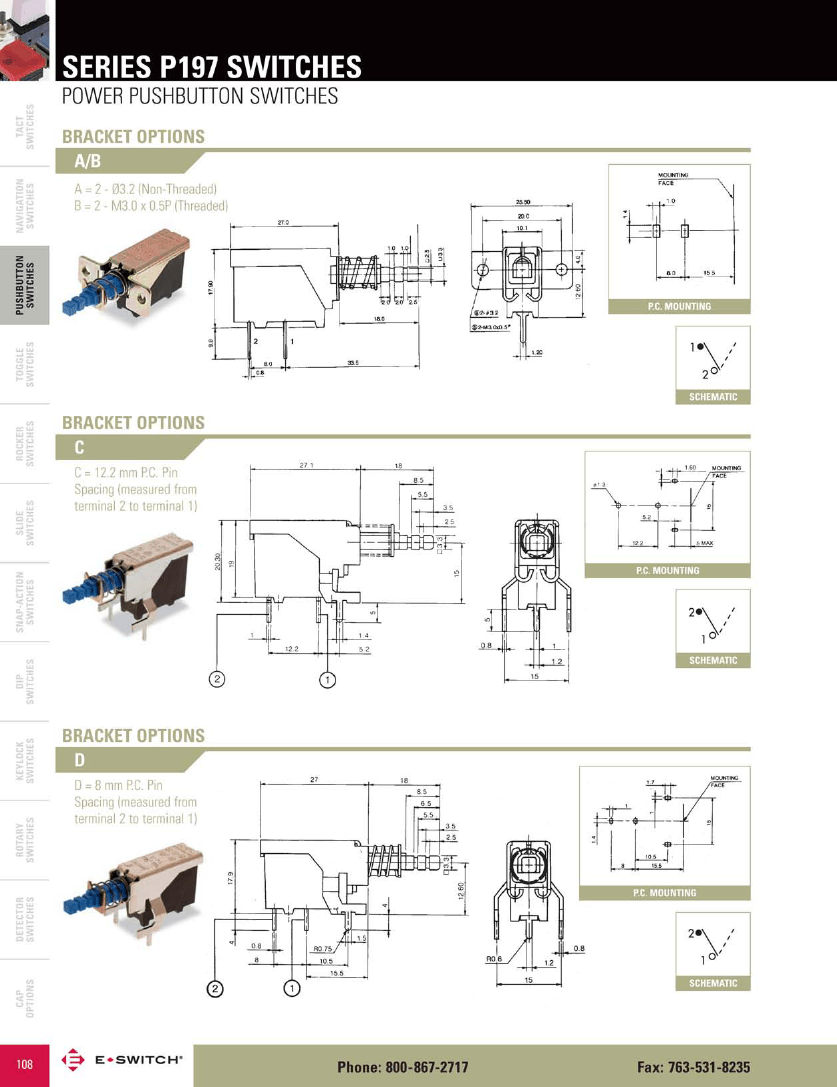

BRACKET TYPE
CAP
EE = Latching
OA = Momentary
S = Solder Lug
P = PC Pin
A = 2-Ø3.2
Non-Threaded
Panel Mount
B = 2-M3.0 x 0.5P
Threaded Panel Mt.
C = 12.2mm PC Mt.
D = 8mm PC Mt.
See Cap Options
*Note: Also available in 2 pole version P297.
Contact E-Switch for more information.
Specifications subject to change without notice.
Contact Rating:
10A @ 125 VAC - UL, CUL
5A @ 250 VAC - UL, CUL, VDE
TV-5 @ 125 VAC - UL, CUL
In Rush, 80A @ 250 VAC - VDE
10,000 cycles
100mΩ max. typical; initial @ 2-4 VDC
1,000M
Ω
min.
> 1,500 volts 1 minute
> 3,000 volts between poles
300
±
100 gram force
Life Expectancy:
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Actuation Force:
MATERIALS
FEATURES & BENEFITS
Power pushbutton rated up to
10amps
Latching & momentary functions
Panel & PC board mount options
APPLICATIONS/MARKETS
Telecommunications
Networking
Computers/servers
Performance audio
Instrumentation
Low power on/off designs
External hard drives and modems
Housing:
Actuator:
Bracket:
Contacts:
Terminals:
6/6 Nylon
Tin plated steel
Silver plated copper alloy
Silver plated copper alloy
ROCKER
SWITCHES
Acetal
HOW TO ORDER
SERIES
P197*
Example Ordering Number
P197_ EE_ P_ B_ TA12_ BLU
TERMINATION OPTIONS
S
SOLDER LUG
P
PC PIN
www.e-switch.com
info
@
e-switch.com
TOGGLE
SWITCHES
Operating Temperature: -20°C to +85°C
PUSHBUTTON
SWITCHES
TACT
SWITCHES
POWER PUSHBUTTON SWITCHES
▲
▲
▲
▲
▲
▲
107
