PSR1511N08S35K: DescriptionSpeakers & Transducers SPEAKER 500HZ 89.5DB 15X11X3.5 PL STK; CategoryTopical application Mechanical and electrical/engineering/automation; File Size195KB，3 Pages; ManufacturerMallory; Websitehttps://www.msdperformance.com/brands/mallory/

Download Datasheet Parametric View All

PSR1511N08S35K Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PSR1511N08S35K	-	-	View	Buy Now

PSR1511N08S35K Overview

Speakers & Transducers SPEAKER 500HZ 89.5DB 15X11X3.5 PL STK

PSR1511N08S35K Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Mallory
Product Category	Speakers & Transducers
RoHS	Details
Product	Speakers
Type	Electromagnetic
Frequency	500 Hz
Sound Pressure Level	89 dBA
Impedance	8 Ohms
Power Rating	700 mW
Shape	Rectangular
Termination Style	Solder Pad
Length	15 mm
Width	11 mm
Magnet Material	Neodymium Iron Boron (NdFeB)
Dimensions	15 mm L x 11 mm W x 3.5 mm H
Height	3.5 mm
Operating Temperature Range	- 40 C to + 60 C
Voltage Rating	1 V
Factory Pack Quantity	100
Unit Weight	0.056438 oz

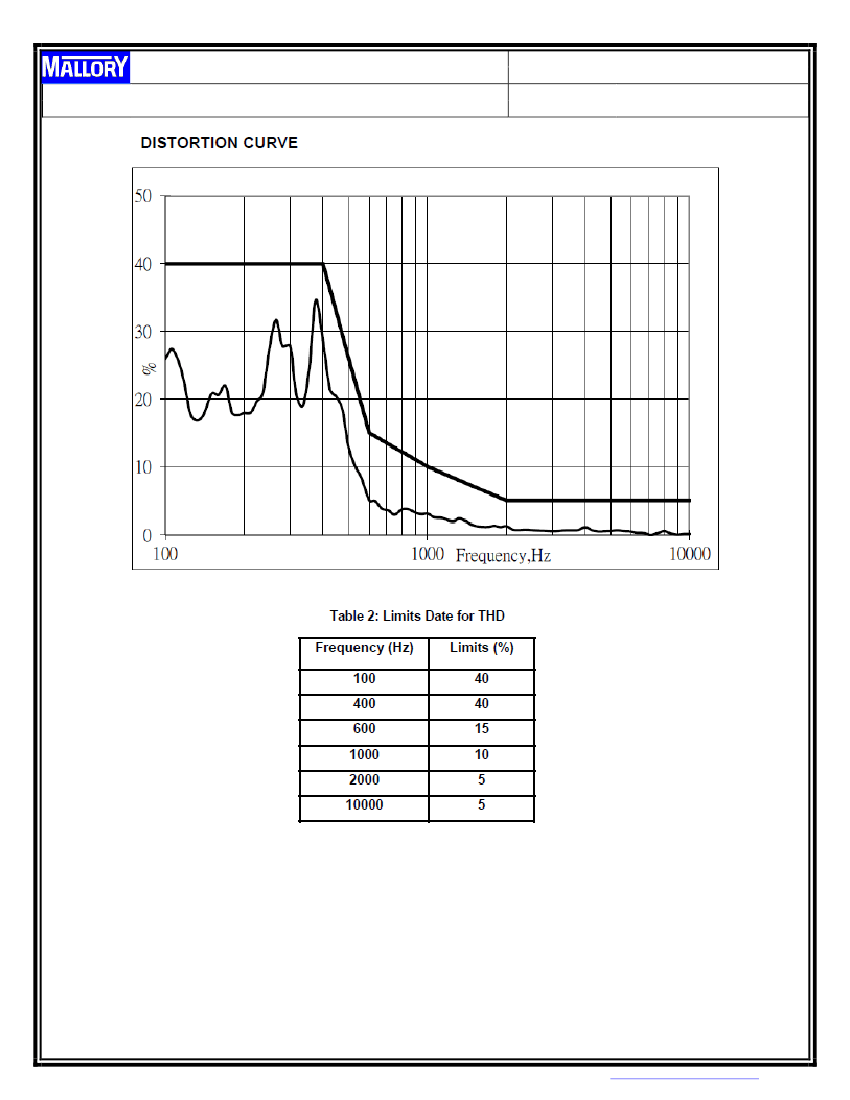

Preview

Download Datasheet

View All

Mallory Sonalert Products Inc

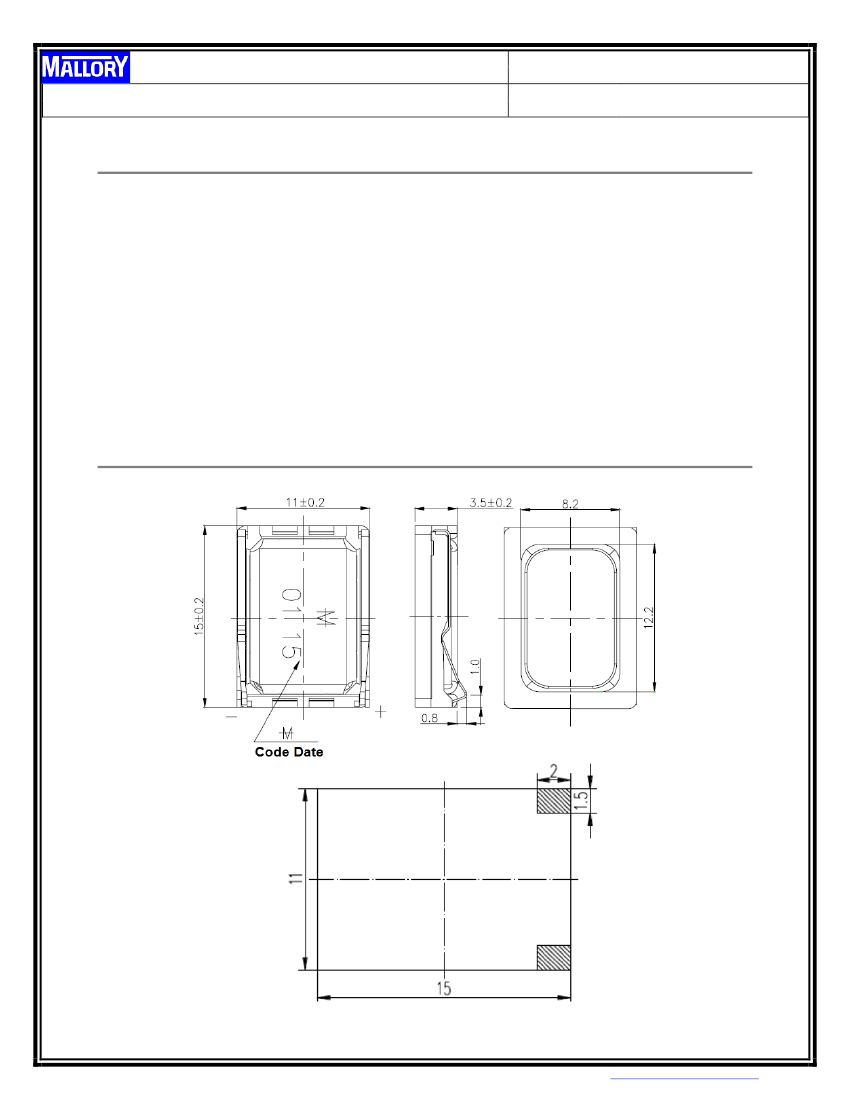

Sales Outline Drawing

Specifications:

Impedance ()

Rated Power (W)

Max Power (W)

Resonance Freq Fo (Hz)

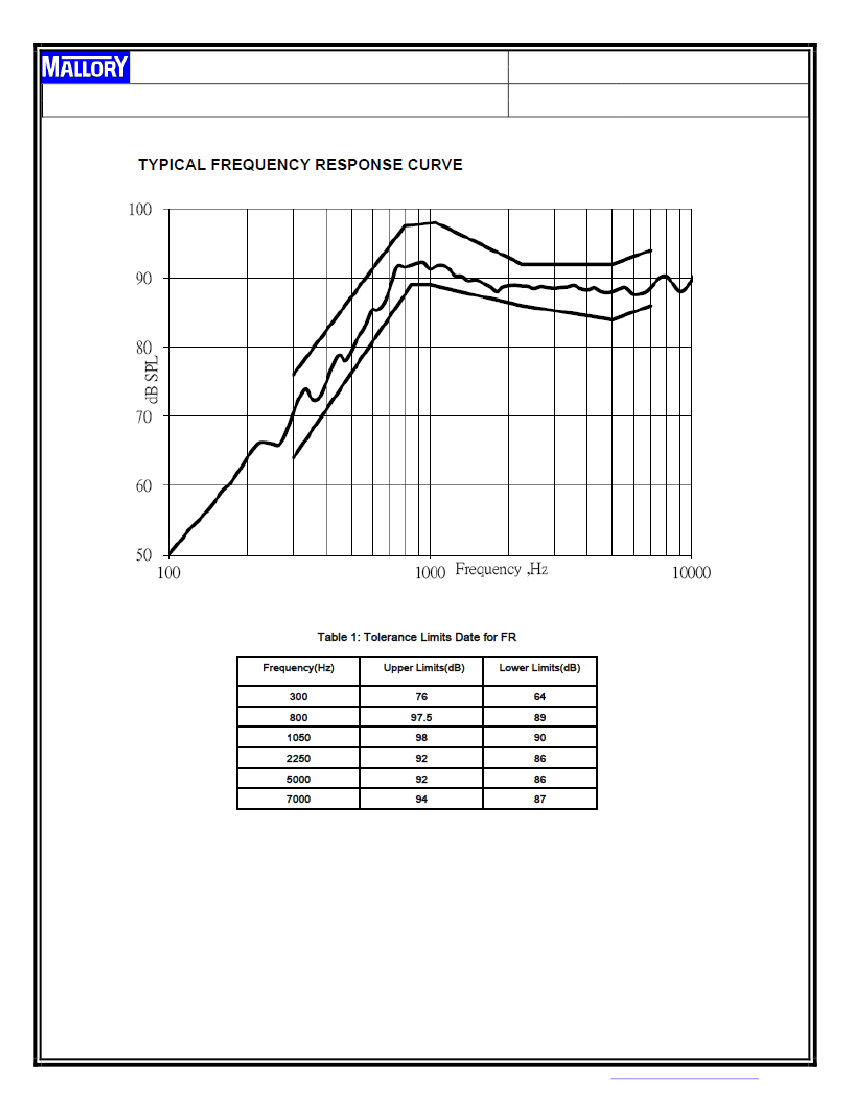

Frequency Range (Hz)

Output S.P.L. (dB)

Magnet

Frame Material

Operating / Storage Temp

Weight (g)

Options

Part #

PSR1511N08S3.5K

Revision

B

NOT FOR NEW DESIGNS

8 ± 15% at 2000 Hz at 1.0 V

0.7

1.0

500 ± 20% at 1.0V

860 ± 15% at 1.0V in 1cc closed box

Fo ~ 7000

89 ± 3 at 0.7w/0.1m 3.0kHz in1cc closed box

71 ± 3 at 1w/1m 3.0kHz in 1cc closed box

Nd-Fe-B

PPA

-40 to 60°C/ -40 to 85°C

1.6

For other options contact factory

ROHS Compliant

Dimensions: ±0.2

(units: mm)

Recommended PCB Layout

4411 South High School Road, Indianapolis, Indiana 46241 USA

●

Phone (317) 612-1000

●

Fax (317) 612-1010

●

http://www.mallory-sonalert.com
