87537-8819 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 87537-8819

87537-8819: DescriptionBoard to Board & Mezzanine Connectors EBBI Rec BtB RA Blnd M /Lub .76AuLF 68Ckt; CategoryThe connector; File Size34KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

87537-8819 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	87537-8819	-	-	View	Buy Now

87537-8819 Overview

Board to Board & Mezzanine Connectors EBBI Rec BtB RA Blnd M /Lub .76AuLF 68Ckt

87537-8819 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Molex
Product Category	Board to Board & Mezzanine Connectors
RoHS	Details
Product	Receptacles
Number of Positions	68 Position
Pitch	1.27 mm
Number of Rows	2 Row
Termination Style	Through Hole
Mounting Angle	Right Angle
Current Rating	1 A
Voltage Rating	30 V
Packaging	Tray
Contact Plating	Gold
Housing Material	Thermoplastic
Contact Material	Phosphor Bronze
Factory Pack Quantity	280
Unit Weight	0.161378 oz

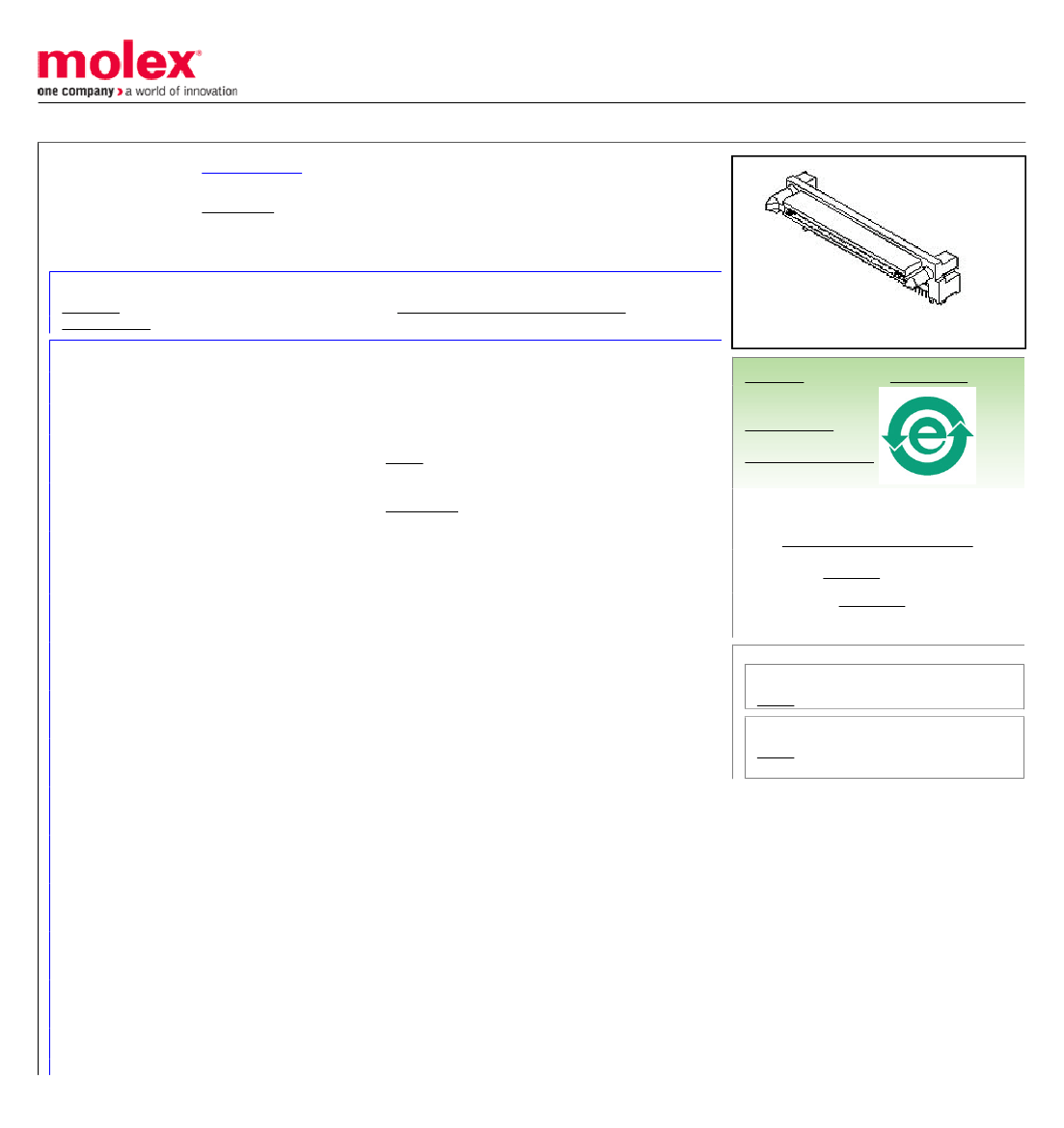

Preview

Download Datasheet

View All

This document was generated on 07/04/2014

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

87537-8819

Active

EBBI™ 50D

1.27mm Pitch EBBI™ 50D Receptacle, Through Hole, Right Angle, Blind Mate, with

Beveled Metal Pin and Plastic Peg, 0.76µm Gold (Au) Selective Plating, 68 Circuits,

1.70mm PC Tail Length, without Kapton Tape, Lead-Free

Documents:

3D Model

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

Agency Certification

CSA

LR19980

E29179

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Low-Halogen

China RoHS

General

Product Family

Series

Application

Comments

Overview

Product Name

UPC

PCB Receptacles

87537

Board-to-Board, Signal

<LI>Lubricant at the Contact|<LI>Z-Height: 3.00mm

EBBI™ 50D

EBBI™

822348542161

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Guide to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Black

2,000

94V-0

Yes

None

Phosphor Bronze

Gold

Tin

High Temperature Thermoplastic

4.575/g

Right Angle

1.70mm

Yes

1.20mm

Tray

1.27mm

0.762µm

2.540µm

Yes

-40°C to +105°C

Through Hole

Search Parts in this Series

87537Series

Mates With

71661 EBBI™ Right Angle Blind Mate Plug,

EBBI™ Vertical Blind Mate Plug

Electrical

Current - Maximum per Contact
