The KV1430 variable capacitance diode was specially
made to be used as tuning elements in car radios, radio
cassettes, stereos, and other consumer radios. The
KV1430 is suitable for wide band tuning from 76 to 108
MHz.
If the KV1430 is used only for FM reception, it is possible
to operate it at 4.5 V so it is very useful in lowering the
power demands of the set.
The KV1430 is available in a miniature SOT23-3 package.
CLASSIFICATION
RANK
C
MIN
C
2
MAX
2
69.14
71.23
3
71.09
73.24
4
73.09
75.31
(Unit: pF)
5
75.15
77.43
KV1430
3
20 P
ORDERING INFORMATION
1
2
KV1430
Tape/Reel Code
TAPE/REEL CODE
TL: Tape Left
January 2000 TOKO, Inc.
Page 1
KV1430
ABSOLUTE MAXIMUM RATINGS
Reverse Voltage ....................................................... 18 V
Forward Current .................................................... 50 mA
Power Dissipation .............................................. 100 mW
Storage Temperature Range ................... -55 to +150
°C
Operating Temperature Range ...................-55 to +85
°C
Lead Soldering Temperature (10 s) ...................... 235
°C
ELECTRICAL CHARACTERISTICS
Test conditions: T
A
= 25
°C
SYMBOL
V
REV
I
REV
C
2
C
4
C
6
C
9
R
S
A
Note 1:
Note 2:
Note 3:
Note 4:
PARAMETER
Reverse Voltage
Reverse Current
Diode Capacitance 2
Diode Capacitance 4
Diode Capacitance 6
Diode Capacitance 9
Series Resistance
Capacitance Ratio
TEST CONDITIONS
I
REV
= 10 µA
V
REV
= 10.0 V
V
REV
= 2.0 V, f = 1 MHz
V
REV
= 4.0 V, f = 1 MHz
V
REV
= 6.0 V, f = 1 MHz
V
REV
= 9.0 V, f = 1 MHz
V
REV
= 2.0 V, f = 70 MHz
C
2
/ C
9
MIN
16
TYP
MAX
UNITS
V
100
69.14
43.09
25.05
15.44
77.43
56.24
34.57
20.10
0.5
3.70
5.00
nA
pF
pF
pF
pF
Ω
Diode Capacitance measured with HP 4279A or equivalent instruments (at OSC level 20 mVrms,
±
5 mVrms).
Series Resistance measured with HP 4191A or equivalent instruments.
The tolerance of two adjacent parts on a reel is within 3% at C2, C4, C6, and C9.
The value of capacitance is the average of 2 back to back type diodes.
Page 2
January 2000 TOKO, Inc.
KV1430

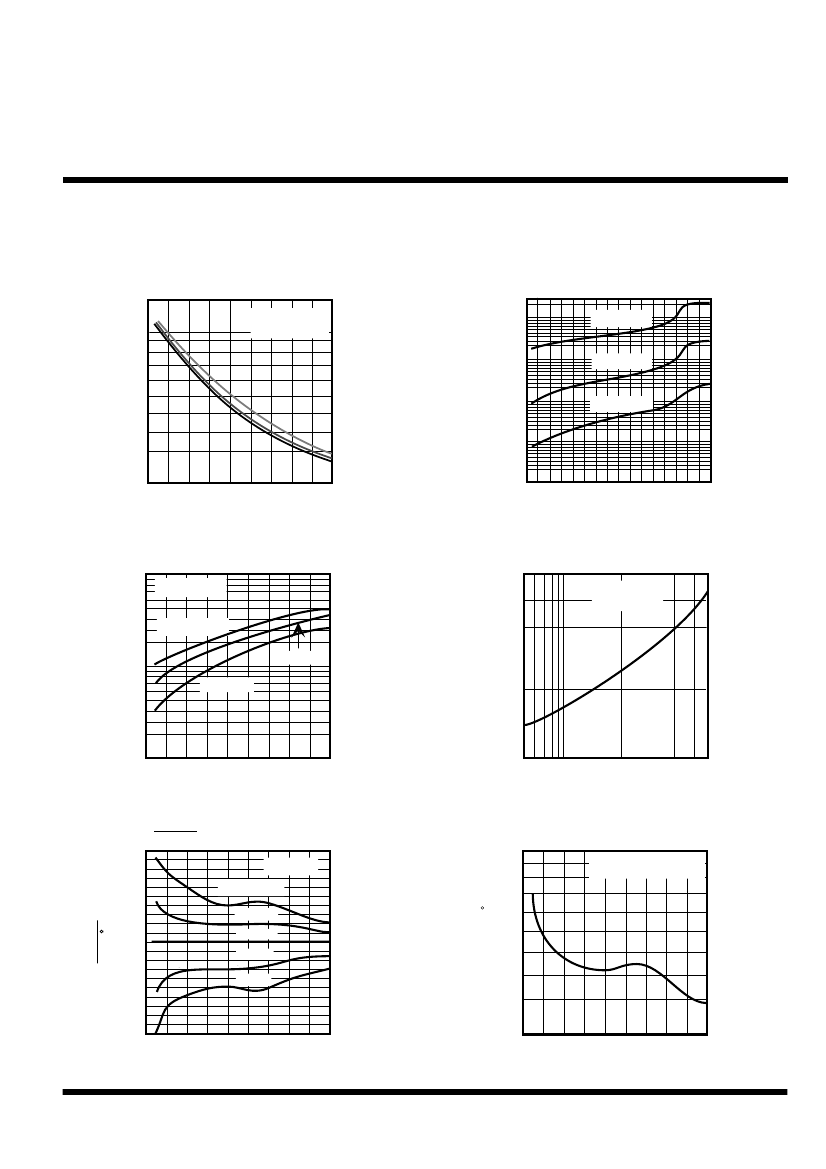

TYPICAL PERFORMANCE CHARACTERISTICS
CAPACITANCE vs.
REVERSE VOLTAGE
200
100
CAPACITANCE (pF)
TA = 25
°C
f = 1 MHz
100 p
REVERSE CURRENT vs.
REVERSE VOLTAGE
TA = 85
°C
TA = 55
°C
TA = 25
°C
10 p
IREV (A)
1p
30
100 f
10
0
1
2
3
4
5
6
7
8
9
VREV (V)
QUALITY FACTOR vs.
REVERSE VOLTAGE
1000
TA = 25
°C
f = 50 MHz
70 MHz
RS (Ω)
10 f
0
2
4
6
8
10
12
14 16
VREV (V)
SERIES RESISTANCE vs.
FREQUENCY
0.6
VREV = 2 V
TA = 25
°C
0.4
Q
100
100 MHz
10
0.2
0
1
2
3
4
5
6
7
8
9
50
100
f (MHz)
300
500
VREV (V)
C (TA)
C (25
°C)
vs. REVERSE VOLTAGE
TEMPERATURE COEFFICIENT
vs. REVERSE VOLTAGE
1000
TA = -55
°C
to +85
°C
f = 1 MHz
1.05
1.04
1.03
1.02
f = 1 MHz
C (25 C)
C (TA)
1.01
1.00
0.99
0.98
0.97
0.96
0.95
0
1
2
3
4
+55
°C
+25
°C
-15
°C
-55
°C
∆C
/∆ TA (ppm/ C)
7
8
9
TA = +85
°C
300
5
6
100
0
1
2
3
4
5
6
7
8
9
VREV (V)
VREV (V)
January 2000 TOKO, Inc.
Page 3
KV1430
PACKAGE OUTLINE
Marking Information
Product Code
F3
SOT23-3
Mark
0.10
0.4
+ 0.05
Recommended Mounting Pad
0.1
M
1.3 max
1.1
0 ~ 0.1
0.15
+ 0.10
0.05
+ 0.1
2.8
Dimensions are shown in millimeters
Tolerance: x.x =
±
0.2 mm (unless otherwise specified)
Toko America, Inc. Headquarters
1250 Feehanville Drive, Mount Prospect, Illinois 60056
Tel: (847) 297-0070
Fax: (847) 699-7864
TOKO AMERICA REGIONAL OFFICES
Midwest Regional Office
Toko America, Inc.
1250 Feehanville Drive
Mount Prospect, IL 60056
Tel: (847) 297-0070
Fax: (847) 699-7864
Western Regional Office
Toko America, Inc.
2480 North First Street , Suite 260
San Jose, CA 95131
Tel: (408) 432-8281
Fax: (408) 943-9790
Eastern Regional Office
Toko America, Inc.
107 Mill Plain Road
Danbury, CT 06811
Tel: (203) 748-6871
Fax: (203) 797-1223
Semiconductor Technical Support
Toko Design Center
4755 Forge Road
Colorado Springs, CO 80907
Tel: (719) 528-2200
Fax: (719) 528-2375
Visit our Internet site at http://www.tokoam.com
