Ceramic Capacitors (Safety Regulation SMD)
Ceramic Capacitors (Safety Regulations)
For Surface Mounting Types
Type HC
(Sub-Class Y1)
Type FC
(Sub-Class Y2)
Type BC
(Sub-ClassY2 )
■
Features
Discontinued
■
Recommended Application
●
Interference suppressors circuit and Isolation circuit of
IT equipment such as MODEM.
●
Interference suppressors circuit of small power supply
machinery such as DC-DC converters and power modules.
●
Interference suppressors circuit of AC primary side for
general electronic equipment.
●
Resin molded SMD type for flow/reflow soldering (HC)
and reflow soldering (FC,BC）
●
High reliability
●
Safety requirement approved by UL, SEMKO, NEMKO,
FIMKO, DEMKO and KTL*
* KTL: only Type FC
■

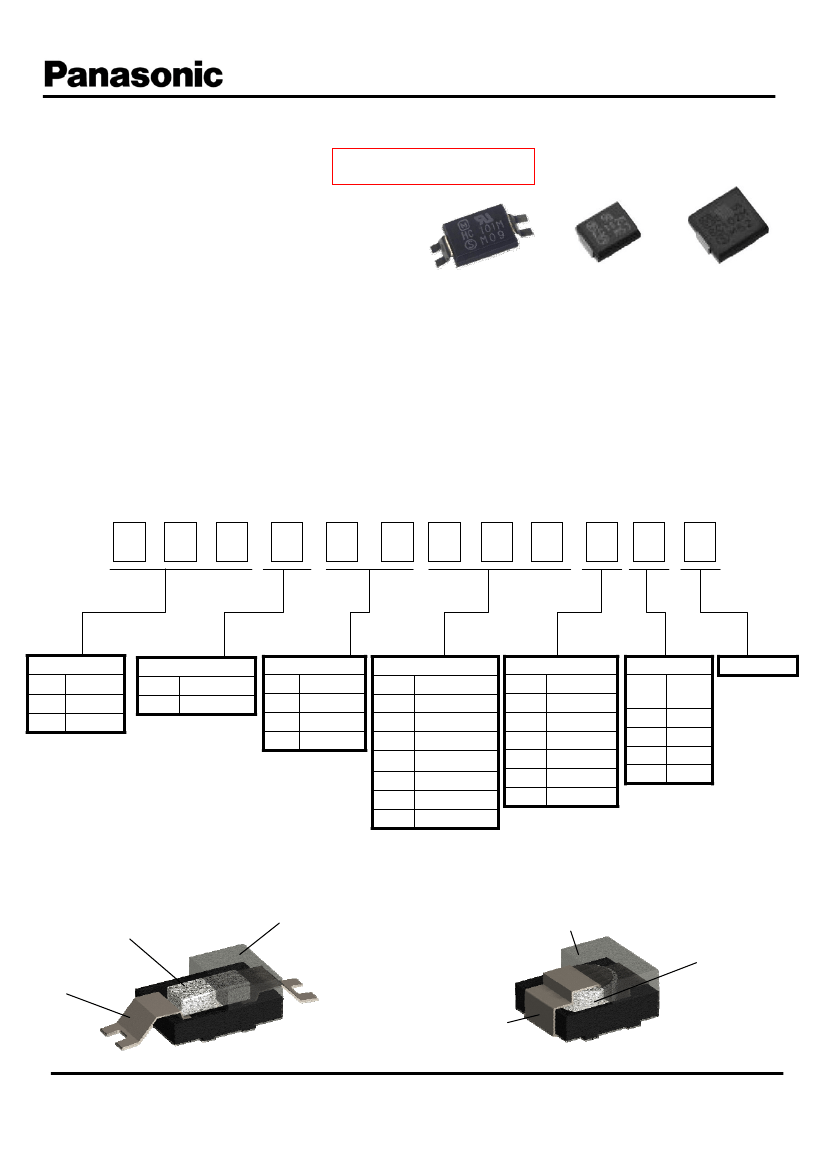

Explanation of Part Numbers
1
2
3
4
5
6
7
8
9
10
11
12
E
C
K
T
H
C
1
0
1
K
B
Product Code
Code
ECC
ECK
Class
Class1
Class2
Packaging Style
Code
Style
T
Taped type
Code
HC
FC
BC
Type
Type
Type HC
Type FC
Type BC
Nominal Capacitance
(Ex.) Capacitance
050
5 pF
100
10 pF
470
47 pF
101
221
471
102
100 pF
220 pF
470 pF
1000 pF
Cap. Tolerance
Code
Tol.
C
±0.25
pF
D
±0.5
pF
F
±1
pF
J
±5 ％
K
±10 ％
M
±20 ％
Temp. Char.
Temp.
Code
Char.
G
SL
B
B
E
E
F
F
Suffix
■
Construction
●
Type HC
Molded Resin
Ceramic Element
●
Type FC,BC
Molded Resin
Ceramic Element
Terminal
Terminal
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Ceramic Capacitors (Safety Regulation SMD)
■
Dimensions in mm (not to scale)
【Type
HC:Y1】
Symbol
Dim.
L
W
H
S
E
A
B
(3.1)
L1
12.0±0.5
L2
8.0 min
Type HC 6.8±0.3 4.5±0.2 2.5 max 1.0±0.50 2.5±0.2 (1.7)
■
Specifications
【Type
HC:Y1】
Characteristics
Temp. Char. B/Y5P
Operating Temperature Range
–25 to 125
℃
Rated Voltage
250 VAC
Dielectric Withstanding Voltage
4000 VAC for 1 minute
Capacitance
Within the specified tolerance, when measured at 1kHz±20%, 1 to 5 Vrms. and 20
℃
tan
δ
< 0.025at 1 kHz±20 %, 1 to 5 Vrms. and 20
℃
Q or Dissipation Factor (tan
δ
)
Insulation Resistance
10000 MΩmin. at 500 VDC and 1 minute electrification
Char.
Max. Cap. Change
Temp. Range
Temperature Characteristics
B/Y5P
±10％
-25
½
85
℃
■
Dimensions in mm (not to scale)
【Type
BC,FC:Y2】
Symbol
Dim.
Type FC
Type BC
L
W
H
S
E
A
(1.7)
(2.0)
B
(3.1)
(3.7)
5.7±0.5 4.5±0.3
2.3 max 0.85±0.30 2.5±0.2
7.1±0.5 6.3±0.3 2.5±0.3 1.45±0.30 2.5±0.2
■
Specifications
【TypeBC,FC:Y2】
Characteristics
Operating Temperature
Range
Rated Voltage
Dielectric
Withstanding Voltage
Capacitance
Temp. Char. SL/GP
–25 to 100
℃
250 VAC
1500 VAC for 1 minute
Temp. Char. B/Y5P, E/Y5U, F/Y5V
Within the specified tolerance, when measured Within the specified tolerance, when measured
at 1 MHz±20 %, 1 to 5 Vrms. and 20
℃
at 1 kHz±20 %, 1 to 5 Vrms. and 20
℃
30 pF or under Q > 200+10 C (C:Cap.pF)
Q or Dissipation Factor
tan
δ
< 0.025
over 30 pF Q > 500
(tan
δ
)
at 1 kHz±20 %, 1 to 5 Vrms. and 20
℃
at 1 MHz±20 %, 1 to 5 Vrms. and 20
℃
Insulation Resistance
10000 MΩmin. at 500 VDC and 1 minute electrification
Char.
Max. Cap. Change Temp. Range
B/Y5P
±10％
Temperature
Temperature Coefficient:+350 to –1000 ppm/
℃
Characteristics
over the temperature range 20 to 85
℃
E/Y5U
+20,-55％
-25
½
85
℃
F/Y5V
+30,-80％
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Ceramic Capacitors (Safety Regulation SMD)
■
Related Standards and Certificate Number
Certificate Number
Certification Body
Related Standard
Type HC
Type FC
Type BC
Rated
Sub-Class
Voltage
HC:Y1
BC/FC:Y2
Y2
Dielectric
Withstanding
Voltage
Operating
Temperature
Range
UL(USA)
UL60384-14
E62674
E62674
E62674
CAN/CSA –E60384-14
SEMKO(Sweden)
FIMKO(Finland)
DEMKO(Denmark)
NEMKO(Norway)
KTL(Korea)
K60384-14
EN60384-14 2005
-------------
1025027
FI 26683
D-00043
P11213874
----------
806189
FI 16588A1
FI 17348A2
310914-01
310698-01
E62674
1025267
FI 26770
HC:
4000 VAC
BC/FC:
1500 VAC
1500 VAC
250 VAC
HC:
4000 VAC
BC/FC:
1500 VAC
Issuing
certification
HC:Y1
now
BC/FC:Y2
HC:
-25
½
125℃
BC/FC:
-25
½
100℃
P01100665
P11214054
P01101830
SU03013-
--------------
----------
3001
■
Ratings and Characteristics
Type Name
Part Number
ECKTHC101KB
ECKTHC221KB
ECKTHC471KB
ECKTHC101MB
ECKTHC221MB
ECKTHC471MB
ECCTFC100DG
ECCTFC150JG
ECCTFC220JG
ECCTFC330JG
ECKTFC470KB
ECKTFC101KB
ECKTFC151KB
ECKTFC221KB
ECKTFC331KB
ECKTFC471KB
ECKTFC102ME
ECKTFC152MF
ECKTFC222MF
ECCTBC100DG
ECCTBC150JG
ECCTBC220JG
ECCTBC330JG
ECCTBC470JG
ECCTBC680JG
ECKTBC101KB
ECKTBC151KB
ECKTBC221KB
ECKTBC331KB
ECKTBC471KB
ECKTBC681KB
ECKTBC102ME
ECKTBC152ME
ECKTBC222ME
Capacitance (pF)
100
220
470
100
220
470
10
15
22
33
47
100
150
220
330
470
1000
1500
2200
10
15
22
33
47
68
100
150
220
330
470
680
1000
1500
2200
Cap. Tolerance
±10 ％
Temp. Char
Dimensions in mm
Type HC
B/Y5P
±20 ％
6.8L×4.5W×2.5H
±0.5
pF
±5 ％
SL/GP
Type FC
±10 ％
B/Y5P
5.7L×4.5W×2.3H
E/Y5U
±20 ％
±0.5
pF
SL/GP
F/Y5V
±5 ％
Type BC
±10 ％
B/Y5P
7.1L×6.3W×2.5H
±20 ％
E/Y5U
Notes
✻
Other capacitance values are available by special order.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Ceramic Capacitors (Safety Regulation SMD)
■

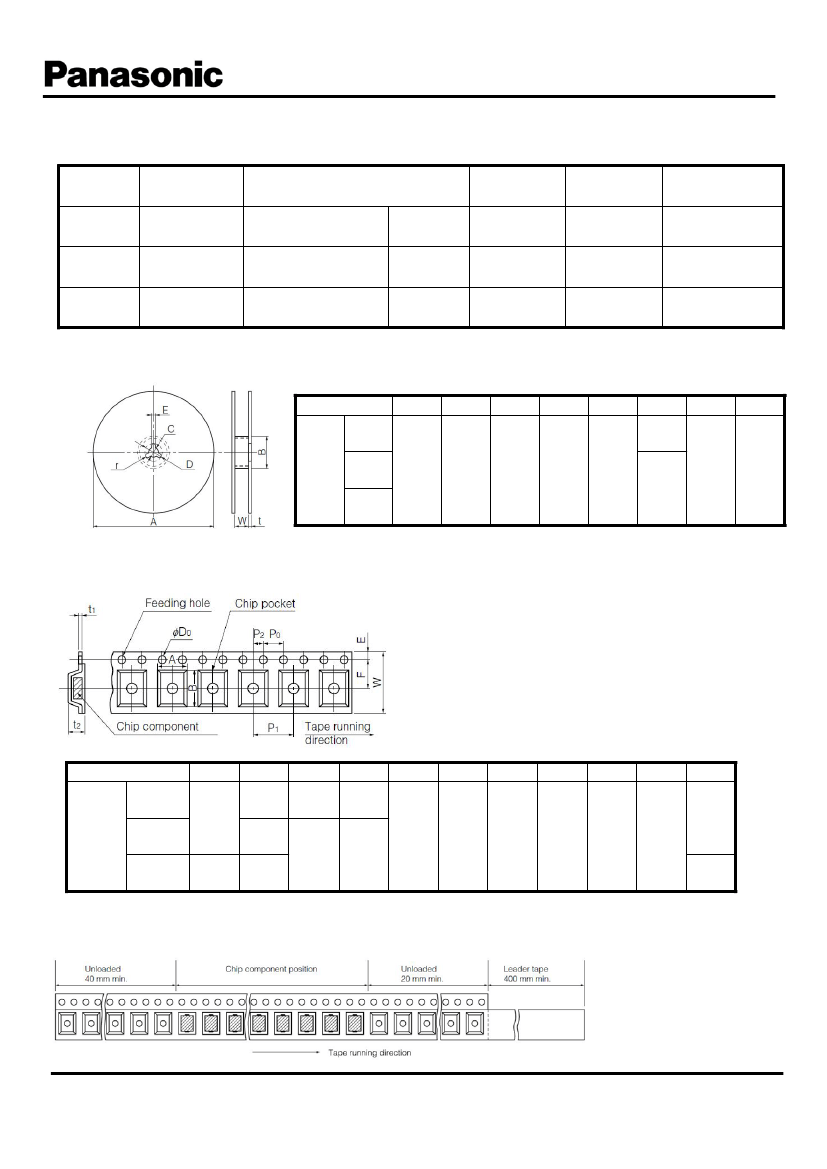

Packaging Methods (Taping)
●
Minimum Quantity/Packing Unit
Minimum Packing Packing Quantity
Quantity
in Carton
Type
Type HC
Type FC
Type BC
Packaging style
Embossed
Carrier Taping
Embossed
Carrier Taping
Embossed
Carrier Taping
Part Number
EC□□THC□□□□□
100½470pF
Carton Dimensions
in mm (LWH)
350×350×62
350×350×62
350×350×62
3000
pcs./reel
3000
pcs./reel
2000
pcs./reel
6000 pcs
9000 pcs.
6000 pcs.
EC□□TFC□□□□□ 10 to 2200pF
EC□□TBC□□□□□ 10 to 2200pF
●Reel
Symbol
Type
HC
Dim.
(mm)
Type
FC
Type
BC
330
±5
60
min
13.0
±0.5
21.0
±1.0
2.0
±0.5
A
B
C
D
E
W
25.5
±1.5
13.5
±1.5
2.0
±0.5
R1.0
t
r
●Embossed
carrier taping
Symbol
Type
HC
Dim.
Type
(mm)
FC
Type
BC
A
4.8
±0.2
6.5
±0.2
B
12.3
±0.2
6.0
±0.2
7.5
±0.2
W
24.0
±0.3
12.0
±0.3
F
11.5
±0.1
5.5
±0.1
E
P
1
P
2
P
0
φD
0
t
1
t
2
2.8
±0.3
3.2
±0.3
1.75
±0.10
8.0
±0.1
2.00
±0.05
4.1
±0.1
1.5
+0.1
-0
0.3
±0.1
●Leader
Part and Taped End
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Ceramic Capacitors (Safety Regulation SMD)
■
Typical Characteristics
●

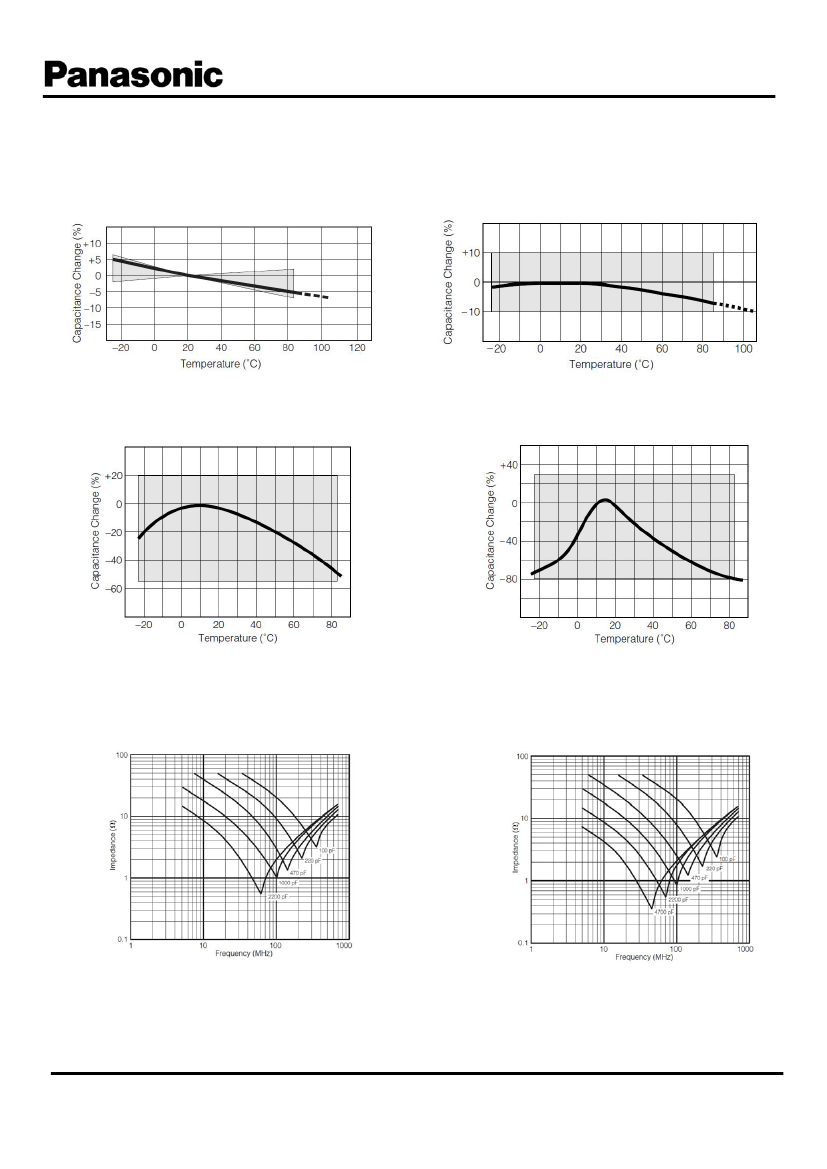

Temperature Characteristics
Char. SL/GP
(Temp.Coeff.:+350 to –1000 ppm/℃)
Char. B/Y5P
Temp.Range:–25 to 85
℃
Max.Cap.Change:±10 %
Char. E/Y5U
（
Temp.Range:–25 to 85
℃
max.Cap.Change:+20, –55 %
）
Char. F/Y5V
（
max.Cap.Change:+30, –80 %
Temp. Range :–25 to 85
℃
）
●
Impedance vs. Frequency Characteristics
Type
ＦC
Type BC
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
