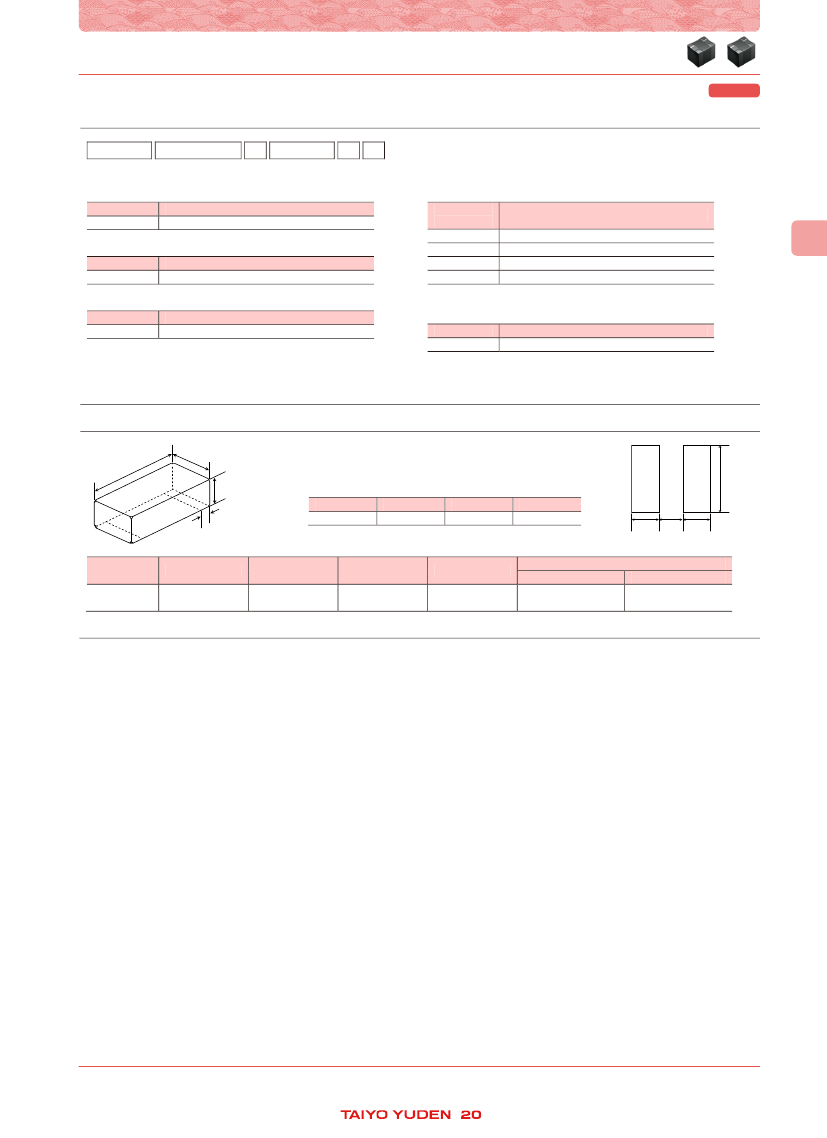

WIRE-WOUND CHIP INDUCTORS FOR SIGNAL LINES (LB SERIES M TYPE)
WIRE-WOUND CHIP INDUCTORS FOR SIGNAL LINES（LB SERIES M TYPE）
■PARTS
NUMBER
* Operating Temp.：-40½+105℃（Including self-generated heat）
REFLOW
REFLOW
L
B M
①
2
0
②
1
6
T
③
1
0 0
④
J △
⑤ ⑥
△＝Blank space
①Series name
Code
LBM
②Dimensions（L×W）
Code
2016
③Packaging
Code
T
Series name
Wound chip inductor for signal line
Dimensions（L×W）［mm½
2.0×1.6
④Nominal inductance
Code
（example）
R12
1R0
100
101
※R＝Decimal point
⑤Inductance tolerance
Code
J
⑥Internal code
Nominal inductance［μH½
0.12
1.0
10
100
INDUCTORS STANDARD INDUCTORS

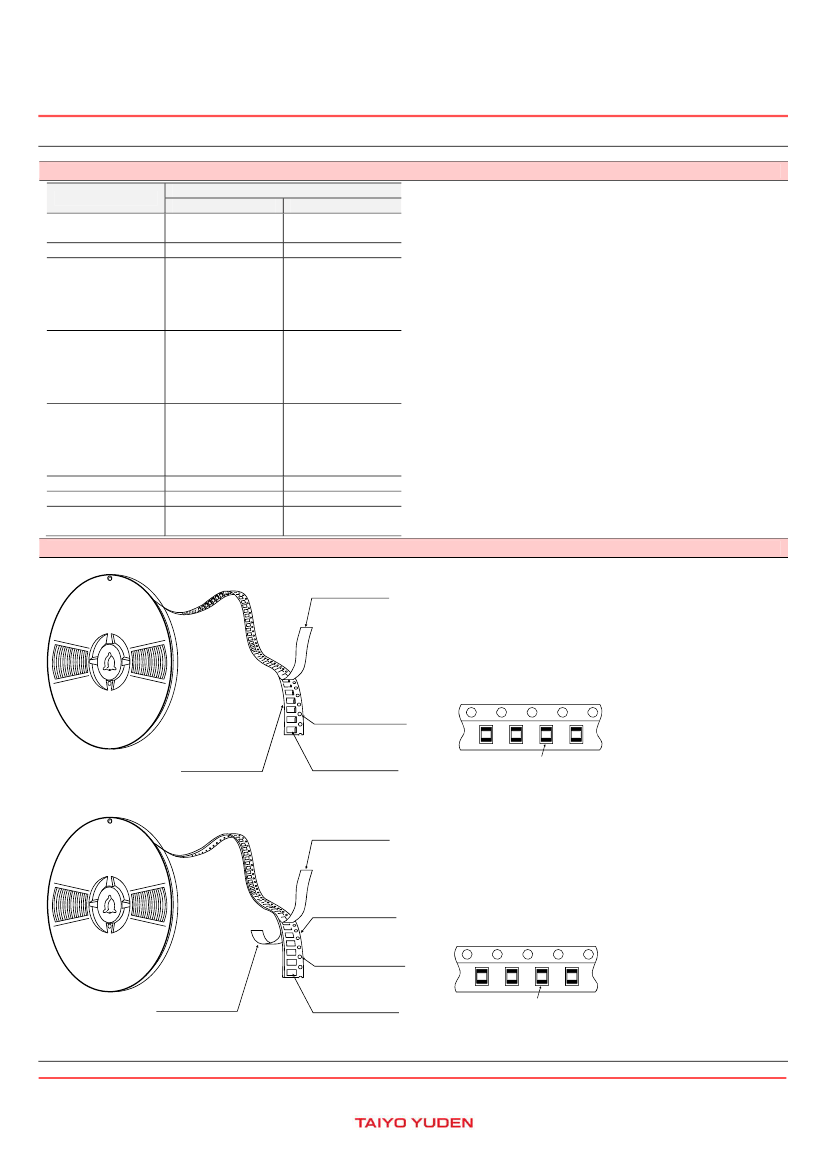

Packaging
Taping
Inductance tolerance
±5％
／
■STANDARD
EXTERNAL DIMENSIONS / STANDARD QUANTITY
W
L
T
e
Recommended Land Patterns
Surface Mounting
・Mounting and soldering conditions should be checked beforehand.
・Applicable soldering process to these products is reflow soldering only.
Type
A
B
C
LBM2016
0.6
1.0
1.8
Unit：mm
C
A
B
A
Type
LBM2016
L
2.0±0.2
（0.08±0.008）
W
1.6±0.2
（0.063±0.008）
T
1.6±0.2
（0.063±0.008）
e
0.5±0.2
（0.02±0.008）
Standard quantity ［pcs½
Paper tape
Embossed tape
－
2000
Unit：mm（inch）
i_wound_LBM_e-E05R01
▶ This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our product specification sheets.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our website (http://www.ty-top.com/) .
