PE-52649NL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> PE-52649NL

PE-52649NL: DescriptionFixed Inductors INDUCTOR; CategoryPassive components; File Size64KB，1 Pages; ManufacturerPulse A Technitrol Company; Websitehttp://www.pulseeng.com

Download Datasheet Parametric View All

PE-52649NL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PE-52649NL	-	-	View	Buy Now

PE-52649NL Overview

Fixed Inductors INDUCTOR

PE-52649NL Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Pulse A Technitrol Company
Product Category	Fixed Inductors
RoHS	Details
Inductance	680 uH
Tolerance	20 %
Maximum DC Current	0.85 A
Maximum DC Resistance	1.5 Ohms
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 130 C
Product	Power Inductors
Termination Style	Radial
Termination	-
Package / Case	18.03 mm x 12.95 mm x 18.03 mm
Length	18.03 mm
Width	12.95 mm
Height	18.03 mm
Packaging	Bulk
Type	Standard Low Power Inductor
Factory Pack Quantity	40

Preview

Download Datasheet

View All

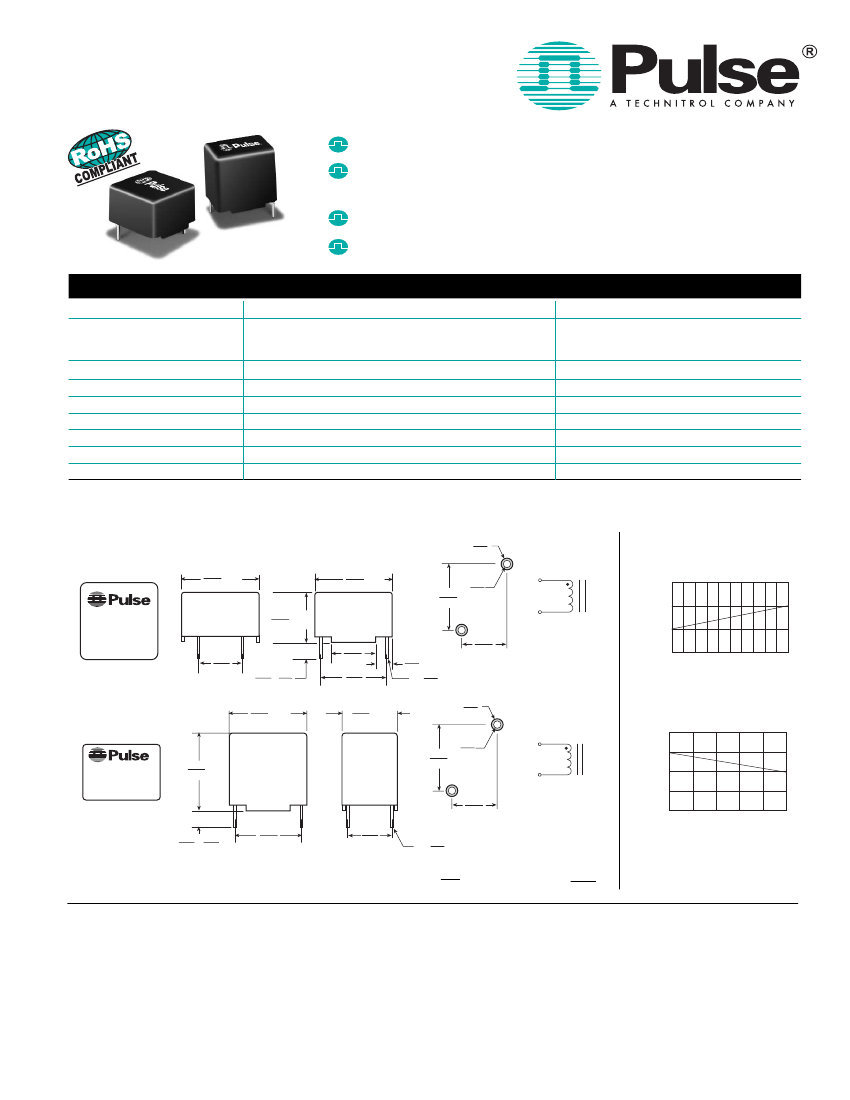

STANDARD LOW POWER

INDUCTORS

Switch Mode Power Converters & Ripple Filters

Designed for general purpose use

High inductance stability with varying

volt-seconds and load currents

Compact, standard packages

Low profile or vertical packages

Electrical Specifications @ 25°C — Operating Temperature -40°C to 130°C

Low Profile

Part

Number

Vertical

Part

Number

EFERENCE

PERATING

ALUES

Inductance

Maximum

Typical

(AMPS)

(µH)

(V-µSec)

150

220

330

470

680

820

1000

1.7

1.5

1.0

.90

.85

.75

.50

100

120

175

Energy

Storage

(µJ)

215

240

165

190

245

230

125

ESIGN

ONTROL

ALUES

Inductance

20kHz

DCR

No DC

Test mV

(Ω MAX)

(µH ± 20%)

No DC

145

226

316

480

690

780

975

110

140

170

210

250

270

300

.42

.78

1.26

1.50

2.40

2.60

PE-52625NL

PE-52626NL

PE-52627NL

PE-52628NL

PE-52629NL

PE-52630NL

PE-52631NL

PE-52645NL

PE-52646NL

PE-52647NL

PE-52648NL

PE-52649NL

PE-52650NL

PE-52651NL

NOTES:

rated for 40°C Temperature rise @ low ET

Derate current 20% at this ET

The Leaded version of these parts is available by removing the “NL” suffix when ordering.

Mechanicals

Low Profile Package

.710

MAX

18,03

.710

MAX

18,03

.600

15,24

.070

1,78

Inductance

Characteristics

.045

1,14

-10

250

V-µsec.

500

PE-526XXNL

Date Code

Country of Origin

.400

10,16

.460

MAX

11,68

.400

10,16

.150 ±.020

3,81 0,51

.710 MAX

18,03

.600

15,24

.510 MAX

12,95

.400

10,16

.150

SUGGESTED PAD LAYOUT

3,81

.025

SQ. PIN

0,63

.070

1,78

SCHEMATIC

Inductance Variance vs. E.T.

120

Vertical Package

PE526XXNL

Date Code

Country of Origin

.710 MAX

18,03

.600

15,24

.045

1,14

110

100

25 50 75 100 125

V-µsec.

SCHEMATIC

.400

10,16

.150 ± .020

3,81 0,51

.600

15,24

.400

10,16

SUGGESTED PAD LAYOUT

.025

SQ. PIN

0,63

For More Information:

Pulse Worldwide

Headquarters

12220 World Trade Drive

San Diego, CA 92128

U.S.A.

www.pulseeng.com

TEL: 858 674 8100

FAX: 858 674 8262

Unless otherwise specified, all tolerances are ± .010

0,25

Dimensions: inches

Inductance Variance

vs. Load Current

Pulse South Asia

150 Kampong Ampat

#07-01/02

KA Centre

Singapore 368324

TEL: 65 6287 8998

FAX: 65 6280 0080

Pulse

Northern Europe

3 Huxley Road

Surrey Research Park

Guildford, Surrey GU2 5RE

United Kingdom

TEL: 44 1483 401700

FAX: 44 1483 401701

Pulse

Southern Europe

Zone Industrielle

F-39270

Orgelet

France

TEL: 33 3 84 35 04 04

FAX: 33 3 84 25 46 41

Pulse

Pulse North China

China Headquarters

Room 1002

No. 1

Industrial District

Changan, Dongguan

China

TEL: 86 769 5538070

FAX: 86 769 5538870

No. 819

Nanjing West Rd

Shanghai

China

TEL: 86 21 32181071

FAX: 86 21 32181396

Pulse North Asia

3F-4, No. 81, Sec. 1

Hsin Tai Wu Road

Hsi-Chih

Taipei Hsien

Taiwan

TEL: 886 2 26980228

FAX: 886 2 26980948

Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product

names mentioned herein may be trademarks or registered trademarks of their respective owners.

www.pulseeng.com

P587.B (1/06)
