Spec Sheet
Medium-High Voltage Multilayer Ceramic Capacitors
HMK107B7222KA-T
Features
Item Summary
2200pF±10%, 100V,
X7R, 0603/1608 (EIA/JIS)
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping paper 4000pcs
Products characteristics table
Capacitance
Case Size (EIA/JIS)
Rated Voltage
tanδ (max)
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
10 GΩ
Yes
Yes
Yes
Reflow
2200 pF ± 10 %
0603/1608
100 V
3.5 %
X7R
-55 to +125 ℃
200 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
1.6 ±0.10 mm
0.8 ±0.10 mm
0.8 ±0.10 mm
0.35 ±0.25 mm
2018.11.08
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)

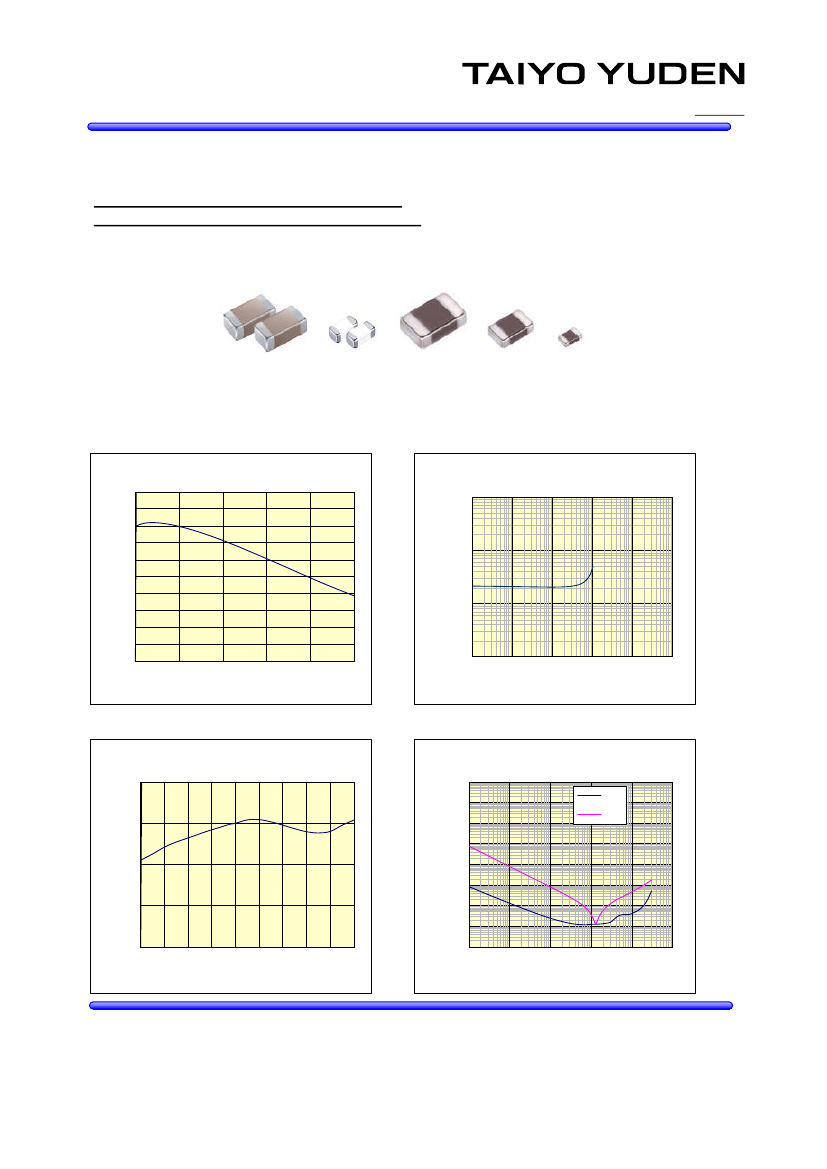

Multi Layer Ceramic Capacitor
○HMK107B7222KA
100V 1608 X7R 2200pF +/- 10% t=0.9mmMAX
100V 0603 X7R 2200pF +/- 10% t=0.035inchMAX
-Electrical Characteristics Data-
16QA11
RoHS compliance product
20
10
0
-10
-20
-30
-40
-50
-60
-70
-80
0
20
HMK107B7222KA
DC Bias Char.
100000
HMK107B7222KA
Capacitance Freq.
Capacitance[pF]
10000
dC/C[%]
1000
100
40
60
80
DC Bias Voltage[V]
100
0.1
1
10
100
1000
10000
Frequency[MHz]
HMK107B7222KA
Capacitance Temp.
10
1000000
100000
0
10000
HMK107B7222KA
Impedance,ESR Freq.
ESR
Z
-10
Z,ESR[OHM]
-55 -35 -15 5 25 45 65 85 105 125
Temperature[degreeC]
dC/C[%]
1000
100
10
1
0.1
-20
-30
0.01
0.1
1
10
100
1000
Frequency[MHz]
10000
部品特性は設½環境、測定条件等により変化する場合があります。本データをご½用される際は実際の½品特性に対する参考
データとしてご活用ください。また、本データは予告無く½加½削除及び変更を行う場合があります。ご注文の際は、納入仕様書の
ご確認をお願いします。
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
■
