Fair-Rite Product's Catalog
Part Data Sheet, 3078990851
Printed: 2013-07-03
Fair-Rite Products Corp. PO Box J,One Commercial Row, Wallkill, NY 12589-0288
Phone: (888) 324-7748 www.fair-rite.com
Part Number:
3078990851
Frequency Range: Medium Permeability, 78 (ui=2300) material
Description:
Application:
Where Used:
Part Type:

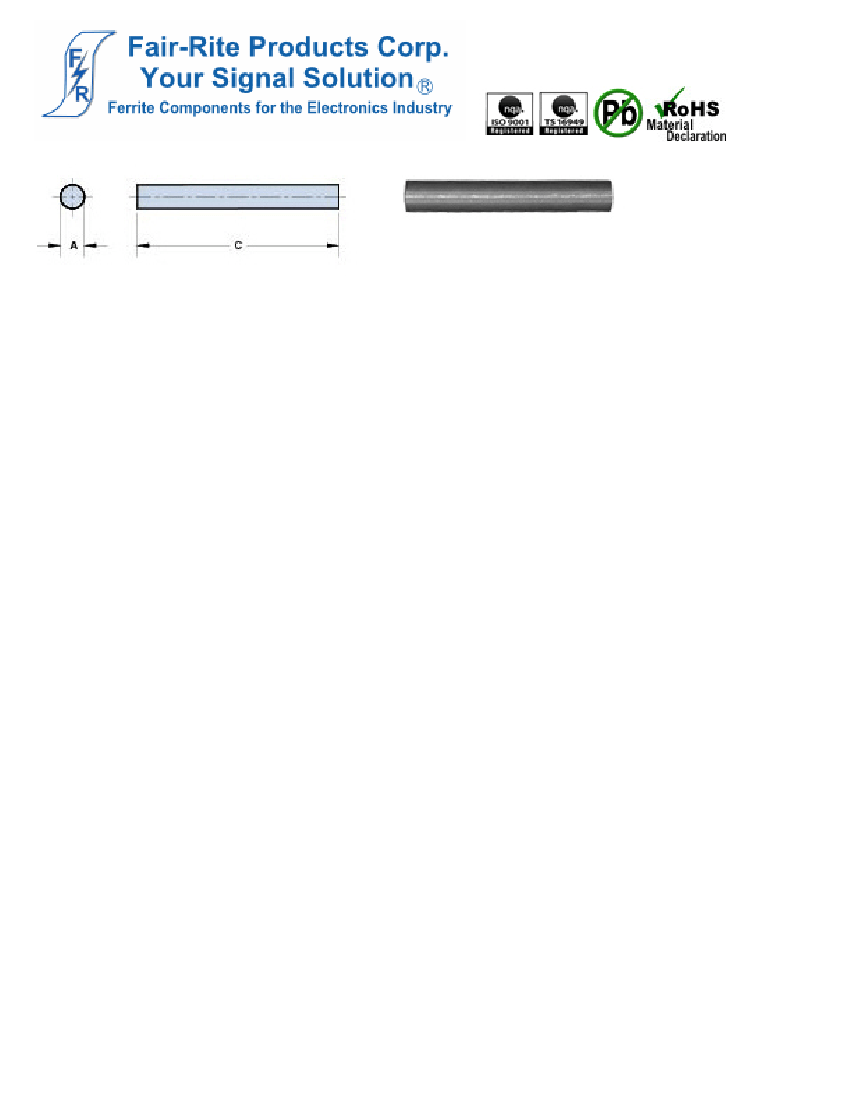

78 ROD
Inductive Components
Open Magnetic Circuit
Antenna/RFID Rods
Mechanical Specifications
Weight:
.230
(g)
Part Type Information
These rods are designed for use in antenna and RFID transponder applications. Rods are available
in three materials to cover a frequency range from 50 kHz to 25 MHz. Suggested frequency
ranges: 78 material < 200 kHz, 61 material 0.2 -5.0 MHz and 61 material > 5.0 MHz.
-See www.fair-rite.com/newfair/catalog_rodinfo.htm graphs for temperature information for these
rods.
-Rods can be supplied with a Parylene C coating. Parylene coated rods have a '4' as the last digit.
Parylene C is RoHS compliant.
-For any rod requirement not listed here, feel free to contact our customer service group for
availability and pricing.
-The Antenna/RFID Kit (part number 0199000024) contains a selection of these rods.
-Explanation of Part Numbers: Digits 1&2 = product class, 3&4 = material grade, the last
digit 1 = uncoated rod and 4 = Parylene coated rod.
Fair-Rite Product's Catalog
Part Data Sheet, 3078990851
Printed: 2013-07-03
Fair-Rite Products Corp. PO Box J,One Commercial Row, Wallkill, NY 12589-0288
Phone: (888) 324-7748 www.fair-rite.com
Mechanical Specifications
Dim
mm
mm
tol
A
B
C
D
E
F
G
H
J
K
2.00
-
15.00
-
-
-
-
-
-
-
±0.025
-
±0.45
-
-
-
-
-
-
-
nominal inch
inch
0.079
-
0.591
-
-
-
-
-
-
-
misc.
-
-
-
-
-
-
-
-
-
-
Land Patterns
V
W
ref
-
-
-
-
-
-
-
-
-
-
X
Y
Z
Winding Information
Turns
Tested
-
-
Wire
Size
-
1st Wire
Length
-
2nd Wire
Length
Reel Information
Tape Width Pitch
mm
-
mm
-
Parts 7 ''
Reel
-
Parts 13 '' Parts 14 ''
Reel
-
Reel
-
Electrical Specifications
Typical Impedance ( )
Package Size
Pkg Size
-
(-)
Electrical Properties
U
ROD
Ae(cm
2
)
31
0.03140
Connector Plate
# Holes
-
# Rows
-
Legend
+ Test frequency
Preferred parts, the suggested choice for new designs,have shorter lead times and are more readily available.
The column H(Oe) gives for each bead the calculated dc bias field in oersted for 1 turn and 1 ampere direct current. The actual dc H field in
the application is this value of H times the actual NI (ampere-turn) product. For the effect of the dc bias on the impedance of the bead material,
see figures 18-23 in the application note How to choose Ferrite Components for EMI Suppression.
A ½ turn is defined as a single pass through a hole.
l/A - Core Constant
Ae : Effective Cross-Sectional Area
L
AL - Inductance Factor
(
__ 2
)
N
N/AWG - Number of Turns/Wire Size for Test Coil
l e : Effective Path Length
Ve : Effective Core Volume
Nl - Value of dc Ampere-turns
Fair-Rite Product's Catalog
Part Data Sheet, 3078990851
Printed: 2013-07-03
Fair-Rite Products Corp. PO Box J,One Commercial Row, Wallkill, NY 12589-0288
Phone: (888) 324-7748 www.fair-rite.com
See next page for further material specifications.

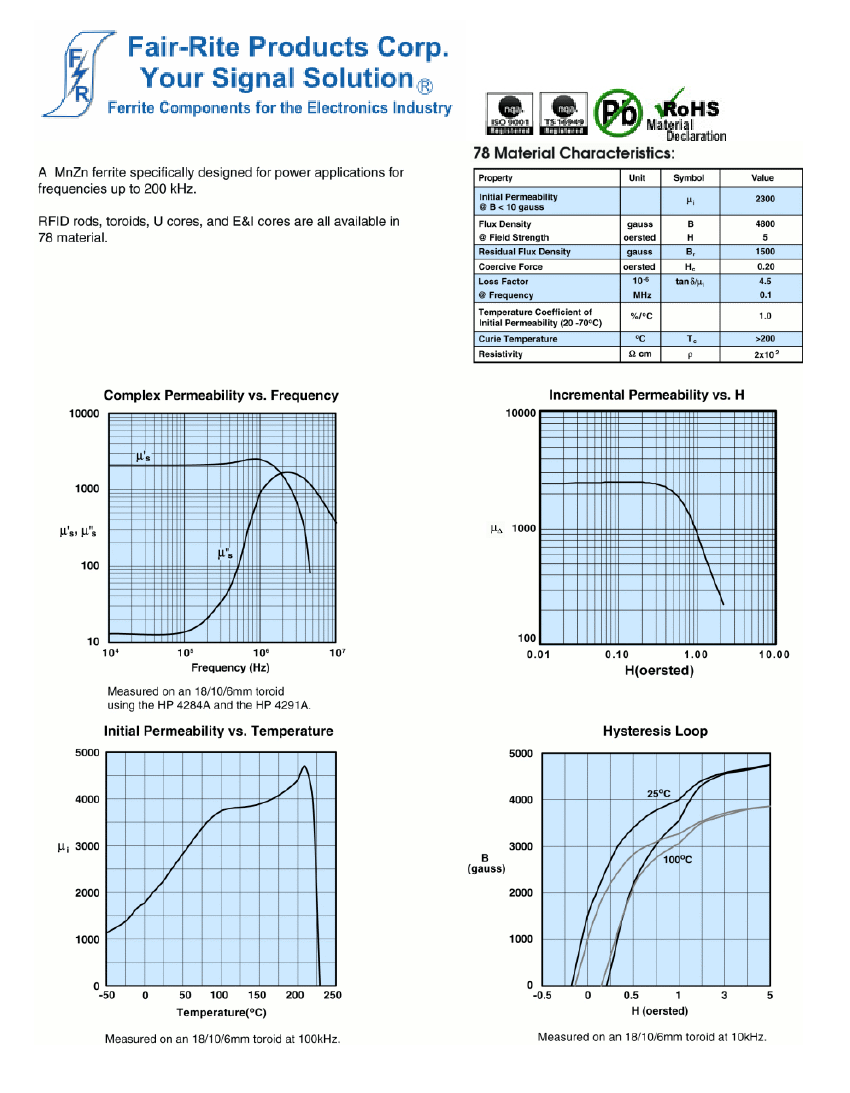

Fair-Rite Product's Catalog
Part Data Sheet, 3078990851
Printed: 2013-07-03
Fair-Rite Products Corp. PO Box J,One Commercial Row, Wallkill, NY 12589-0288
Phone: (888) 324-7748 www.fair-rite.com

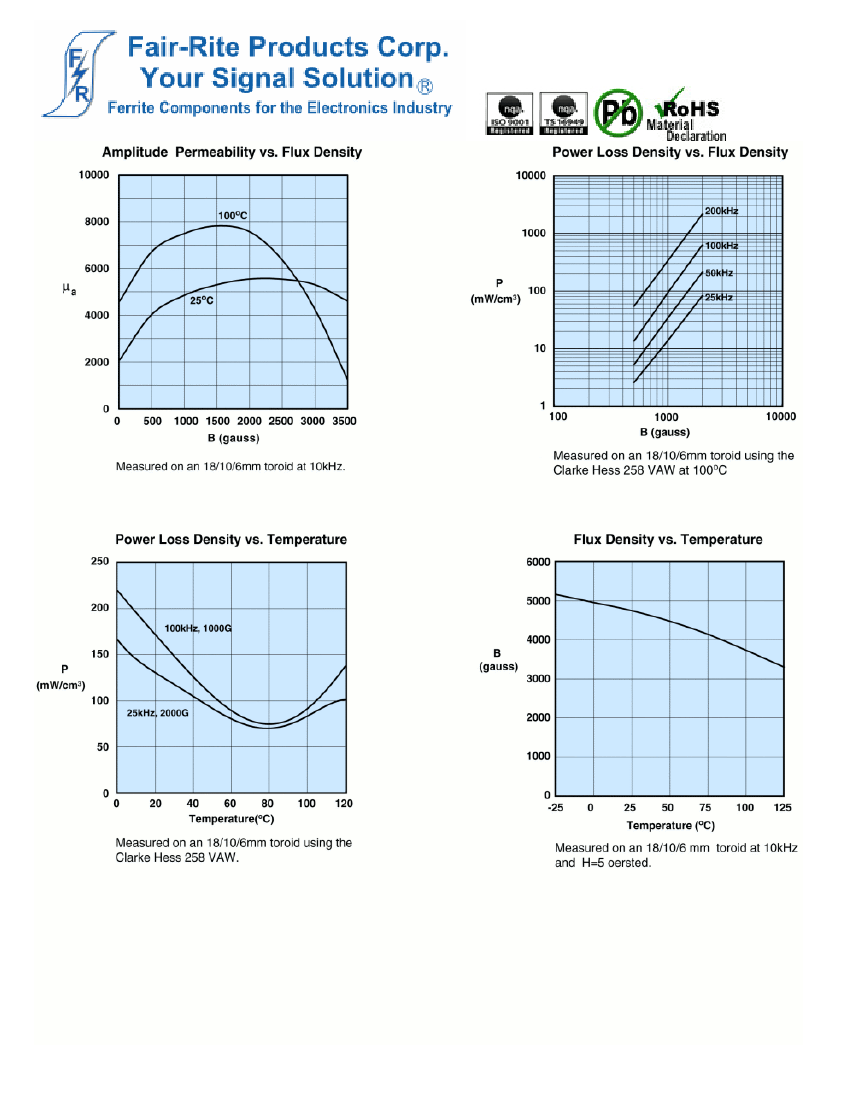

Fair-Rite Product's Catalog
Part Data Sheet, 3078990851
Printed: 2013-07-03
Fair-Rite Products Corp. PO Box J,One Commercial Row, Wallkill, NY 12589-0288
Phone: (888) 324-7748 www.fair-rite.com
