High Speed Translator Buffer to CMOS (Selectable Drive)
FEATURES
•
•
•
•
•
•
CMOS output
Selectable Drive capability (15pF or 30pF
output load).
Single AC coupled input (min. 100mV swing).
Input range from DC to 200 MHz.
2.5V to 3.3V operation.
Available in 8-Pin SOIC and 3x3mm QFN.
PIN CONFIGURATION
(TOP VIEW)
GND
REF_IN
GND
VDD
1
8
DRIV_SEL^
VDD
GND
CLK_OUT
ABB3007
2
3
4
7
6
5
DESCRIPTION
The ABB3007 is a low cost, high performance,
high speed, buffer that reproduces any input fre-
quency from DC to 200MHz. It provides CMOS
output with 15pF output load drive capability.
Any input signal with at least 100mV swing can
be used as reference signal. This chip is ideal
for conversion from sine wave to CMOS.
GND
9
8
7
6
5
VDD
11
DRIV_SEL^
GND
GND
OE^
12
13
14
15
16
VDD
10
VDD
CLK_OUT
VDD
N/C
GND
ABB3007
1
2
3
4
REF_IN
GND
GND
Note: ^ denotes internal pull up
BLOCK DIAGRAM
REF_IN
Input
CLK_OUT
Amplifier
30332 Esperanza., Rancho Santa Margarita, Ca 92688 Ph: 949-546-8000 Fax: 949-546-8001
www.Abracon.com
03/21/05 Page 1
GND
ABB3007
High Speed Translator Buffer to CMOS (Selectable Drive)
PIN DESCRIPTION
Name
GND
VDD
DRIV_SEL
REF_IN
CLK_OUT
OE
8pin SOIC
Pin number
1,3,6
4,7
8
2
5
N/A
3x3mm QFN
Pin number
1,2,4,5,
9,14,15
7,10,11,12
13
3
8
16
Type
P
P
I
I
O
I
Ground.
Description
Power supply.
Drive Select input: ‘1’ for standard drive, ‘0’ for hi-drive output.
Internal pull-up (default is ‘1’).
Reference input signal. The frequency of this signal will be
reproduced at the output (after translation to CMOS level).
CMOS clock output.
Output enable (‘1’ for enable). Internal pull-up (default is ‘1’).
ELECTRICAL SPECIFICATIONS
1. Absolute Maximum Ratings
PARAMETERS
Supply Voltage
Input Voltage, dc
Output Voltage, dc
Storage Temperature
Ambient Operating Temperature*
Junction Temperature
Lead Temperature (soldering, 10s)
ESD Protection, Human Body Model
SYMBOL
V
DD
V
I
V
O
T
S
T
A
T
J
MIN.
-0.5
-0.5
-65
-40
MAX.
4.6
V
DD
+0.5
V
DD
+0.5
150
85
125
260
2
UNITS
V
V
V
°C
°C
°C
°C
kV
Exposure of the device under conditions beyond the limits specified by Maximum Ratings for extended periods may cause permanent damage to the
device and affect product reliability. These conditions represent a stress rating only, and functional operations of the device at these or any other con-
ditions above the operational limits noted in this specification is not implied.
*
Note:
Operating Temperature is guaranteed by design for all parts (COMMERCIAL and INDUSTRIAL), but tested for COMMERCIAL grade only.
2. AC Specifications
PARAMETERS
Input Frequency
Input signal swing
Output Frequency
CONDITIONS
REF_IN input
MIN.
0
100
0
TYP.
MAX.
200
200
UNITS
MHz
mV
MHz
30332 Esperanza., Rancho Santa Margarita, Ca 92688 Ph: 949-546-8000 Fax: 949-546-8001
www.Abracon.com
03/21/05 Page 2
ABB3007
High Speed Translator Buffer to CMOS (Selectable Drive)
3. CMOS Output Electrical Specifications
PARAMETERS
Output High Voltage
Output Low Voltage
Output High Voltage at CMOS
level
Output drive current
SYMBOL
V
OH
V
OL
V
OHC
CONDITIONS
I
OH
= -12mA
I
LO
= 12mA
I
OH
= -4mA
At TTL level (High drive*)
At TTL level (Standard drive)
MIN.
2.4
TYP.
MAX.
0.4
UNITS
V
V
V
V
DD
– 0.4
36
12
51
17
mA
mA
* Note: High Drive CMOS is selectable through DRIV_SEL selector input on pin 8(SOIC) or 13(QFN).
4. CMOS Switching Characteristics
PARAMETERS
Output Clock Rise/Fall Time
Output Clock Rise/Fall Time
(High Drive*)
SYMBOL
0.8V
0.3V
0.8V
0.3V
~
~
~
~
CONDITIONS
2.0V
3.0V
2.0V
3.0V
with
with
with
with
10
15
10
15
pF
pF
pF
pF
load
load
load
load
MIN.
TYP.
1.15
3.7
0.5
1.5
MAX.
UNITS
ns
* Note: High Drive CMOS is selectable through DRIV_SEL selector input on pin 8(SOIC) or 13(QFN).
30332 Esperanza., Rancho Santa Margarita, Ca 92688 Ph: 949-546-8000 Fax: 949-546-8001
www.Abracon.com
03/21/05 Page 3
ABB3007
High Speed Translator Buffer to CMOS (Selectable Drive)

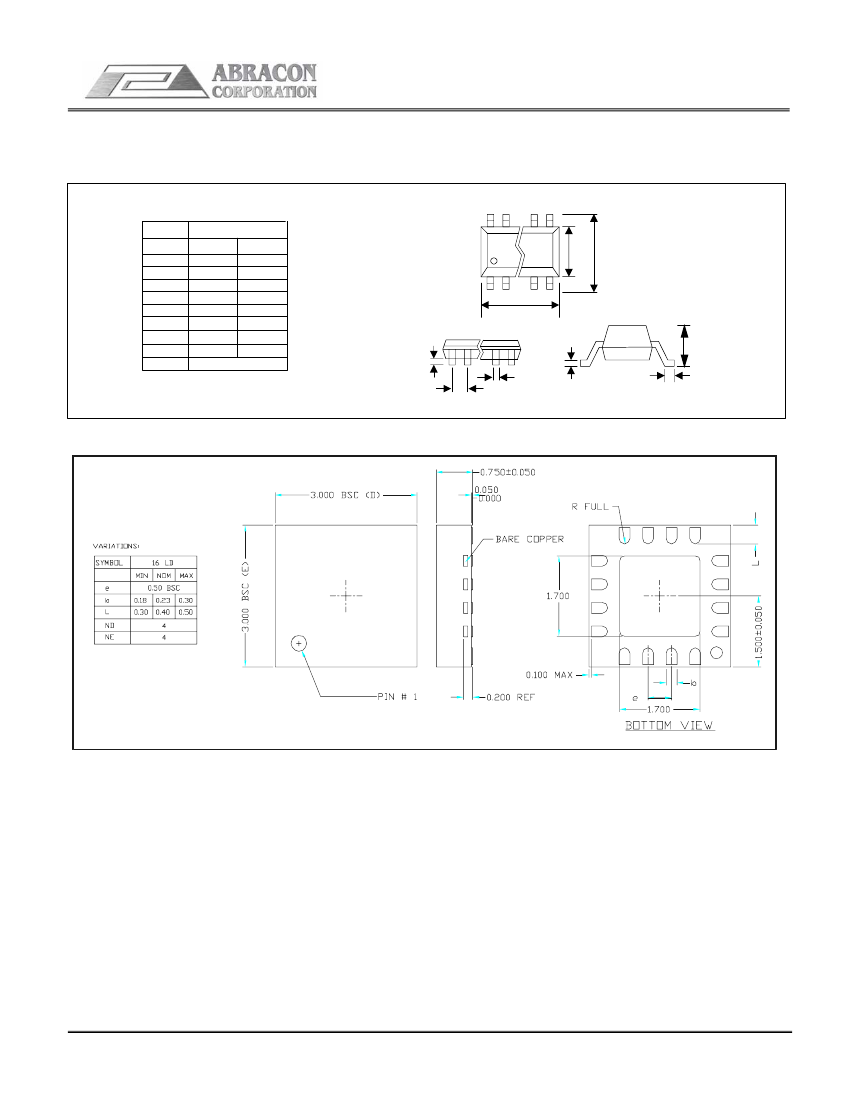

PACKAGE INFORMATION
8 PIN ( dimensions in mm )
Narrow SOIC
Symbol
A
A1
B
C
D
E
H
L
e
Min.
1.47
0.10
0.33
0.19
4.80
3.80
5.80
0.38
Max.
1.73
0.25
0.51
0.25
4.95
4.00
6.20
1.27
1.27 BSC
A
A
1
B
e
C
L
D
E
H
30332 Esperanza., Rancho Santa Margarita, Ca 92688 Ph: 949-546-8000 Fax: 949-546-8001
www.Abracon.com
03/21/05 Page 4
ABB3007
High Speed Translator Buffer to CMOS (Selectable Drive)
ORDERING INFORMATION
For part ordering, please contact our Sales Department:
30332 Esperanza., Rancho Santa Margarita, Ca 92688
Ph: 949-546-8000 Fax: 949-546-8001
PART NUMBER
The order number for this device is a combination of the following:
Device number, Package type and Operating temperature range
ABB3007
PART NUMBER
xC
TEMPERATURE
C=COMMERCIAL
I=INDUSTRAL
PACKAGE TYPE
S=SOIC; Q=QFN
Order Number
ABB3007QC-T
ABB3007QC
ABB3007SC-T
ABB3007SC
Marking
A3007QC
A3007QC
ABB3007SC
ABB3007SC
Package Option
QFN - Tape and Reel
QFN - Tube
SOIC -Tape and Reel
SOIC - Tube
Abracon Corporation, reserves the right to make changes in its products or specifications, or both at any time without notice. The information fur-
nished by Abracon is believed to be accurate and reliable. However, Abracon makes no guarantee or warranty concerning the accuracy of said infor-
mation and shall not be responsible for any loss or damage of whatever nature resulting from the use of, or reliance upon this product.
LIFE SUPPORT POLICY:
Abracon’s products are not authorized for use as critical components in life support devices or systems without the express
written approval of the President of Abracon Corporation.
30332 Esperanza., Rancho Santa Margarita, Ca 92688 Ph: 949-546-8000 Fax: 949-546-800
