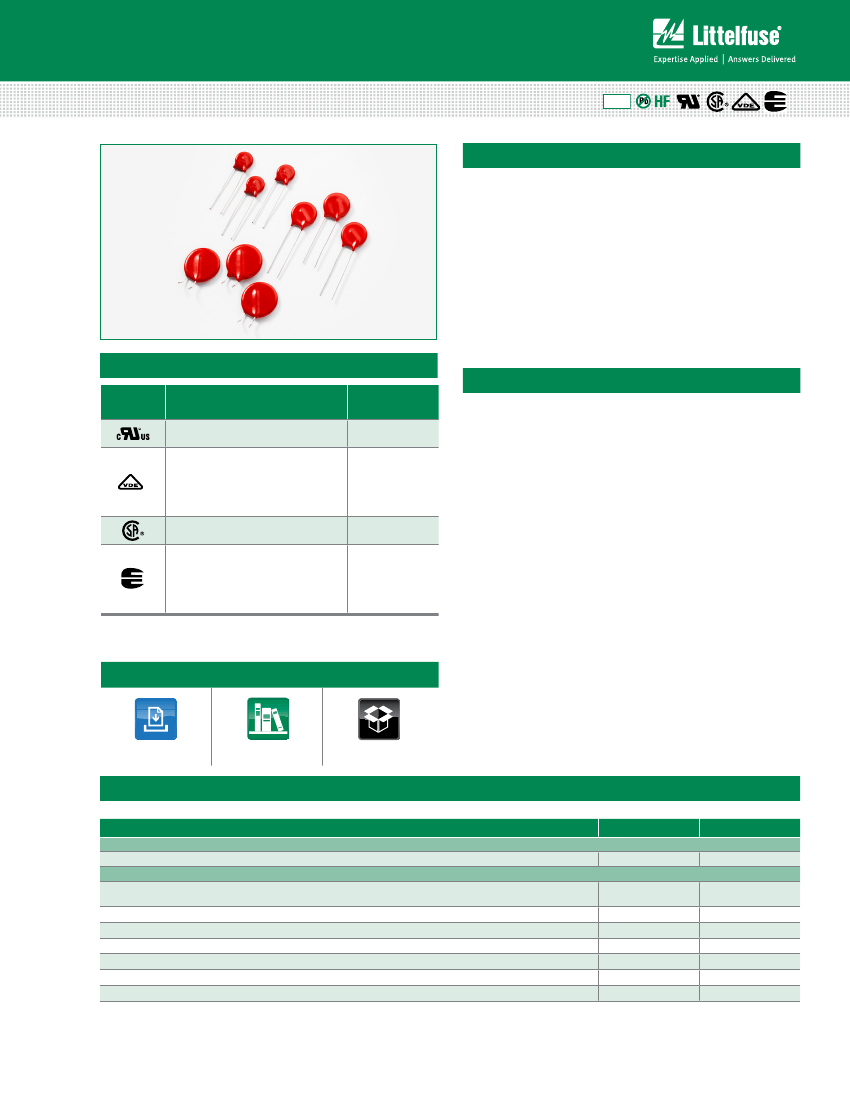

The C-III Varistor Series of Metal-Oxide Varistors (MOVs)
are specifically designed for applications requiring high
surge energy absorption ratings and superior multiple
pulse absorption rating. This is achieved through a special
dielectric material formulation which also results in
higher repetitive surge ratings than other MOV types.
The C-III Varistor Series is primarily intended for use in
AC line Surge Protection Device (SPD) product and other
similar applications requiring high transient energy and
peak current capability in a relatively small package size.
Agency Approvals
Agency
Agency Approval
Agency File
Number
Features
• Lead–free, Halogen-
Free and RoHS
compliant
• High energy
absorption capability
W
TM
40J to 530J (2ms)
• High pulse life rating
• High peak pulse
current capability
I
TM
3500A to
10,000A (8/20µs)
• Wide operating
voltage range
V
M(AC)RMS
130V to 1000V
• Available in tape and
reel for automatic
insertion; Also available
with crimped and/or
trimmed lead styles
• No derating up to
85ºC ambient
• The C-III Series is
supplied in 10mm,
14mm and 20mm
disc versions with
various lead options
UL1449
CECC 42201-006
IEC 61051-1
IEC 61051-2
IEC 60950-1 (Annex Q) for 14mm
and 20mm only
C22.2 No. 8
CECC 42201-006
IEC 61051-1
IEC 61051-2
IEC 60950-1 (Annex Q) for 14mm
and 20mm only
E320116
116895
91788
E1273/F
Additional Information
Datasheet
Resources
Samples
Absolute Maximum Ratings
• For ratings of individual members of a series, see Device Ratings and Specifications chart
Continuous
Steady State Applied Voltage:
AC Voltage Range (V
M(AC)RMS
)
Transients:
(See

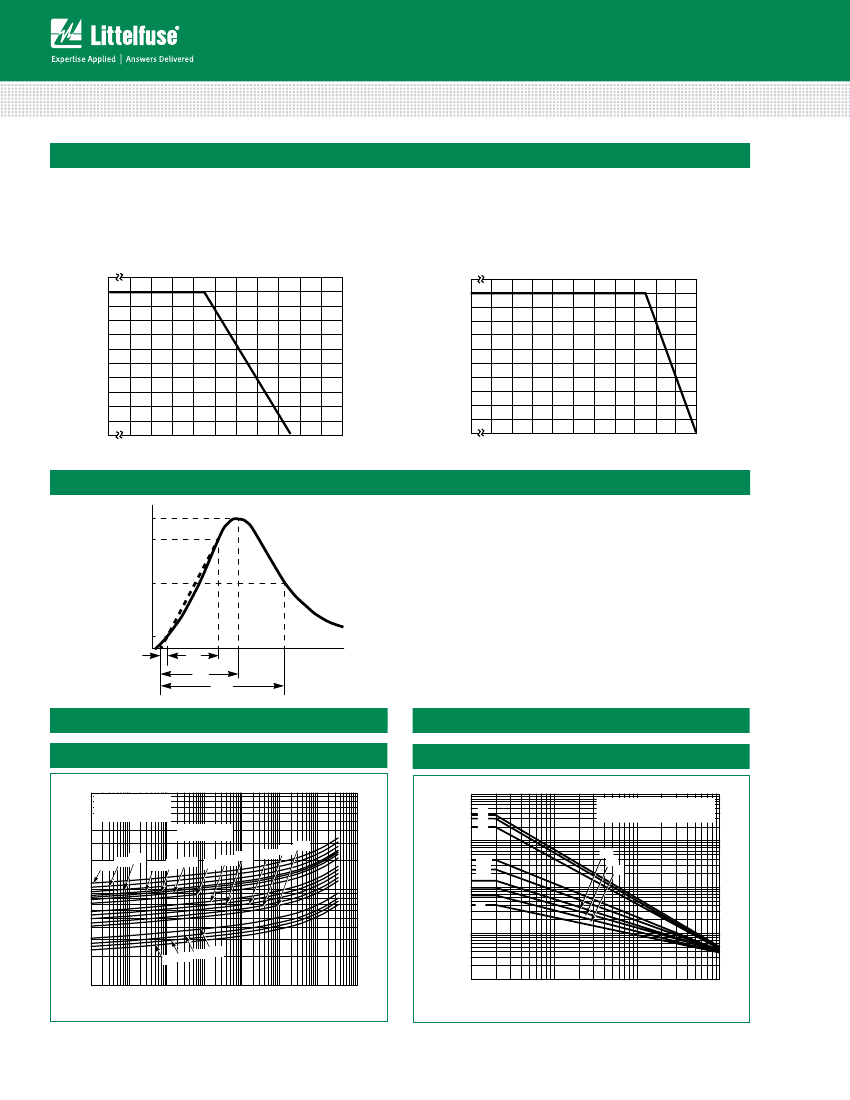

Peak Pulse Current Test Waveform)
C-III Series
130 to 1000
3500 to 10,000
40 to 530
-55 to +85
-55 to +125
<0.01
2500
1000
Units
V
A
J
ºC
ºC
%/ºC
V
MΩ
Single-Pulse Peak Current (I
TM
) 8/20µs Wave
Single-Pulse Energy Range (W
TM
) 2ms Rectangular Wave
Operating Ambient Temperature Range (T
A
)
Storage Temperature Range (T
STG
)
Temperature Coefficient (a ) of Clamping Voltage (V
C
) at Specified Test Current
V
Hi-Pot Encapsulation (COATING Isolation Voltage Capability)
COATING Insulation Resistance
CAUTION: Stresses above those listed in "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress only rating and operation of the device at these or
any other conditions above those indicated in the operational sections of this specification is not implied.
