71J36-01-1-05S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 71J36-01-1-05S

71J36-01-1-05S: DescriptionKeylock Switches Keylock Switch, Anti-static solder lug, 36°, 1 deck, 1 pole/deck, 5 position/pole, shorting; CategoryMechanical and electronic products switch; File Size297KB，2 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com; Environmental Compliance

Download Datasheet Parametric View All

71J36-01-1-05S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	71J36-01-1-05S	-	-	View	Buy Now

71J36-01-1-05S Overview

Keylock Switches Keylock Switch, Anti-static solder lug, 36°, 1 deck, 1 pole/deck, 5 position/pole, shorting

71J36-01-1-05S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Grayhill
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	16 weeks
body height	62 mm
Body length or diameter	22.86 mm
Maximum contact current (AC)	0.25 A
Maximum contact current (DC)	0.25 A
Electrical life	15000 Cycle(s)
Graduation angle	36 deg
Installation features	PANEL MOUNT-THREADED
Number of independent keys	1
Number of switching segments	1
surface mount	NO
Switch action	LATCHED
switch function	SP5T
Switch type	KEYLOCK SWITCH
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

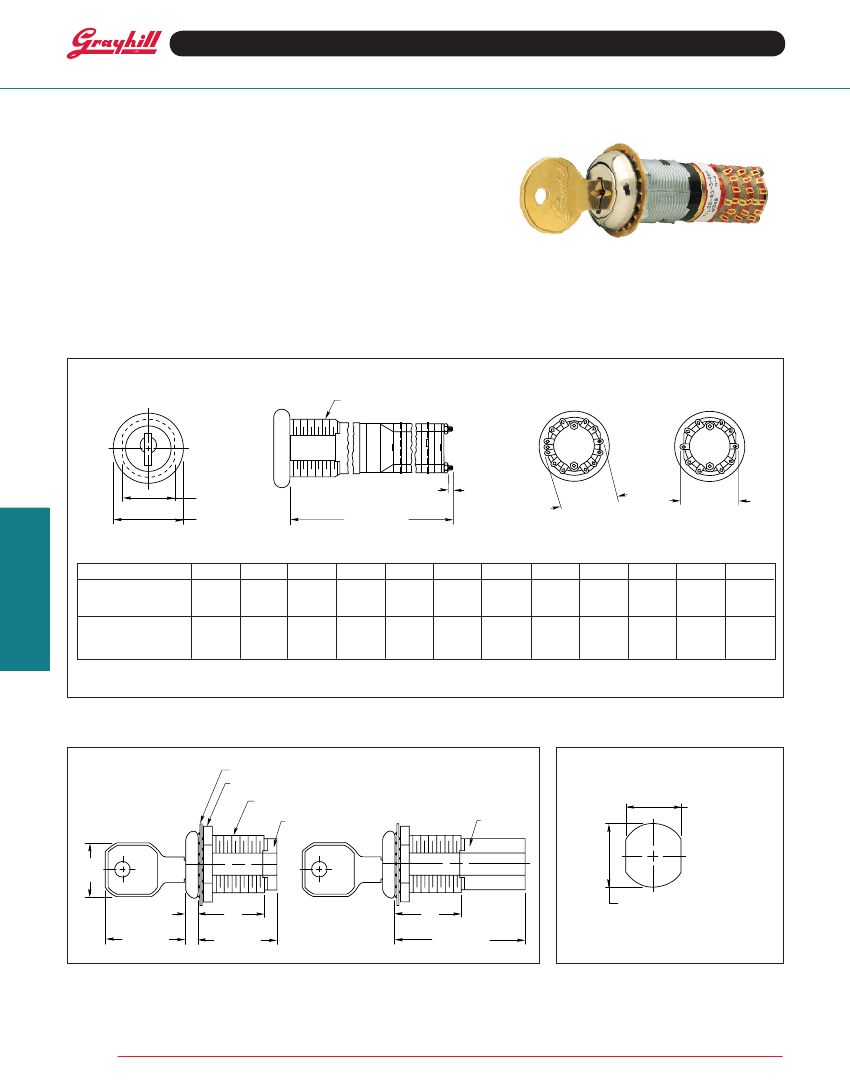

Keylock Rotary Switches

SerieS 71 J and L

Multi-Deck, Standard &

Anti-Static

Lock feAtureS

• Economical

• Standard or Anti-Static Style

• 5-Plates, 1-Sided Key

Switch feAtureS

• Economical

• 36° or 30° Throws

• Up to 16 Poles Per Switch

• 250 mA for 15,000 Cycles

DiMeNSioNS

in inches (and millimeters)

30°

3/4-24 UNS-2A

THREAD

GRAYHILL

Key slot shown in position 1.

Key to be inserted with cut

side down.

36°

GRAYHILL

0.687 ± .010

(17,45 ± 0,25)

0.900 ± .005

(22,86 ± 0,13)

DIMENSION A

DIM. B

.685 ± .015

(17,4 ± 0,4)

OVER TERMINALS

.685 ± .015

(17,4 ± 0,4)

OVER TERMINALS

Note: Switch/key positions are not aligned with terminal positions.

Number of decks

Dim. A, Style J (in.)

Dim. A, Style L (in.)

Dim. B Style J & L(in.)

Dim. A, Style J (mm)

Dim. A, Style L (mm)

Dim. B Style J & L(mm)

2.441

1.811

.031

62,00

46,00

0,79

2.659

2.029

.031

67,54

51,54

0,79

2.877

2.247

.031

73,08

57,07

0,79

3.095

2.465

.031

78,61

62,61

0,79

3.313

2.683

.031

84,15

68,15

0,79

3.811

3.181

.312

96,80

80,80

7,92

4.029

3.399

.312

102,34

86,33

7,92

4.247

3.617

.312

107,87

91.87

7,92

4.465

3.835

.312

113,41

97,41

7,92

4.683

4.053

.312

118,95

102,95

7,92

4.901

4.271

.312

124,49

108.48

7,92

For switch specifications and additional dimensions, see Standard Switch Pages.

Grayhill part number and date code marked on label.

Customer part number marked on request.

Lock DetAiL

LOCKWASHER

LOCKWASHER IS

1.062 ± .022

(26,97 ± 0,56) DIA. BY

.022 (0,56) THICK

MOUNTING NUT

3/4-24 UNS-2A

THREAD

LOCK

ADAPTOR

A = .218 (5,54)

B = .875 ± .020 (22,23 ± 0,51)

NUT IS APPROXIMATELY

.875 (22,23) ACROSS FLATS

recoMMeNDeD PANeL cut

ANTI-STATIC

ADAPTOR

.691 + .010 –.000

(17,55 + 0,25)

.730

(18,54)

.750 + .015 –.000

(19,05 + 0,38)

1.680 (42,67)

1.0 (25,4)

REF.

1.050 (26,25)

REF.

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois

60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com

Rotary Switches

5.119

4.489

.312

130,02

114,02

7,92
