Surface Mount Polyethylene Naphthalate (PEN) Film Capacitor
LDE, Unencapsulated Stacked Chip,
Size 1206 – 6054, 50 – 1,000 VDC (Automotive Grade)

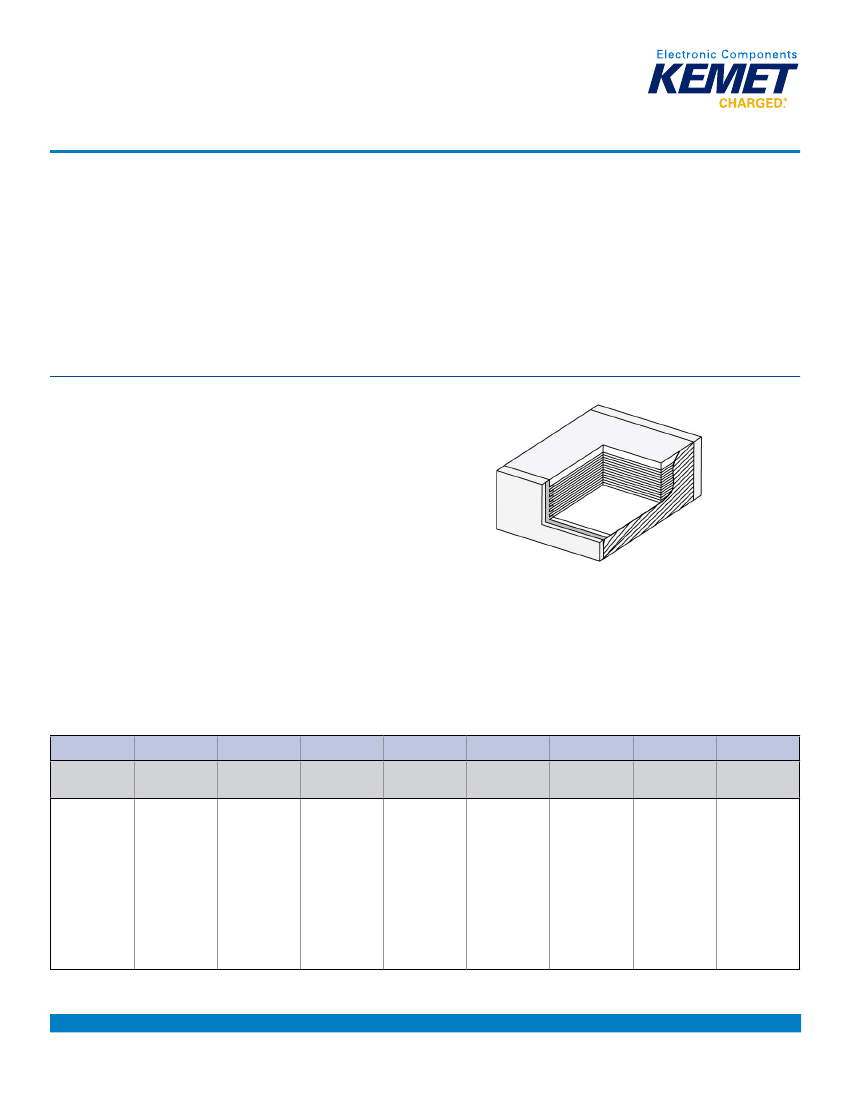

Overview
Polyethylene naphthalate (PEN) film capacitor for surface
mounting which meets the demanding Automotive
Electronics Council's AEC–Q200 qualification requirements.
Applications
Typical applications include filtering, timing, bypassing and
coupling. LDE is a general purpose series designed for the
highest reliability and high temperature service. Not suitable
for across-the-line application (see suppressor capacitors).
Benefits
• Rated voltage: 50 – 1,000 VDC
• Rated voltage: 40 – 250 VAC
• Capacitance range: 0.001 – 4.7 µF
• EIA size: 1206 – 6054
• Capacitance tolerance: ±10%, ±20%, ±5% on request
• Climatic category: 55/125/56
• RoHS Compliant and lead-free terminations
• Operating temperature range of −55°C to +125°C
• Automotive (AEC–Q200) grades available
Part Number System
LDE
Series
Metallized
PEN
C
Rated Voltage
(VDC)
C = 50
D = 63
E = 100
I = 250
M = 400
P = 630
Q = 1,000
C
Size Code
See
Dimension
Table
2560
Capacitance
Code (pF)
Digits two –
four indicate
the first three
digits of the
capacitance
value.
First digit
indicates the
number of
zeros to be
added.
M
Capacitance
Tolerance
K = ±10%
M = ±20%
J = ±5% on
request
A
Dielectric
A = PEN
5
Version
5 = Standard
0 = Miniature
N
Packaging
See Ordering
Options Table
00
Internal Use
00 (Standard)
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3078_LDE • 7/31/2017
1

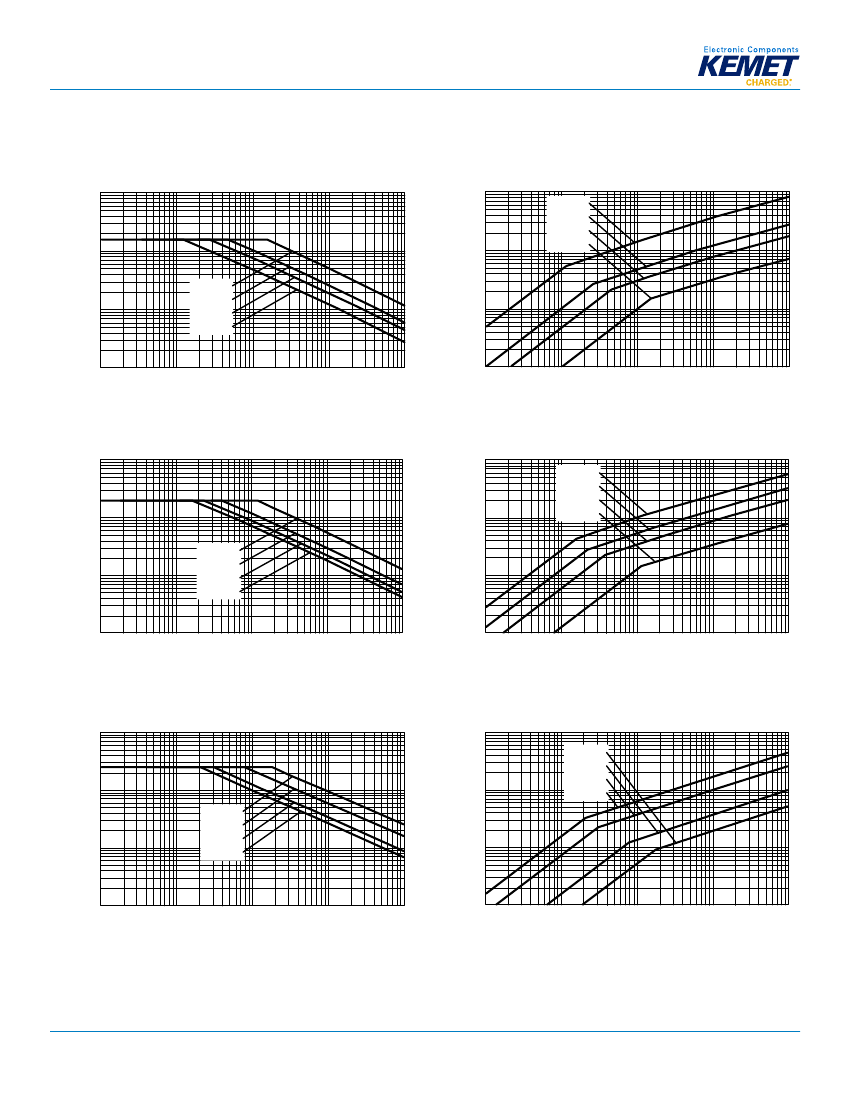

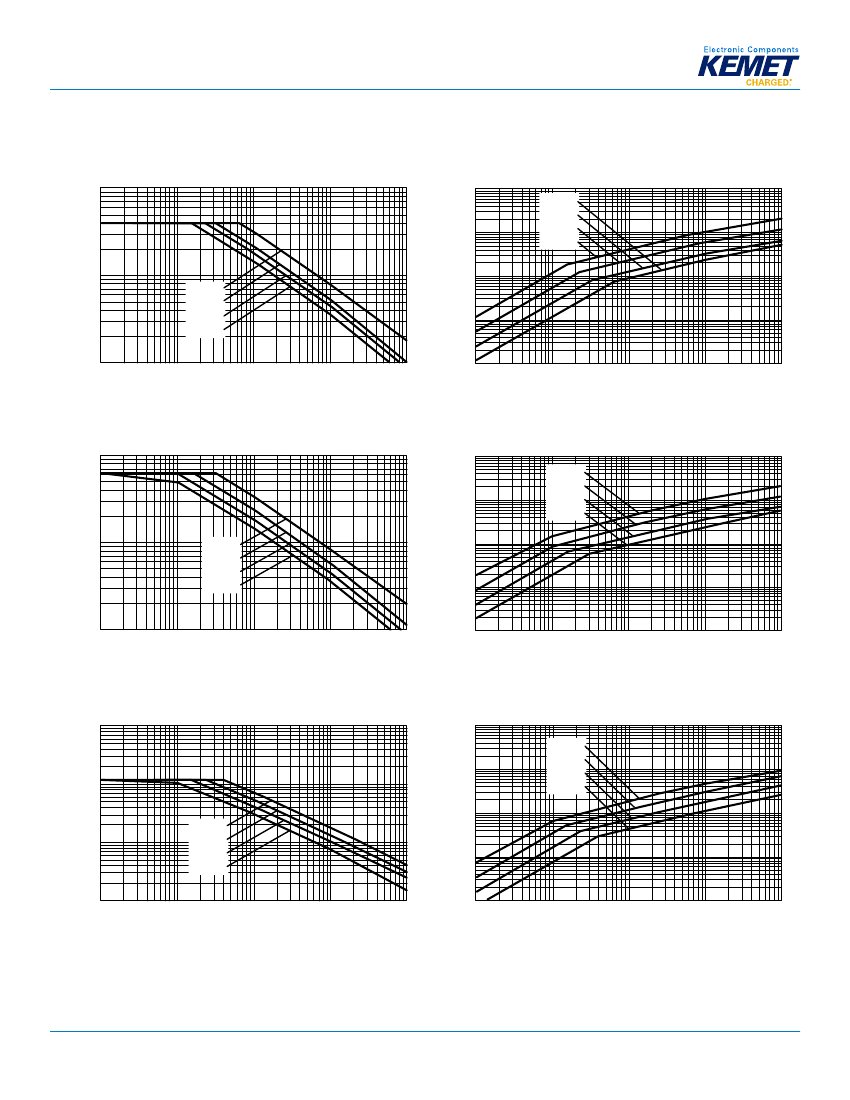

Surface Mount Polyethylene Naphthalate (PEN) Film Capacitor
LDE, Unencapsulated Stacked Chip, Size 1206 – 6054, 50 – 1,000 VDC (Automotive Grade)
Ordering Options Table
Packaging Type
Standard Packaging Options
Tape and Reel (Standard Reel)
N
Packaging
Code
Dimensions – Millimeters
W
L
H
B
Size Code
A
B
C
D
E
F
G
H
Chip Size
(EIA)
1206
1210
1812
2220
2824
4030
5040
6054
W
Nominal
1.7
2.5
3.3
5.0
6.1
7.9
10.4
13.7
Tolerance
±0.2
±0.3
±0.3
±0.4
±0.4
±0.5
±0.5
±0.5
H
(Maximum)
L
Nominal
3.3
3.3
4.7
6.0
7.3
10.5
13.0
15.5
Tolerance
+0.3/−0.1
+0.3/−0.1
+0.3/−0.2
±0.3
±0.4
±0.4
±0.4
+0.4/−0.9
Nominal
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
B
Tolerance
+0.5/−0.3
+0.5/−0.3
+0.5/−0.3
+0.5/−0.3
+0.5/−0.3
+0.5/−0.3
+0.5/−0.3
+0.5/−0.3
See Part Number Table
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3078_LDE • 7/31/2017
2
Surface Mount Polyethylene Naphthalate (PEN) Film Capacitor
LDE, Unencapsulated Stacked Chip, Size 1206 – 6054, 50 – 1,000 VDC (Automotive Grade)
Performance Characteristics
Rated Voltage (VDC)
Rated Voltage (VAC)
Capacitance Range (μF)
Chip Size (EIA)
Capacitance Values
Capacitance Tolerance
Category Temperature
Range
Rated Temperature
Voltage Derating
Climatic Category
Capacitance Drift
50
40
0.001 – 4.7
1206 – 6054
E12 series
±10%, ±20%, ±5% on request
−55°C to +125°C
+105°C
Vc (category voltage) = Vr (rated voltage) up to 105°C. Vc is decreased with 1.25%/°C from +105°C to +125°C
55/125/56
Maximum 3% (sizes ≤ 22.20) after a 2 year storage period at a temperature of +10°C to +40°C and a relative
humidity of 40% to 60%
Maximum 2% (sizes > 22.20) after a 2 year storage period at a temperature of +10°C to +40°C and a relative
humidity of 40% to 60%
Failure rate ≤ 1 FIT, T = +40°C, V = 0.5 x V
R
1 FIT = 10
−9
failures / (components * hours)
Failure criteria: open or short circuit, cap. change > 10%, DF 2 times the catalog limits, IR < 0.005 x initial limit
Measured at +25°C ±5°C
Minimum Value Between Terminals
C ≤ 0.33 µF
Insulation Resistance
C > 0.33 µF
Charging time: 1 minute
Charging voltage:
10 V
DC
for V
R
< 100 V
DC
100 V
DC
for V
R
≥ 100 V
DC
Dissipation Factor
Maximum Values at 25°C ±5°C
1 kHz
1.4 x V
R
(2 seconds; T = 25 ± 5°C) for V
R
≤ 630 V
DC
1.5 x V
R
(2 seconds; T = 25 ± 5°C) for V
R
= 1,000 V
DC
100 V/us for V
R
≤ 630 V
DC
300 V/us for V
R
= 1,000 V
DC
0.8%
1,000 MΩ
400 MΩ • µF
63
40
0.001 – 4.7
100
63
0.001 – 4.7
250
120
0.001 – 1.5
400
160
0.015 – 0.47
630
200
0.001 – 0.27
1,000
250
0.001 – 0.1
Reliability
(Reference MIL-HDBK-217)
Surge Voltage Test
Maximum dv/dt
Qualification
Automotive Grade products meet or exceed the requirements outlined by the Automotive Electronics Council. Details
regarding test methods and conditions are referenced in document AEC–Q200, Stress Test Qualification for Passive
Components. For additional information regarding the Automotive Electronics Council and AEC–Q200, please visit their
website at www.aecouncil.com.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3078_LDE • 7/31/2017
3
Surface Mount Polyethylene Naphthalate (PEN) Film Capacitor
LDE, Unencapsulated Stacked Chip, Size 1206 – 6054, 50 – 1,000 VDC (Automotive Grade)
Maximum V
rms
and I
rms
vs. Frequency (Sinusoidal Waveform/Th* ≤ +85°C)
50 - 63 VDC/40 VAC
100
100
10
V
RMS
[V]
10
I
RMS
[A]
1
50 - 63 VDC/40 VAC
0.47 µF
1.0 µF
2.2 µF
4.7 µF
0.47 µF
1.0 µF
2.2 µF
4.7 µF
0.1
0.01
0.1
1
0.1
1
10
f [kHz]
100
1,000
1
10
f [kHz]
100
1,000
100 VDC/63 VAC
100
100
10
V
RMS
[V]
10
I
RMS
[A]
0.47 µF
1.0 µF
2.2 µF
4.7 µF
100 VDC/63 VAC
4.7 µF
2.2 µF
1.0 µF
0.47 µF
1
0.1
0.01
0.1
1
0.1
1
10
f [kHz]
100
1,000
1
10
f [kHz]
100
1,000
250 VDC/120 VAC
1,000
100
10
I
RMS
[A]
1
250 VDC/120 VAC
0.1 µF
0.22 µF
0.47 µF
1.0 µF
100
V
RMS
[V]
0.1 µF
0.22 µF
0.47 µF
1.0 µF
10
0.1
0.01
0.1
1
0.1
1
10
f [kHz]
100
1,000
1
10
f [kHz]
100
1,000
*Maximum ambient temperature surrounding the capacitor or hottest contact point, e.g., tracks, whichever is higher, in the worst operating conditions in
°C.
Measurements performed in free air condition.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3078_LDE • 7/31/2017
4
Surface Mount Polyethylene Naphthalate (PEN) Film Capacitor
LDE, Unencapsulated Stacked Chip, Size 1206 – 6054, 50 – 1,000 VDC (Automotive Grade)
Maximum V
rms
and I
rms
vs. Frequency (Sinusoidal Waveform/Th* ≤ +85°C)
400 VDC/160 VAC
1,000
400 VDC/160 VAC
10
0.47 µF
0.1 µF
0.047 µF
0.01 µF
100
V
RMS
[V]
0.01 µF
0.047 µF
0.1 µF
0.47 µF
1
I
RMS
[A]
0.1
0.01
0.1
10
1
0.1
1
10
f [kHz]
100
1,000
1
10
f [kHz]
100
1,000
630 VDC/200 VAC
1,000
10
630 VDC/200 VAC
0.22 µF
0.1 µF
0.047 µF
0.01 µF
100
V
RMS
[V]
0.01 µF
0.047 µF
0.1 µF
0.22 µF
1
I
RMS
[A]
0.1
0.01
0.1
10
1
0.1
1
10
f [kHz]
100
1,000
1
10
f [kHz]
100
1,000
1,000 VDC/250 VAC
1,000
10
1,000 VDC/250 VAC
3,300 pF
0.01 µF
0.047 µF
0.1 µF
100
V
RMS
[V]
3,300 pF
0.01 µF
0.047 µF
0.1 µF
1
I
RMS
[A]
0.1
0.01
0.1
10
1
0.1
1
10
f [kHz]
100
1,000
1
10
f [kHz]
100
1,000
*Maximum ambient temperature surrounding the capacitor or hottest contact point, e.g., tracks, whichever is higher, in the worst operating conditions in
°C.
Measurements performed in free air condition.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3078_LDE • 7/31/2017
5
